MAGIC – Mod. SR

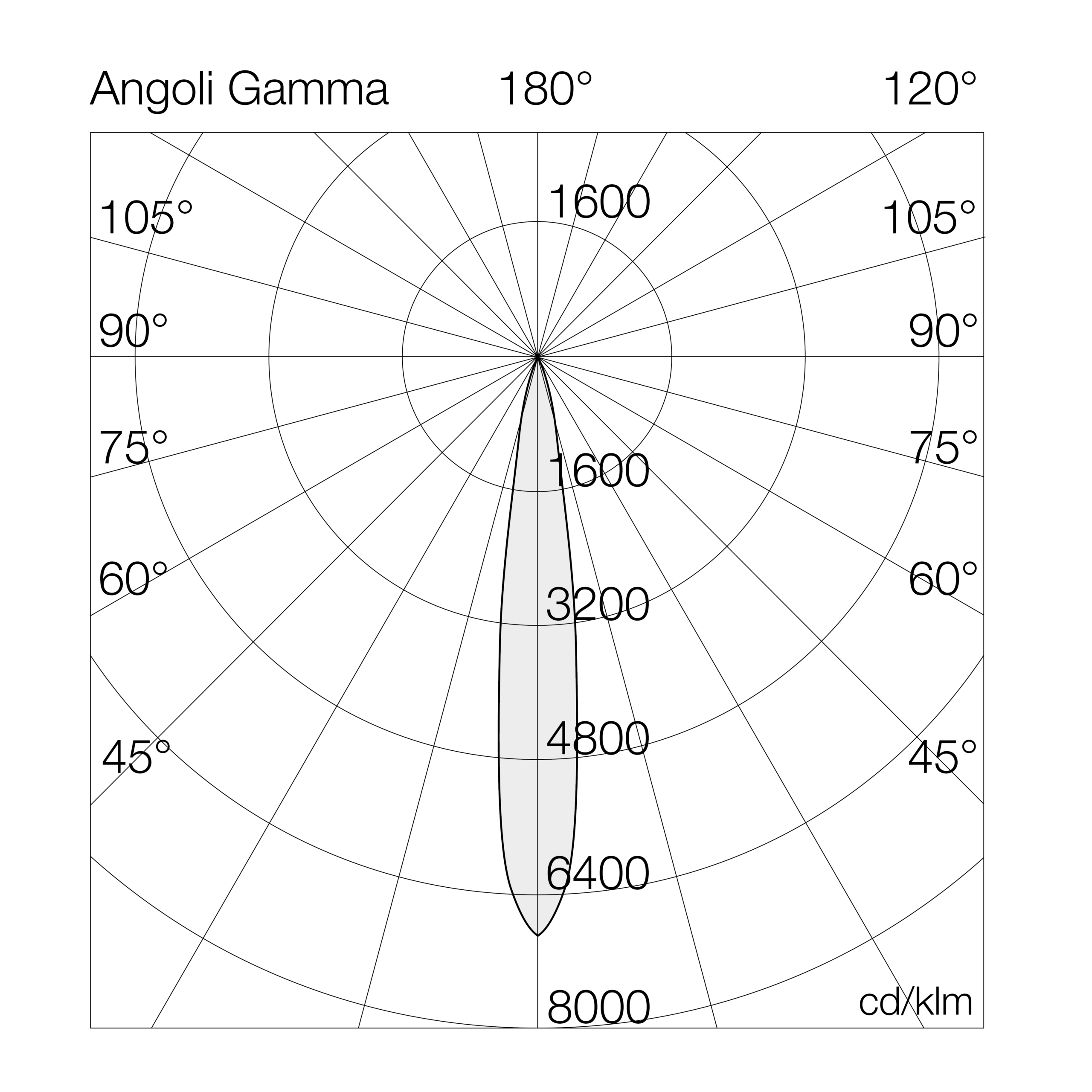

(15° focusing optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 15° concentrating optics.
Categories: Led, MAGIC - 7101, Floodlights, MAGIC
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7101SR4= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= input 400Vac
380GX= 1-10v + dmx
410MG= virtual midnight
450
480

Models

W tot.
°K - CRI
Options

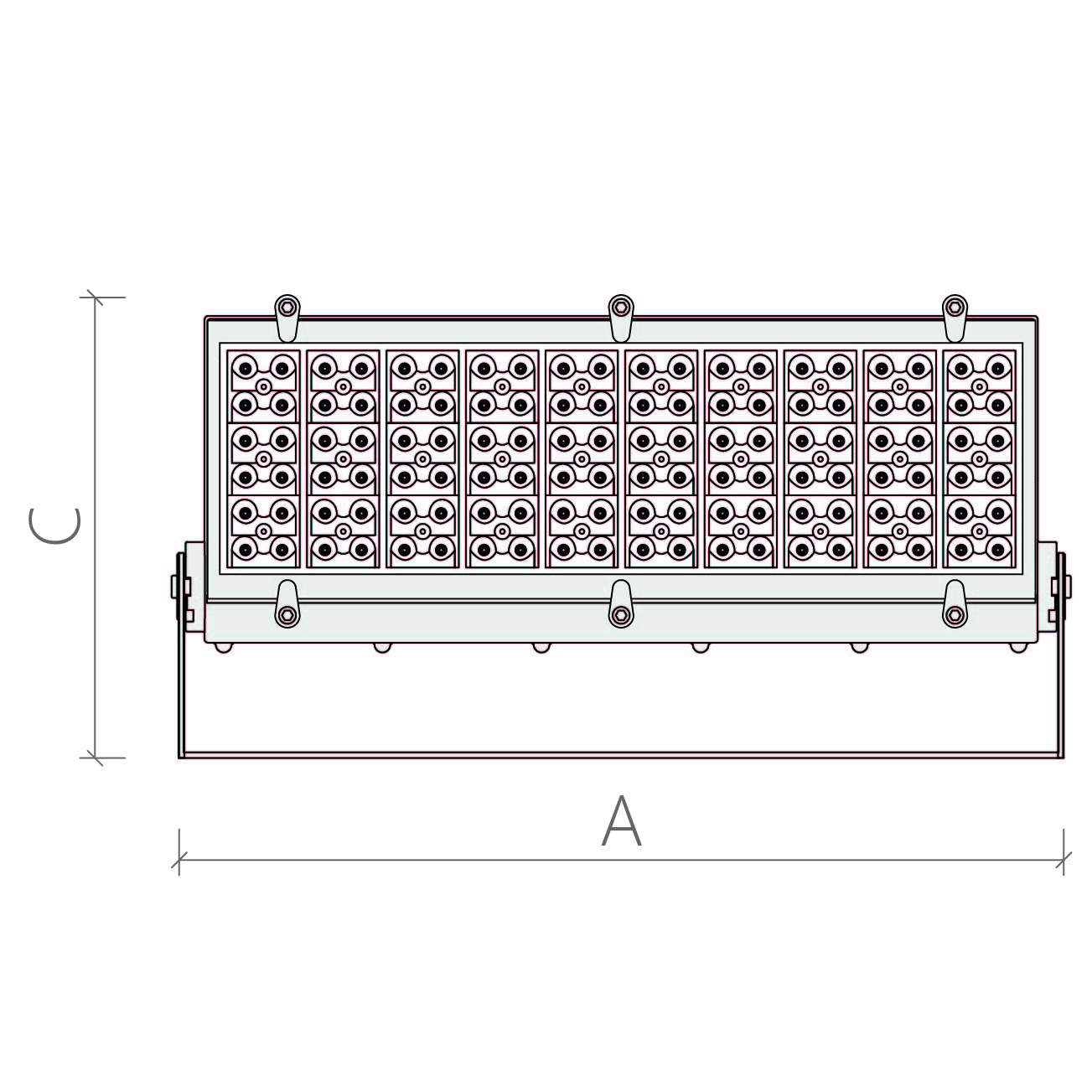

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7101SR4300GL300-4000°K - CRI>70on/off45872156612163309-10.5
7101SR4320GL320-4000°K - CRI>70on/off47709152612163309-10.5
7101SR4340GL340-4000°K - CRI>70on/off52623158612163309-10.5
7101SR4380GL380-4000°K - CRI>70on/off57340154612163309-10.5
7101SR4410GL410-4000°K - CRI>70on/off61891154612163309-10.5
7101SR4450GL450-4000°K - CRI>70on/off66269150612163309-10.5
7101SR4480GL480-4000°K - CRI>70on/off68394145612163309-10.5
7101SR4300GM300-4000°K - CRI>701-10v45872156612163309-10.5
7101SR4320GM320-4000°K - CRI>701-10v47709152612163309-10.5
7101SR4340GM340-4000°K - CRI>701-10v52623158612163309-10.5
7101SR4380GM380-4000°K - CRI>701-10v57340154612163309-10.5
7101SR4410GM410-4000°K - CRI>701-10v61891154612163309-10.5
7101SR4450GM450-4000°K - CRI>701-10v66269150612163309-10.5
7101SR4480GM480-4000°K - CRI>701-10v68394145612163309-10.5
7101SR4300GD300-4000°K - CRI>70dali45872156612163309-10.5
7101SR4320GD320-4000°K - CRI>70dali47709152612163309-10.5
7101SR4340GD340-4000°K - CRI>70dali52623158612163309-10.5
7101SR4380GD380-4000°K - CRI>70dali57340154612163309-10.5
7101SR4410GD410-4000°K - CRI>70dali61891154612163309-10.5
7101SR4450GD450-4000°K - CRI>70dali66269150612163309-10.5
