MAGIC 2 – Mod. AR

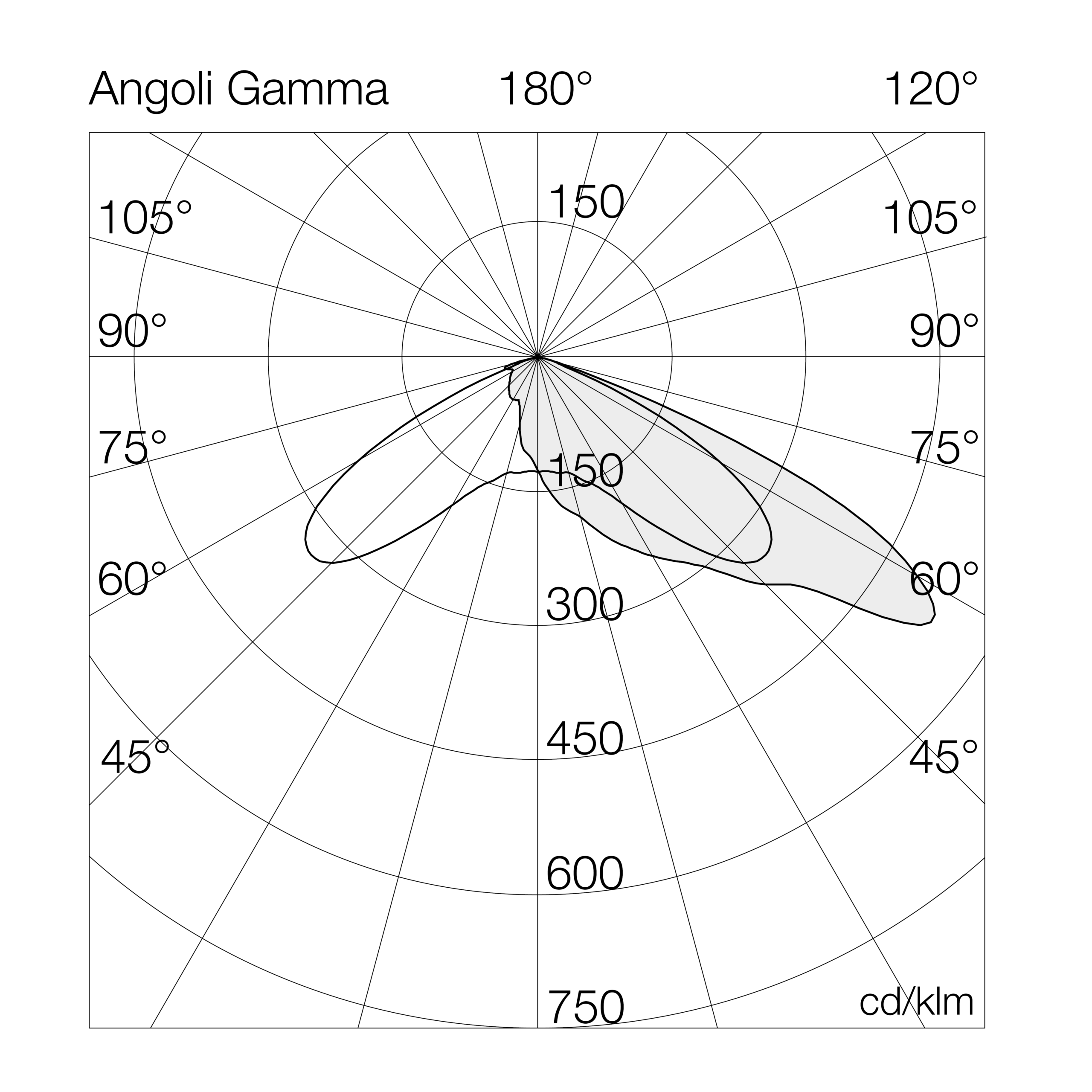

(65° asymmetrical wide beam optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Asymmetrical 65° wide-beam optics.
Categories: Led, MAGIC 2 - 7102, Floodlights, MAGIC 2
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102AR4= 4000°K (CRI >70)480GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550GD= dali (converter)
R= 5700°K (CRI >90)600G4= input 400Vac
900GX= 1-10v + dmx
960MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7102AR4480GL480-4000°K - CRI>70on/off78094166655350550-21.5
7102AR4550GL550-4000°K - CRI>70on/off87383162655350550-21.5
7102AR4600GL600-4000°K - CRI>70on/off96415164655350550-21.5
7102AR4900GL900-4000°K - CRI>70on/off132459150655350550-21.5
7102AR4960GL960-4000°K - CRI>70on/off136706145655350550-21.5
7102AR4480GM480-4000°K - CRI>701-10v78094166655350550-21.5
7102AR4550GM550-4000°K - CRI>701-10v87383162655350550-21.5
7102AR4600GM600-4000°K - CRI>701-10v96415164655350550-21.5
7102AR4900GM900-4000°K - CRI>701-10v132459150655350550-21.5
7102AR4960GM960-4000°K - CRI>701-10v136706145655350550-21.5
7102AR4480GD480-4000°K - CRI>70dali78094166655350550-21.5
7102AR4550GD550-4000°K - CRI>70dali87383162655350550-21.5
7102AR4600GD600-4000°K - CRI>70dali96415164655350550-21.5
7102AR4900GD900-4000°K - CRI>70dali132459150655350550-21.5
7102AR4960GD960-4000°K - CRI>70dali136706145655350550-21.5
7102AR4480G4480-4000°K - CRI>70input 400Vac78094166655350550-21.5
7102AR4550G4550-4000°K - CRI>70input 400Vac87383162655350550-21.5
7102AR4600G4600-4000°K - CRI>70input 400Vac96415164655350550-21.5
7102AR4900G4900-4000°K - CRI>70input 400Vac132459150655350550-21.5
7102AR4960G4960-4000°K - CRI>70input 400Vac136706145655350550-21.5
