MAGIC 2 – Mod. CR

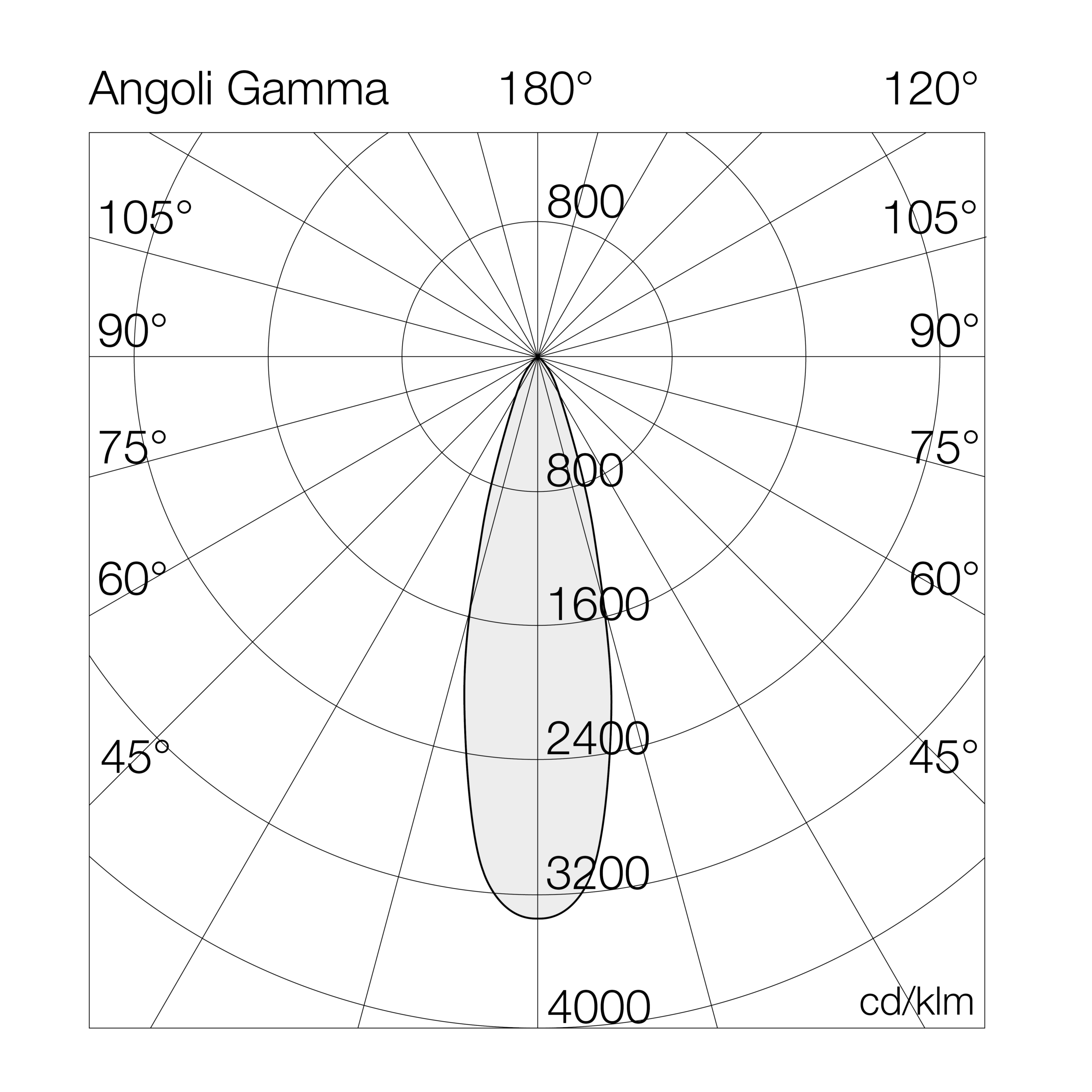

(28° focusing optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 28° concentrating optics.
Categories: Led, MAGIC 2 - 7102, Floodlights, MAGIC 2
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102CR4= 4000°K (CRI >70)480GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550GD= dali (converter)
R= 5700°K (CRI >90)600G4= input 400Vac
900GX= 1-10v + dmx
960MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7102CR4480GL480-4000°K - CRI>70on/off78048165655350550-21.5
7102CR4550GL550-4000°K - CRI>70on/off87331162655350550-21.5
7102CR4600GL600-4000°K - CRI>70on/off96357163655350550-21.5
7102CR4900GL900-4000°K - CRI>70on/off132380150655350550-21.5
7102CR4960GL960-4000°K - CRI>70on/off136624145655350550-21.5
7102CR4480GM480-4000°K - CRI>701-10v78048165655350550-21.5
7102CR4550GM550-4000°K - CRI>701-10v87331162655350550-21.5
7102CR4600GM600-4000°K - CRI>701-10v96357163655350550-21.5
7102CR4900GM900-4000°K - CRI>701-10v132380150655350550-21.5
7102CR4960GM960-4000°K - CRI>701-10v136624145655350550-21.5
7102CR4480GD480-4000°K - CRI>70dali78048165655350550-21.5
7102CR4550GD550-4000°K - CRI>70dali87331162655350550-21.5
7102CR4600GD600-4000°K - CRI>70dali96357163655350550-21.5
7102CR4900GD900-4000°K - CRI>70dali132380150655350550-21.5
7102CR4960GD960-4000°K - CRI>70dali136624145655350550-21.5
7102CR4480G4480-4000°K - CRI>70input 400Vac78048165655350550-21.5
7102CR4550G4550-4000°K - CRI>70input 400Vac87331162655350550-21.5
7102CR4600G4600-4000°K - CRI>70input 400Vac96357163655350550-21.5
7102CR4900G4900-4000°K - CRI>70input 400Vac132380150655350550-21.5
7102CR4960G4960-4000°K - CRI>70input 400Vac136624145655350550-21.5

Accessories
