art.-7102-magic-2-mr-cr-sr-tr-ar-rr

MAGIC 2 – Mod. MR

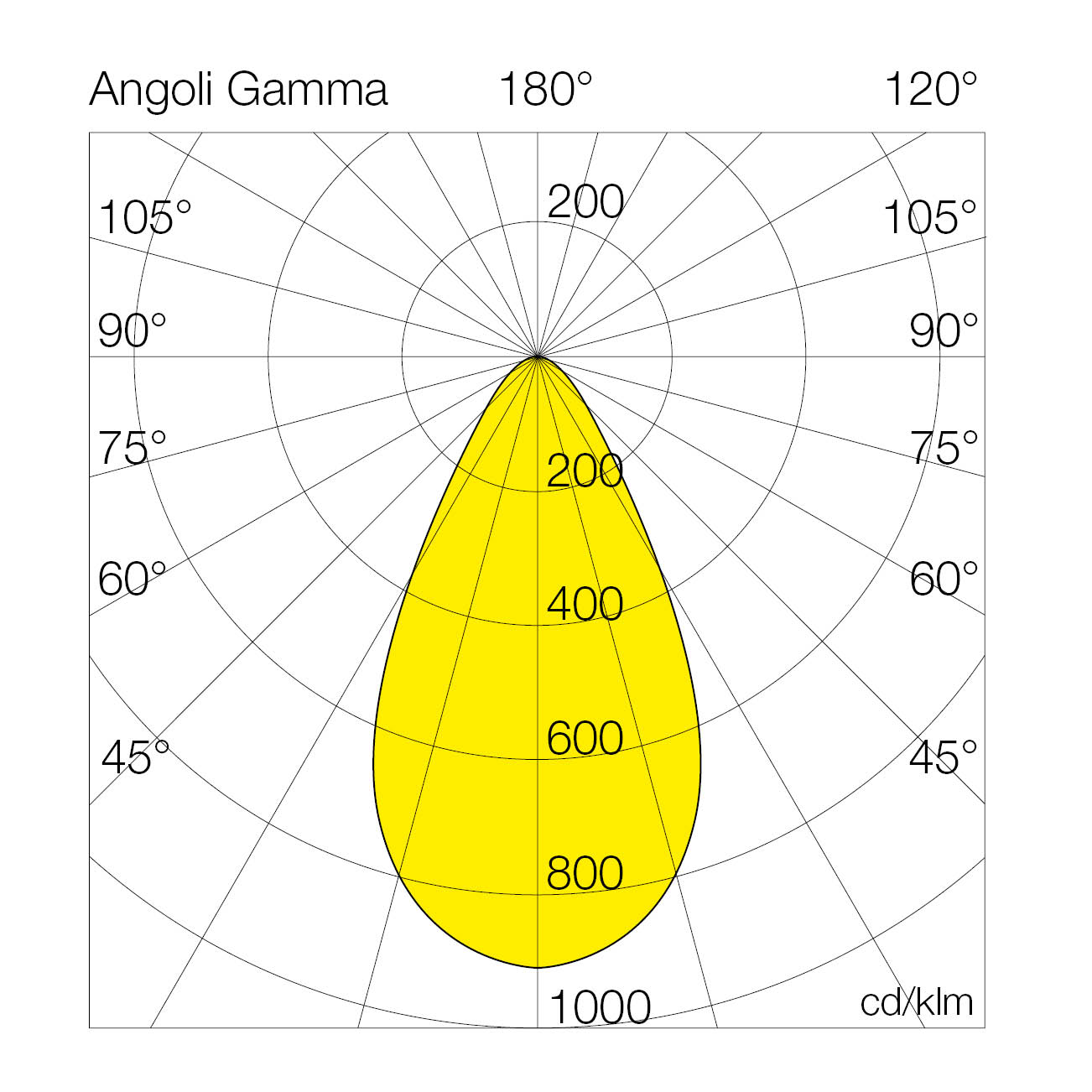

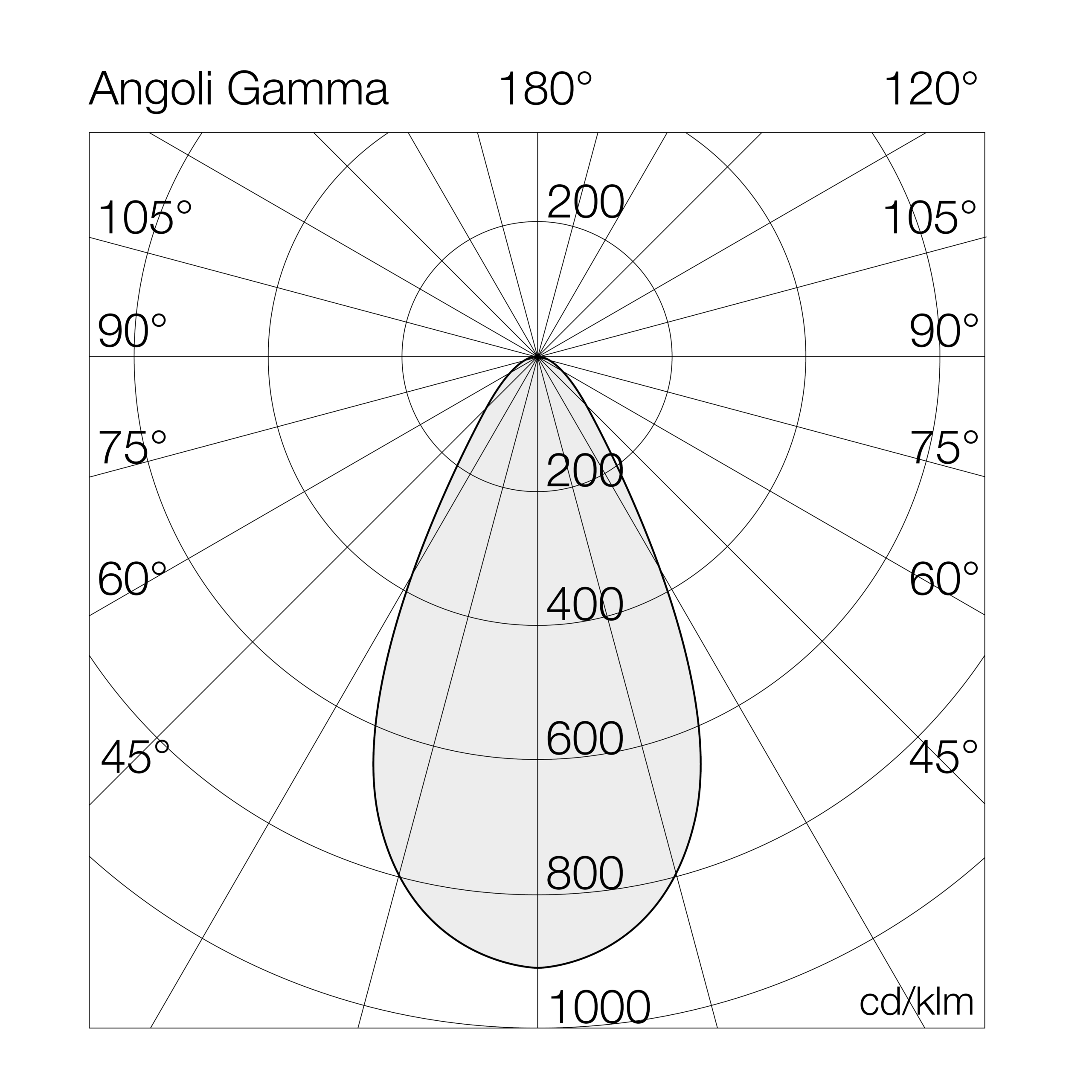

(56° symmetrical optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 56° symmetrical optics.
Categories: Led, MAGIC 2 - 7102, Floodlights, MAGIC 2
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102MR4= 4000°K (CRI >70)480GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550GD= dali (converter)
R= 5700°K (CRI >90)600G4= input 400Vac
900GX= 1-10v + dmx
960MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7102MR4480GL480-4000°K - CRI>70on/off77205164655350550-21.5
7102MR4550GL550-4000°K - CRI>70on/off86389160655350550-21.5
7102MR4600GL600-4000°K - CRI>70on/off95317162655350550-21.5
7102MR4900GL900-4000°K - CRI>70on/off130951148655350550-21.5
7102MR4960GL960-4000°K - CRI>70on/off128714143655350550-21.5
7102MR4480GM480-4000°K - CRI>701-10v77205164655350550-21.5
7102MR4550GM550-4000°K - CRI>701-10v86389160655350550-21.5
7102MR4600GM600-4000°K - CRI>701-10v95317162655350550-21.5
7102MR4900GM900-4000°K - CRI>701-10v130951148655350550-21.5
7102MR4960GM960-4000°K - CRI>701-10v128714143655350550-21.5
7102MR4480GD480-4000°K - CRI>70dali77205164655350550-21.5
7102MR4550GD550-4000°K - CRI>70dali86389160655350550-21.5
7102MR4600GD600-4000°K - CRI>70dali95317162655350550-21.5
7102MR4900GD900-4000°K - CRI>70dali130951148655350550-21.5
7102MR4960GD960-4000°K - CRI>70dali128714143655350550-21.5
7102MR4480G4480-4000°K - CRI>70input 400Vac77205164655350550-21.5
7102MR4550G4550-4000°K - CRI>70input 400Vac86389160655350550-21.5
7102MR4600G4600-4000°K - CRI>70input 400Vac95317162655350550-21.5
7102MR4900G4900-4000°K - CRI>70input 400Vac130951148655350550-21.5
7102MR4960G4960-4000°K - CRI>70input 400Vac128714143655350550-21.5

Accessories
