MAGIC 2 – Mod. RR

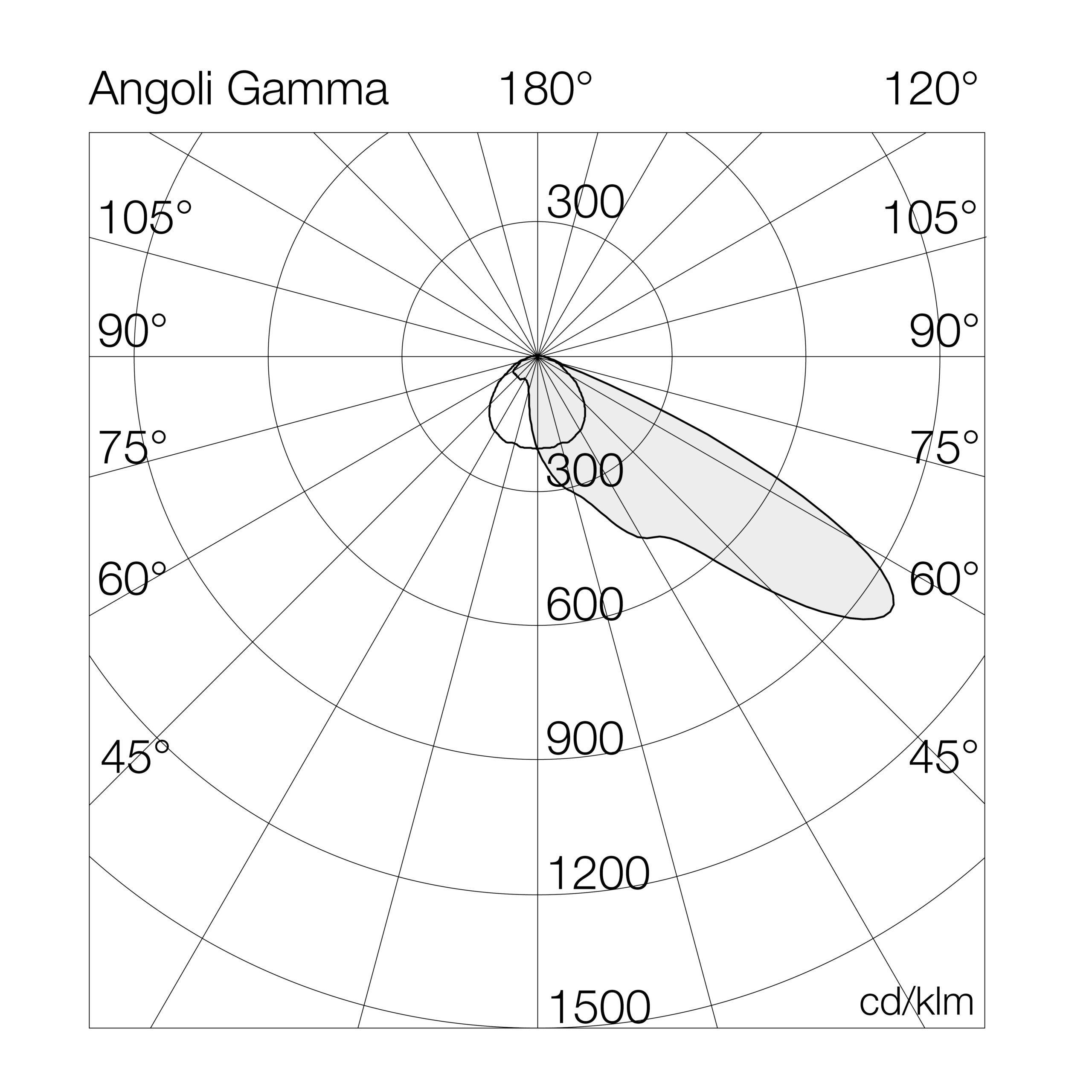

(65° asymmetric narrow beam optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Asymmetrical 65° narrow-beam optics.
Categories: Led, MAGIC 2 - 7102, Floodlights, MAGIC 2
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102RR4= 4000°K (CRI >70)480GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550GD= dali (converter)
R= 5700°K (CRI >90)600G4= input 400Vac
900GX= 1-10v + dmx
960MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7102RR4480GL480-4000°K - CRI>70on/off77673165655350550-21.5
7102RR4550GL550-4000°K - CRI>70on/off86912161655350550-21.5
7102RR4600GL600-4000°K - CRI>70on/off95895163655350550-21.5
7102RR4900GL900-4000°K - CRI>70on/off131745149655350550-21.5
7102RR4960GL960-4000°K - CRI>70on/off135969144655350550-21.5
7102RR4480GM480-4000°K - CRI>701-10v77673165655350550-21.5
7102RR4550GM550-4000°K - CRI>701-10v86912161655350550-21.5
7102RR4600GM600-4000°K - CRI>701-10v95895163655350550-21.5
7102RR4900GM900-4000°K - CRI>701-10v131745149655350550-21.5
7102RR4960GM960-4000°K - CRI>701-10v135969144655350550-21.5
7102RR4480GD480-4000°K - CRI>70dali77673165655350550-21.5
7102RR4550GD550-4000°K - CRI>70dali86912161655350550-21.5
7102RR4600GD600-4000°K - CRI>70dali95895163655350550-21.5
7102RR4900GD900-4000°K - CRI>70dali131745149655350550-21.5
7102RR4960GD960-4000°K - CRI>70dali135969144655350550-21.5
7102RR4480G4480-4000°K - CRI>70input 400Vac77673165655350550-21.5
7102RR4550G4550-4000°K - CRI>70input 400Vac86912161655350550-21.5
7102RR4600G4600-4000°K - CRI>70input 400Vac95895163655350550-21.5
7102RR4900G4900-4000°K - CRI>70input 400Vac131745149655350550-21.5
7102RR4960G4960-4000°K - CRI>70input 400Vac135969144655350550-21.5

Accessories
