MAGIC 2 – Mod. SR

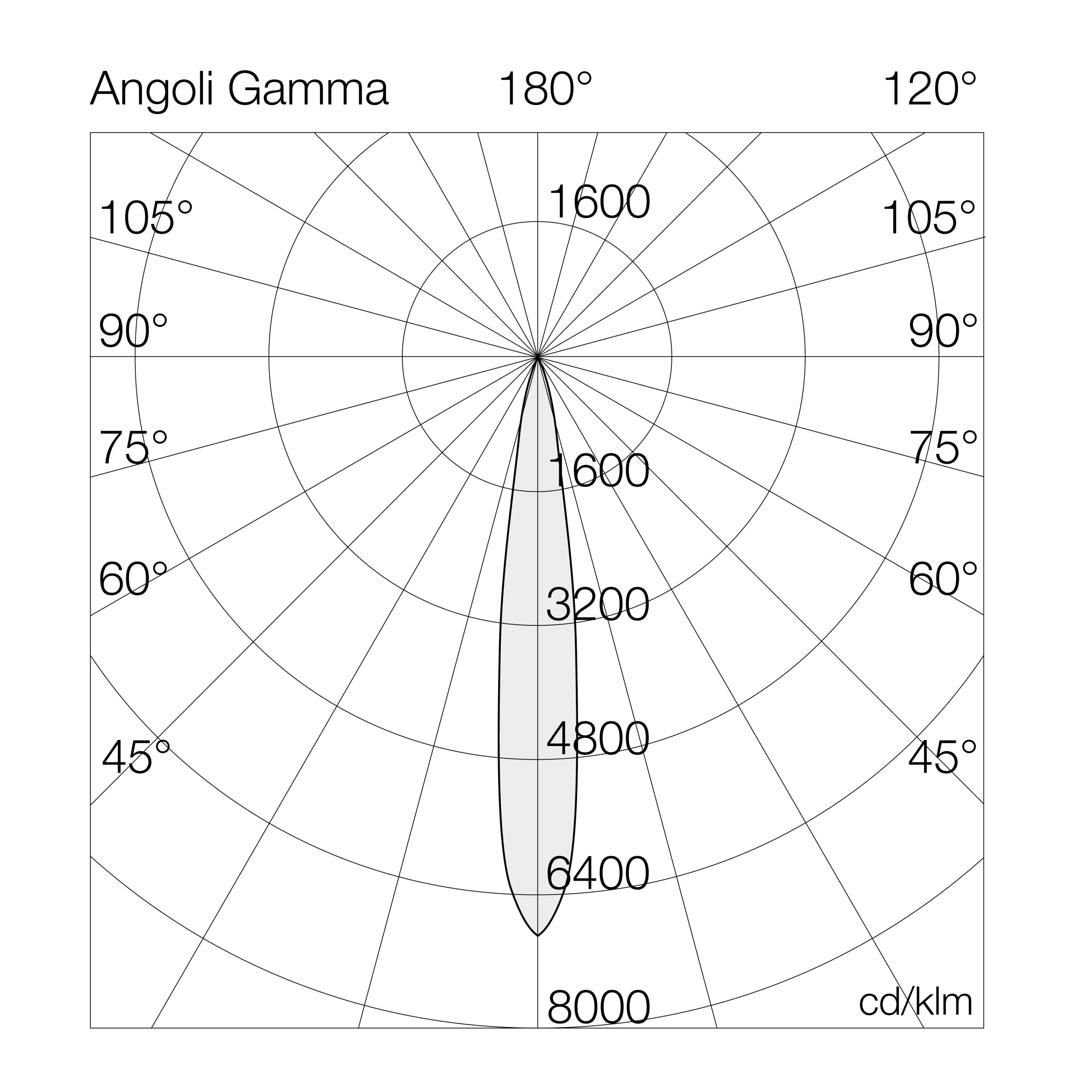

(15° focusing optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 15° concentrating optics.
Categories: Led, MAGIC 2 - 7102, Floodlights, MAGIC 2
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102SR4= 4000°K (CRI >70)480GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550GD= dali (converter)
R= 5700°K (CRI >90)600G4= input 400Vac
900GX= 1-10v + dmx
960MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7102SR4480GL480-4000°K - CRI>70on/off78141166655350550-21.5
7102SR4550GL550-4000°K - CRI>70on/off87436162655350550-21.5
7102SR4600GL600-4000°K - CRI>70on/off96472164655350550-21.5
7102SR4900GL900-4000°K - CRI>70on/off132538150655350550-21.5
7102SR4960GL960-4000°K - CRI>70on/off136788145655350550-21.5
7102SR4480GM480-4000°K - CRI>701-10v78141166655350550-21.5
7102SR4550GM550-4000°K - CRI>701-10v87436162655350550-21.5
7102SR4600GM600-4000°K - CRI>701-10v96472164655350550-21.5
7102SR4900GM900-4000°K - CRI>701-10v132538150655350550-21.5
7102SR4960GM960-4000°K - CRI>701-10v136788145655350550-21.5
7102SR4480GD480-4000°K - CRI>70dali78141166655350550-21.5
7102SR4550GD550-4000°K - CRI>70dali87436162655350550-21.5
7102SR4600GD600-4000°K - CRI>70dali96472164655350550-21.5
7102SR4900GD900-4000°K - CRI>70dali132538150655350550-21.5
7102SR4960GD960-4000°K - CRI>70dali136788145655350550-21.5
7102SR4480G4480-4000°K - CRI>70input 400Vac78141166655350550-21.5
7102SR4550G4550-4000°K - CRI>70input 400Vac87436162655350550-21.5
7102SR4600G4600-4000°K - CRI>70input 400Vac96472164655350550-21.5
7102SR4900G4900-4000°K - CRI>70input 400Vac132538150655350550-21.5
7102SR4960G4960-4000°K - CRI>70input 400Vac136788145655350550-21.5
