MAGIC 3 – Mod. CR

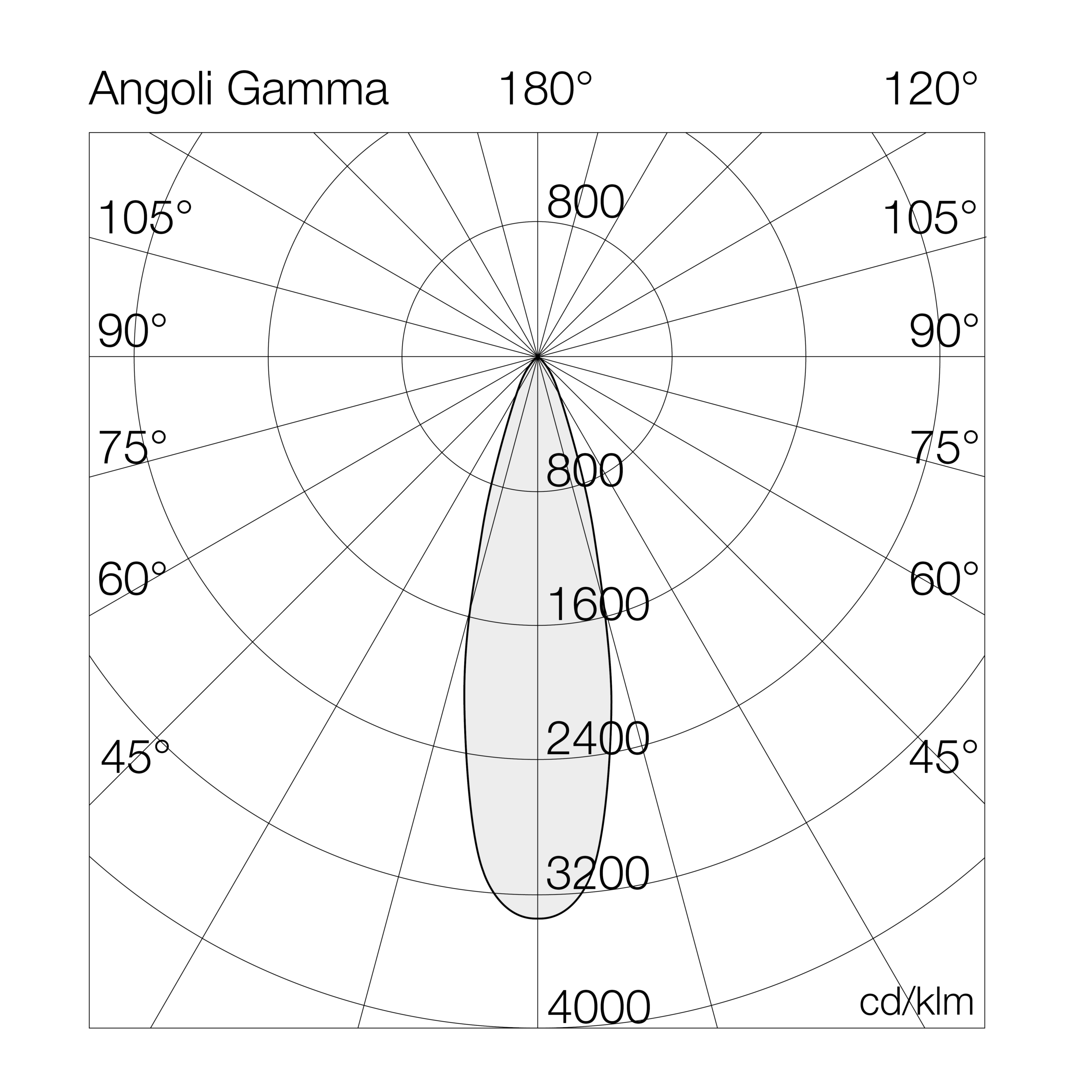

(28° focusing optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 28° concentrating optics.
Categories: Led, MAGIC 3 - 7103, Floodlights, MAGIC 3
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7103CR4= 4000°K (CRI >70)600=600WGL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)820=820WGD= dali (converter)
R= 5700°K (CRI >90)900=900WG4= input 400Vac
100=1000WGX= 1-10v + dmx
120=1200WMG= virtual midnight
135=1350W
144=1440W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7103CR4600GL600-4000°K - CRI>70on/off101153172655350740-30.5
7103CR4820GL820-4000°K - CRI>70on/off130997163655350740-30.5
7103CR4900GL900-4000°K - CRI>70on/off143050162655350740-30.5
7103CR4100GL1000-4000°K - CRI>70on/off157679161655350740-30.5
7103CR4120GL1200-4000°K - CRI>70on/off178695152655350740-30.5
7103CR4135GL1350-4000°K - CRI>70on/off198569150655350740-30.5
7103CR4144GL1440-4000°K - CRI>70on/off204936145655350740-30.5
7103CR4600GM600-4000°K - CRI>701-10v101153172655350740-30.5
7103CR4820GM820-4000°K - CRI>701-10v130997163655350740-30.5
7103CR4900GM900-4000°K - CRI>701-10v143050162655350740-30.5
7103CR4100GM1000-4000°K - CRI>701-10v157679161655350740-30.5
7103CR4120GM1200-4000°K - CRI>701-10v178695152655350740-30.5
7103CR4135GM1350-4000°K - CRI>701-10v198569150655350740-30.5
7103CR4144GM1440-4000°K - CRI>701-10v204936145655350740-30.5
7103CR4600GD600-4000°K - CRI>70dali101153172655350740-30.5
7103CR4820GD820-4000°K - CRI>70dali130997163655350740-30.5
7103CR4900GD900-4000°K - CRI>70dali143050162655350740-30.5
7103CR4100GD1000-4000°K - CRI>70dali157679161655350740-30.5
7103CR4120GD1200-4000°K - CRI>70dali178695152655350740-30.5
7103CR4135GD1350-4000°K - CRI>70dali198569150655350740-30.5

Accessories
