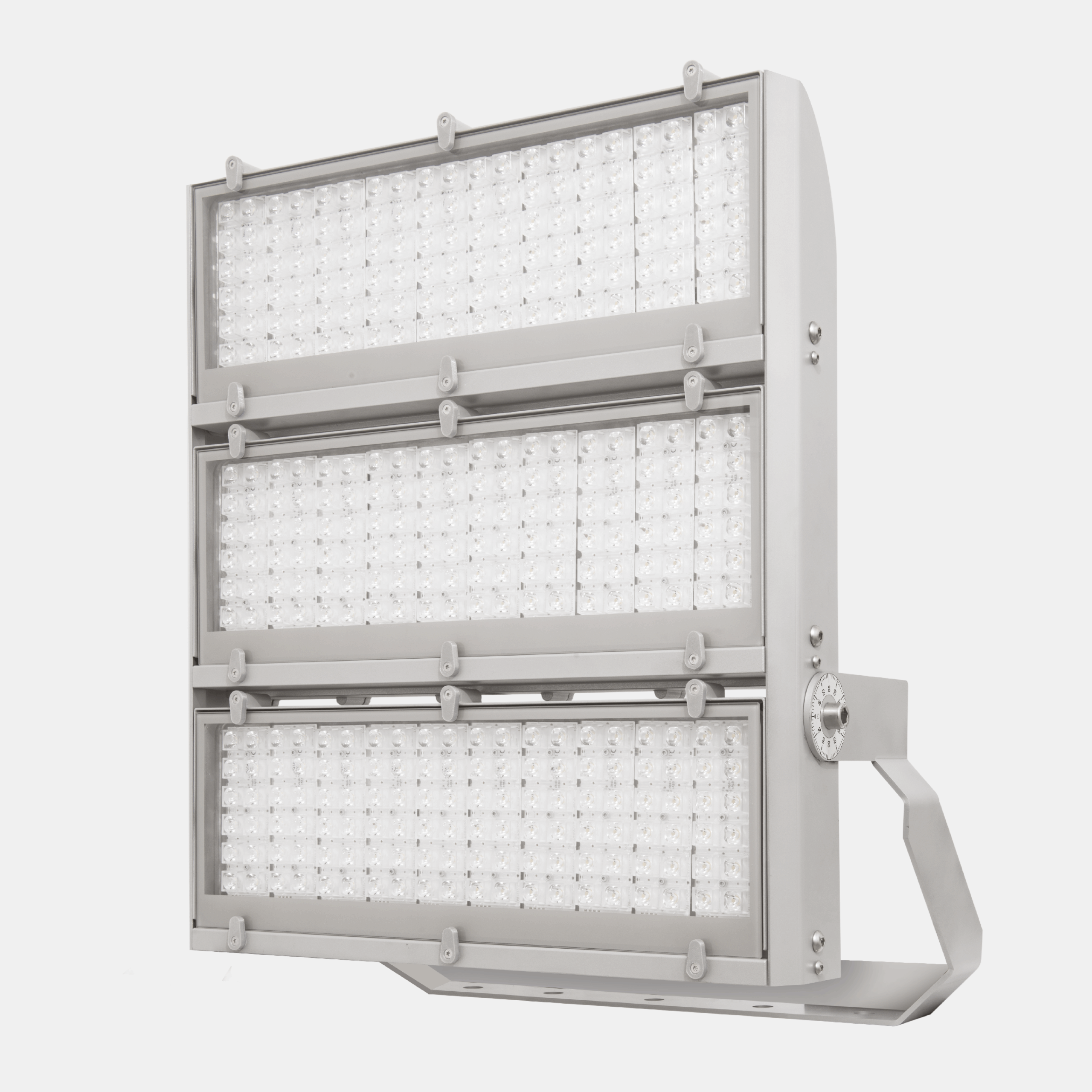

MAGIC 3/RR

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, MAGIC 3 - 7103, Floodlights, art. 7103 Magic 3
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7103RR4= 4000°K (CRI >70)600=600WGL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)820=820WGD= dali (converter)
R= 5700°K (CRI >90)900=900WG4= input 400Vac
100=1000WGX= 1-10v + dmx
120=1200WMG= virtual midnight
135=1350W
144=1440W

Models

W tot.
°K - CRI
Options

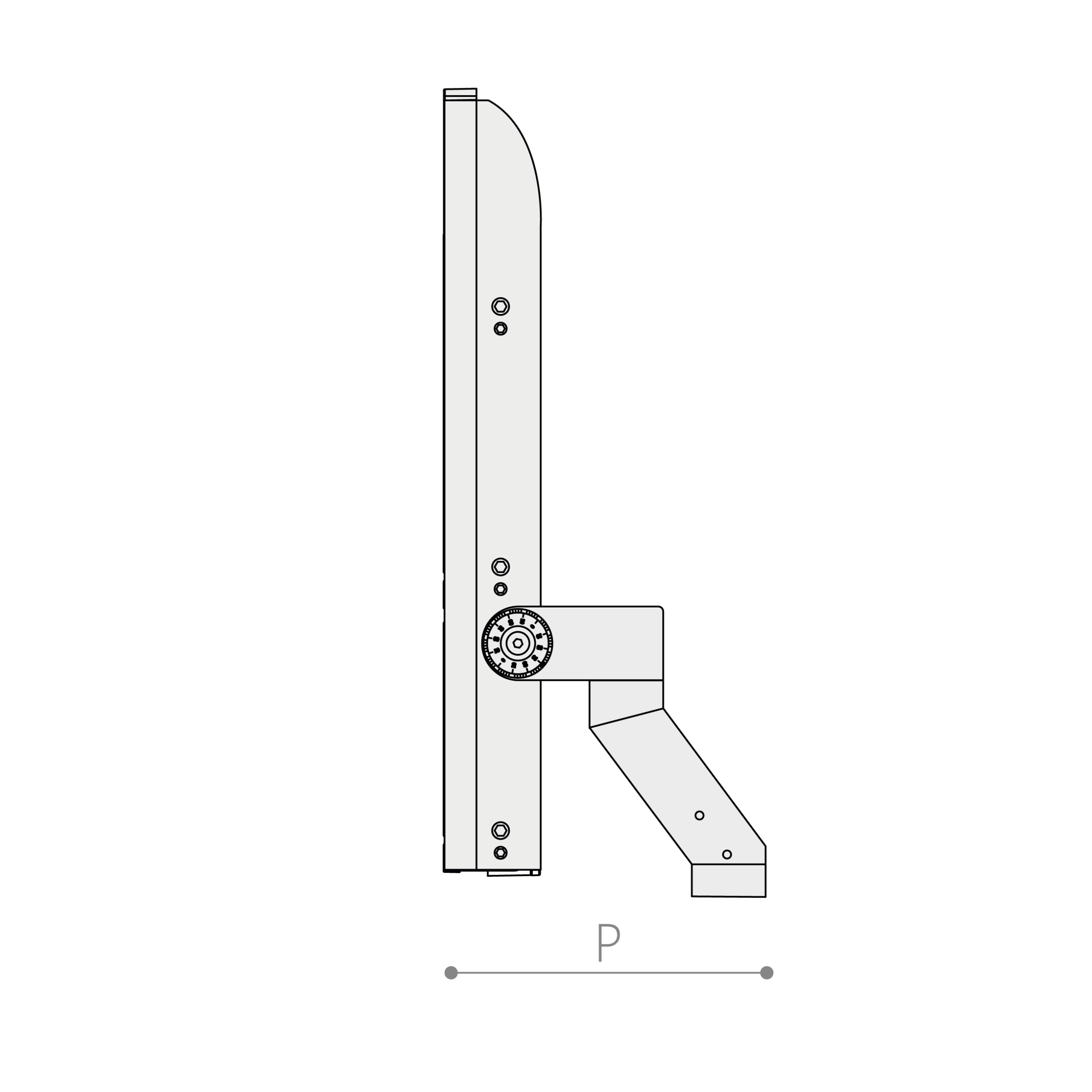

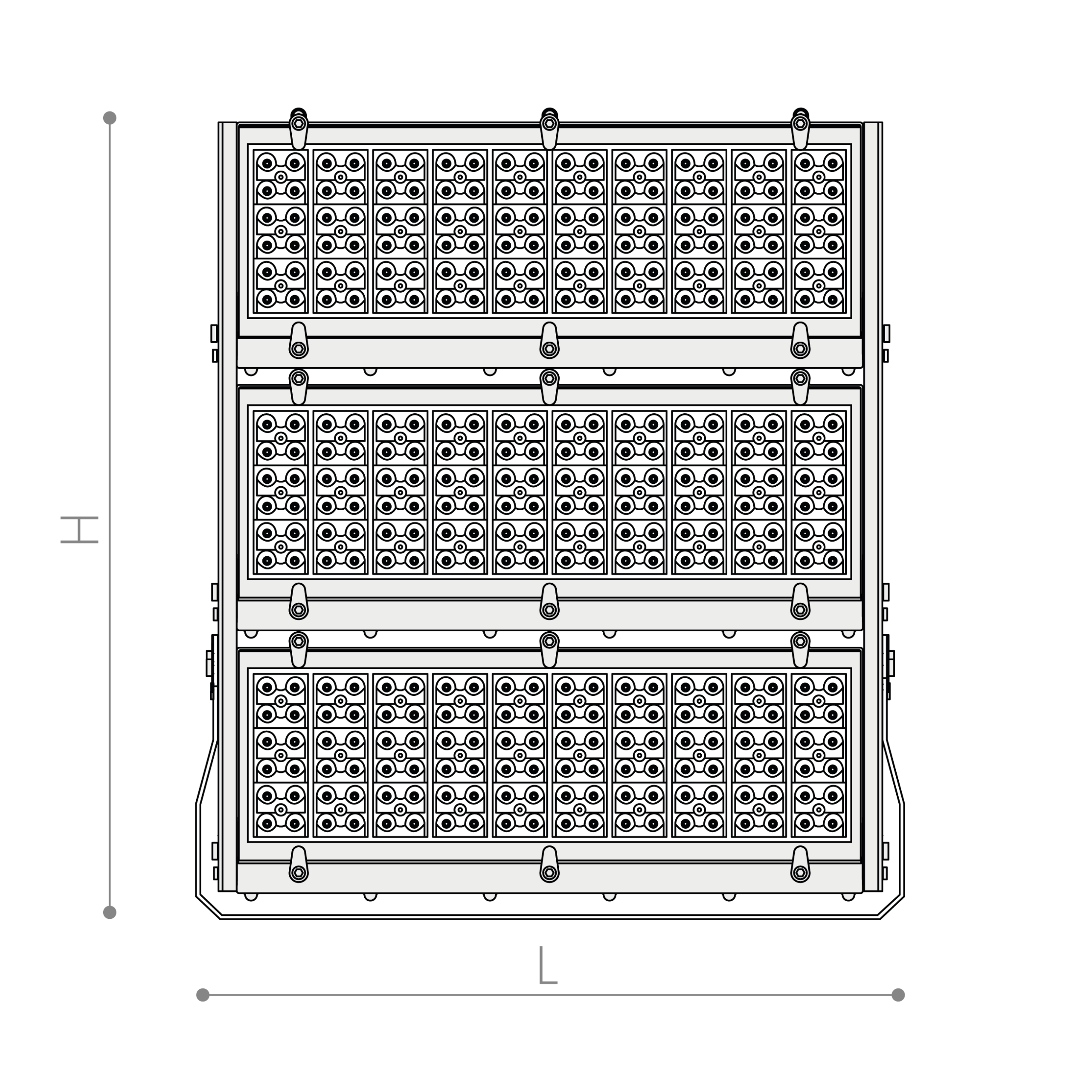

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7103RR4600GL600-4000°K - CRI>70on/off100668171655350740-30.5
7103RR4820GL820-4000°K - CRI>70on/off130369162655350740-30.5
7103RR4900GL900-4000°K - CRI>70on/off142364161655350740-30.5
7103RR4100GL1000-4000°K - CRI>70on/off156922160655350740-30.5
7103RR4120GL1200-4000°K - CRI>70on/off177838151655350740-30.5
7103RR4135GL1350-4000°K - CRI>70on/off197617149655350740-30.5
7103RR4144GL1440-4000°K - CRI>70on/off203953144655350740-30.5
7103RR4600GM600-4000°K - CRI>701-10v100668171655350740-30.5
7103RR4820GM820-4000°K - CRI>701-10v130369162655350740-30.5
7103RR4900GM900-4000°K - CRI>701-10v142364161655350740-30.5
7103RR4100GM1000-4000°K - CRI>701-10v156922160655350740-30.5
7103RR4120GM1200-4000°K - CRI>701-10v177838151655350740-30.5
7103RR4135GM1350-4000°K - CRI>701-10v197617149655350740-30.5
7103RR4144GM1440-4000°K - CRI>701-10v203953144655350740-30.5
7103RR4600GD600-4000°K - CRI>70dali100668171655350740-30.5
7103RR4820GD820-4000°K - CRI>70dali130369162655350740-30.5
7103RR4900GD900-4000°K - CRI>70dali142364161655350740-30.5
7103RR4100GD1000-4000°K - CRI>70dali156922160655350740-30.5
7103RR4120GD1200-4000°K - CRI>70dali177838151655350740-30.5
7103RR4135GD1350-4000°K - CRI>70dali197617149655350740-30.5

Accessories
