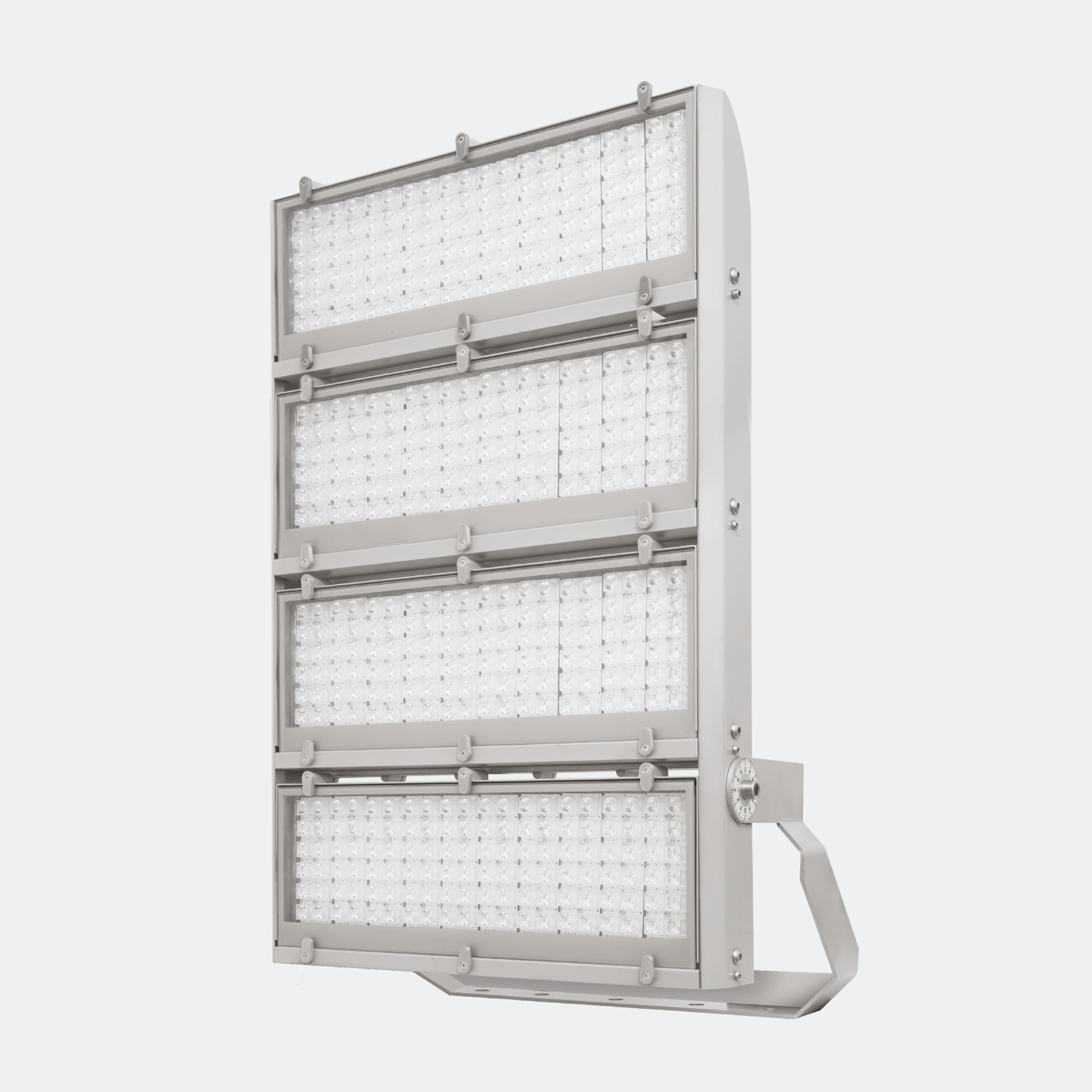

MAGIC 4/CR

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, MAGIC 4 - 7104, Floodlights, art. 7104 Magic 4
Models: 96
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7104CR4= 4000°K (CRI >70)120=1200WGL= on/off (remote driver)
7= 5700°K (CRI >70)150=1500WGM= 1-10v
R= 5700°K (CRI >90)160=1600WGD= dali
180=1800WG4= input 400Vac
GX= 1-10v + dmx
MG= virtual midnight

Models

W tot.
°K - CRI
Options

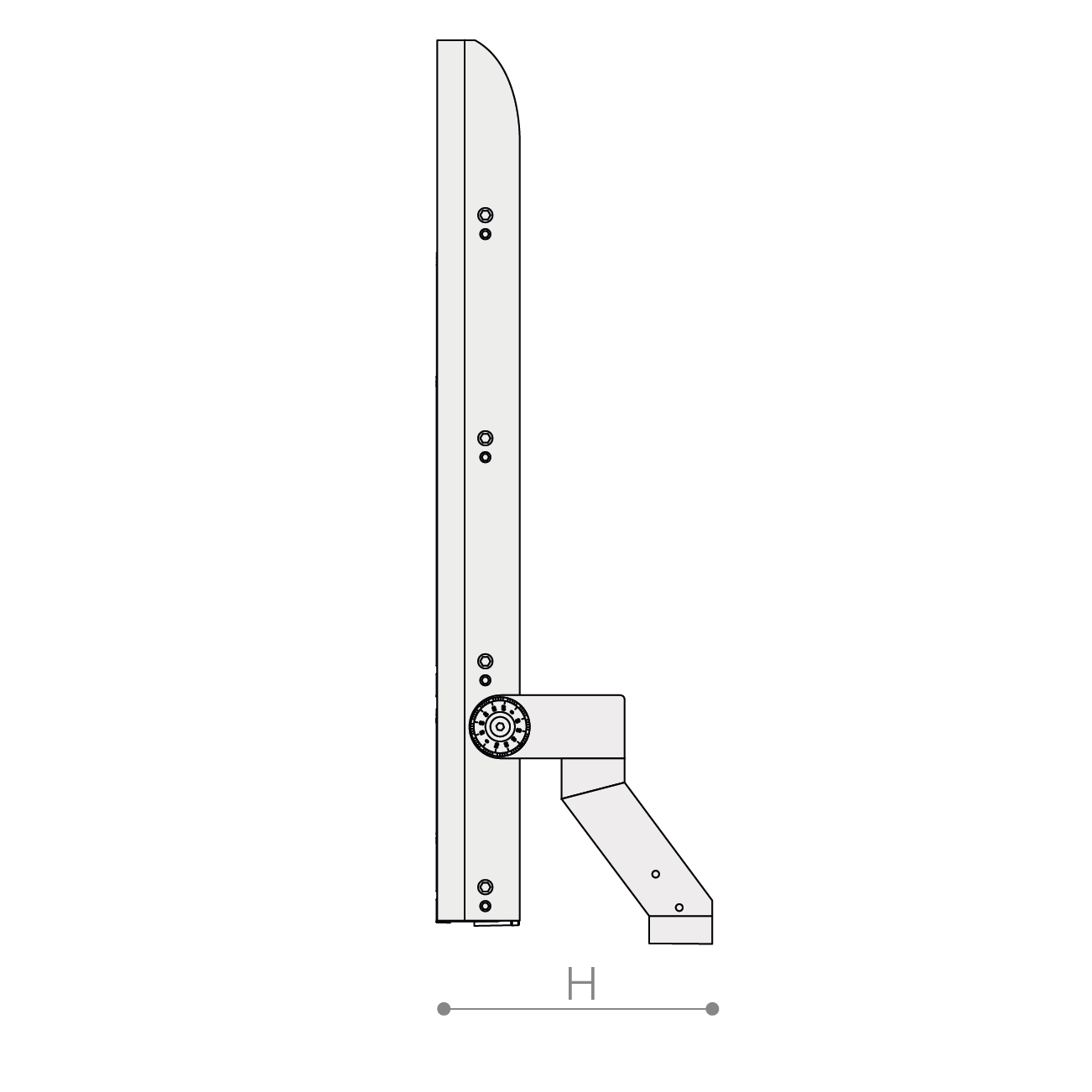

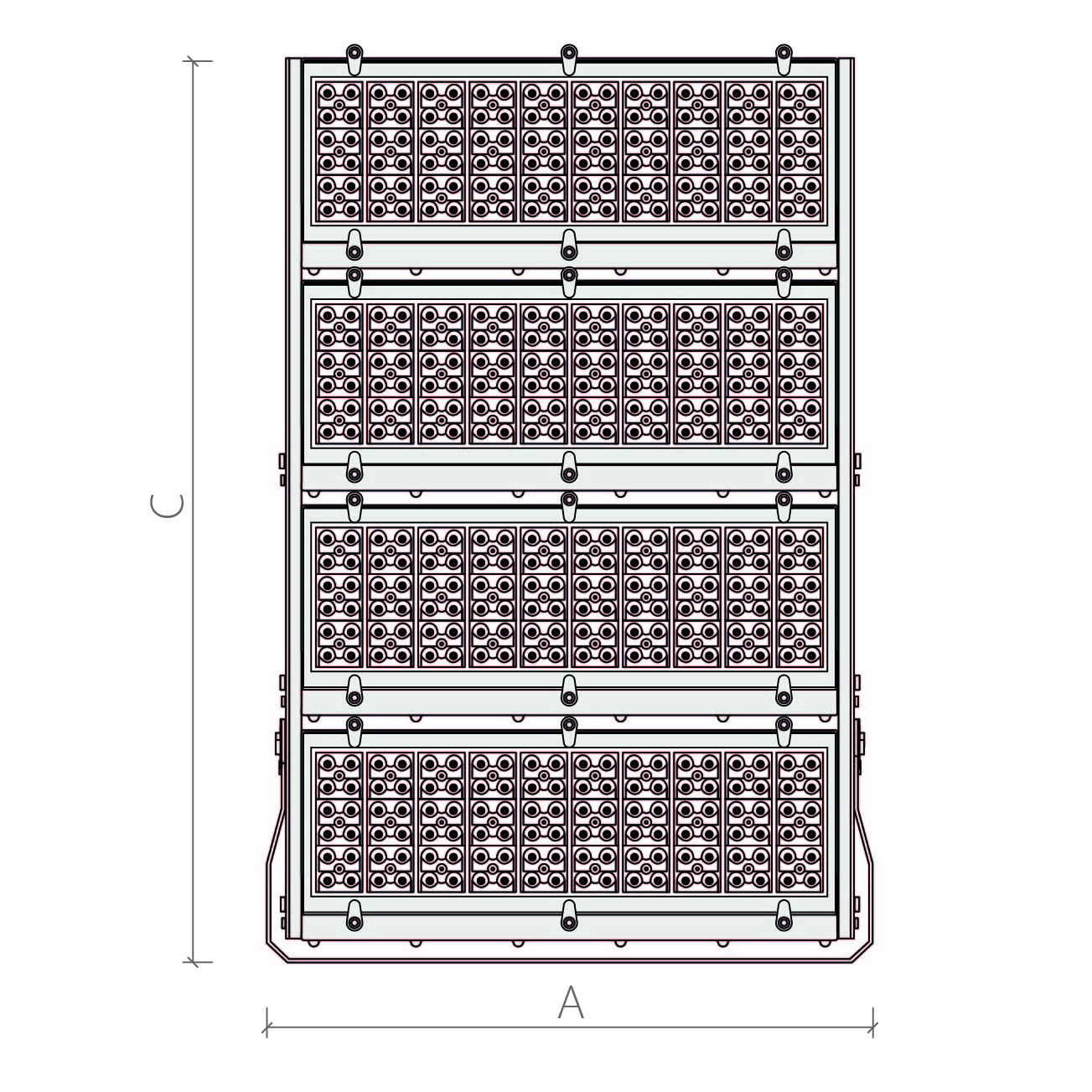

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7104CRT120GL1200-5700°K - CRI>80on/off169810142655350980-45.5
7104CRT150GL1500-5700°K - CRI>80on/off203961136655350980-45.5
7104CRT160GL1600-5700°K - CRI>80on/off212123133655350980-45.5
7104CRT180GL1800-5700°K - CRI>80on/off235715131655350980-45.5
7104CRT120GM1200-5700°K - CRI>801-10v169810142655350980-45.5
7104CRT150GM1500-5700°K - CRI>801-10v203961136655350980-45.5
7104CRT160GM1600-5700°K - CRI>801-10v212123133655350980-45.5
7104CRT180GM1800-5700°K - CRI>801-10v235715131655350980-45.5
7104CRT120GD1200-5700°K - CRI>80dali169810142655350980-45.5
7104CRT150GD1500-5700°K - CRI>80dali203961136655350980-45.5
7104CRT160GD1600-5700°K - CRI>80dali212123133655350980-45.5
7104CRT180GD1800-5700°K - CRI>80dali235715131655350980-45.5
7104CRT120G41200-5700°K - CRI>80input 400Vac169810142655350980-45.5
7104CRT150G41500-5700°K - CRI>80input 400Vac203961136655350980-45.5
7104CRT160G41600-5700°K - CRI>80input 400Vac212123133655350980-45.5
7104CRT180G41800-5700°K - CRI>80input 400Vac235715131655350980-45.5
7104CRT120GX1200-5700°K - CRI>801-10v + dmx169810142655350980-45.5
7104CRT150GX1500-5700°K - CRI>801-10v + dmx203961136655350980-45.5
7104CRT160GX1600-5700°K - CRI>801-10v + dmx212123133655350980-45.5
7104CRT180GX1800-5700°K - CRI>801-10v + dmx235715131655350980-45.5
