MAGIC 4 – Mod. MR

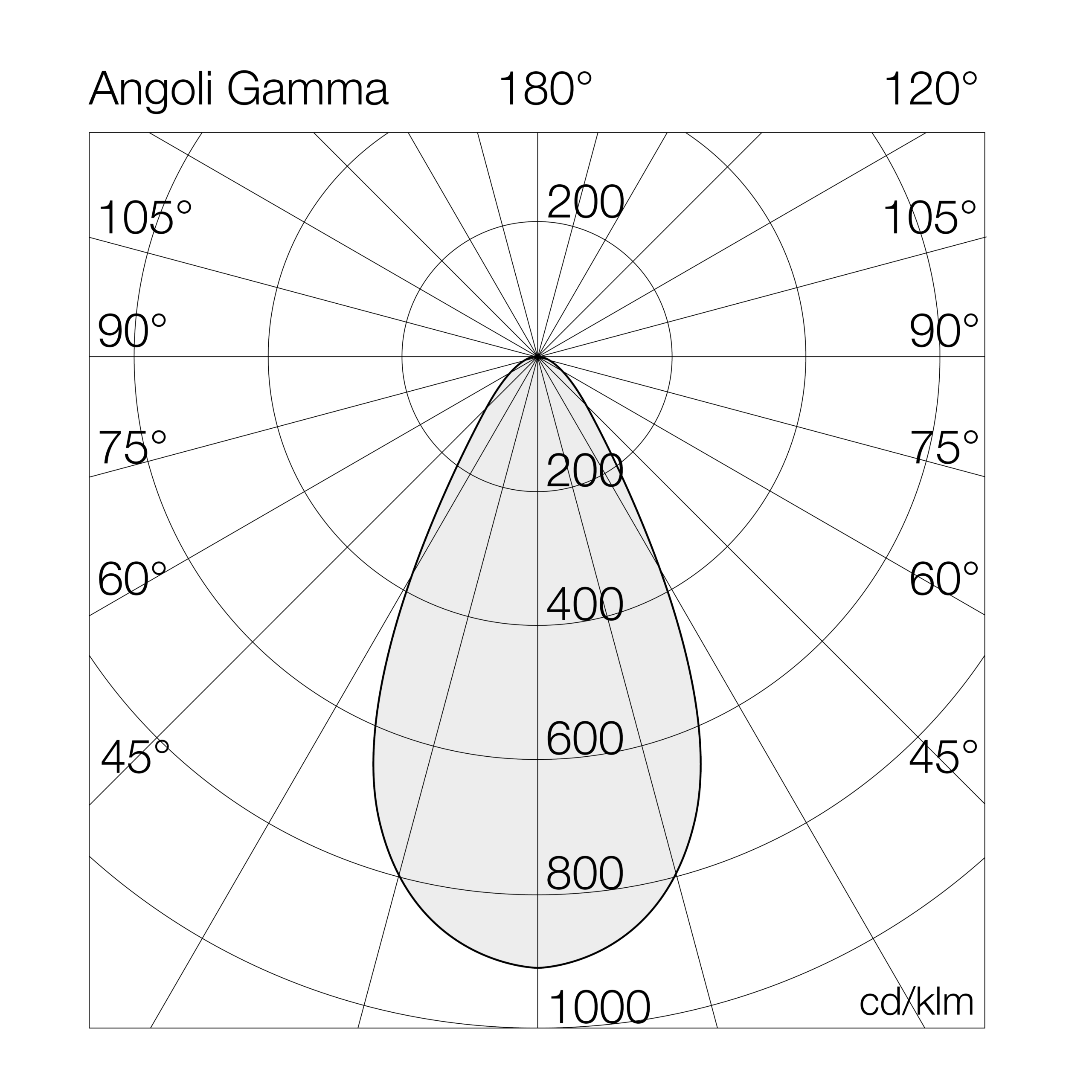

(56° symmetrical optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 56° symmetrical optics.
Categories: Led, MAGIC 4 - 7104, Floodlights, MAGIC 4
Models: 96
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7104MR4= 4000°K (CRI >70)120=1200WGL= on/off (remote driver)
7= 5700°K (CRI >70)150=1500WGM= 1-10v
R= 5700°K (CRI >90)160=1600WGD= dali
180=1800WG4= input 400Vac
GX= 1-10v + dmx
MG= virtual midnight

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7104MRT120GL1200-5700°K - CRI>80on/off167977140655350980-45.5
7104MRT150GL1500-5700°K - CRI>80on/off201761135655350980-45.5
7104MRT160GL1600-5700°K - CRI>80on/off209834131655350980-45.5
7104MRT180GL1800-5700°K - CRI>80on/off233171130655350980-45.5
7104MRT120GM1200-5700°K - CRI>801-10v167977140655350980-45.5
7104MRT150GM1500-5700°K - CRI>801-10v201761135655350980-45.5
7104MRT160GM1600-5700°K - CRI>801-10v209834131655350980-45.5
7104MRT180GM1800-5700°K - CRI>801-10v233171130655350980-45.5
7104MRT120GD1200-5700°K - CRI>80dali167977140655350980-45.5
7104MRT150GD1500-5700°K - CRI>80dali201761135655350980-45.5
7104MRT160GD1600-5700°K - CRI>80dali209834131655350980-45.5
7104MRT180GD1800-5700°K - CRI>80dali233171130655350980-45.5
7104MRT120G41200-5700°K - CRI>80input 400Vac167977140655350980-45.5
7104MRT150G41500-5700°K - CRI>80input 400Vac201761135655350980-45.5
7104MRT160G41600-5700°K - CRI>80input 400Vac209834131655350980-45.5
7104MRT180G41800-5700°K - CRI>80input 400Vac233171130655350980-45.5
7104MRT120GX1200-5700°K - CRI>801-10v + dmx167977140655350980-45.5
7104MRT150GX1500-5700°K - CRI>801-10v + dmx201761135655350980-45.5
7104MRT160GX1600-5700°K - CRI>801-10v + dmx209834131655350980-45.5
7104MRT180GX1800-5700°K - CRI>801-10v + dmx233171130655350980-45.5

Accessories
