GALAXY 1/A4

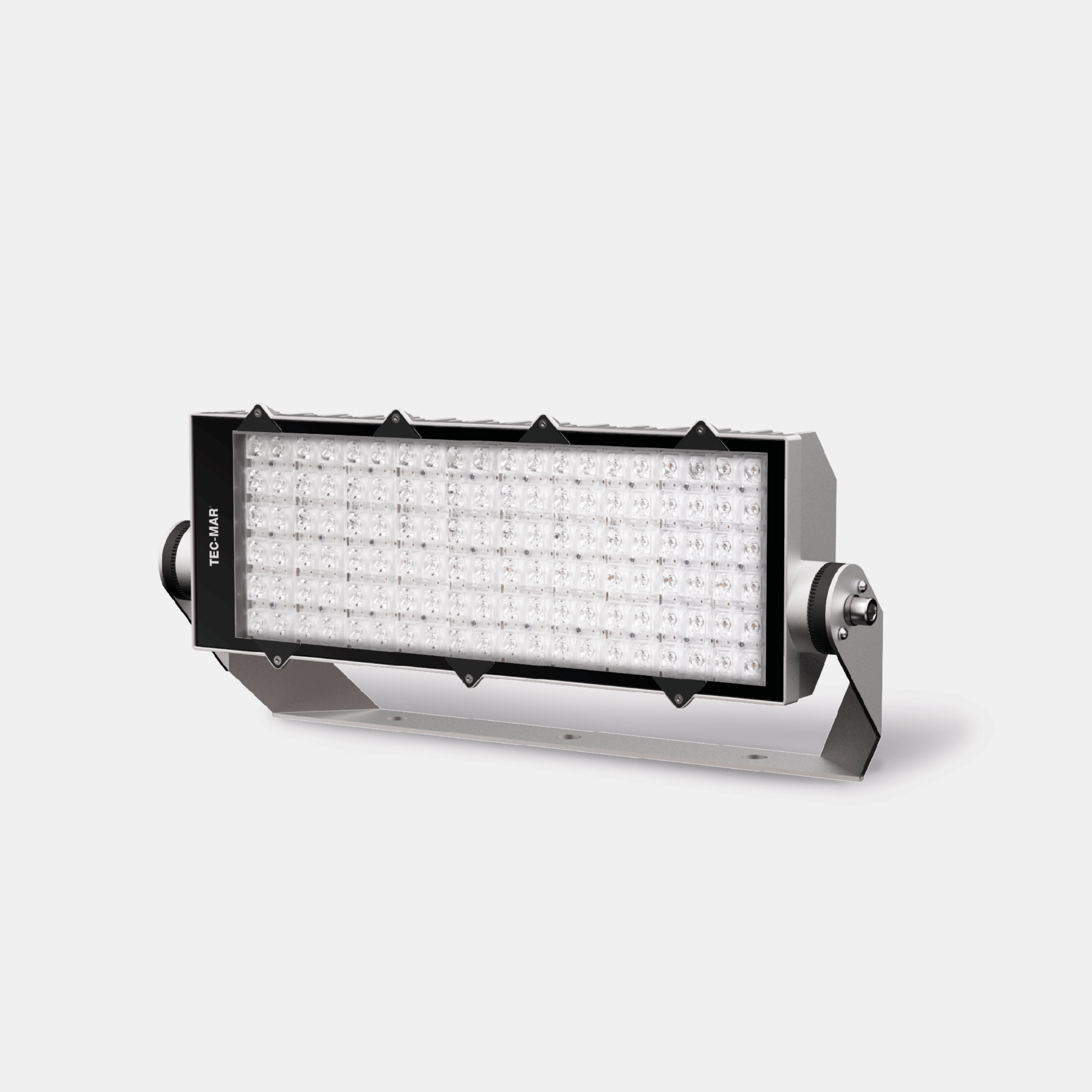

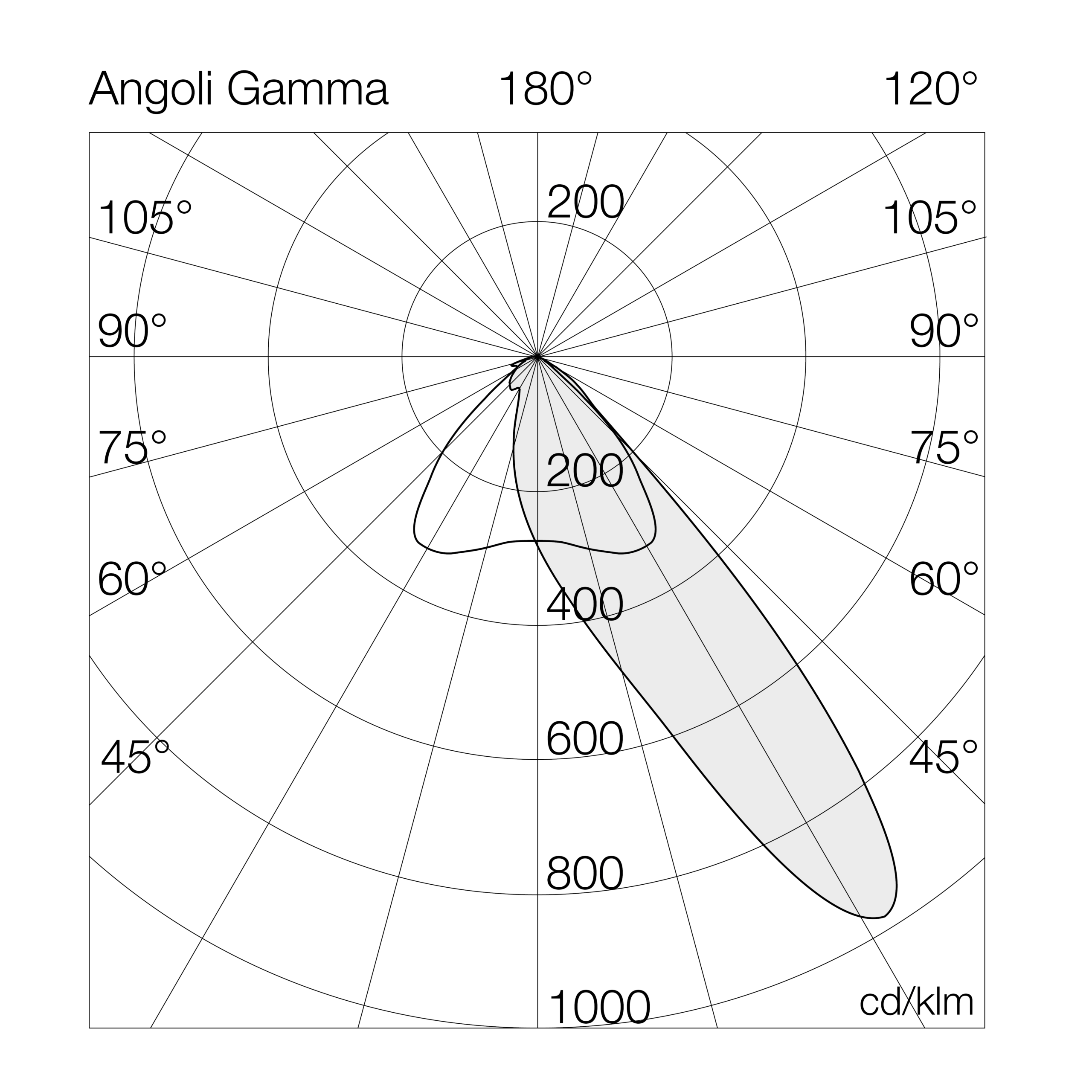

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, GALAXY 1 - 7105, art. 7105 Galaxy 1, Floodlights, art. 7105 Galaxy 1
Models: 72
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7105A44= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= one 4 all (400v - dali2 - d4i - dmx)
380
410
450
480
540

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7105A44300GL300-4000°K - CRI>70on/off49513166648190290-9.8
7105A44320GL320-4000°K - CRI>70on/off51691163648190290-9.8
7105A44340GL340-4000°K - CRI>70on/off54941163648190290-9.8
7105A44380GL380-4000°K - CRI>70on/off60311160648190290-9.8
7105A44410GL410-4000°K - CRI>70on/off64568159648190290-9.8
7105A44450GL450-4000°K - CRI>70on/off70368158648190290-9.8
7105A44480GL480-4000°K - CRI>70on/off72985153648190290-9.8
7105A44540GL540-4000°K - CRI>70on/off79734160648190290-9.8
7105A44300GD300-4000°K - CRI>70dali converted49513166648190290-9.8
7105A44320GD320-4000°K - CRI>70dali converted51691163648190290-9.8
7105A44340GD340-4000°K - CRI>70dali converted54941163648190290-9.8
7105A44380GD380-4000°K - CRI>70dali converted60311160648190290-9.8
7105A44410GD410-4000°K - CRI>70dali converted64568159648190290-9.8
7105A44450GD450-4000°K - CRI>70dali converted70368158648190290-9.8
7105A44480GD480-4000°K - CRI>70dali converted72985153648190290-9.8
7105A44540GD540-4000°K - CRI>70dali converted79734160648190290-9.8
7105A44300G4300-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)49513166648190290-9.8
7105A44320G4320-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)51691163648190290-9.8
7105A44340G4340-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)54941163648190290-9.8
7105A44380G4380-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)60311160648190290-9.8

Accessories
