GALAXY 1/A5

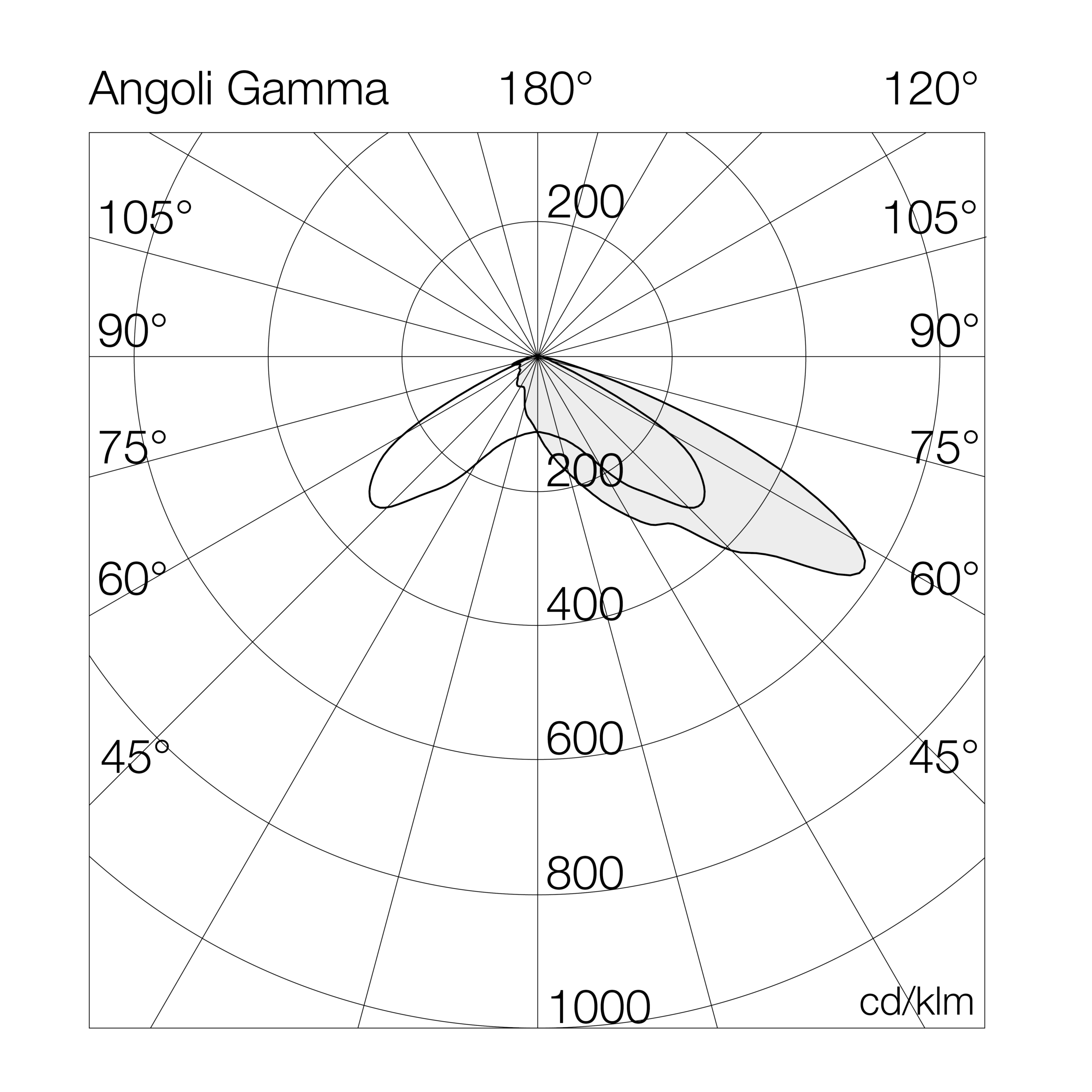

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, art. 7105 Galaxy 1, Floodlights, art. 7105 Galaxy 1
Models: 72
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7105A54= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= one 4 all (400v - dali2 - d4i - dmx)
380
410
450
480
540

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7105A54300GL300-4000°K - CRI>70on/off47690160648190290-9.8
7105A54320GL320-4000°K - CRI>70on/off49789157648190290-9.8
7105A54340GL340-4000°K - CRI>70on/off52919157648190290-9.8
7105A54380GL380-4000°K - CRI>70on/off58091154648190290-9.8
7105A54410GL410-4000°K - CRI>70on/off62192153648190290-9.8
7105A54450GL450-4000°K - CRI>70on/off67778152648190290-9.8
7105A54480GL480-4000°K - CRI>70on/off70298148648190290-9.8
7105A54540GL540-4000°K - CRI>70on/off76799154648190290-9.8
7105A54300GD300-4000°K - CRI>70dali converted47690160648190290-9.8
7105A54320GD320-4000°K - CRI>70dali converted49789157648190290-9.8
7105A54340GD340-4000°K - CRI>70dali converted52919157648190290-9.8
7105A54380GD380-4000°K - CRI>70dali converted58091154648190290-9.8
7105A54410GD410-4000°K - CRI>70dali converted62192153648190290-9.8
7105A54450GD450-4000°K - CRI>70dali converted67778152648190290-9.8
7105A54480GD480-4000°K - CRI>70dali converted70298148648190290-9.8
7105A54540GD540-4000°K - CRI>70dali converted76799154648190290-9.8
7105A54300G4300-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)47690160648190290-9.8
7105A54320G4320-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)49789157648190290-9.8
7105A54340G4340-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)52919157648190290-9.8
7105A54380G4380-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)58091154648190290-9.8

Accessories
