GALAXY 1/S1

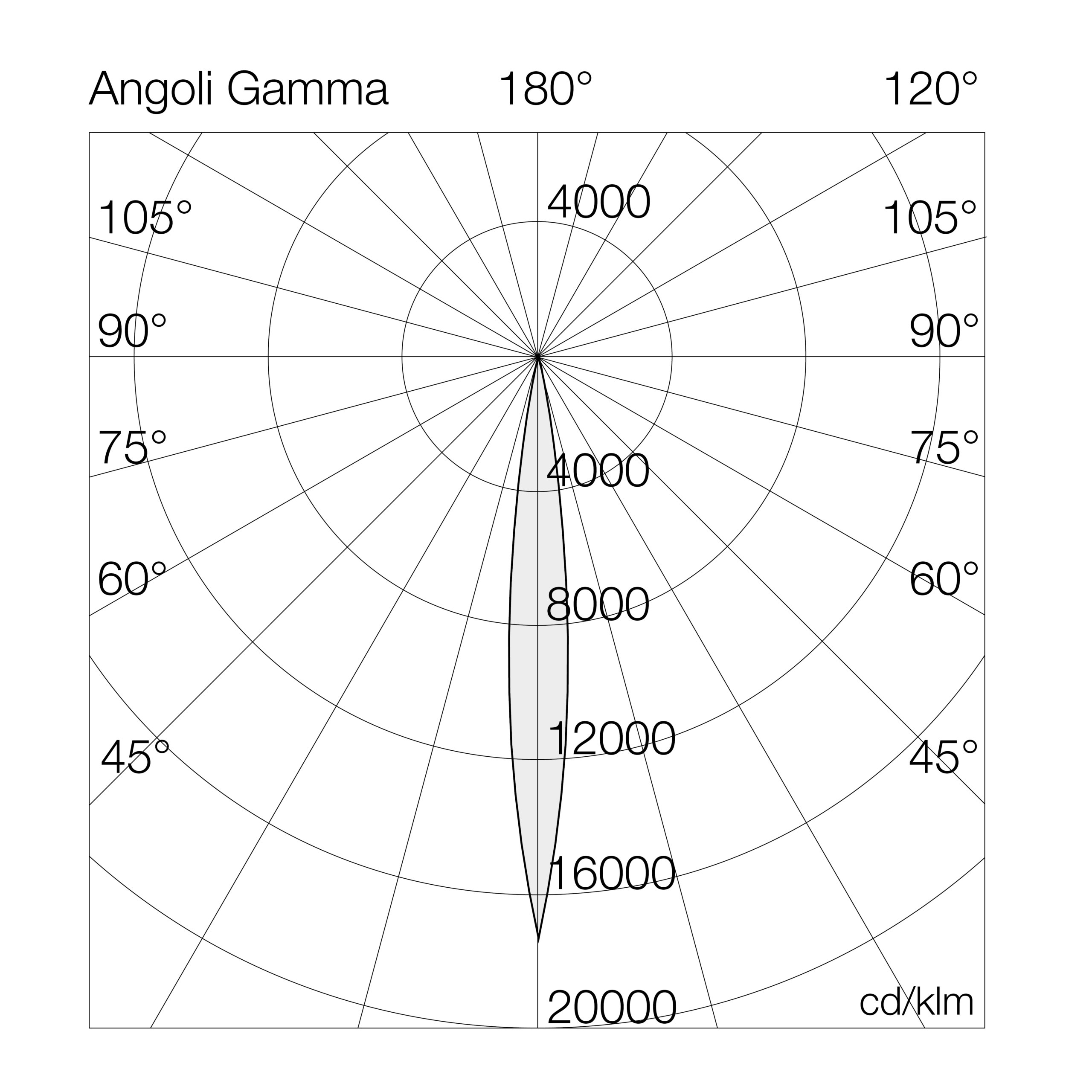

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, art. 7105 Galaxy 1, Floodlights, art. 7105 Galaxy 1
Models: 72
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7105S14= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= one 4 all (400v - dali2 - d4i - dmx)
380
410
450
480
540

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7105S14300GL300-4000°K - CRI>70on/off42601145648190290-9.8
7105S14320GL320-4000°K - CRI>70on/off45860143648190290-9.8
7105S14340GL340-4000°K - CRI>70on/off47403143648190290-9.8
7105S14380GL380-4000°K - CRI>70on/off52541141648190290-9.8
7105S14410GL410-4000°K - CRI>70on/off56750142648190290-9.8
7105S14450GL450-4000°K - CRI>70on/off61470137648190290-9.8
7105S14480GL480-4000°K - CRI>70on/off63523132648190290-9.8
7105S14540GL540-4000°K - CRI>70on/off69715129648190290-9.8
7105S14300GD300-4000°K - CRI>70dali converted42601145648190290-9.8
7105S14320GD320-4000°K - CRI>70dali converted45860143648190290-9.8
7105S14340GD340-4000°K - CRI>70dali converted47403143648190290-9.8
7105S14380GD380-4000°K - CRI>70dali converted52541141648190290-9.8
7105S14410GD410-4000°K - CRI>70dali converted56750142648190290-9.8
7105S14450GD450-4000°K - CRI>70dali converted61470137648190290-9.8
7105S14480GD480-4000°K - CRI>70dali converted63523132648190290-9.8
7105S14540GD540-4000°K - CRI>70dali converted69715129648190290-9.8
7105S14300G4300-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)42601145648190290-9.8
7105S14320G4320-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)45860143648190290-9.8
7105S14340G4340-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)47403143648190290-9.8
7105S14380G4380-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)52541141648190290-9.8

Accessories
