GALAXY 2/A5

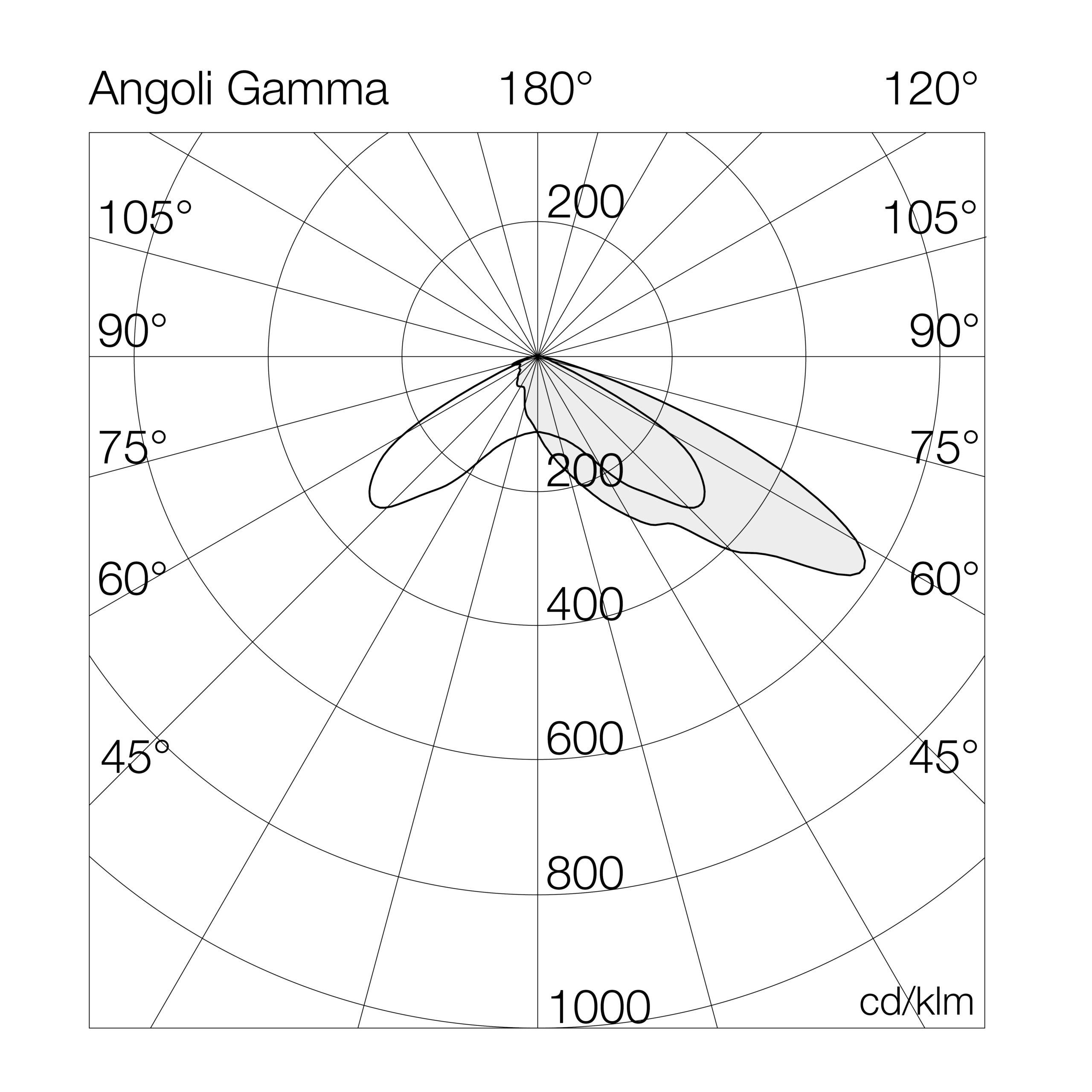

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, GALAXY 2 - 7106, art. 7106 Galaxy 2, Floodlights, art. 7106 Galaxy 2
Models: 72
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7106A54= 4000°K (CRI >70)480= 480WGL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550= 550WGD= dali (converter)
R= 5700°K (CRI >90)600= 600WG4= one 4 all (400v - dali2 - d4i - dmx)
640= 640W
800= 800W
900= 900W
960= 960W
108= 1080W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7106A54480GL480-4000°K - CRI>70on/off78398165650170515-22.5
7106A54550GL550-4000°K - CRI>70on/off89050163650170515-22.5
7106A54600GL600-4000°K - CRI>70on/off95381160650170515-22.5
7106A54640GL640-4000°K - CRI>70on/off99577157650170515-22.5
7106A54800GL800-4000°K - CRI>70on/off120291152650170515-22.5
7106A54900GL900-4000°K - CRI>70on/off135556152650170515-22.5
7106A54960GL960-4000°K - CRI>70on/off140596148650170515-22.5
7106A54108GL1080-4000°K - CRI>70on/off153598154650170515-22.5
7106A54480GD480-4000°K - CRI>70dali converted78398165650170515-22.5
7106A54550GD550-4000°K - CRI>70dali converted89050163650170515-22.5
7106A54600GD600-4000°K - CRI>70dali converted95381160650170515-22.5
7106A54640GD640-4000°K - CRI>70dali converted99577157650170515-22.5
7106A54800GD800-4000°K - CRI>70dali converted120291152650170515-22.5
7106A54900GD900-4000°K - CRI>70dali converted135556152650170515-22.5
7106A54960GD960-4000°K - CRI>70dali converted140596148650170515-22.5
7106A54108GD1080-4000°K - CRI>70dali converted153598154650170515-22.5
7106A54480G4480-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)78398165650170515-22.5
7106A54550G4550-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)89050163650170515-22.5
7106A54600G4600-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)95381160650170515-22.5
7106A54640G4640-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)99577157650170515-22.5

Accessories
