art.-7106-galaxy-2-a4-a5-a6-s1-c3-m6

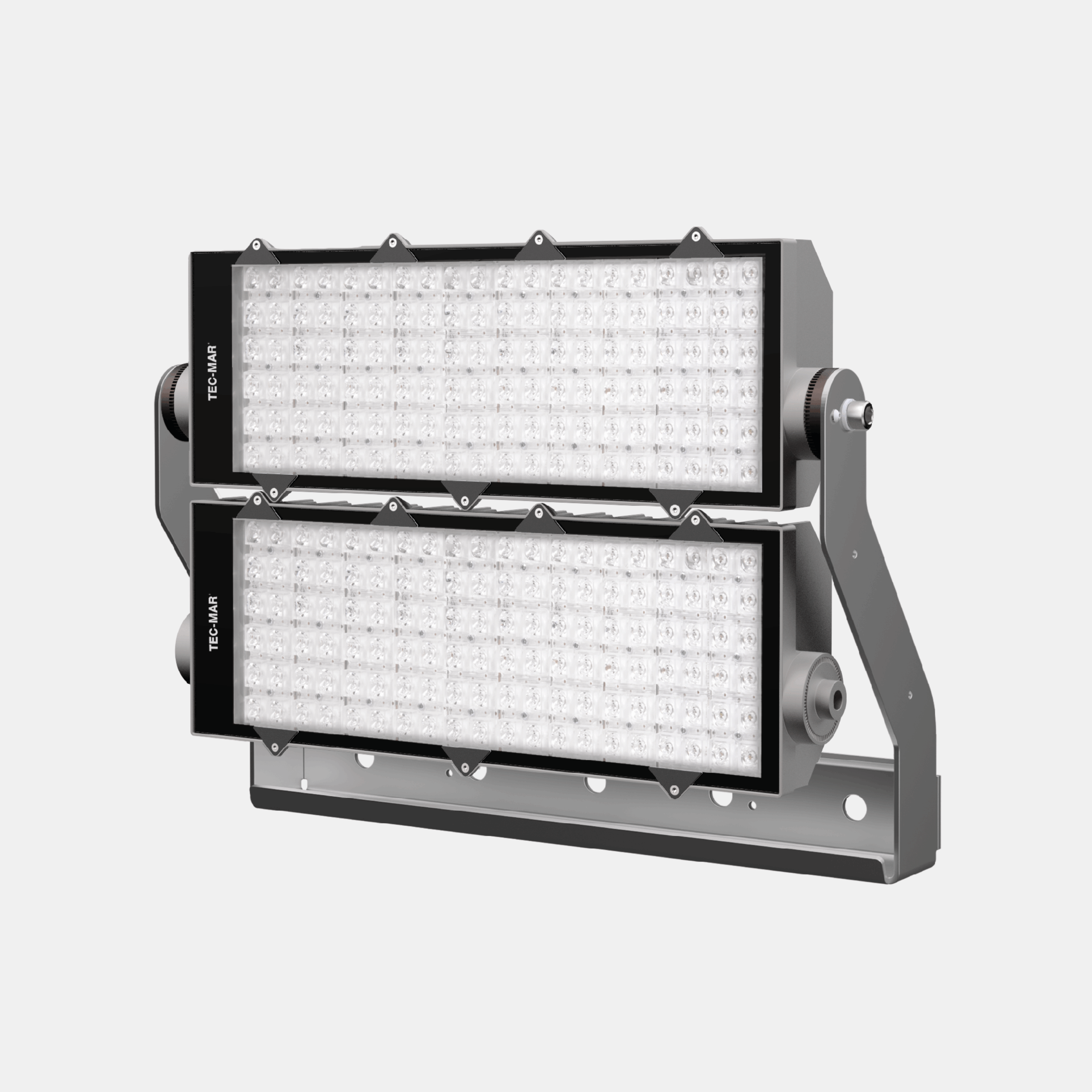

GALAXY 2/C3

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, GALAXY 2 - 7106, art. 7106 Galaxy 2, Floodlights, art. 7106 Galaxy 2
Models: 72
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7106C34= 4000°K (CRI >70)480= 480WGL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)550= 550WGD= dali (converter)
R= 5700°K (CRI >90)600= 600WG4= one 4 all (400v - dali2 - d4i - dmx)
640= 640W
800= 800W
900= 900W
960= 960W
108= 1080W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7106C34480GL480-4000°K - CRI>70on/off84889178650170515-22.5
7106C34550GL550-4000°K - CRI>70on/off96424177650170515-22.5
7106C34600GL600-4000°K - CRI>70on/off103279174650170515-22.5
7106C34640GL640-4000°K - CRI>70on/off107823170650170515-22.5
7106C34800GL800-4000°K - CRI>70on/off130251164650170515-22.5
7106C34900GL900-4000°K - CRI>70on/off146780165650170515-22.5
7106C34960GL960-4000°K - CRI>70on/off152238160650170515-22.5
7106C34108GL1080-4000°K - CRI>70on/off166316167650170515-22.5
7106C34480GD480-4000°K - CRI>70dali converted84889178650170515-22.5
7106C34550GD550-4000°K - CRI>70dali converted96424177650170515-22.5
7106C34600GD600-4000°K - CRI>70dali converted103279174650170515-22.5
7106C34640GD640-4000°K - CRI>70dali converted107823170650170515-22.5
7106C34800GD800-4000°K - CRI>70dali converted130251164650170515-22.5
7106C34900GD900-4000°K - CRI>70dali converted146780165650170515-22.5
7106C34960GD960-4000°K - CRI>70dali converted152238160650170515-22.5
7106C34108GD1080-4000°K - CRI>70dali converted166316167650170515-22.5
7106C34480G4480-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)84889178650170515-22.5
7106C34550G4550-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)96424177650170515-22.5
7106C34600G4600-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)103279174650170515-22.5
7106C34640G4640-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)107823170650170515-22.5

Accessories
