GALAXY 3/A5

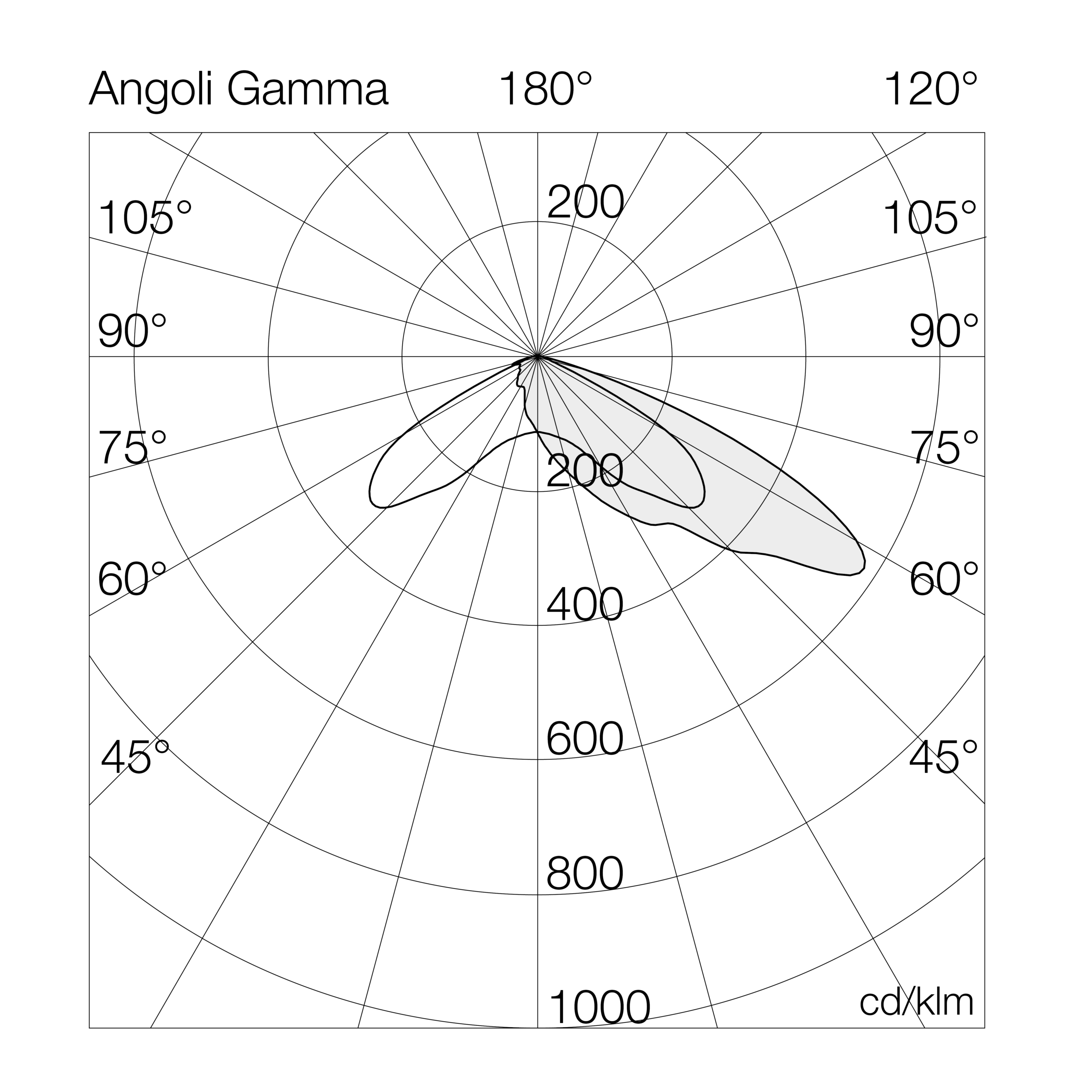

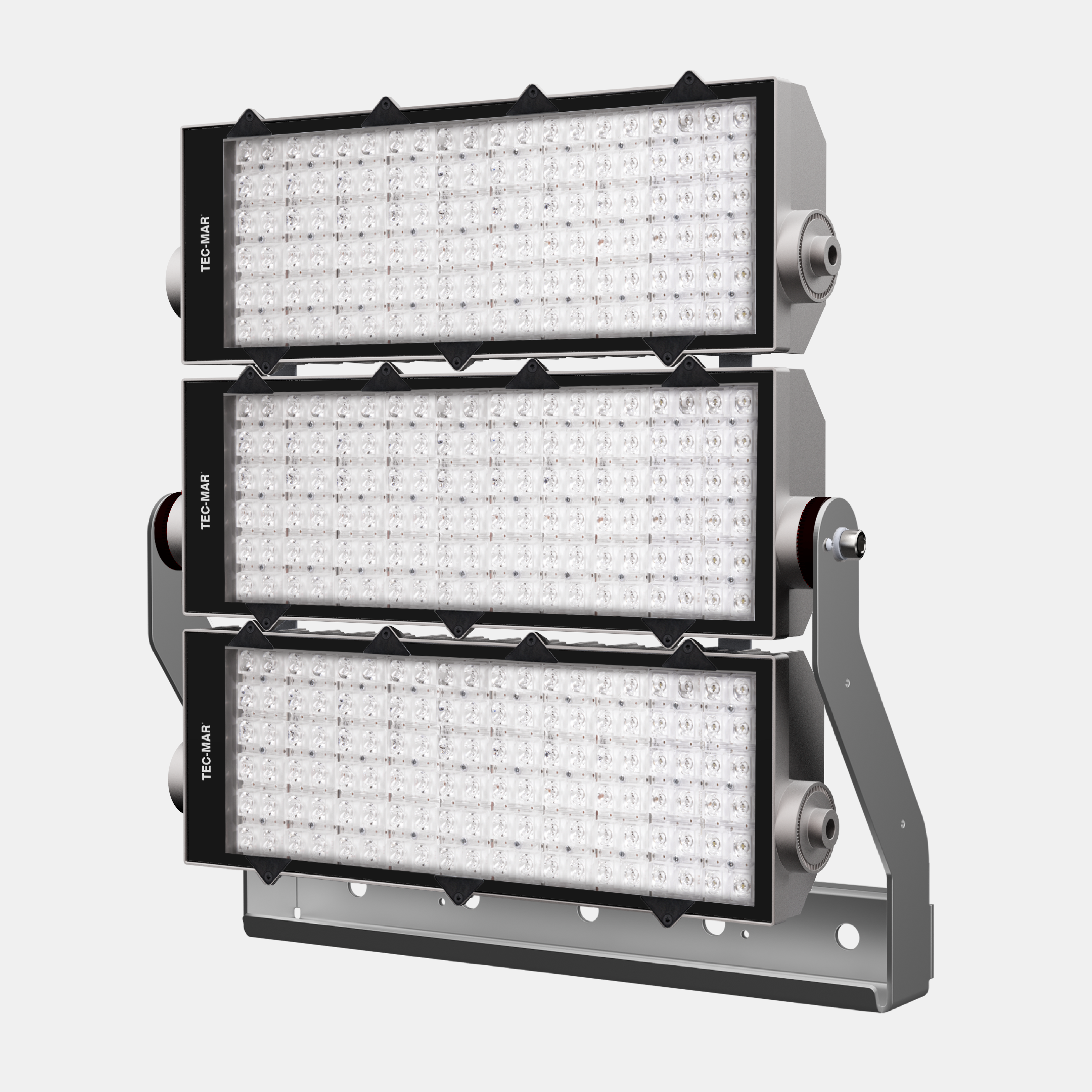

Indoor and outdoor LED projector for lighting large areas and sports facilities, suitable for ground, wall, or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available in six types of opticswith high-performance PMMA lenses: 40° wide-beam asymmetric optics, 65° wide-beam asymmetric optics, 65° narrow-beam asymmetric optics, 10° concentrating symmetric optics, 28° concentrating symmetric optics and 56° symmetric optics.
Categories: Led, art. 7107 Galaxy 3, Floodlights, art. 7107 Galaxy 3
Models: 81
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7107A54= 4000°K (CRI >70)600= 600WGL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)820= 820WGD= dali (converter)
R= 5700°K (CRI >90)900= 900WG4= one 4 all (400v - dali2 - d4i - dmx)
100= 1000W
120= 1200W
135= 1350W
144= 1440W
150= 1500W
162= 1620W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7107A54600GL600-4000°K - CRI>70on/off98153164650170730-30.5
7107A54820GL820-4000°K - CRI>70on/off130395159650170730-30.5
7107A54900GL900-4000°K - CRI>70on/off143071159650170730-30.5
7107A54100GL1000-4000°K - CRI>70on/off155633156650170730-30.5
7107A54120GL1200-4000°K - CRI>70on/off180436150650170730-30.5
7107A54135GL1350-4000°K - CRI>70on/off203333151650170730-30.5
7107A54144GL1440-4000°K - CRI>70on/off210894146650170730-30.5
7107A54150GL1500-4000°K - CRI>70on/off218421146650170730-30.5
7107A54162GL1620-4000°K - CRI>70on/off230397142650170730-30.5
7107A54600GD600-4000°K - CRI>70dali converted98153164650170730-30.5
7107A54820GD820-4000°K - CRI>70dali converted130395159650170730-30.5
7107A54900GD900-4000°K - CRI>70dali converted143071159650170730-30.5
7107A54100GD1000-4000°K - CRI>70dali converted155633156650170730-30.5
7107A54120GD1200-4000°K - CRI>70dali converted180436150650170730-30.5
7107A54135GD1350-4000°K - CRI>70dali converted203333151650170730-30.5
7107A54144GD1440-4000°K - CRI>70dali converted210894146650170730-30.5
7107A54150GD1500-4000°K - CRI>70dali converted218421146650170730-30.5
7107A54162GD1620-4000°K - CRI>70dali converted230397142650170730-30.5
7107A54600G4600-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)98153164650170730-30.5
7107A54820G4820-4000°K - CRI>70one 4 all (400V - DALI2 - D4I - DMX)130395159650170730-30.5
