FOX 1 – Mod. C3

(36° medium rotosymmetric optics)

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, FOX 1 - 7126, Architectural Outdoor, FOX 1
Models: 36
Color: Anthracite
Catalogue abstract
Installation instructions

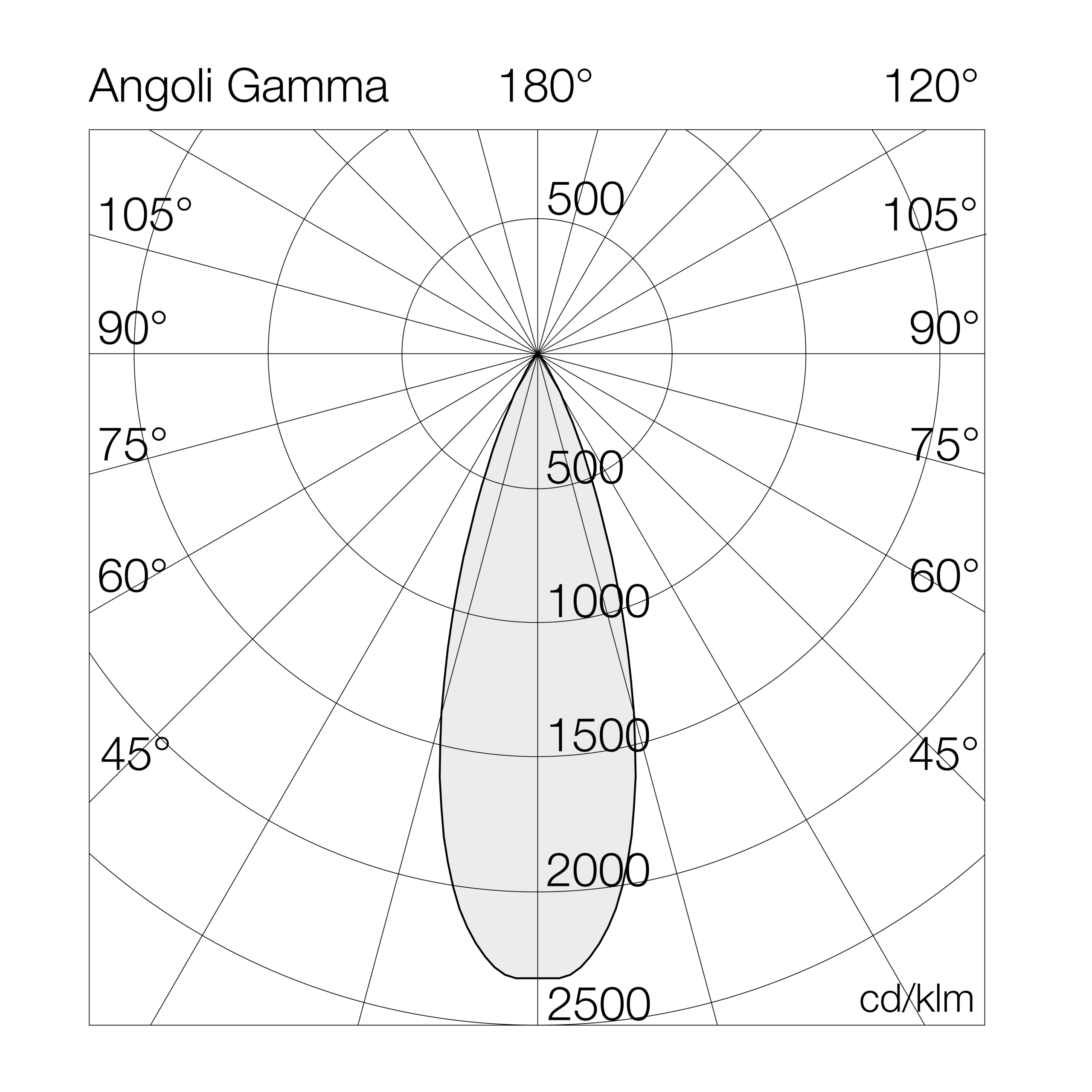

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7126C327= 2700°K (CRI >80)20EL= on/off
30= 3000°K (CRI >80)30LD= dali
40= 4000°K (CRI >80)40
97= 2700°K (CRI >90)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7126C34020EL20-4000°K - CRI>80on/off254012715545325-2.6
7126C34030EL30-4000°K - CRI>80on/off350611715545325-2.6
7126C34040EL40-4000°K - CRI>80on/off451611315545325-2.6
7126C34020LD20-4000°K - CRI>80dali254012715545325-2.6
7126C34030LD30-4000°K - CRI>80dali350611715545325-2.6
7126C34040LD40-4000°K - CRI>80dali451611315545325-2.6
7126C33020EL20-3000°K - CRI>80on/off240612015545325-2.6
7126C33030EL30-3000°K - CRI>80on/off332111115545325-2.6
7126C33040EL40-3000°K - CRI>80on/off427810715545325-2.6
7126C33020LD20-3000°K - CRI>80dali240612015545325-2.6
7126C33030LD30-3000°K - CRI>80dali332111115545325-2.6
7126C33040LD40-3000°K - CRI>80dali427810715545325-2.6
7126C32720EL20-2700°K - CRI>80on/off230211515545325-2.6
7126C32730EL30-2700°K - CRI>80on/off317810615545325-2.6
7126C32740EL40-2700°K - CRI>80on/off409310215545325-2.6
7126C32720LD20-2700°K - CRI>80dali230211515545325-2.6
7126C32730LD30-2700°K - CRI>80dali317810615545325-2.6
7126C32740LD40-2700°K - CRI>80dali409310215545325-2.6
7126C39320EL20-3000°K - CRI>90on/off207610415545325-2.6
7126C39330EL30-3000°K - CRI>90on/off28669615545325-2.6
