FOX 1 – Mod. C5

(60° medium diffusing rotosymmetric optics)

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, FOX 1 - 7126, Architectural Outdoor, FOX 1

Models: 36

Color: Anthracite

Catalogue abstract

Installation instructions

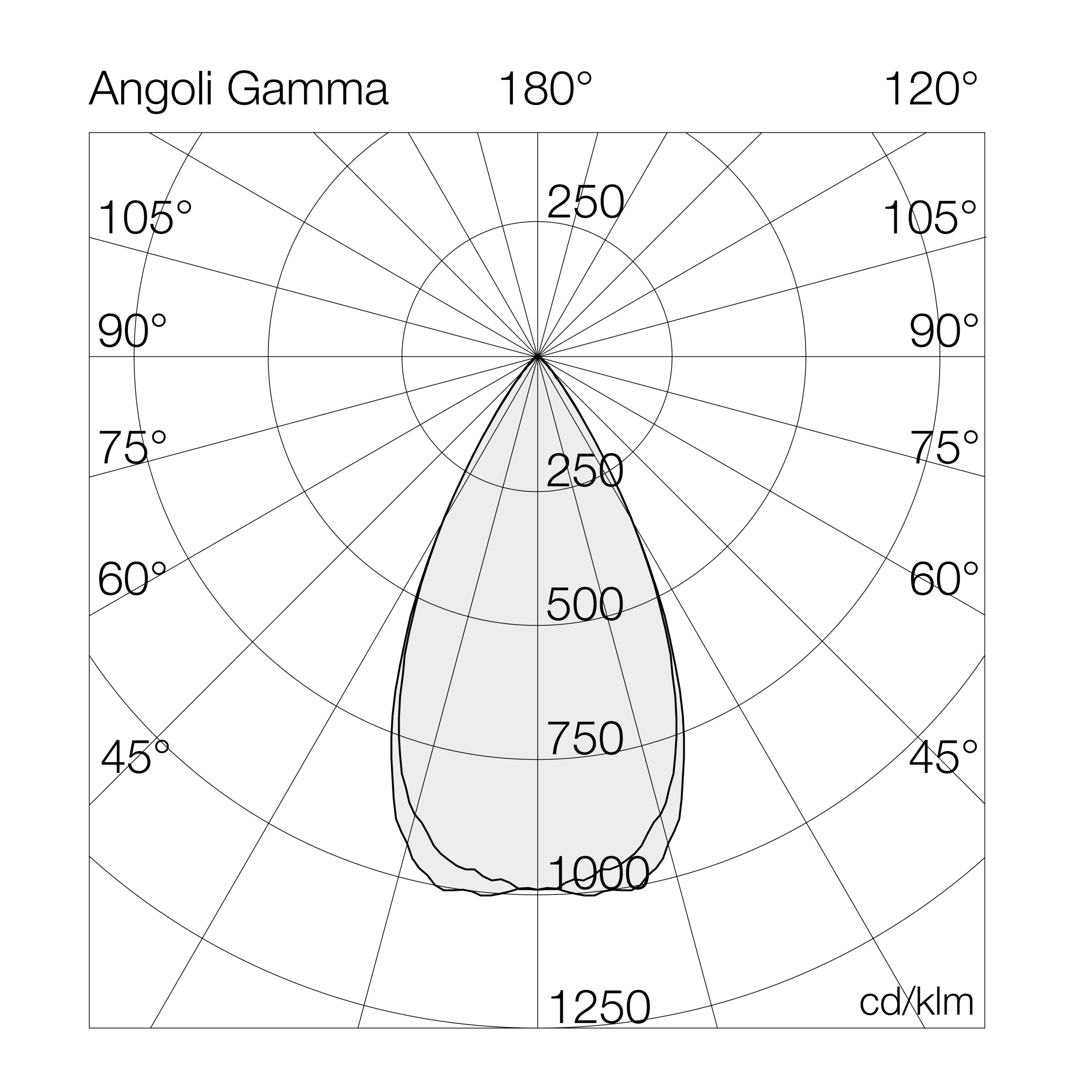

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7126	C5	27	= 2700°K (CRI >80)	20	EL	= on/off
		30	= 3000°K (CRI >80)	30	LD	= dali
		40	= 4000°K (CRI >80)	40
		97	= 2700°K (CRI >90)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7126C54020EL	20	-	4000°K - CRI>80	on/off	2613	131	155	45	325	-	2.6
7126C54030EL	30	-	4000°K - CRI>80	on/off	3606	120	155	45	325	-	2.6
7126C54040EL	40	-	4000°K - CRI>80	on/off	4645	116	155	45	325	-	2.6
7126C54020LD	20	-	4000°K - CRI>80	dali	2613	131	155	45	325	-	2.6
7126C54030LD	30	-	4000°K - CRI>80	dali	3606	120	155	45	325	-	2.6
7126C54040LD	40	-	4000°K - CRI>80	dali	4645	116	155	45	325	-	2.6
7126C53020EL	20	-	3000°K - CRI>80	on/off	2475	124	155	45	325	-	2.6
7126C53030EL	30	-	3000°K - CRI>80	on/off	3416	114	155	45	325	-	2.6
7126C53040EL	40	-	3000°K - CRI>80	on/off	4400	110	155	45	325	-	2.6
7126C53020LD	20	-	3000°K - CRI>80	dali	2475	124	155	45	325	-	2.6
7126C53030LD	30	-	3000°K - CRI>80	dali	3416	114	155	45	325	-	2.6
7126C53040LD	40	-	3000°K - CRI>80	dali	4400	110	155	45	325	-	2.6
7126C52720EL	20	-	2700°K - CRI>80	on/off	2368	118	155	45	325	-	2.6
7126C52730EL	30	-	2700°K - CRI>80	on/off	3268	109	155	45	325	-	2.6
7126C52740EL	40	-	2700°K - CRI>80	on/off	4210	105	155	45	325	-	2.6
7126C52720LD	20	-	2700°K - CRI>80	dali	2368	118	155	45	325	-	2.6
7126C52730LD	30	-	2700°K - CRI>80	dali	3268	109	155	45	325	-	2.6
7126C52740LD	40	-	2700°K - CRI>80	dali	4210	105	155	45	325	-	2.6
7126C59320EL	20	-	3000°K - CRI>90	on/off	2136	107	155	45	325	-	2.6
7126C59330EL	30	-	3000°K - CRI>90	on/off	2948	98	155	45	325	-	2.6
