art.-7127-fox-2-c1-c2-c3-c5

FOX 2/C3

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Outdoor, art. 7127 Fox 2
Models: 38
Color: Anthracite
Catalogue abstract
Installation instructions

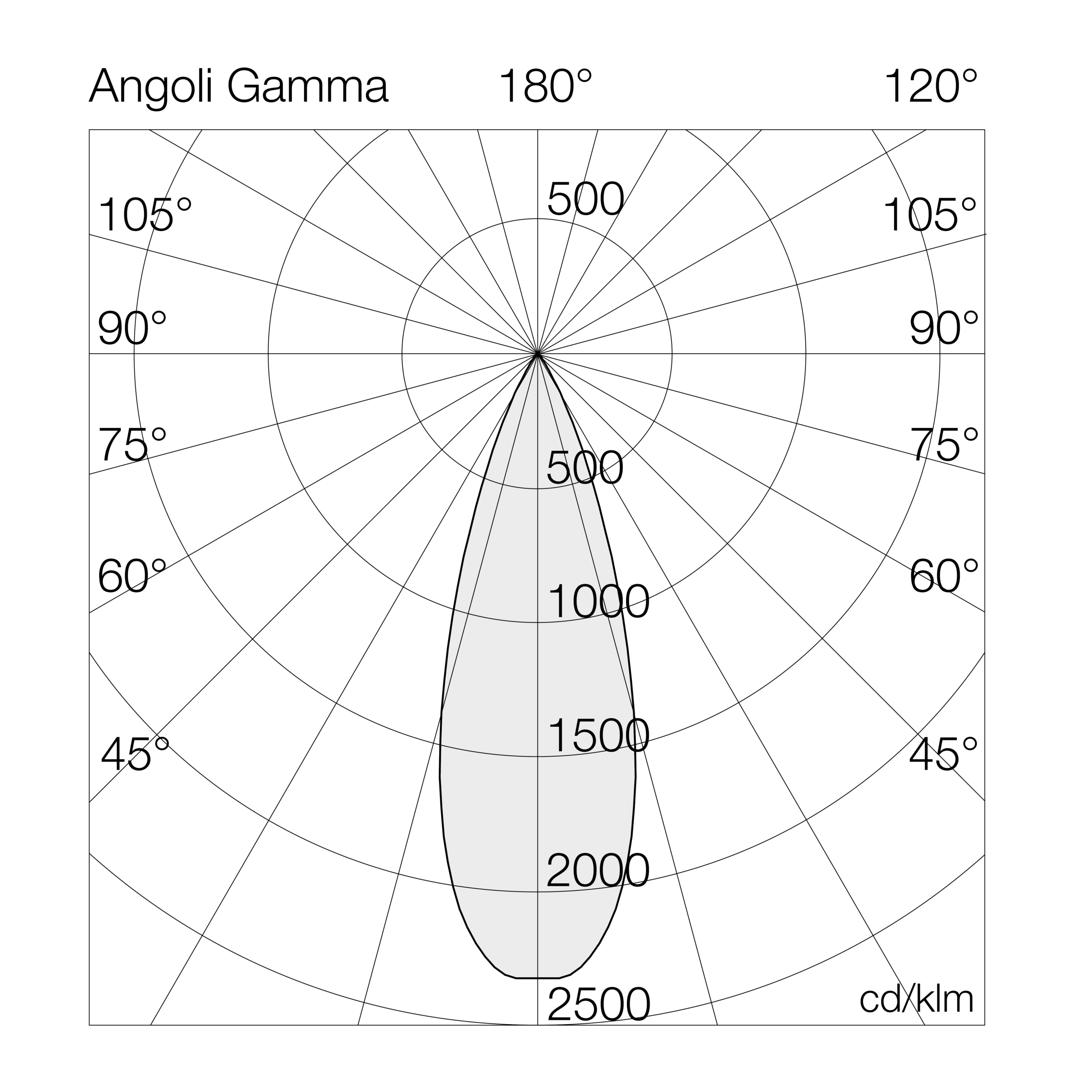

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7127C327= 2700°K (CRI >80)50EL= on/off(only white led version)
30= 3000°K (CRI >80)60LD= dali(only white led version)
40= 4000°K (CRI >80)80CS= casambi bluetooth(only RBG+W version)
97= 2700°K (CRI >90)CG= external gateway(only RBG+W version)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)
RW= RGB+W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7127C34050EL504000°K - CRI>80on/off5730115205503653.7
7127C34060EL604000°K - CRI>80on/off6773113205503653.7
7127C34080EL804000°K - CRI>80on/off8453106205503653.7
7127C34050LD504000°K - CRI>80dali5730115205503653.7
7127C34060LD604000°K - CRI>80dali6773113205503653.7
7127C34080LD804000°K - CRI>80dali8453106205503653.7
7127C33050EL503000°K - CRI>80on/off5427109205503653.7
7127C33060EL603000°K - CRI>80on/off6415107205503653.7
7127C33080EL803000°K - CRI>80on/off8007100205503653.7
7127C33050LD503000°K - CRI>80dali5427109205503653.7
7127C33060LD603000°K - CRI>80dali6415107205503653.7
7127C33080LD803000°K - CRI>80dali8007100205503653.7
7127C32750EL502700°K - CRI>80on/off5194104205503653.7
7127C32760EL602700°K - CRI>80on/off6139102205503653.7
7127C32780EL802700°K - CRI>80on/off766296205503653.7
7127C32750LD502700°K - CRI>80dali5194104205503653.7
7127C32760LD602700°K - CRI>80dali6139102205503653.7
7127C32780LD802700°K - CRI>80dali766296205503653.7
7127C39350EL503000°K - CRI>90on/off468494205503653.7
7127C39360EL603000°K - CRI>90on/off553792205503653.7

Accessories
