art.-7127-fox-2-c1-c2-c3-e1

FOX 2 – Mod. E1

(Elliptical optics 40°/13°)

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, FOX 2 - 7127, Architectural Outdoor, FOX 2
Models: 2
Color: Anthracite
Catalogue abstract
Installation instructions

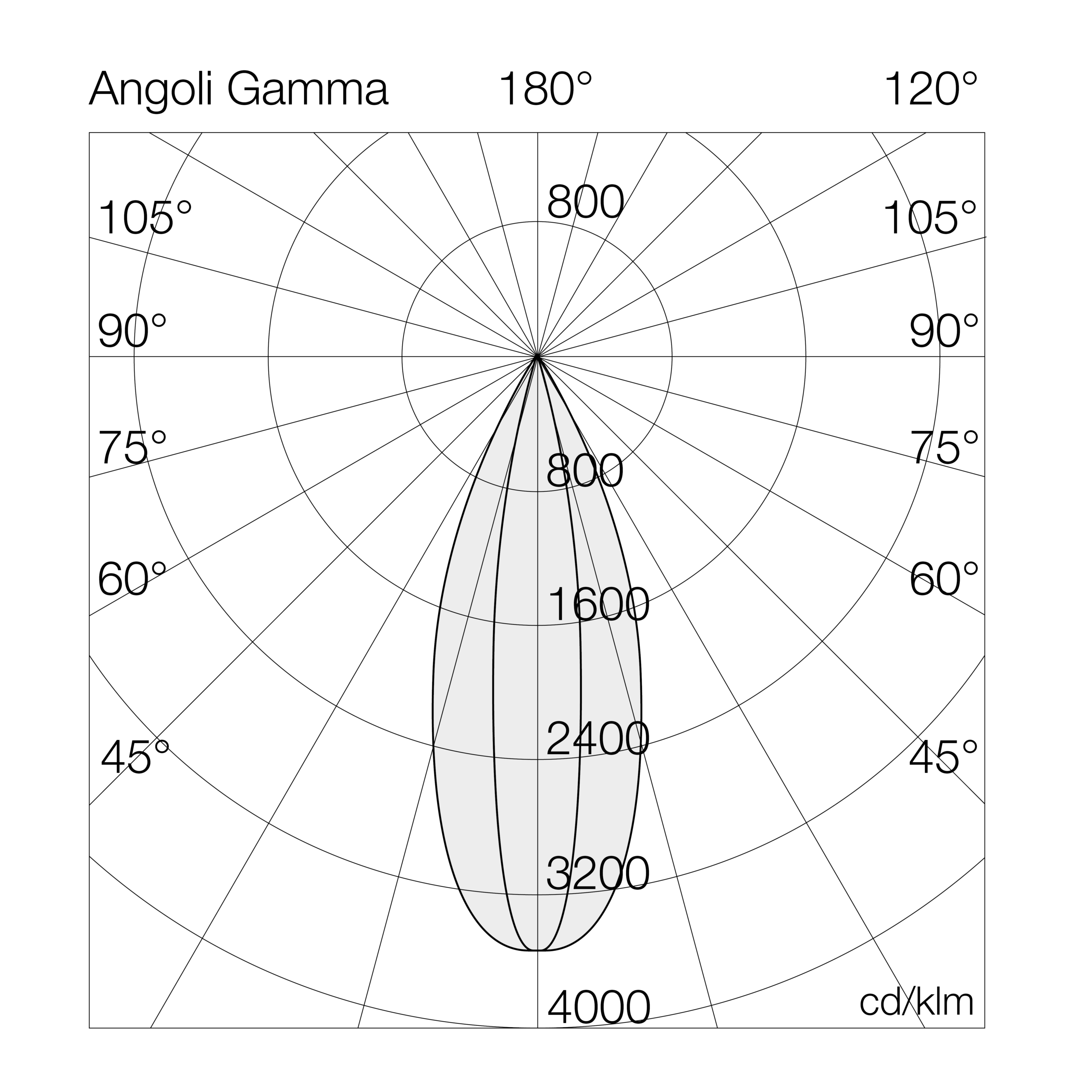

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7127E1RW= RGB+W60CS= casambi bluetooth(only RBG+W version)
CG= external gateway(only RBG+W version)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7127E1RW60CS60-RGB+Wcasambi bluetooth22833820550365-3.7
7127E1RW60CG60-RGB+Wexternal gateway22833820550365-3.7

Accessories
