FOX 4 – Mod. C2

(26° rotosymmetrical focusing optics)

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, FOX 4 - 7129, Architectural Outdoor, FOX 4

Models: 14

Color: Anthracite

Catalogue abstract

Installation instructions

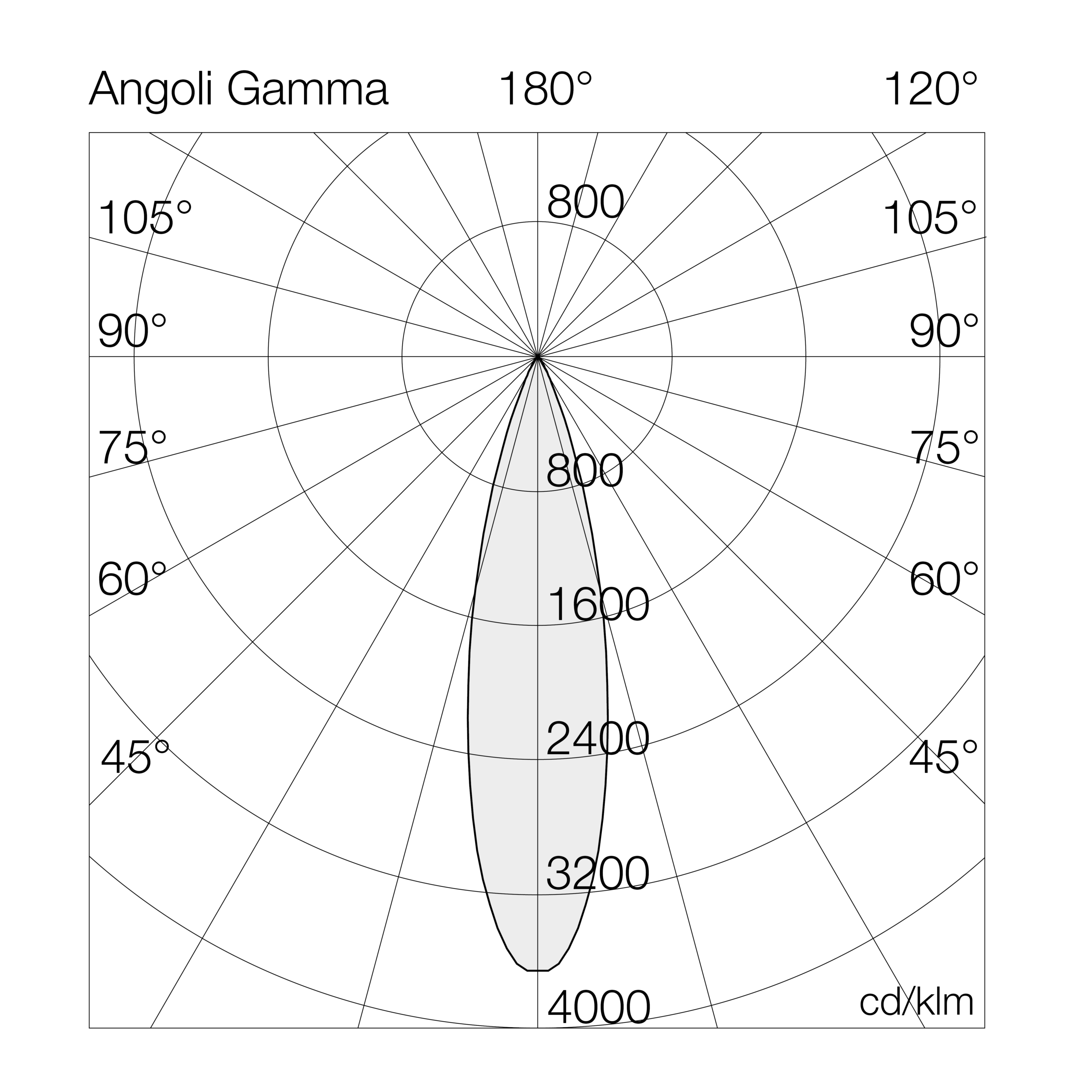

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7129	C2	2	= 2700°K (CRI >80)	180	EL	= on/off	(only white led version)
		3	= 3000°K (CRI >80)	200	LD	= dali	(only white led version)
		4	= 4000°K (CRI >80)		CS	= casambi bluetooth	(only RBG+W version)
		7	= 2700°K (CRI >90)		CG	= external gateway	(only RBG+W version)
		8	= 3000°K (CRI >90)
		9	= 4000°K (CRI >90)
		R	= RGB+W

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7129C24200EL	200	-	4000°K - CRI>80	on/off	22037	110	325	70	500	-	8.4
7129C24200LD	200	-	4000°K - CRI>80	dali	22037	110	325	70	500	-	8.4
7129C23200EL	200	-	3000°K - CRI>80	on/off	20873	104	325	70	500	-	8.4
7129C23200LD	200	-	3000°K - CRI>80	dali	20873	104	325	70	500	-	8.4
7129C22200EL	200	-	2700°K - CRI>80	on/off	19974	100	325	70	500	-	8.4
7129C22200LD	200	-	2700°K - CRI>80	dali	19974	100	325	70	500	-	8.4
7129C28200EL	200	-	3000°K - CRI>90	on/off	18015	90	325	70	500	-	8.4
7129C28200LD	200	-	3000°K - CRI>90	dali	18015	90	325	70	500	-	8.4
7129C27200EL	200	-	2700°K - CRI>90	on/off	17090	85	325	70	500	-	8.4
7129C27200LD	200	-	2700°K - CRI>90	dali	17090	85	325	70	500	-	8.4
7129C29200EL	200	-	4000°K - CRI>90	on/off	18886	94	325	70	500	-	8.4
7129C29200LD	200	-	4000°K - CRI>90	dali	18886	94	325	70	500	-	8.4
7129C2R180CS	180	-	RGB+W	casambi bluetooth	7352	41	325	70	500	-	8.4
7129C2R180CG	180	-	RGB+W	external gateway	7352	41	325	70	500	-	8.4
