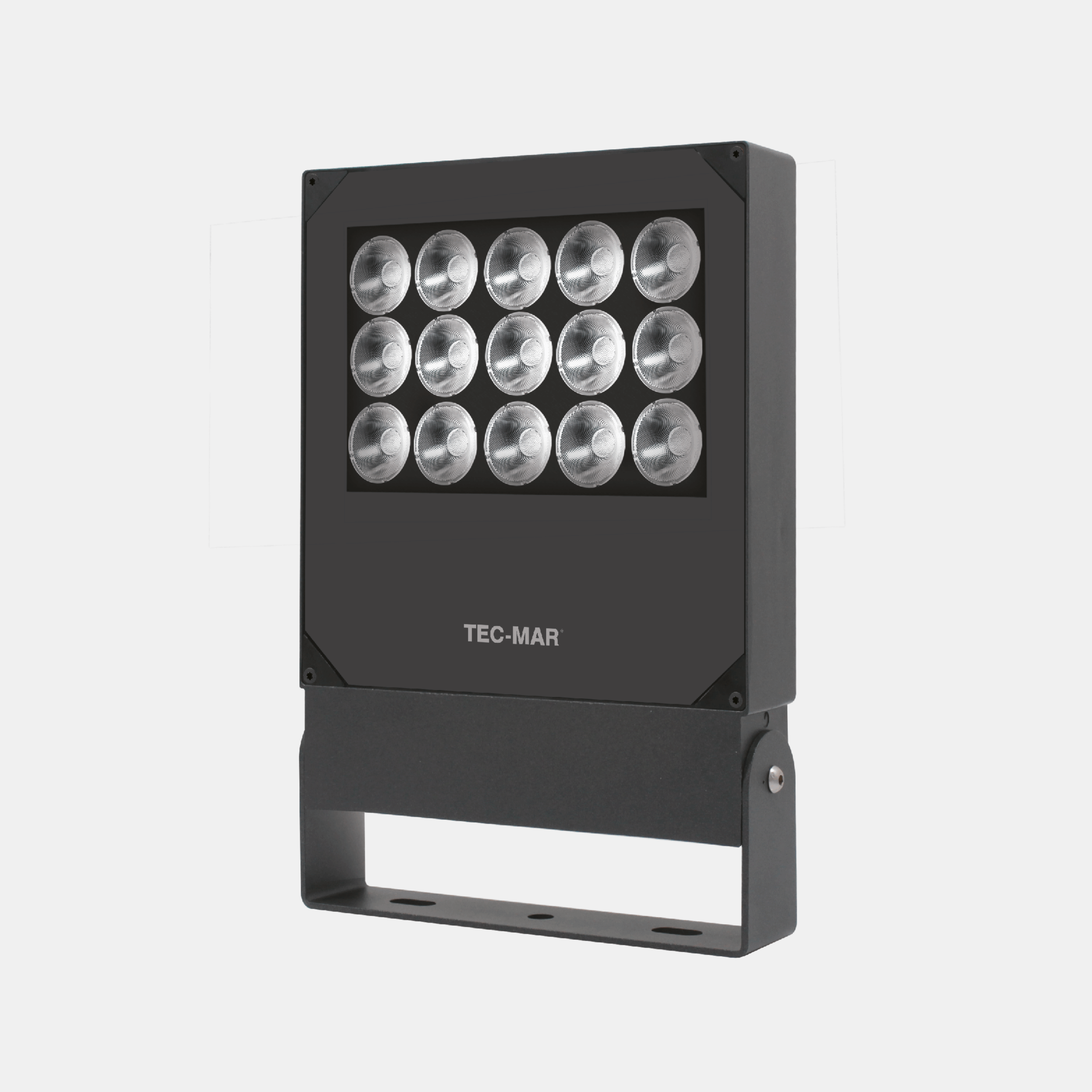

FOX 4 – Mod. C3

(36° medium rotosymmetric optics)

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, FOX 4 - 7129, Architectural Outdoor, FOX 4

Models: 14

Color: Anthracite

Catalogue abstract

Installation instructions

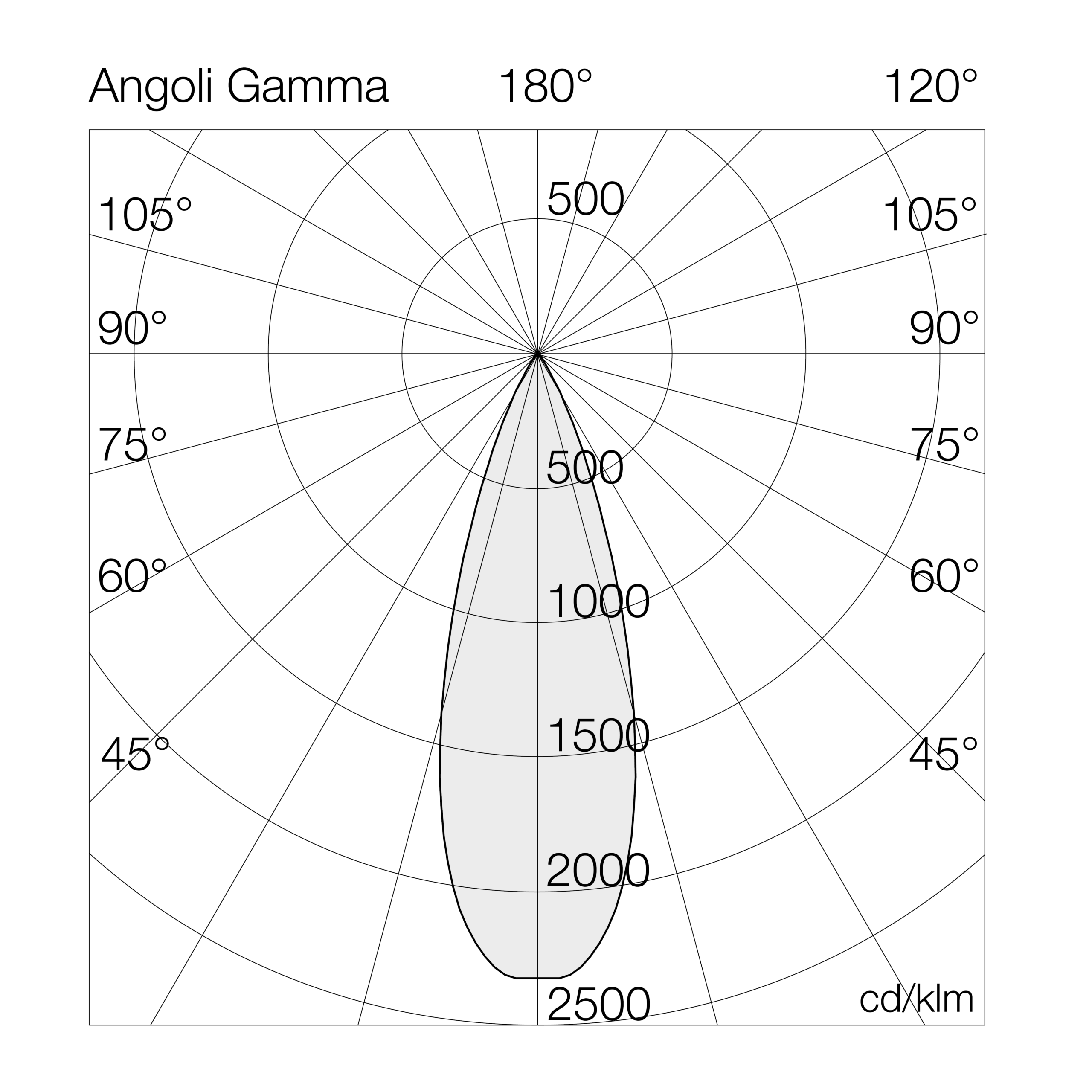

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7129	C3	2	= 2700°K (CRI >80)	180	EL	= on/off	(only white led version)
		3	= 3000°K (CRI >80)	200	LD	= dali	(only white led version)
		4	= 4000°K (CRI >80)		CS	= casambi bluetooth	(only RBG+W version)
		7	= 2700°K (CRI >90)		CG	= external gateway	(only RBG+W version)
		8	= 3000°K (CRI >90)
		9	= 4000°K (CRI >90)
		R	= RGB+W

Models

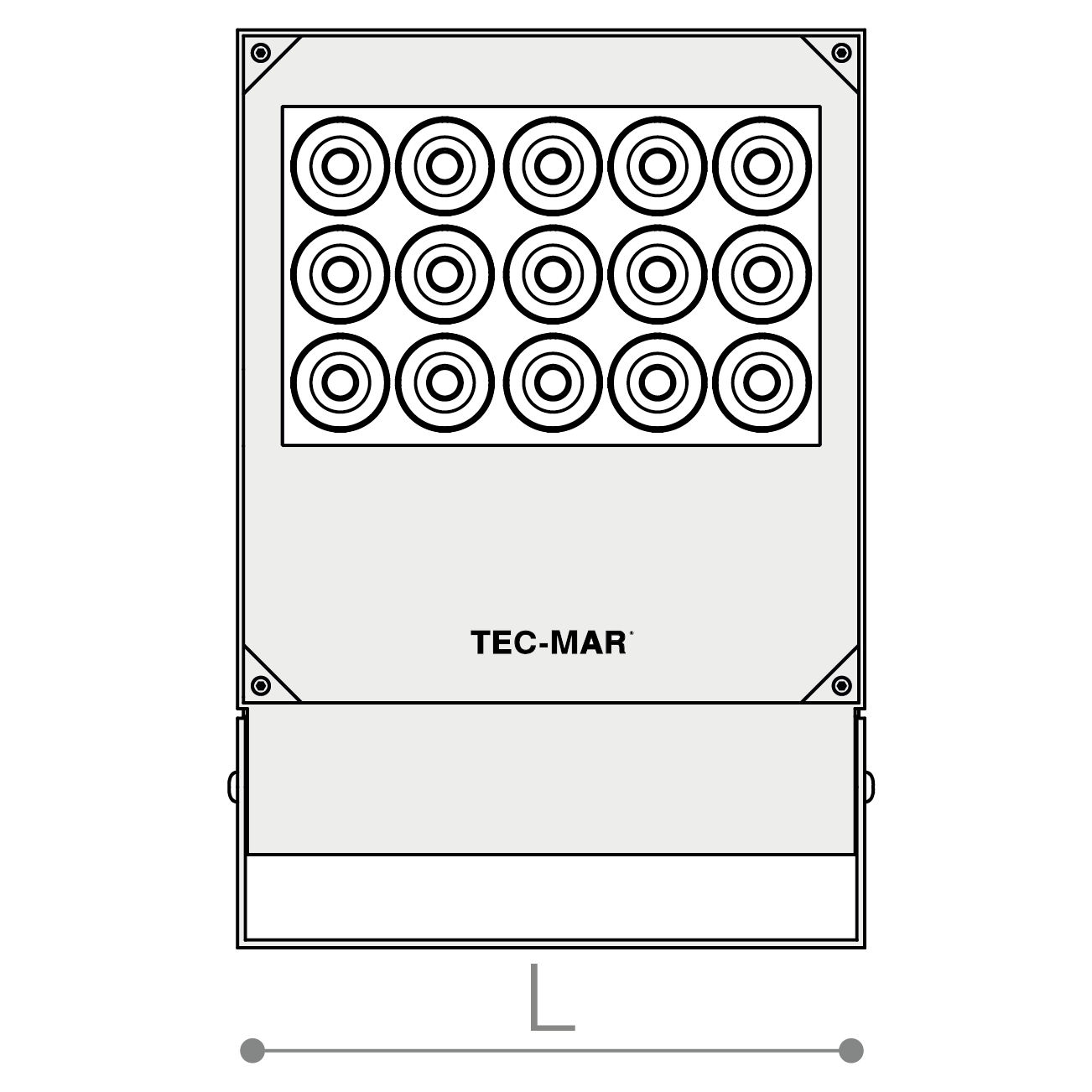

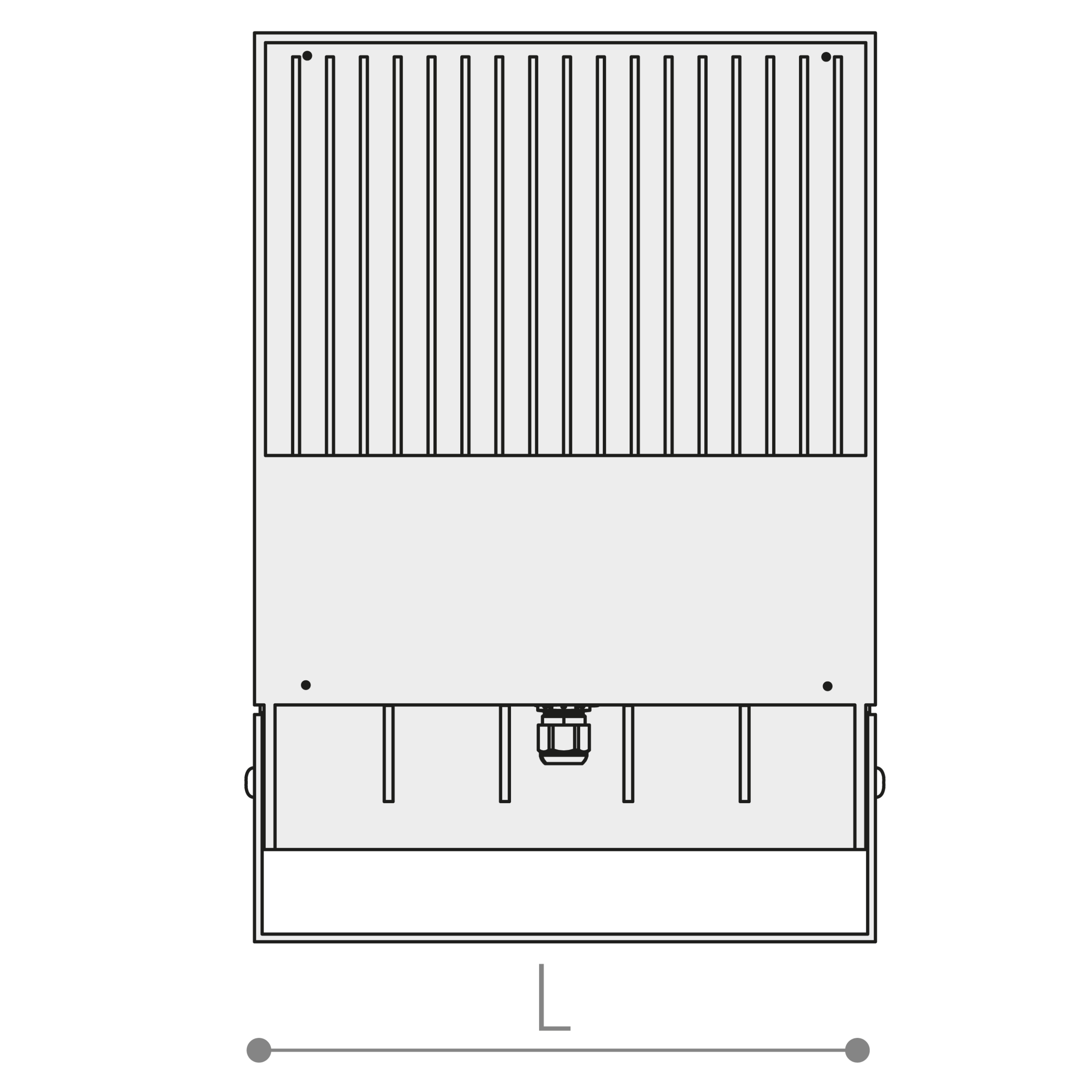

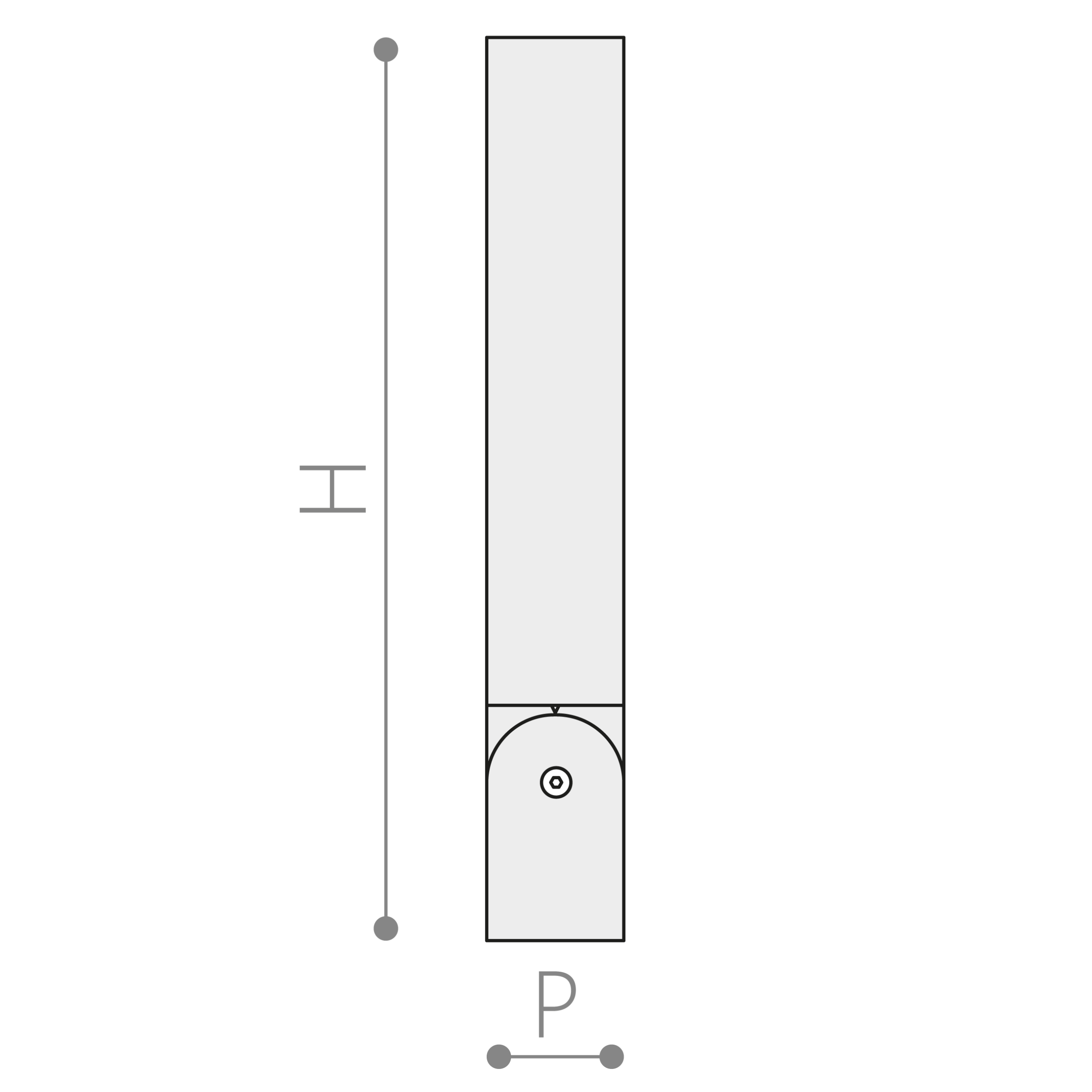

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7129C34200EL	200	-	4000°K - CRI>80	on/off	21131	106	325	70	500	-	8.4
7129C34200LD	200	-	4000°K - CRI>80	dali	21131	106	325	70	500	-	8.4
7129C33200EL	200	-	3000°K - CRI>80	on/off	20015	100	325	70	500	-	8.4
7129C33200LD	200	-	3000°K - CRI>80	dali	20015	100	325	70	500	-	8.4
7129C32200EL	200	-	2700°K - CRI>80	on/off	19153	96	325	70	500	-	8.4
7129C32200LD	200	-	2700°K - CRI>80	dali	19153	96	325	70	500	-	8.4
7129C38200EL	200	-	3000°K - CRI>90	on/off	17275	86	325	70	500	-	8.4
7129C38200LD	200	-	3000°K - CRI>90	dali	17275	86	325	70	500	-	8.4
7129C37200EL	200	-	2700°K - CRI>90	on/off	16387	82	325	70	500	-	8.4
7129C37200LD	200	-	2700°K - CRI>90	dali	16387	82	325	70	500	-	8.4
7129C39200EL	200	-	4000°K - CRI>90	on/off	18109	91	325	70	500	-	8.4
7129C39200LD	200	-	4000°K - CRI>90	dali	18109	91	325	70	500	-	8.4
7129C3R180CS	180	-	RGB+W	casambi bluetooth	7050	39	325	70	500	-	8.4
7129C3R180CG	180	-	RGB+W	external gateway	7050	39	325	70	500	-	8.4
