BEST 0 | Mod. AR

55° asymmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 0, BEST SERIES, BEST 0, Floodlights, BEST 0

Models: 60

Color: White

Catalogue abstract

Installation instructions

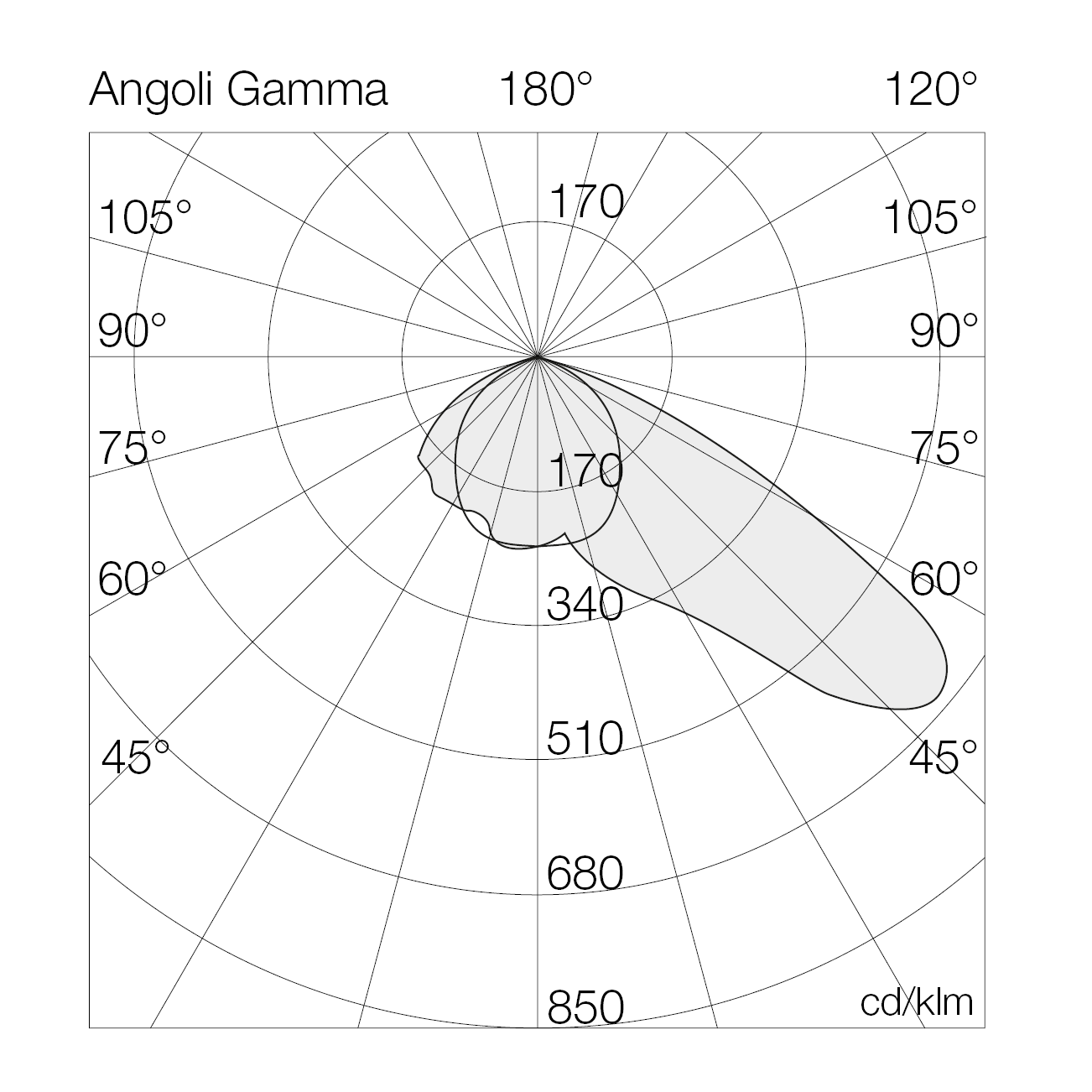

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7200	AR	30	= 3000°K (CRI >80)	20	BL	= on/off
		40	= 4000°K (CRI >80)	30	BD	= dali 2
		50	= 5000°K (CRI >80)	40	BA	= acid-etched glass
		65	= 6500°K (CRI >80)		B2	= on/off (class II)
		74	= 4000°K (CRI >70)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7200AR4020BL	20	-	4000°K - CRI ≥80	on/off	3016	151	147	48	270	-	1.4
7200AR4030BL	30	-	4000°K - CRI ≥80	on/off	4347	145	147	48	270	-	1.4
7200AR4040BL	40	-	4000°K - CRI ≥80	on/off	6040	151	147	48	270	-	1.4
7200AR4020BD	20	-	4000°K - CRI ≥80	dali 2 push	3016	151	147	48	270	-	1.4
7200AR4030BD	30	-	4000°K - CRI ≥80	dali 2 push	4347	145	147	48	270	-	1.4
7200AR4040BD	40	-	4000°K - CRI ≥80	dali 2 push	6040	151	147	48	270	-	1.4
7200AR4020BA	20	-	4000°K - CRI ≥80	acid-etched glass	3016	151	147	48	270	-	1.4
7200AR4030BA	30	-	4000°K - CRI ≥80	acid-etched glass	4347	145	147	48	270	-	1.4
7200AR4040BA	40	-	4000°K - CRI ≥80	acid-etched glass	6040	151	147	48	270	-	1.4
7200AR4020B2	20	-	4000°K - CRI ≥80	class II	3016	151	147	48	270	-	1.4
7200AR4030B2	30	-	4000°K - CRI ≥80	class II	4347	145	147	48	270	-	1.4
7200AR4040B2	40	-	4000°K - CRI ≥80	class II	6040	151	147	48	270	-	1.4
7200AR3020BL	20	-	3000°K - CRI ≥80	on/off	2844	142	147	48	270	-	1.4
7200AR3030BL	30	-	3000°K - CRI ≥80	on/off	4099	137	147	48	270	-	1.4
7200AR3040BL	40	-	3000°K - CRI ≥80	on/off	5696	142	147	48	270	-	1.4
7200AR3020BD	20	-	3000°K - CRI ≥80	dali 2 push	2844	142	147	48	270	-	1.4
7200AR3030BD	30	-	3000°K - CRI ≥80	dali 2 push	4099	137	147	48	270	-	1.4
7200AR3040BD	40	-	3000°K - CRI ≥80	dali 2 push	5696	142	147	48	270	-	1.4
7200AR3020BA	20	-	3000°K - CRI ≥80	acid-etched glass	2844	142	147	48	270	-	1.4
7200AR3030BA	30	-	3000°K - CRI ≥80	acid-etched glass	4099	137	147	48	270	-	1.4
