BEST 0 | Mod. AR

55° asymmetrical optic

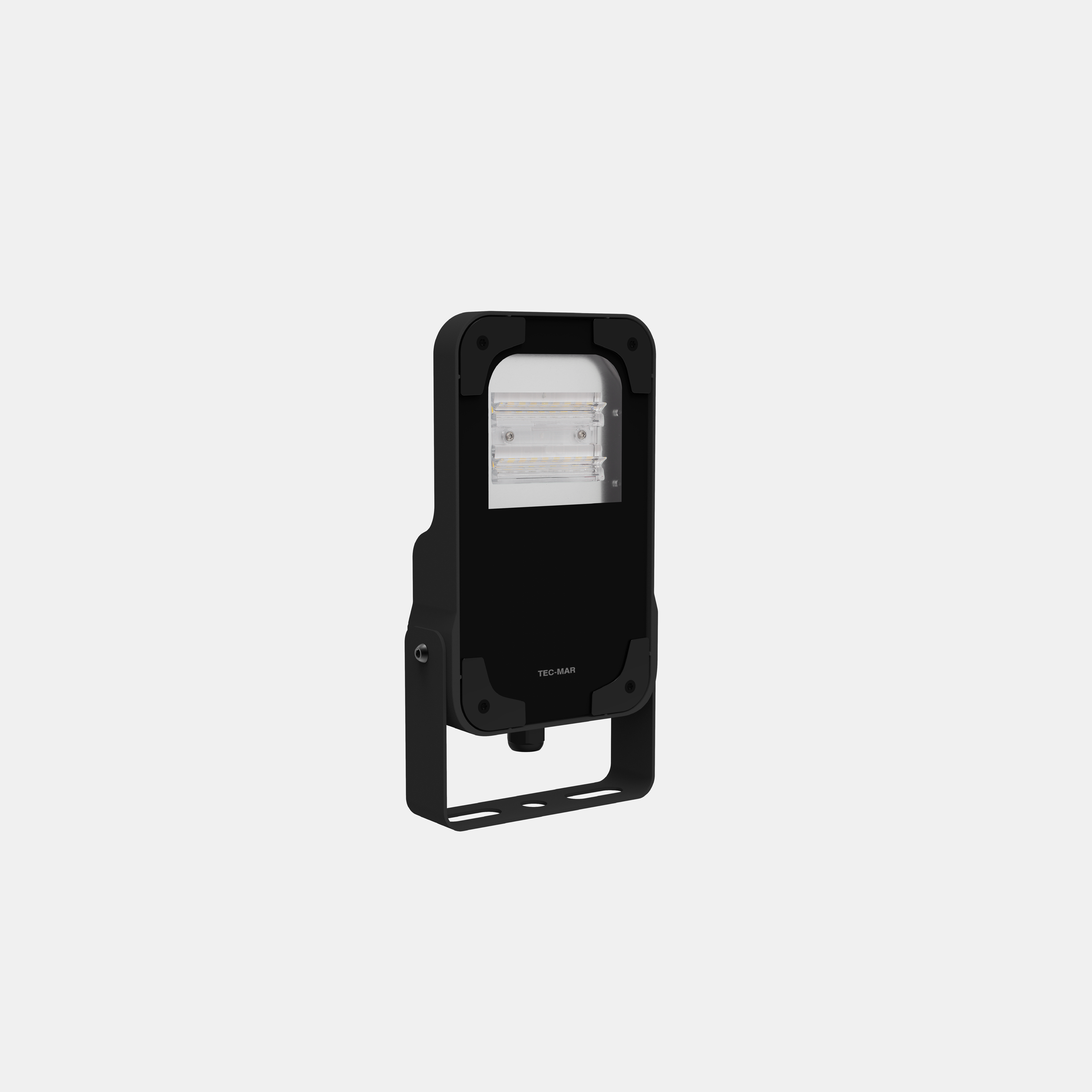

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 0, BEST SERIES, BEST 0, Floodlights, BEST 0

Models: 60

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7200	AR	30	= 3000°K (CRI >80)	20	NL	= on/off
		40	= 4000°K (CRI >80)	30	ND	= dali 2
		50	= 5000°K (CRI >80)	40	NA	= acid-etched glass
		65	= 6500°K (CRI >80)		N2	= on/off (class II)
		74	= 4000°K (CRI >70)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7200AR4020NL	20	-	4000°K - CRI ≥80	on/off	3016	151	147	48	270	-	1.4
7200AR4030NL	30	-	4000°K - CRI ≥80	on/off	4347	145	147	48	270	-	1.4
7200AR4040NL	40	-	4000°K - CRI ≥80	on/off	6040	151	147	48	270	-	1.4
7200AR4020ND	20	-	4000°K - CRI ≥80	dali 2 push	3016	151	147	48	270	-	1.4
7200AR4030ND	30	-	4000°K - CRI ≥80	dali 2 push	4347	145	147	48	270	-	1.4
7200AR4040ND	40	-	4000°K - CRI ≥80	dali 2 push	6040	151	147	48	270	-	1.4
7200AR4020NA	20	-	4000°K - CRI ≥80	acid-etched glass	3016	151	147	48	270	-	1.4
7200AR4030NA	30	-	4000°K - CRI ≥80	acid-etched glass	4347	145	147	48	270	-	1.4
7200AR4040NA	40	-	4000°K - CRI ≥80	acid-etched glass	6040	151	147	48	270	-	1.4
7200AR4020N2	20	-	4000°K - CRI ≥80	class II	3016	151	147	48	270	-	1.4
7200AR4030N2	30	-	4000°K - CRI ≥80	class II	4347	145	147	48	270	-	1.4
7200AR4040N2	40	-	4000°K - CRI ≥80	class II	6040	151	147	48	270	-	1.4
7200AR3020NL	20	-	3000°K - CRI ≥80	on/off	2844	142	147	48	270	-	1.4
7200AR3030NL	30	-	3000°K - CRI ≥80	on/off	4099	137	147	48	270	-	1.4
7200AR3040NL	40	-	3000°K - CRI ≥80	on/off	5696	142	147	48	270	-	1.4
7200AR3020ND	20	-	3000°K - CRI ≥80	dali 2 push	2844	142	147	48	270	-	1.4
7200AR3030ND	30	-	3000°K - CRI ≥80	dali 2 push	4099	137	147	48	270	-	1.4
7200AR3040ND	40	-	3000°K - CRI ≥80	dali 2 push	5696	142	147	48	270	-	1.4
7200AR3020NA	20	-	3000°K - CRI ≥80	acid-etched glass	2844	142	147	48	270	-	1.4
7200AR3030NA	30	-	3000°K - CRI ≥80	acid-etched glass	4099	137	147	48	270	-	1.4
