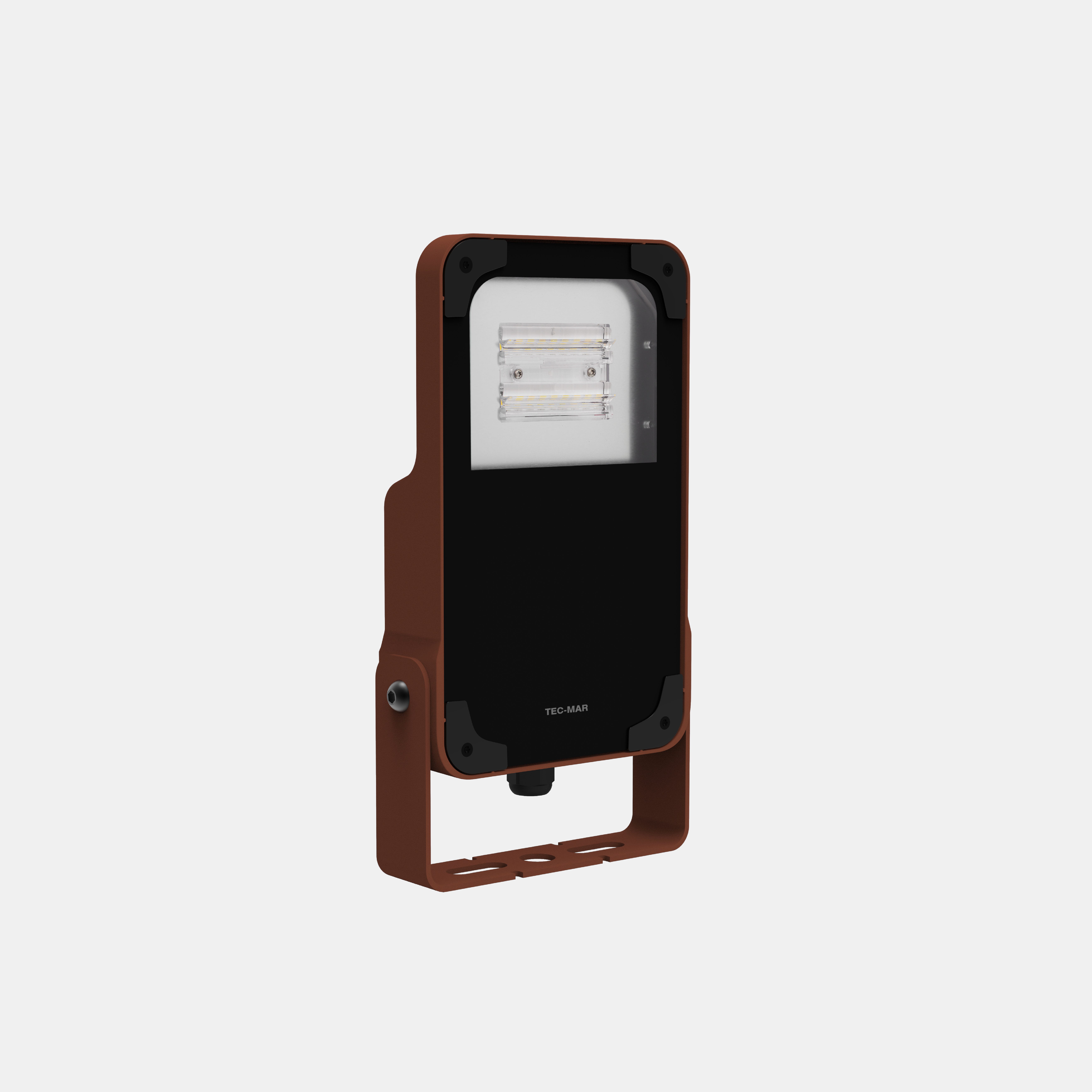

BEST 1 | Mod. AR

55° asymmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 1, BEST SERIES, BEST 1, Floodlights, BEST 1

Models: 100

Color: Corten

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7201	AR	30	= 3000°K (CRI >80)	50	CL	= on/off
		40	= 4000°K (CRI >80)	54	CD	= dali 2
		50	= 5000°K (CRI >80)	58	CA	= acid-etched glass
		65	= 6500°K (CRI >80)	64	C2	= on/off (class II)
		74	= 4000°K (CRI >70)	73

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7201AR4050CL	50	-	4000°K - CRI ≥80	on/off	7173	143	194	56	342	-	2.3
7201AR4054CL	54	-	4000°K - CRI ≥80	on/off	7496	139	194	56	342	-	2.3
7201AR4058CL	58	-	4000°K - CRI ≥80	on/off	8038	139	194	56	342	-	2.3
7201AR4064CL	64	-	4000°K - CRI ≥80	on/off	8328	130	194	56	342	-	2.3
7201AR4073CL	73	-	4000°K - CRI ≥80	on/off	11092	152	194	56	342	-	2.3
7201AR3050CL	50	-	3000°K - CRI ≥80	on/off	6764	135	194	56	342	-	2.3
7201AR3054CL	54	-	3000°K - CRI ≥80	on/off	7069	131	194	56	342	-	2.3
7201AR3058CL	58	-	3000°K - CRI ≥80	on/off	7580	131	194	56	342	-	2.3
7201AR3064CL	64	-	3000°K - CRI ≥80	on/off	7853	123	194	56	342	-	2.3
7201AR3073CL	73	-	3000°K - CRI ≥80	on/off	10460	143	194	56	342	-	2.3
7201AR5050CL	50	-	5000°K - CRI ≥80	on/off	7277	146	194	56	342	-	2.3
7201AR5054CL	54	-	5000°K - CRI ≥80	on/off	7605	141	194	56	342	-	2.3
7201AR5058CL	58	-	5000°K - CRI ≥80	on/off	8155	141	194	56	342	-	2.3
7201AR5064CL	64	-	5000°K - CRI ≥80	on/off	8449	132	194	56	342	-	2.3
7201AR5073CL	73	-	5000°K - CRI ≥80	on/off	11253	154	194	56	342	-	2.3
7201AR6550CL	50	-	6500°K - CRI ≥80	on/off	7119	142	194	56	342	-	2.3
7201AR6554CL	54	-	6500°K - CRI ≥80	on/off	7440	138	194	56	342	-	2.3
7201AR6558CL	58	-	6500°K - CRI ≥80	on/off	7978	138	194	56	342	-	2.3
7201AR6564CL	64	-	6500°K - CRI ≥80	on/off	8266	129	194	56	342	-	2.3
7201AR6573CL	73	-	6500°K - CRI ≥80	on/off	11009	151	194	56	342	-	2.3
