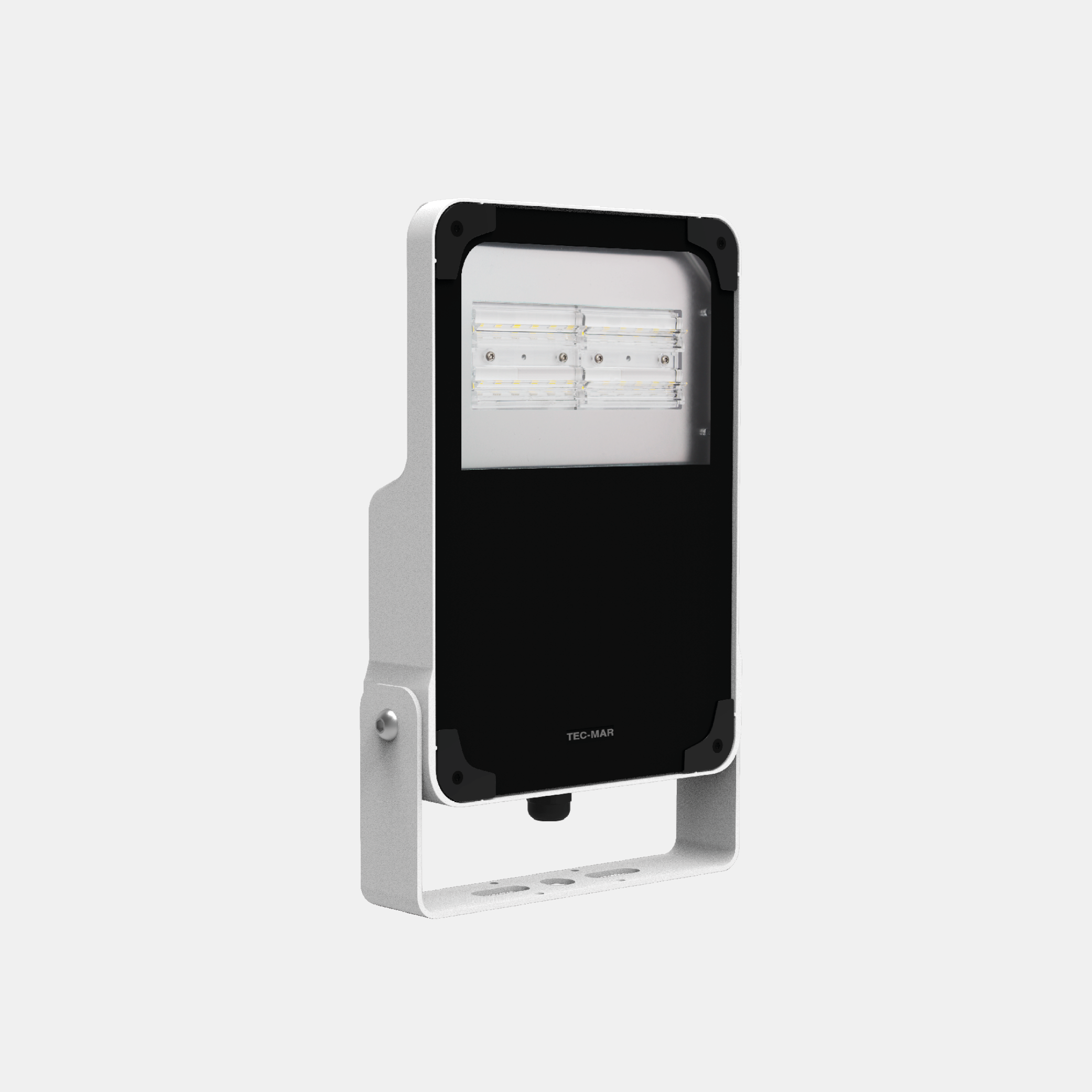

BEST 2 | Mod. AR

55° asymmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 2, BEST SERIES, BEST 2, Floodlights, BEST 2

Models: 160

Color: White

Catalogue abstract

Installation instructions

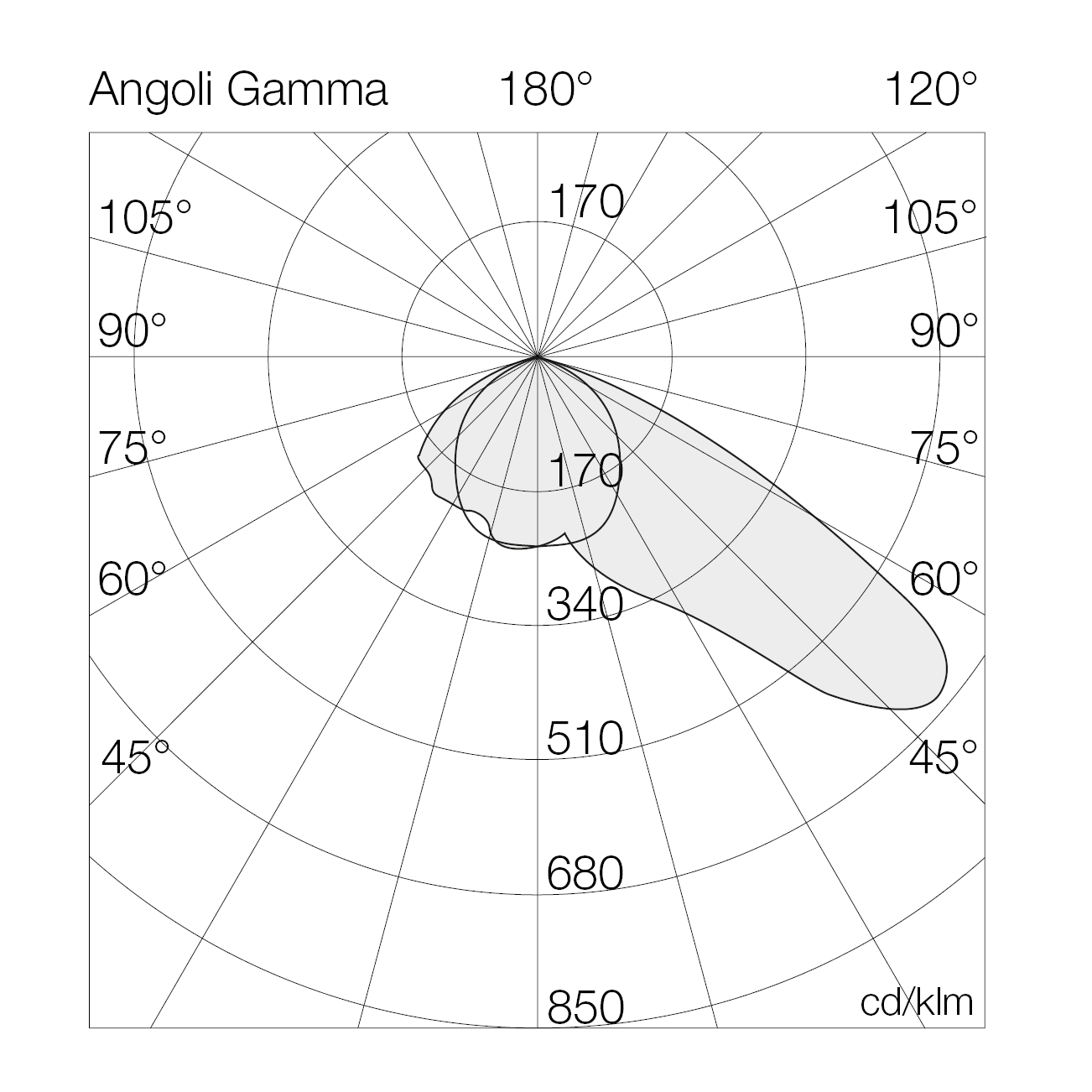

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7202	AR	3	= 3000°K (CRI >80)	054	BL	= on/off
		4	= 4000°K (CRI >80)	060	BD	= dali 2
		5	= 5000°K (CRI >80)	070	BA	= acid-etched glass
		6	= 6500°K (CRI >80)	080	B2	= on/off (class II)
		7	= 4000°K (CRI >70)	090
				100
				115
				120

Models

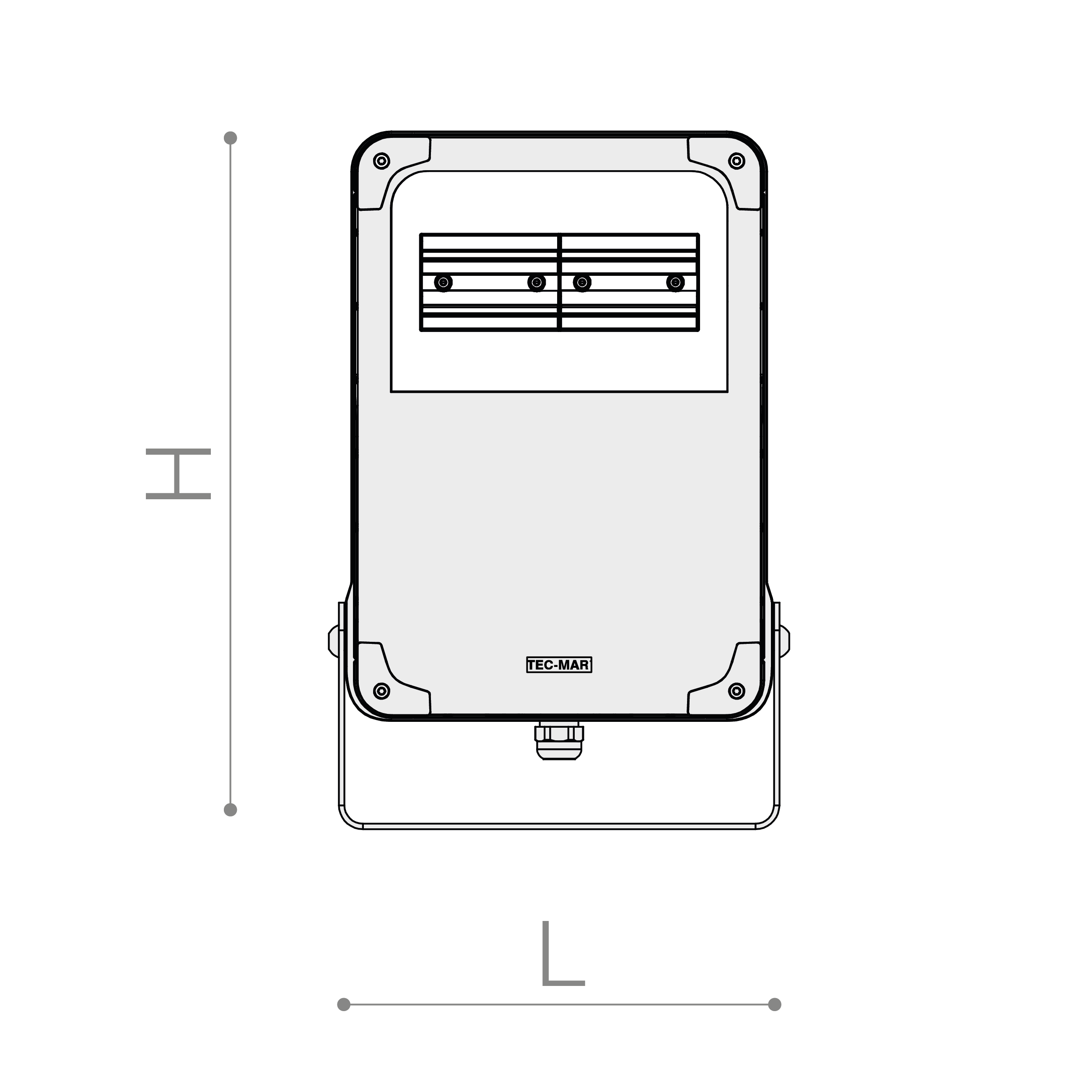

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7202AR4054BL	54	-	4000°K - CRI ≥80	on/off	9067	168	250	60	349	-	3.15
7202AR4060BL	60	-	4000°K - CRI ≥80	on/off	9766	163	250	60	349	-	3.15
7202AR4070BL	70	-	4000°K - CRI ≥80	on/off	11276	161	250	60	349	-	3.15
7202AR4080BL	80	-	4000°K - CRI ≥80	on/off	12629	158	250	60	349	-	3.15
7202AR4090BL	90	-	4000°K - CRI ≥80	on/off	14311	159	250	60	349	-	3.15
7202AR4100BL	100	-	4000°K - CRI ≥80	on/off	15553	156	250	60	349	-	3.15
7202AR4115BL	115	-	4000°K - CRI ≥80	on/off	16076	140	250	60	349	-	3.15
7202AR4120BL	120	-	4000°K - CRI ≥80	on/off	17296	144	250	60	349	-	3.15
7202AR3054BL	54	-	3000°K - CRI ≥80	on/off	8550	158	250	60	349	-	3.15
7202AR3060BL	60	-	3000°K - CRI ≥80	on/off	9209	153	250	60	349	-	3.15
7202AR3070BL	70	-	3000°K - CRI ≥80	on/off	10633	152	250	60	349	-	3.15
7202AR3080BL	80	-	3000°K - CRI ≥80	on/off	11909	149	250	60	349	-	3.15
7202AR3090BL	90	-	3000°K - CRI ≥80	on/off	13495	150	250	60	349	-	3.15
7202AR3100BL	100	-	3000°K - CRI ≥80	on/off	14666	147	250	60	349	-	3.15
7202AR3115BL	115	-	3000°K - CRI ≥80	on/off	15160	132	250	60	349	-	3.15
7202AR3120BL	120	-	3000°K - CRI ≥80	on/off	16310	136	250	60	349	-	3.15
7202AR5054BL	54	-	5000°K - CRI ≥80	on/off	9198	170	250	60	349	-	3.15
7202AR5060BL	60	-	5000°K - CRI ≥80	on/off	9908	165	250	60	349	-	3.15
7202AR5070BL	70	-	5000°K - CRI ≥80	on/off	11440	163	250	60	349	-	3.15
7202AR5080BL	80	-	5000°K - CRI ≥80	on/off	12812	160	250	60	349	-	3.15
