BEST 2 | Mod. RR

65° asymmetrical optic

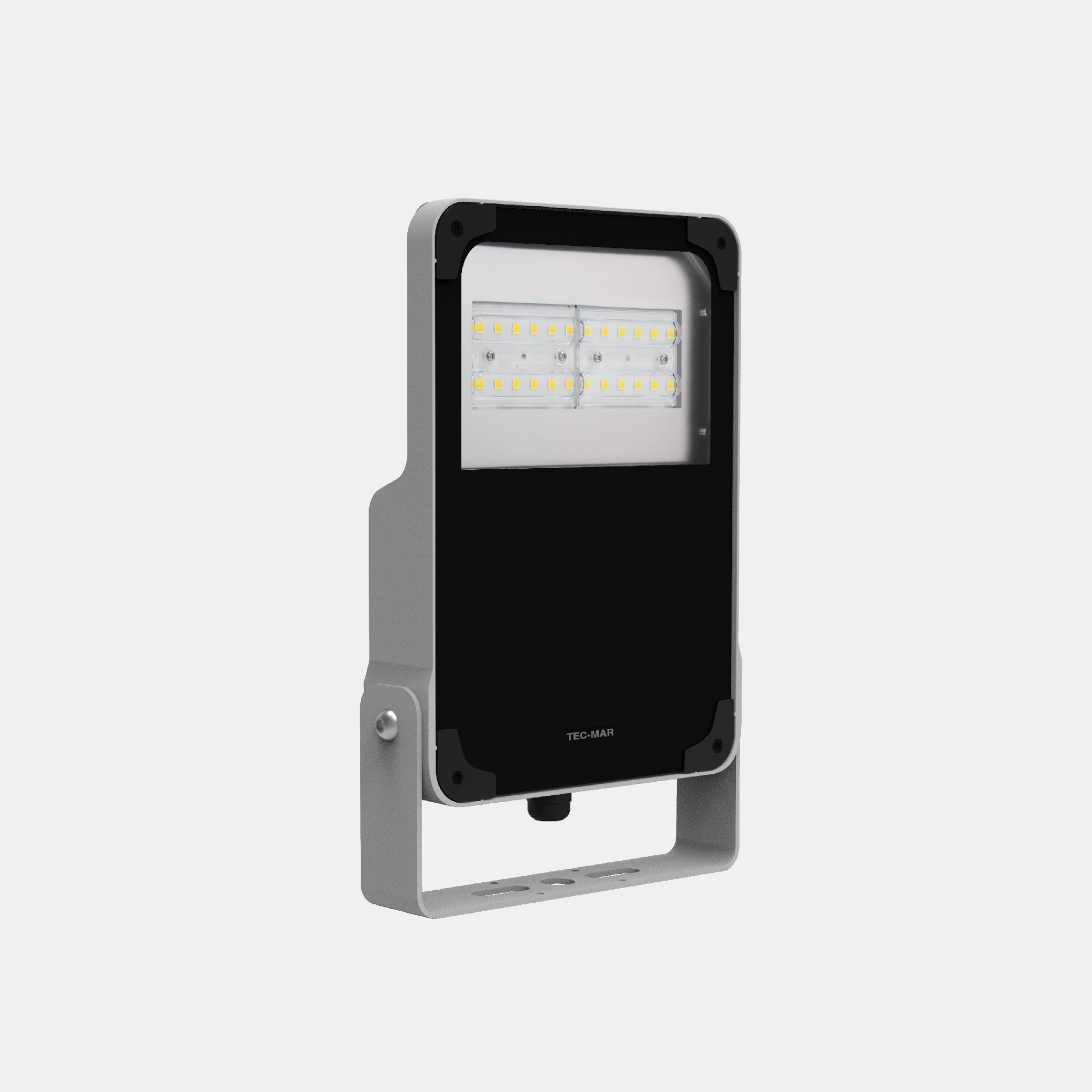

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 65° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 2, BEST SERIES, BEST 2, Floodlights, BEST 2

Models: 160

Color: Silver

Catalogue abstract

Installation instructions

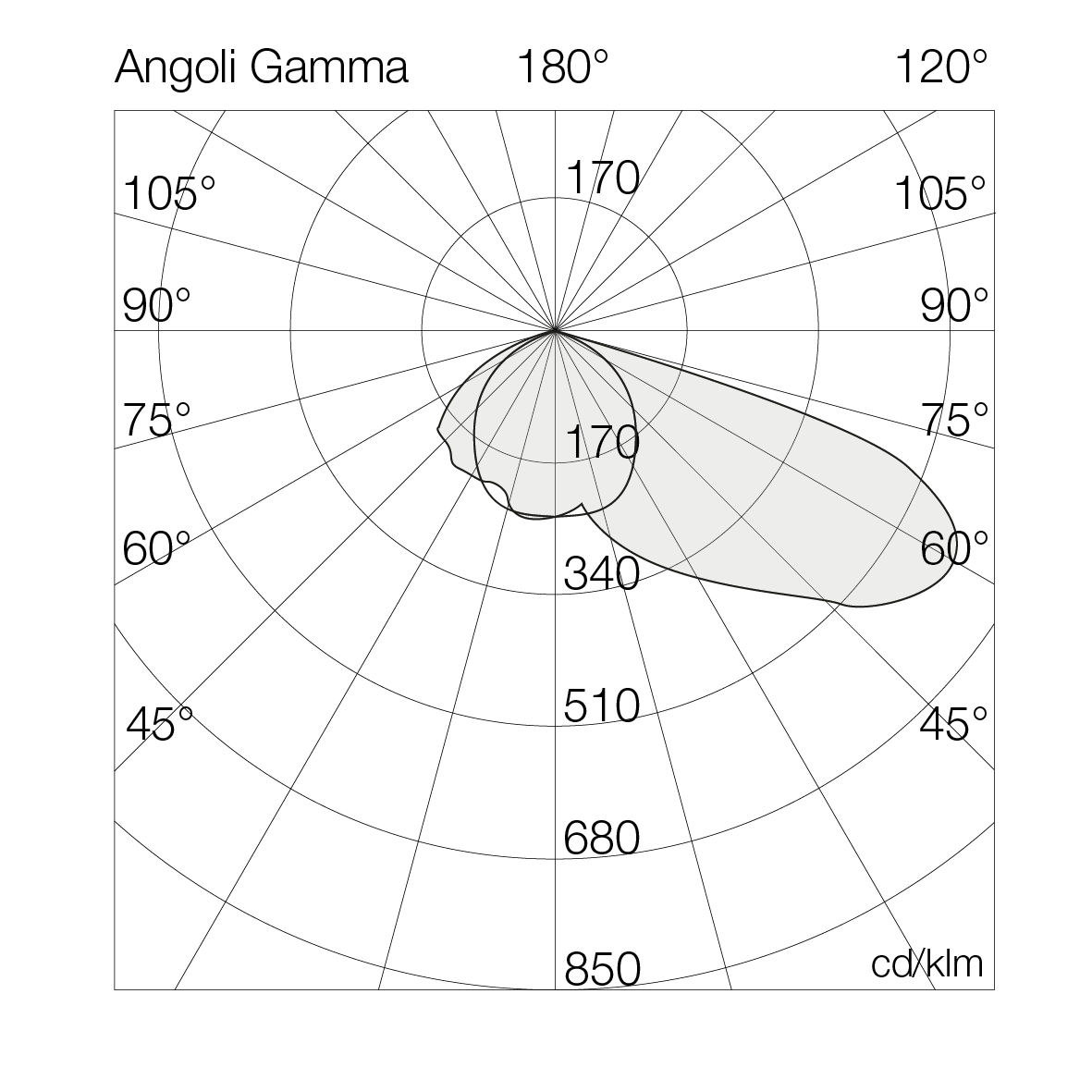

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7202	RR	3	= 3000°K (CRI >80)	054	GL	= on/off
		4	= 4000°K (CRI >80)	060	GD	= dali 2
		5	= 5000°K (CRI >80)	070	GA	= acid-etched glass
		6	= 6500°K (CRI >80)	080	G2	= on/off (class II)
		7	= 4000°K (CRI >70)	090
				100
				115
				120

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7202RR4054GL	54	-	4000°K - CRI ≥80	on/off	8614	160	250	60	349	-	3.15
7202RR4060GL	60	-	4000°K - CRI ≥80	on/off	9278	155	250	60	349	-	3.15
7202RR4070GL	70	-	4000°K - CRI ≥80	on/off	10712	153	250	60	349	-	3.15
7202RR4080GL	80	-	4000°K - CRI ≥80	on/off	11998	150	250	60	349	-	3.15
7202RR4090GL	90	-	4000°K - CRI ≥80	on/off	13596	151	250	60	349	-	3.15
7202RR4100GL	100	-	4000°K - CRI ≥80	on/off	14776	148	250	60	349	-	3.15
7202RR4115GL	115	-	4000°K - CRI ≥80	on/off	15272	133	250	60	349	-	3.15
7202RR4120GL	120	-	4000°K - CRI ≥80	on/off	16431	137	250	60	349	-	3.15
7202RR3054GL	54	-	3000°K - CRI ≥80	on/off	8123	150	250	60	349	-	3.15
7202RR3060GL	60	-	3000°K - CRI ≥80	on/off	8749	146	250	60	349	-	3.15
7202RR3070GL	70	-	3000°K - CRI ≥80	on/off	10101	144	250	60	349	-	3.15
7202RR3080GL	80	-	3000°K - CRI ≥80	on/off	11314	141	250	60	349	-	3.15
7202RR3090GL	90	-	3000°K - CRI ≥80	on/off	12821	142	250	60	349	-	3.15
7202RR3100GL	100	-	3000°K - CRI ≥80	on/off	13934	139	250	60	349	-	3.15
7202RR3115GL	115	-	3000°K - CRI ≥80	on/off	14401	125	250	60	349	-	3.15
7202RR3120GL	120	-	3000°K - CRI ≥80	on/off	15494	129	250	60	349	-	3.15
7202RR5054GL	54	-	5000°K - CRI ≥80	on/off	8739	162	250	60	349	-	3.15
7202RR5060GL	60	-	5000°K - CRI ≥80	on/off	9413	157	250	60	349	-	3.15
7202RR5070GL	70	-	5000°K - CRI ≥80	on/off	10867	155	250	60	349	-	3.15
7202RR5080GL	80	-	5000°K - CRI ≥80	on/off	12172	152	250	60	349	-	3.15
