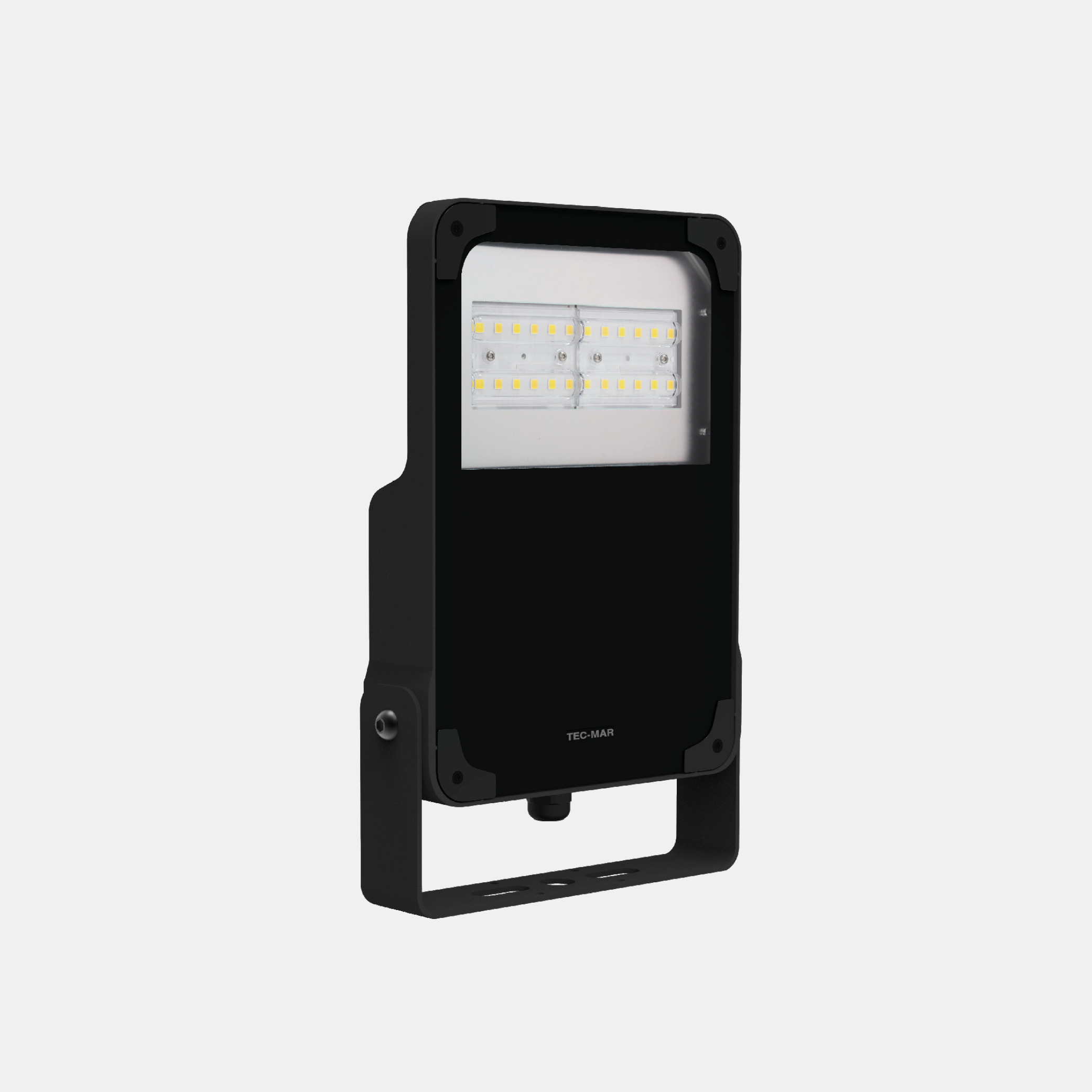

BEST 2 | Mod. PR

90° symmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 90° symmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 2, BEST SERIES, BEST 2, Floodlights, BEST 2

Models: 160

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7202	PR	3	= 3000°K (CRI >80)	054	NL	= on/off
		4	= 4000°K (CRI >80)	060	ND	= dali 2
		5	= 5000°K (CRI >80)	070	NA	= acid-etched glass
		6	= 6500°K (CRI >80)	080	N2	= on/off (class II)
		7	= 4000°K (CRI >70)	090
				100
				115
				120

Models

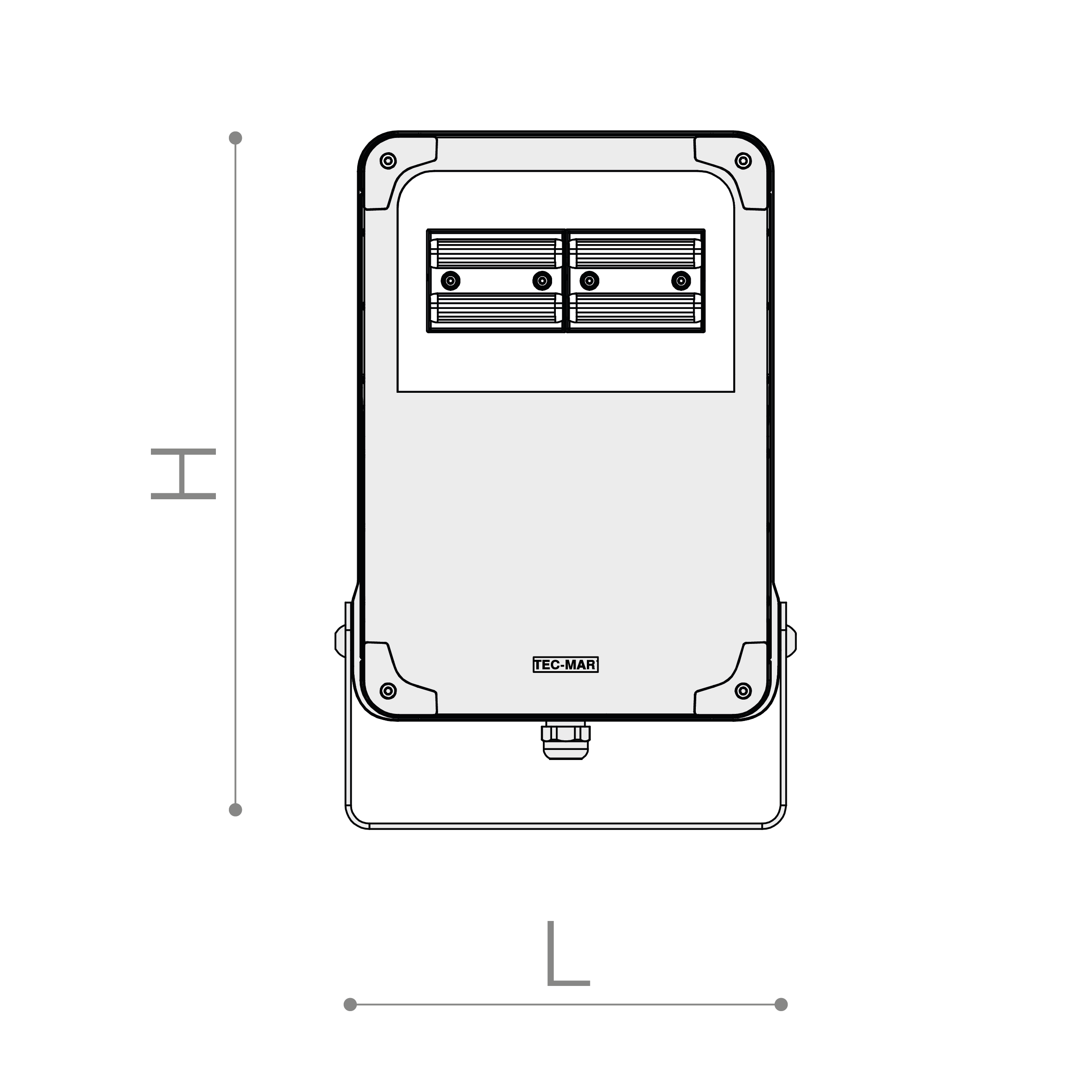

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7202PR4054NL	54	-	4000°K - CRI ≥80	on/off	9634	178	250	60	349	-	3.15
7202PR4060NL	60	-	4000°K - CRI ≥80	on/off	10377	173	250	60	349	-	3.15
7202PR4070NL	70	-	4000°K - CRI ≥80	on/off	11981	171	250	60	349	-	3.15
7202PR4080NL	80	-	4000°K - CRI ≥80	on/off	13418	168	250	60	349	-	3.15
7202PR4090NL	90	-	4000°K - CRI ≥80	on/off	15206	169	250	60	349	-	3.15
7202PR4100NL	100	-	4000°K - CRI ≥80	on/off	16526	165	250	60	349	-	3.15
7202PR4115NL	115	-	4000°K - CRI ≥80	on/off	17080	149	250	60	349	-	3.15
7202PR4120NL	120	-	4000°K - CRI ≥80	on/off	18377	153	250	60	349	-	3.15
7202PR3054NL	54	-	3000°K - CRI ≥80	on/off	9085	168	250	60	349	-	3.15
7202PR3060NL	60	-	3000°K - CRI ≥80	on/off	9786	163	250	60	349	-	3.15
7202PR3070NL	70	-	3000°K - CRI ≥80	on/off	11298	161	250	60	349	-	3.15
7202PR3080NL	80	-	3000°K - CRI ≥80	on/off	12653	158	250	60	349	-	3.15
7202PR3090NL	90	-	3000°K - CRI ≥80	on/off	14339	159	250	60	349	-	3.15
7202PR3100NL	100	-	3000°K - CRI ≥80	on/off	15584	156	250	60	349	-	3.15
7202PR3115NL	115	-	3000°K - CRI ≥80	on/off	16106	140	250	60	349	-	3.15
7202PR3120NL	120	-	3000°K - CRI ≥80	on/off	17330	144	250	60	349	-	3.15
7202PR5054NL	54	-	5000°K - CRI ≥80	on/off	9774	181	250	60	349	-	3.15
7202PR5060NL	60	-	5000°K - CRI ≥80	on/off	10527	175	250	60	349	-	3.15
7202PR5070NL	70	-	5000°K - CRI ≥80	on/off	12155	174	250	60	349	-	3.15
7202PR5080NL	80	-	5000°K - CRI ≥80	on/off	13613	170	250	60	349	-	3.15
