BEST 3 | Mod. AR

55° asymmetrical optic

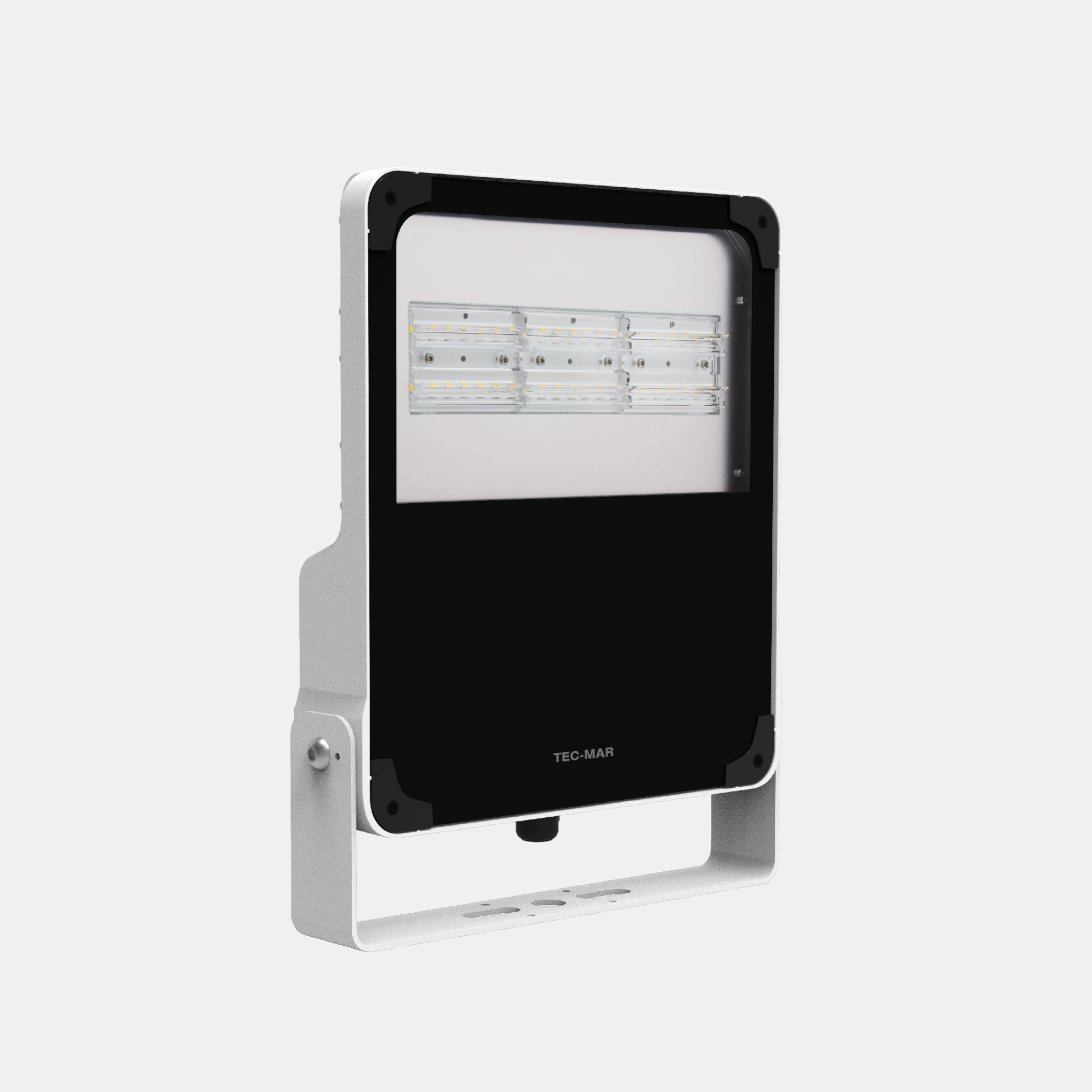

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 3, BEST SERIES, BEST 3, Floodlights, BEST 3

Models: 200

Color: White

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7203	AR	3	= 3000°K (CRI >80)	130	BL	= on/off
		4	= 4000°K (CRI >80)	155	BD	= dali 2
		5	= 5000°K (CRI >80)	180	BA	= acid-etched glass
		6	= 6500°K (CRI >80)	190	B2	= on/off (class II)
		7	= 4000°K (CRI >70)		BM	= virtual midnight

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7203AR4130BL	130	-	4000°K - CRI ≥80	on/off	19705	152	326	64	404	-	4.65
7203AR4150BL	150	-	4000°K - CRI ≥80	on/off	24008	160	326	64	404	-	4.65
7203AR4155BL	155	-	4000°K - CRI ≥80	on/off	23334	151	326	64	404	-	4.65
7203AR4158BL	158	-	4000°K - CRI ≥80	on/off	24935	158	326	64	404	-	4.65
7203AR4178BL	178	-	4000°K - CRI ≥80	on/off	27392	154	326	64	404	-	4.65
7203AR4180BL	180	-	4000°K - CRI ≥80	on/off	25138	140	326	64	404	-	4.65
7203AR4190BL	190	-	4000°K - CRI ≥80	on/off	27179	143	326	64	404	-	4.65
7203AR4195BL	195	-	4000°K - CRI ≥80	on/off	29827	153	326	64	404	-	4.65
7203AR4130BD	130	-	4000°K - CRI ≥80	dali 2	19705	152	326	64	404	-	4.65
7203AR4150BD	150	-	4000°K - CRI ≥80	dali 2	24008	160	326	64	404	-	4.65
7203AR4155BD	155	-	4000°K - CRI ≥80	dali 2	23334	151	326	64	404	-	4.65
7203AR4158BD	158	-	4000°K - CRI ≥80	dali 2	24935	158	326	64	404	-	4.65
7203AR4178BD	178	-	4000°K - CRI ≥80	dali 2	27392	154	326	64	404	-	4.65
7203AR4180BD	180	-	4000°K - CRI ≥80	dali 2	25138	140	326	64	404	-	4.65
7203AR4190BD	190	-	4000°K - CRI ≥80	dali 2	27179	143	326	64	404	-	4.65
7203AR4195BD	195	-	4000°K - CRI ≥80	dali 2	29827	153	326	64	404	-	4.65
7203AR4130BA	130	-	4000°K - CRI ≥80	acid-etched glass	19705	152	326	64	404	-	4.65
7203AR4150BA	150	-	4000°K - CRI ≥80	acid-etched glass	24008	160	326	64	404	-	4.65
7203AR4155BA	155	-	4000°K - CRI ≥80	acid-etched glass	23334	151	326	64	404	-	4.65
7203AR4158BA	158	-	4000°K - CRI ≥80	acid-etched glass	24935	158	326	64	404	-	4.65
