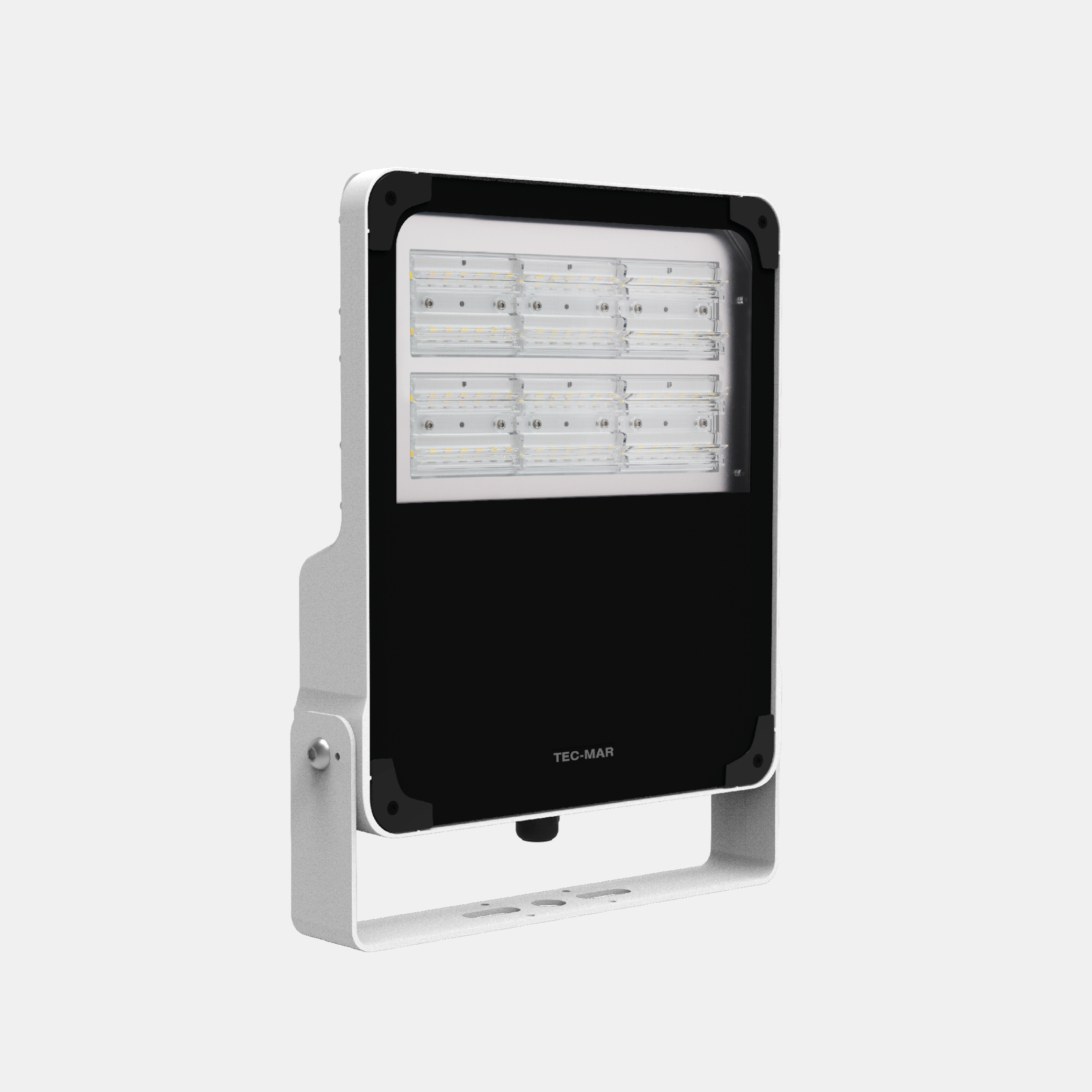

BEST 3 HP | Mod. AR

55° asymmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 55° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 3 HP, BEST SERIES, BEST 3 HP, Floodlights, BEST 3 HP

Models: 375

Color: White

Catalogue abstract

Installation instructions

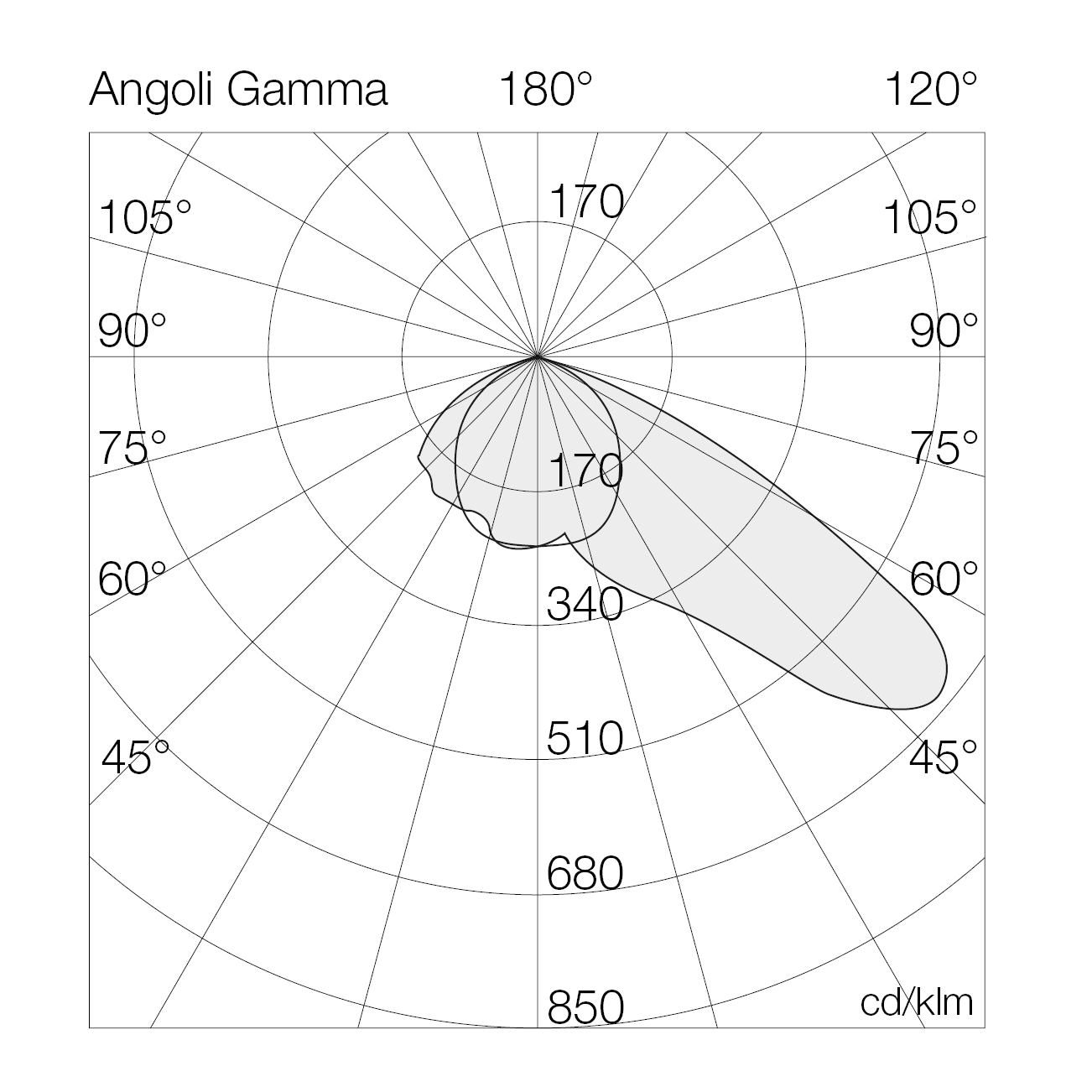

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7213	AR	3	= 3000°K (CRI >80)	040	BL	= on/off
		4	= 4000°K (CRI >80)	050	BD	= dali 2
		5	= 5000°K (CRI >80)	060	BA	= acid-etched glass
		6	= 6500°K (CRI >80)	070	B2	= on/off (class II)
		7	= 4000°K (CRI >70)	080	BM	= virtual midnight
				090
				100
				120
				130
				155
				180
				190

Models

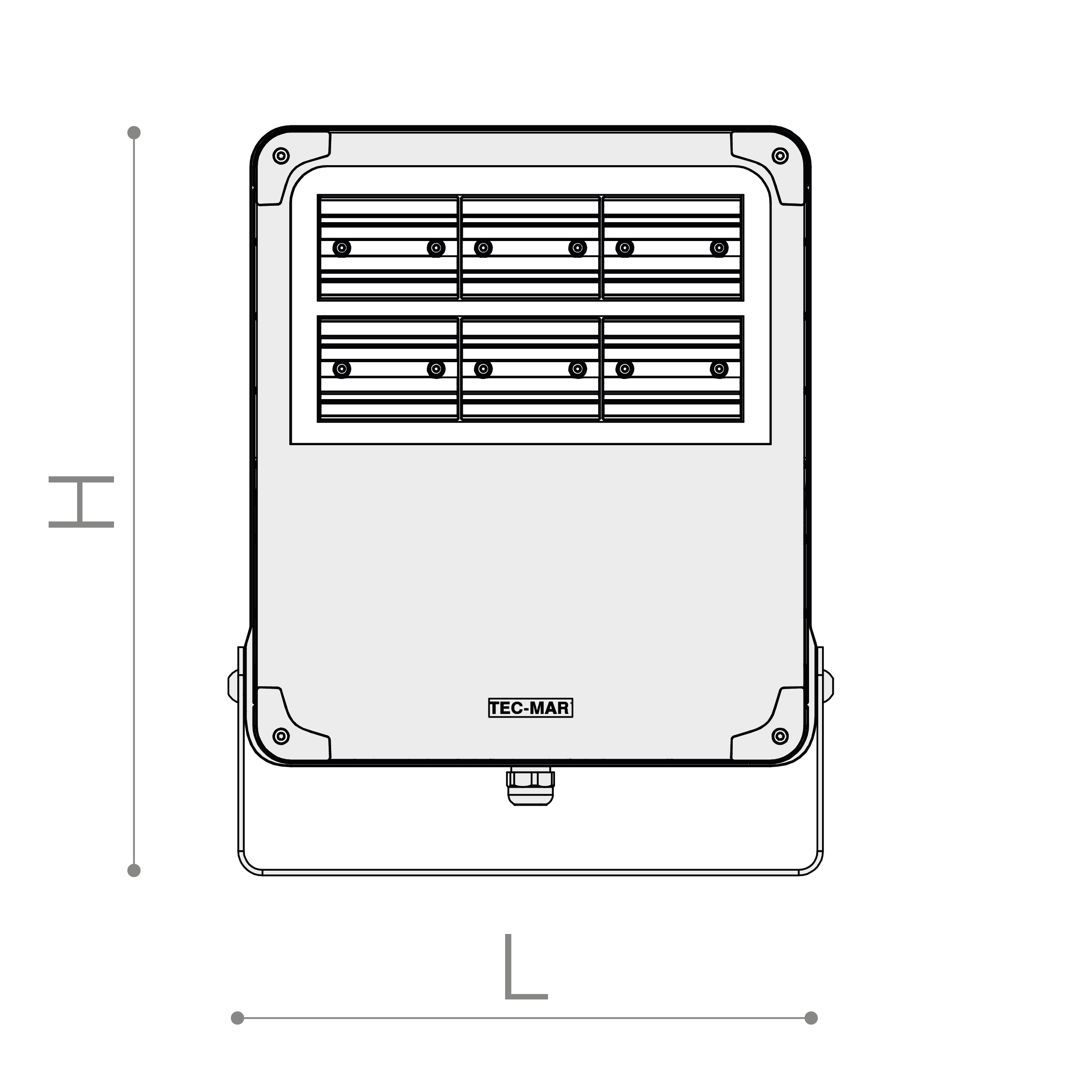

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7213AR4040BL	40	-	4000°K - CRI ≥80	on/off	7193	180	326	64	404	-	4.65
7213AR4050BL	50	-	4000°K - CRI ≥80	on/off	9003	180	326	64	404	-	4.65
7213AR4060BL	60	-	4000°K - CRI ≥80	on/off	10594	177	326	64	404	-	4.65
7213AR4070BL	70	-	4000°K - CRI ≥80	on/off	12374	177	326	64	404	-	4.65
7213AR4080BL	80	-	4000°K - CRI ≥80	on/off	14319	179	326	64	404	-	4.65
7213AR4090BL	90	-	4000°K - CRI ≥80	on/off	15903	177	326	64	404	-	4.65
7213AR4100BL	100	-	4000°K - CRI ≥80	on/off	17668	177	326	64	404	-	4.65
7213AR4120BL	120	-	4000°K - CRI ≥80	on/off	20189	168	326	64	404	-	4.65
7213AR4130BL	130	-	4000°K - CRI ≥80	on/off	21730	167	326	64	404	-	4.65
7213AR4150BL	150	-	4000°K - CRI ≥80	on/off	25562	170	326	64	404	-	4.65
7213AR4155BL	155	-	4000°K - CRI ≥80	on/off	25104	162	326	64	404	-	4.65
7213AR4170BL	170	-	4000°K - CRI ≥80	on/off	28157	166	326	64	404	-	4.65
7213AR4180BL	180	-	4000°K - CRI ≥80	on/off	27971	155	326	64	404	-	4.65
7213AR4185BL	185	-	4000°K - CRI ≥80	on/off	30736	166	326	64	404	-	4.65
7213AR4190BL	190	-	4000°K - CRI ≥80	on/off	31192	164	326	64	404	-	4.65
7213AR4040BD	40	-	4000°K - CRI ≥80	dali 2	7193	180	326	64	404	-	4.65
7213AR4050BD	50	-	4000°K - CRI ≥80	dali 2	9003	180	326	64	404	-	4.65
7213AR4060BD	60	-	4000°K - CRI ≥80	dali 2	10594	177	326	64	404	-	4.65
7213AR4070BD	70	-	4000°K - CRI ≥80	dali 2	12374	177	326	64	404	-	4.65
7213AR4080BD	80	-	4000°K - CRI ≥80	dali 2	14319	179	326	64	404	-	4.65
