BEST 3 HP | Mod. PR

90° symmetrical optic

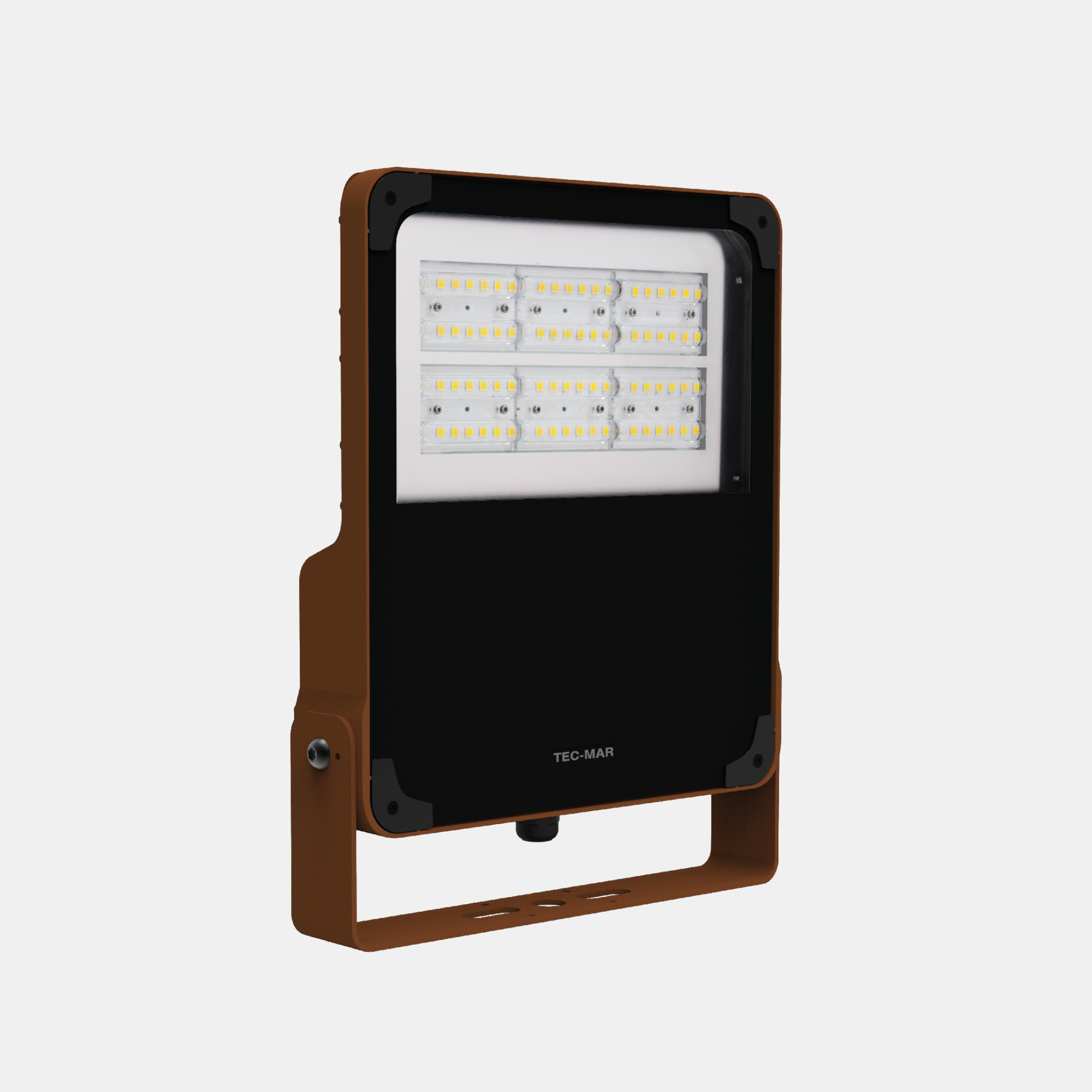

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 90° symmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 3 HP, BEST SERIES, BEST 3 HP, Floodlights, BEST 3 HP

Models: 375

Color: Corten

Catalogue abstract

Installation instructions

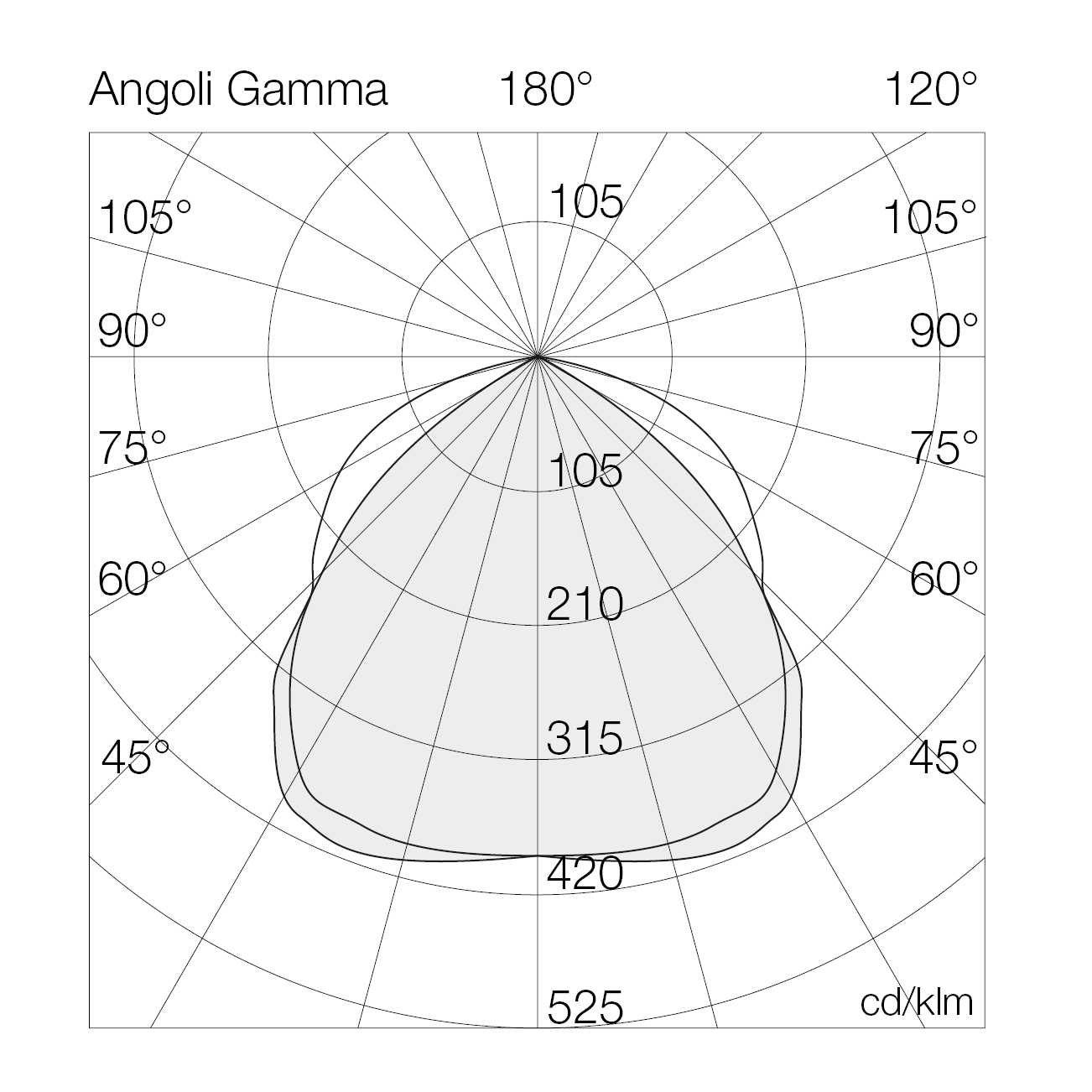

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7213	PR	3	= 3000°K (CRI >80)	040	CL	= on/off
		4	= 4000°K (CRI >80)	050	CD	= dali 2
		5	= 5000°K (CRI >80)	060	CA	= acid-etched glass
		6	= 6500°K (CRI >80)	070	C2	= on/off (class II)
		7	= 4000°K (CRI >70)	080	CM	= virtual midnight
				090
				100
				120
				130
				155
				180
				190

Models

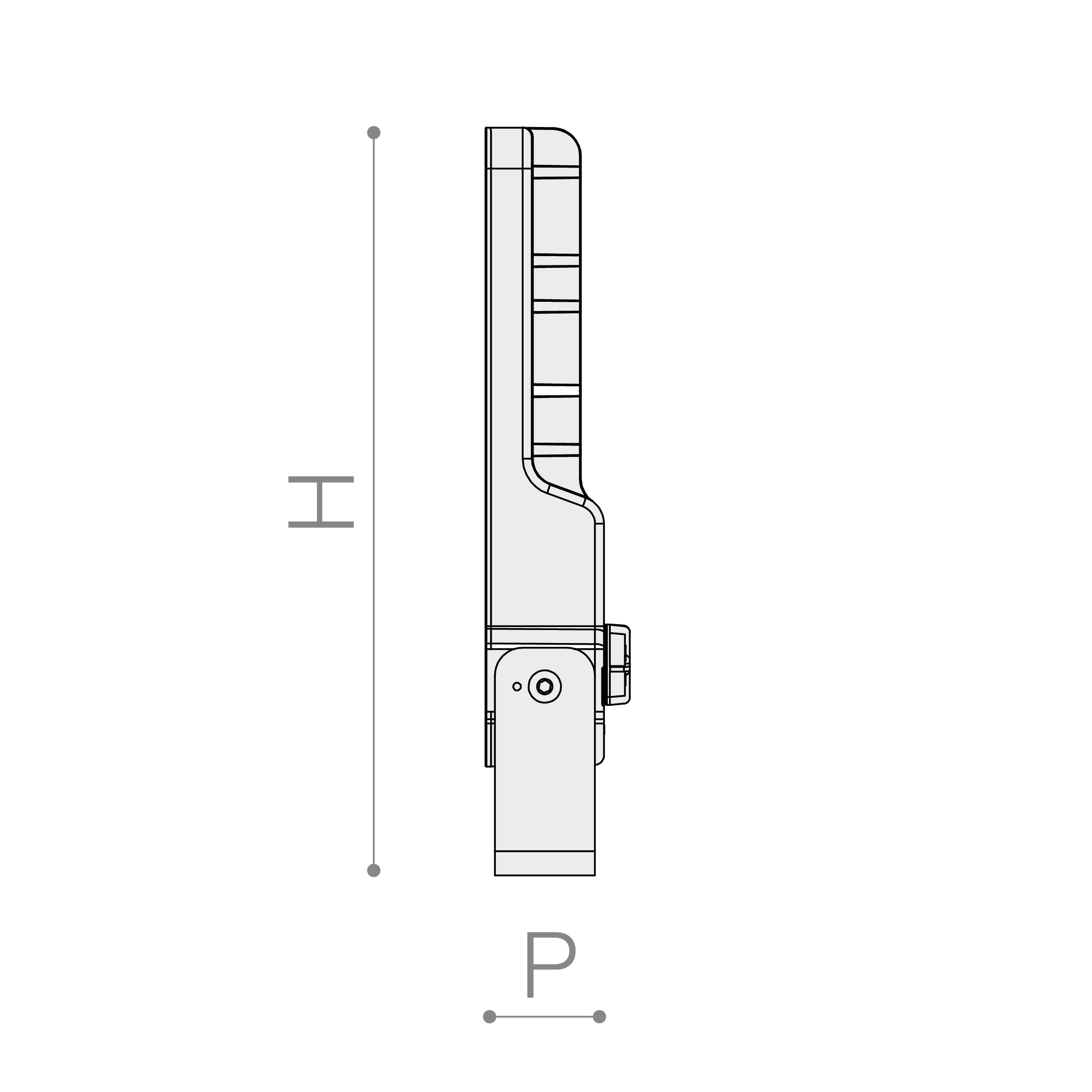

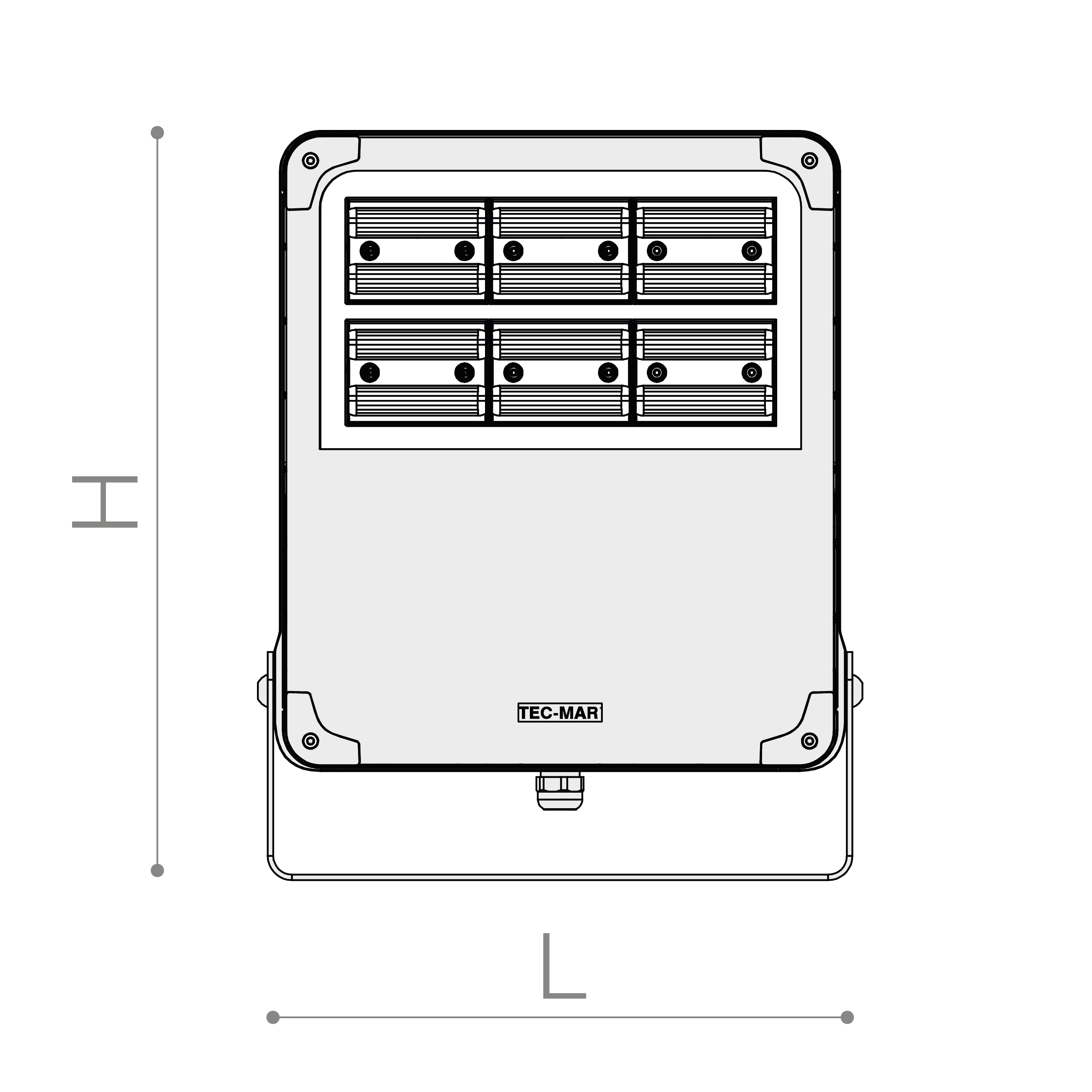

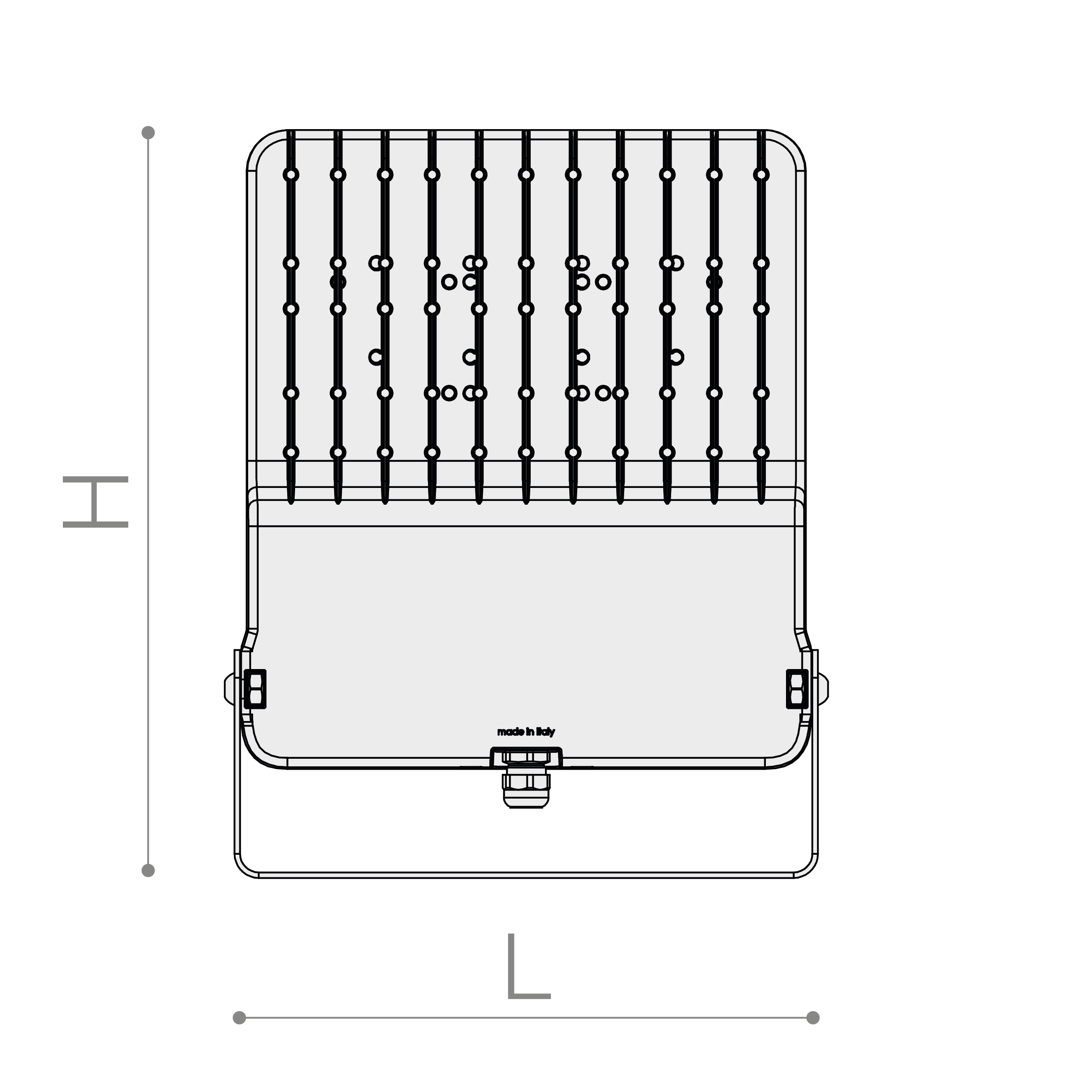

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7213PR4040CL	40	-	4000°K - CRI ≥80	on/off	7643	191	326	64	404	-	4.65
7213PR4050CL	50	-	4000°K - CRI ≥80	on/off	9566	191	326	64	404	-	4.65
7213PR4060CL	60	-	4000°K - CRI ≥80	on/off	11256	188	326	64	404	-	4.65
7213PR4070CL	70	-	4000°K - CRI ≥80	on/off	13147	188	326	64	404	-	4.65
7213PR4080CL	80	-	4000°K - CRI ≥80	on/off	15214	190	326	64	404	-	4.65
7213PR4090CL	90	-	4000°K - CRI ≥80	on/off	16896	188	326	64	404	-	4.65
7213PR4100CL	100	-	4000°K - CRI ≥80	on/off	18773	188	326	64	404	-	4.65
7213PR4120CL	120	-	4000°K - CRI ≥80	on/off	21451	179	326	64	404	-	4.65
7213PR4130CL	130	-	4000°K - CRI ≥80	on/off	23088	178	326	64	404	-	4.65
7213PR4150CL	150	-	4000°K - CRI ≥80	on/off	27160	181	326	64	404	-	4.65
7213PR4155CL	155	-	4000°K - CRI ≥80	on/off	26673	172	326	64	404	-	4.65
7213PR4170CL	170	-	4000°K - CRI ≥80	on/off	29917	176	326	64	404	-	4.65
7213PR4180CL	180	-	4000°K - CRI ≥80	on/off	29719	165	326	64	404	-	4.65
7213PR4185CL	185	-	4000°K - CRI ≥80	on/off	32657	177	326	64	404	-	4.65
7213PR4190CL	190	-	4000°K - CRI ≥80	on/off	33141	174	326	64	404	-	4.65
7213PR4040CD	40	-	4000°K - CRI ≥80	dali 2	7643	191	326	64	404	-	4.65
7213PR4050CD	50	-	4000°K - CRI ≥80	dali 2	9566	191	326	64	404	-	4.65
7213PR4060CD	60	-	4000°K - CRI ≥80	dali 2	11256	188	326	64	404	-	4.65
7213PR4070CD	70	-	4000°K - CRI ≥80	dali 2	13147	188	326	64	404	-	4.65
7213PR4080CD	80	-	4000°K - CRI ≥80	dali 2	15214	190	326	64	404	-	4.65
