BEST 3 HP | Mod. RR

65° asymmetrical optic

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 65° asymmetrical optic with high-performance PMMA lenses.

Categories: Led, BEST 3 HP, BEST SERIES, BEST 3 HP, Floodlights, BEST 3 HP

Models: 375

Color: White

Catalogue abstract

Installation instructions

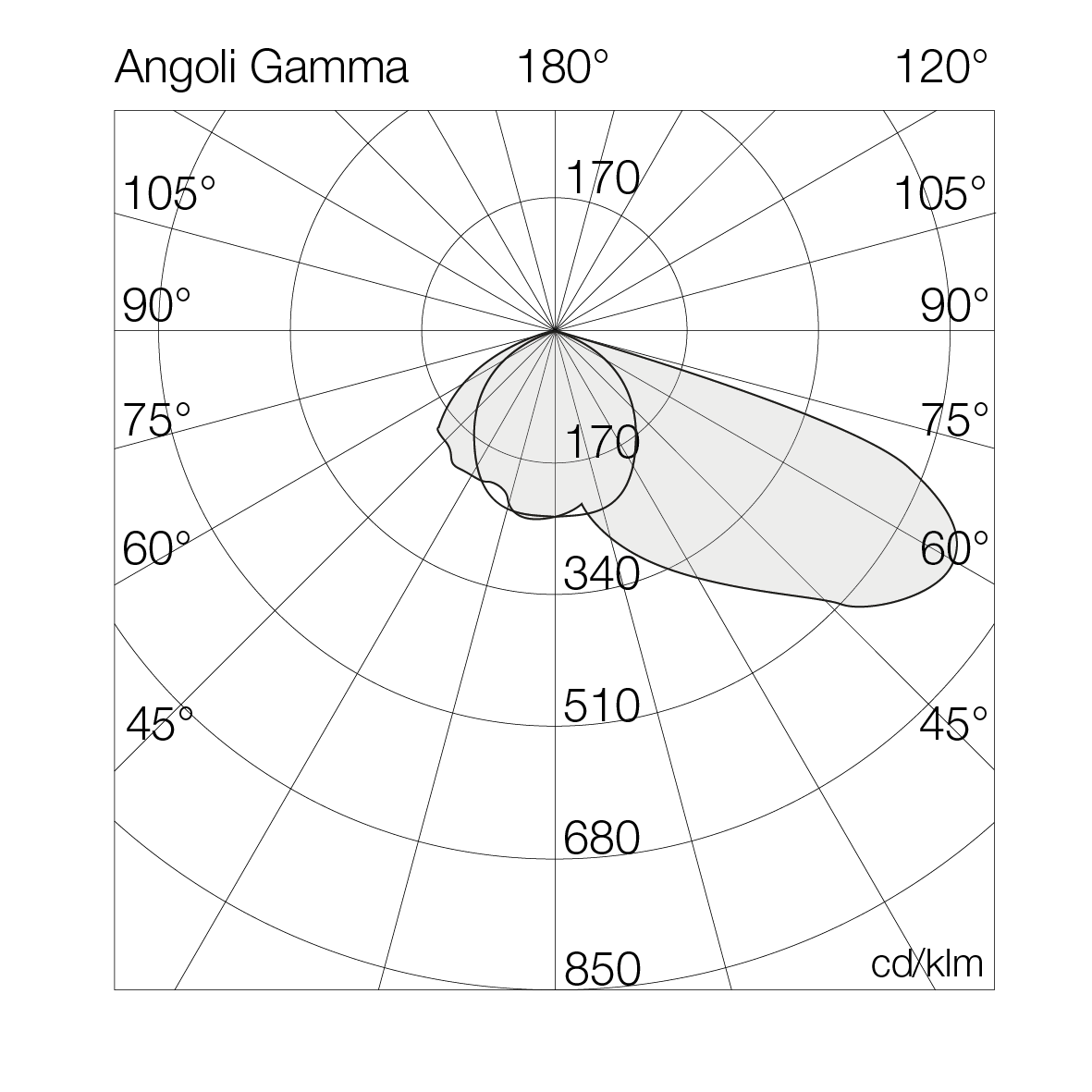

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7213	RR	3	= 3000°K (CRI >80)	040	CL	= on/off
		4	= 4000°K (CRI >80)	050	CD	= dali 2
		5	= 5000°K (CRI >80)	060	CA	= acid-etched glass
		6	= 6500°K (CRI >80)	070	C2	= on/off (class II)
		7	= 4000°K (CRI >70)	080	CM	= virtual midnight
				090
				100
				120
				130
				155
				180
				190

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7213RR4040BL	40	-	4000°K - CRI ≥80	on/off	6834	171	326	64	404	-	4.65
7213RR4050BL	50	-	4000°K - CRI ≥80	on/off	8553	171	326	64	404	-	4.65
7213RR4060BL	60	-	4000°K - CRI ≥80	on/off	10064	168	326	64	404	-	4.65
7213RR4070BL	70	-	4000°K - CRI ≥80	on/off	11755	168	326	64	404	-	4.65
7213RR4080BL	80	-	4000°K - CRI ≥80	on/off	13603	170	326	64	404	-	4.65
7213RR4090BL	90	-	4000°K - CRI ≥80	on/off	15107	168	326	64	404	-	4.65
7213RR4100BL	100	-	4000°K - CRI ≥80	on/off	16785	168	326	64	404	-	4.65
7213RR4120BL	120	-	4000°K - CRI ≥80	on/off	19179	160	326	64	404	-	4.65
7213RR4130BL	130	-	4000°K - CRI ≥80	on/off	20643	159	326	64	404	-	4.65
7213RR4150BL	150	-	4000°K - CRI ≥80	on/off	24284	162	326	64	404	-	4.65
7213RR4155BL	155	-	4000°K - CRI ≥80	on/off	23849	154	326	64	404	-	4.65
7213RR4170BL	170	-	4000°K - CRI ≥80	on/off	26749	157	326	64	404	-	4.65
7213RR4180BL	180	-	4000°K - CRI ≥80	on/off	26572	148	326	64	404	-	4.65
7213RR4185BL	185	-	4000°K - CRI ≥80	on/off	29199	158	326	64	404	-	4.65
7213RR4190BL	190	-	4000°K - CRI ≥80	on/off	29632	156	326	64	404	-	4.65
7213RR4040BD	40	-	4000°K - CRI ≥80	dali 2	6834	171	326	64	404	-	4.65
7213RR4050BD	50	-	4000°K - CRI ≥80	dali 2	8553	171	326	64	404	-	4.65
7213RR4060BD	60	-	4000°K - CRI ≥80	dali 2	10064	168	326	64	404	-	4.65
7213RR4070BD	70	-	4000°K - CRI ≥80	dali 2	11755	168	326	64	404	-	4.65
7213RR4080BD	80	-	4000°K - CRI ≥80	dali 2	13603	170	326	64	404	-	4.65
