BEST S1 | Mod. CP

EN13201 class P (type II/III) asymmetrical cyclopedic optics

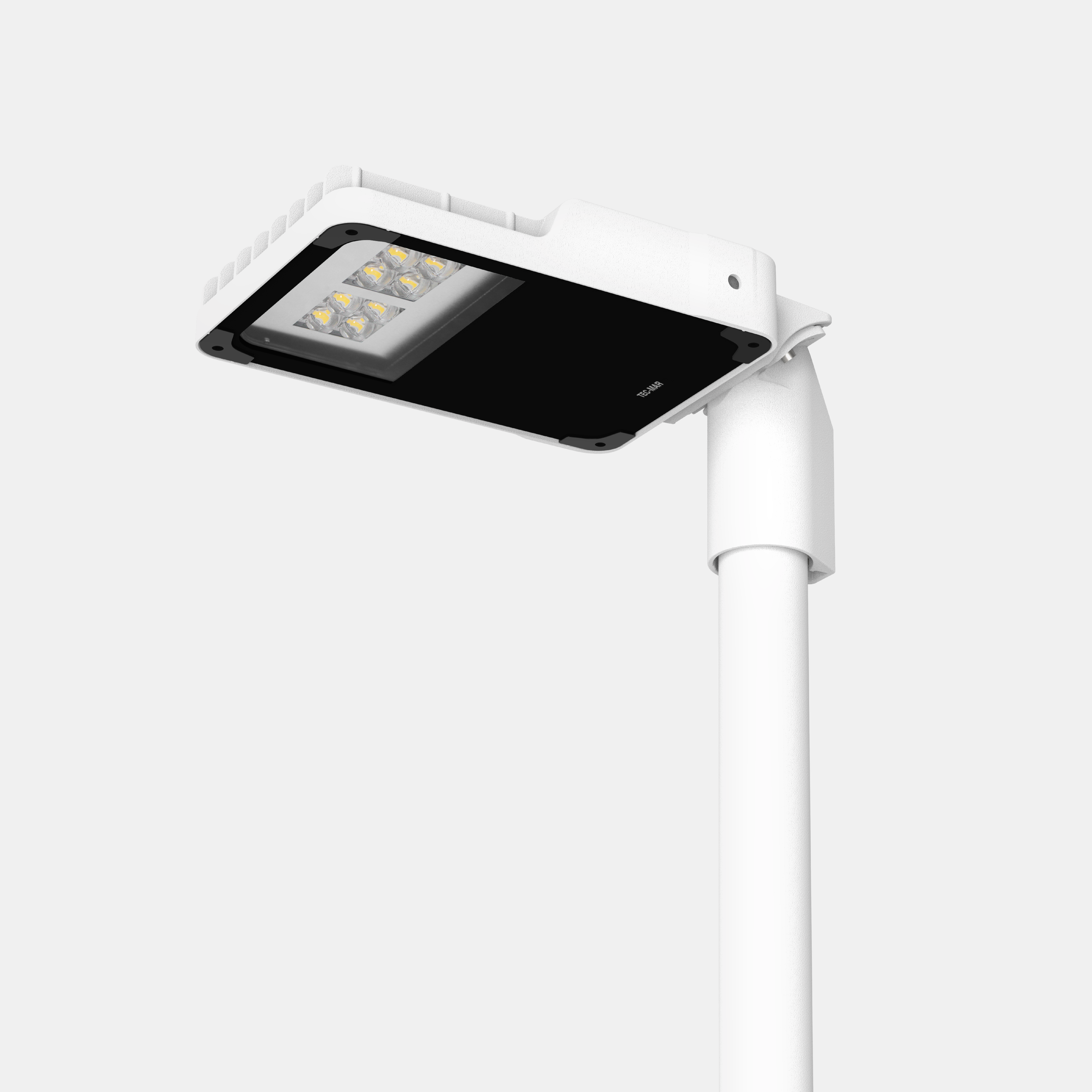

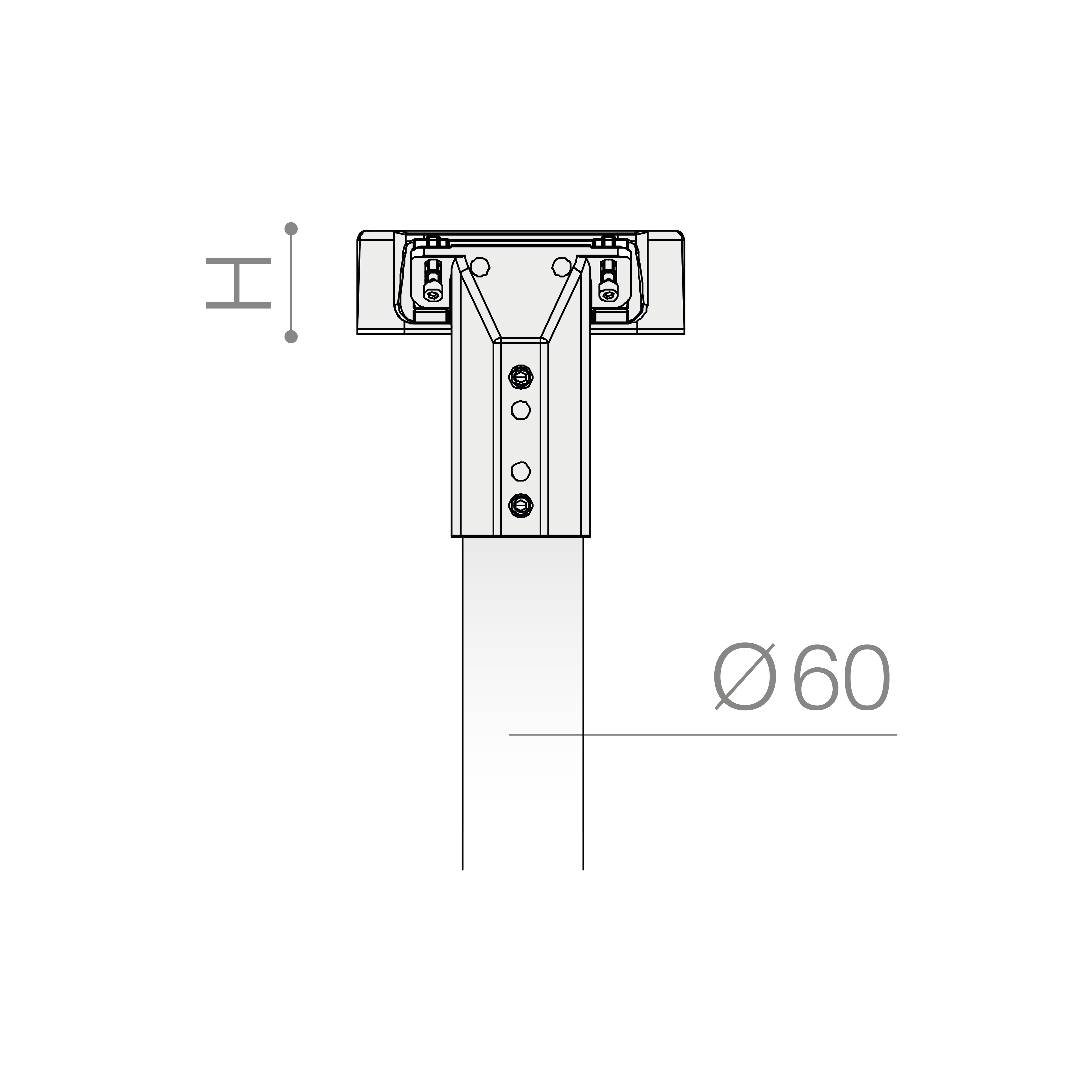

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating white color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).

Categories: Led, BEST S1, BEST S1, Street lighting, BEST S1

Models: 30

Color: White

Catalogue abstract

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7221	CP	30	= 3000°K (CRI >70)	25	BL	= on/off
		40	= 4000°K (CRI >70)	34	BD	= dali 2
				40	MB	= virtual midnight
				50
				56

Models

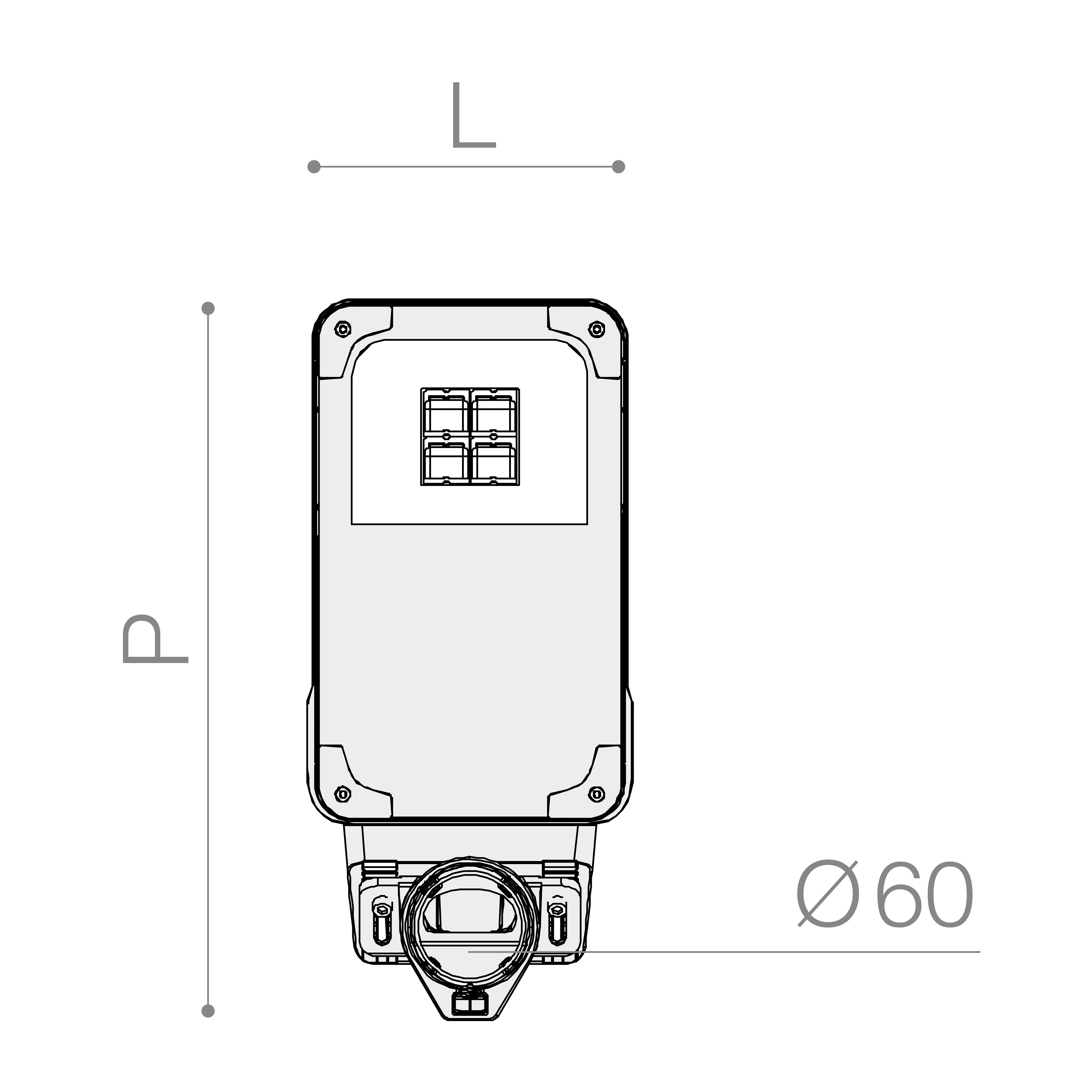

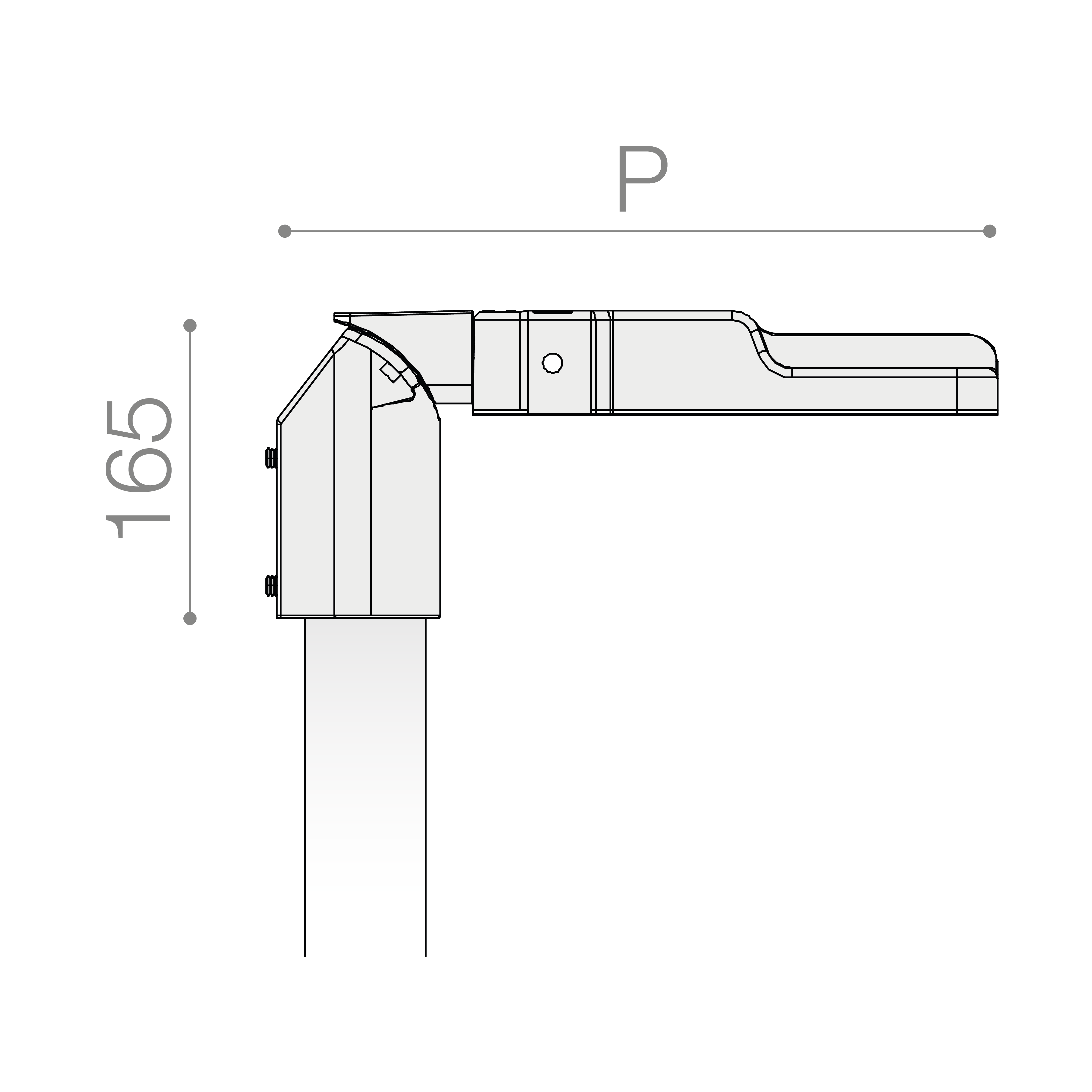

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7221CP4025BL	25	-	4000°K - CRI ≥70	on/off	3805	152	390	180	56	165	-
7221CP4034BL	34	-	4000°K - CRI ≥70	on/off	5068	149	390	180	56	165	-
7221CP4040BL	40	-	4000°K - CRI ≥70	on/off	5973	149	390	180	56	165	-
7221CP4050BL	50	-	4000°K - CRI ≥70	on/off	7446	149	390	180	56	165	-
7221CP4056BL	56	-	4000°K - CRI ≥70	on/off	8114	145	390	180	56	165	-
7221CP4025BD	25	-	4000°K - CRI ≥70	dali 2	3805	152	390	180	56	165	-
7221CP4034BD	34	-	4000°K - CRI ≥70	dali 2	5068	149	390	180	56	165	-
7221CP4040BD	40	-	4000°K - CRI ≥70	dali 2	5973	149	390	180	56	165	-
7221CP4050BD	50	-	4000°K - CRI ≥70	dali 2	7446	149	390	180	56	165	-
7221CP4056BD	56	-	4000°K - CRI ≥70	dali 2	8114	145	390	180	56	165	-
7221CP4025MB	25	-	4000°K - CRI ≥70	virtual midnight	3805	152	390	180	56	165	-
7221CP4034MB	34	-	4000°K - CRI ≥70	virtual midnight	5068	149	390	180	56	165	-
7221CP4040MB	40	-	4000°K - CRI ≥70	virtual midnight	5973	149	390	180	56	165	-
7221CP4050MB	50	-	4000°K - CRI ≥70	virtual midnight	7446	149	390	180	56	165	-
7221CP4056MB	56	-	4000°K - CRI ≥70	virtual midnight	8114	145	390	180	56	165	-
7221CP3025BL	25	-	3000°K - CRI ≥70	on/off	3786	151	390	180	56	165	-
7221CP3034BL	34	-	3000°K - CRI ≥70	on/off	5043	148	390	180	56	165	-
7221CP3040BL	40	-	3000°K - CRI ≥70	on/off	5943	149	390	180	56	165	-
7221CP3050BL	50	-	3000°K - CRI ≥70	on/off	7409	148	390	180	56	165	-
7221CP3056BL	56	-	3000°K - CRI ≥70	on/off	8073	144	390	180	56	165	-
