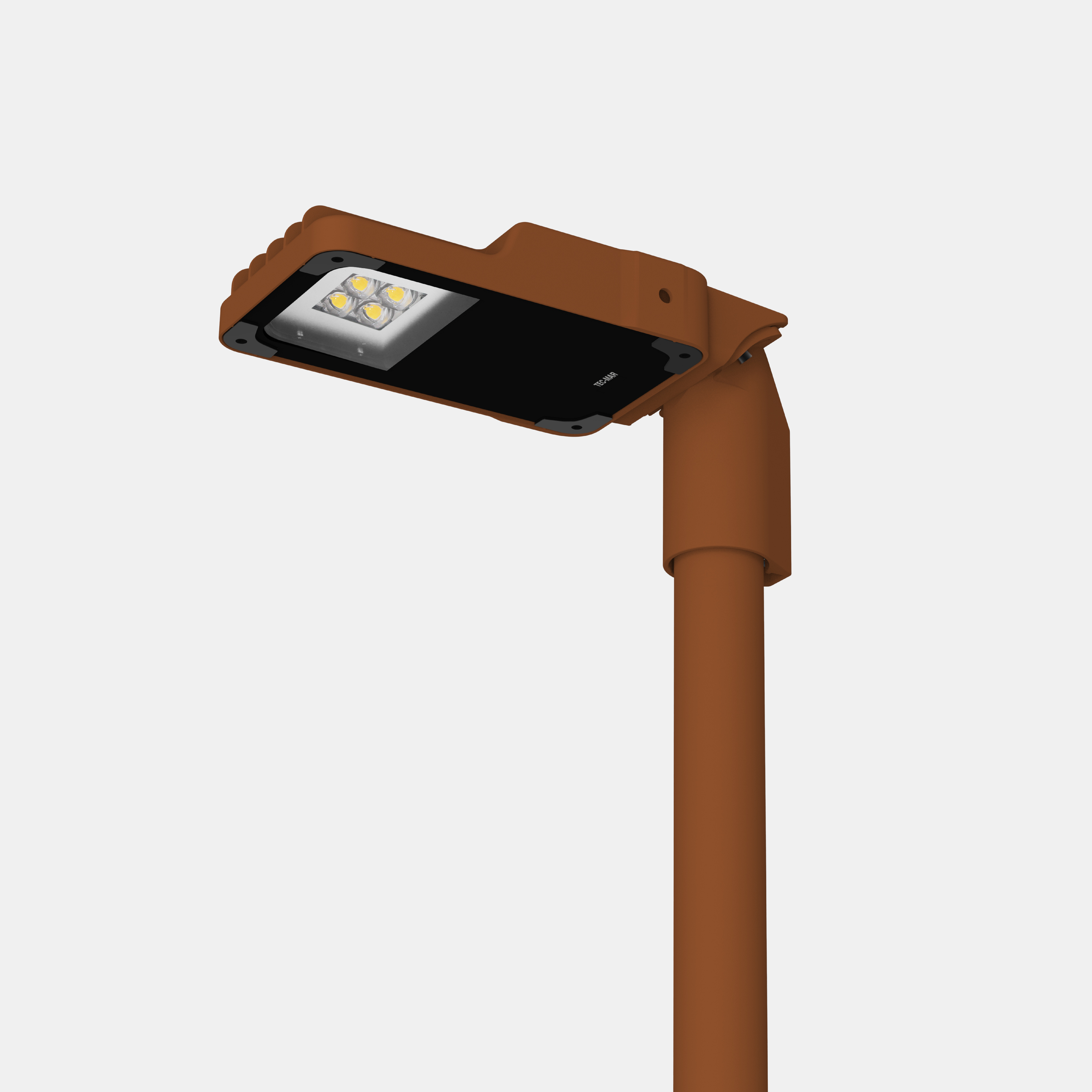

BEST S1 | Mod. T2

IESNA Type II 45° Medium Asymmetric Street Light

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating corten color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.

Categories: Led, BEST S1, BEST S1, Street lighting, BEST S1

Models: 30

Color: Corten

Catalogue abstract

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7221	T2	30	= 3000°K (CRI >70)	25	CL	= on/off
		40	= 4000°K (CRI >70)	34	CD	= dali 2
				40	MC	= virtual midnight
				50
				56

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7221T24025CL	25	-	4000°K - CRI ≥70	on/off	3830	153	390	180	56	165	-
7221T24034CL	34	-	4000°K - CRI ≥70	on/off	5101	150	390	180	56	165	-
7221T24040CL	40	-	4000°K - CRI ≥70	on/off	6013	150	390	180	56	165	-
7221T24050CL	50	-	4000°K - CRI ≥70	on/off	7495	150	390	180	56	165	-
7221T24056CL	56	-	4000°K - CRI ≥70	on/off	8168	146	390	180	56	165	-
7221T24025CD	25	-	4000°K - CRI ≥70	dali 2	3830	153	390	180	56	165	-
7221T24034CD	34	-	4000°K - CRI ≥70	dali 2	5101	150	390	180	56	165	-
7221T24040CD	40	-	4000°K - CRI ≥70	dali 2	6013	150	390	180	56	165	-
7221T24050CD	50	-	4000°K - CRI ≥70	dali 2	7495	150	390	180	56	165	-
7221T24056CD	56	-	4000°K - CRI ≥70	dali 2	8168	146	390	180	56	165	-
7221T24025MC	25	-	4000°K - CRI ≥70	virtual midnight	3830	153	390	180	56	165	-
7221T24034MC	34	-	4000°K - CRI ≥70	virtual midnight	5101	150	390	180	56	165	-
7221T24040MC	40	-	4000°K - CRI ≥70	virtual midnight	6013	150	390	180	56	165	-
7221T24050MC	50	-	4000°K - CRI ≥70	virtual midnight	7495	150	390	180	56	165	-
7221T24056MC	56	-	4000°K - CRI ≥70	virtual midnight	8168	146	390	180	56	165	-
7221T23025CL	25	-	3000°K - CRI ≥70	on/off	3811	152	390	180	56	165	-
7221T23034CL	34	-	3000°K - CRI ≥70	on/off	5075	149	390	180	56	165	-
7221T23040CL	40	-	3000°K - CRI ≥70	on/off	5983	150	390	180	56	165	-
7221T23050CL	50	-	3000°K - CRI ≥70	on/off	7458	149	390	180	56	165	-
7221T23056CL	56	-	3000°K - CRI ≥70	on/off	8127	145	390	180	56	165	-
