BEST S2 | Mod. CP

EN13201 class P (type II/III) asymmetrical cyclopedic optics

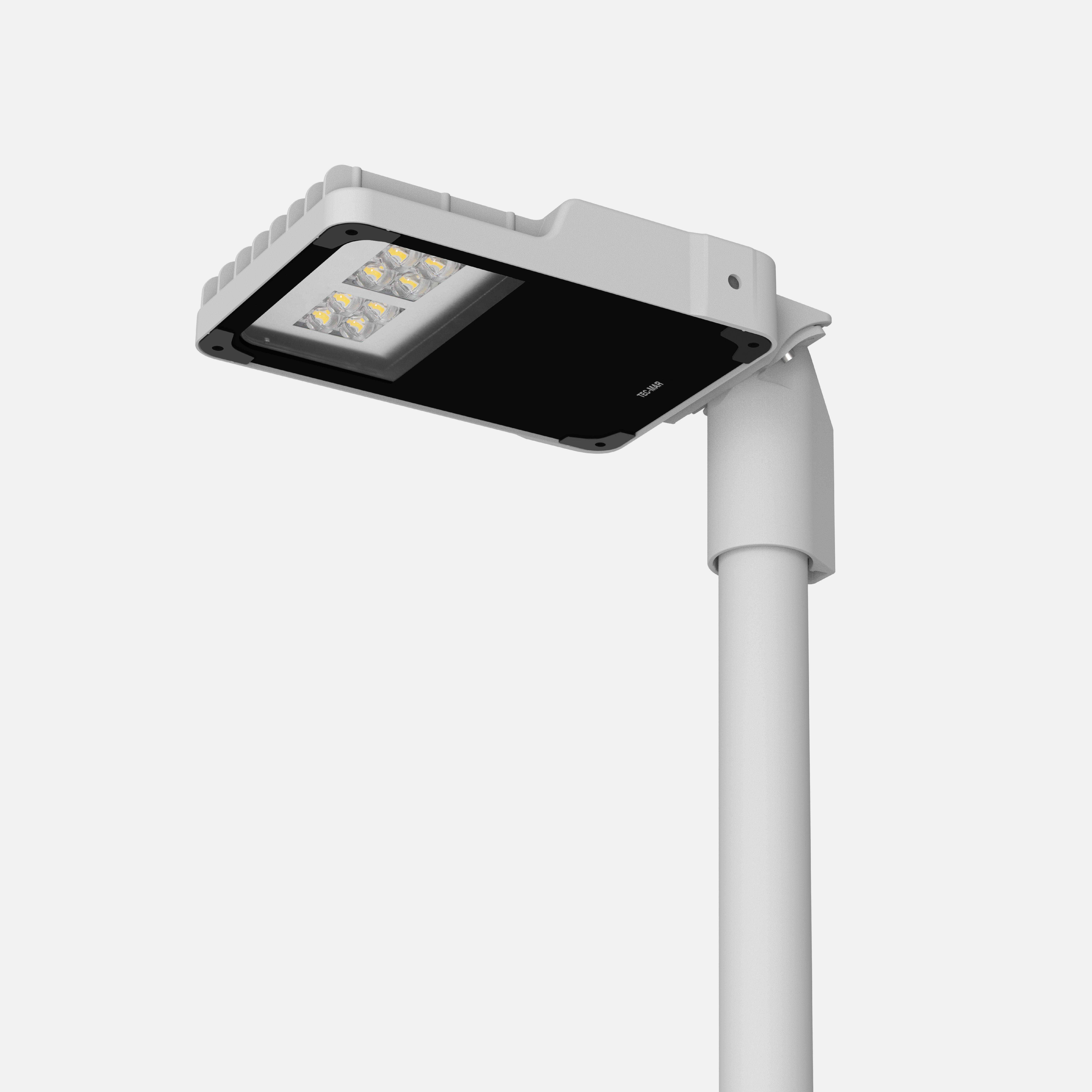

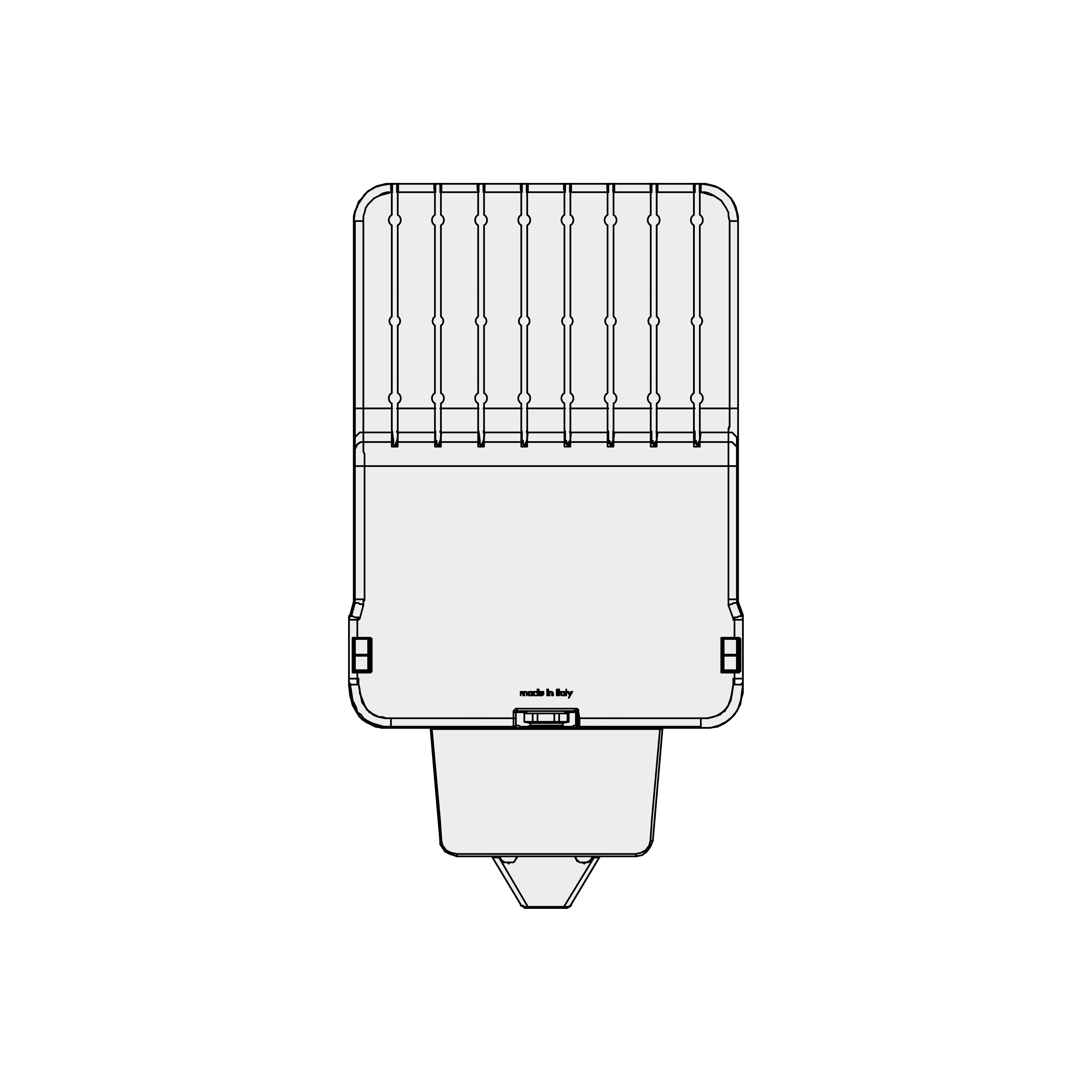

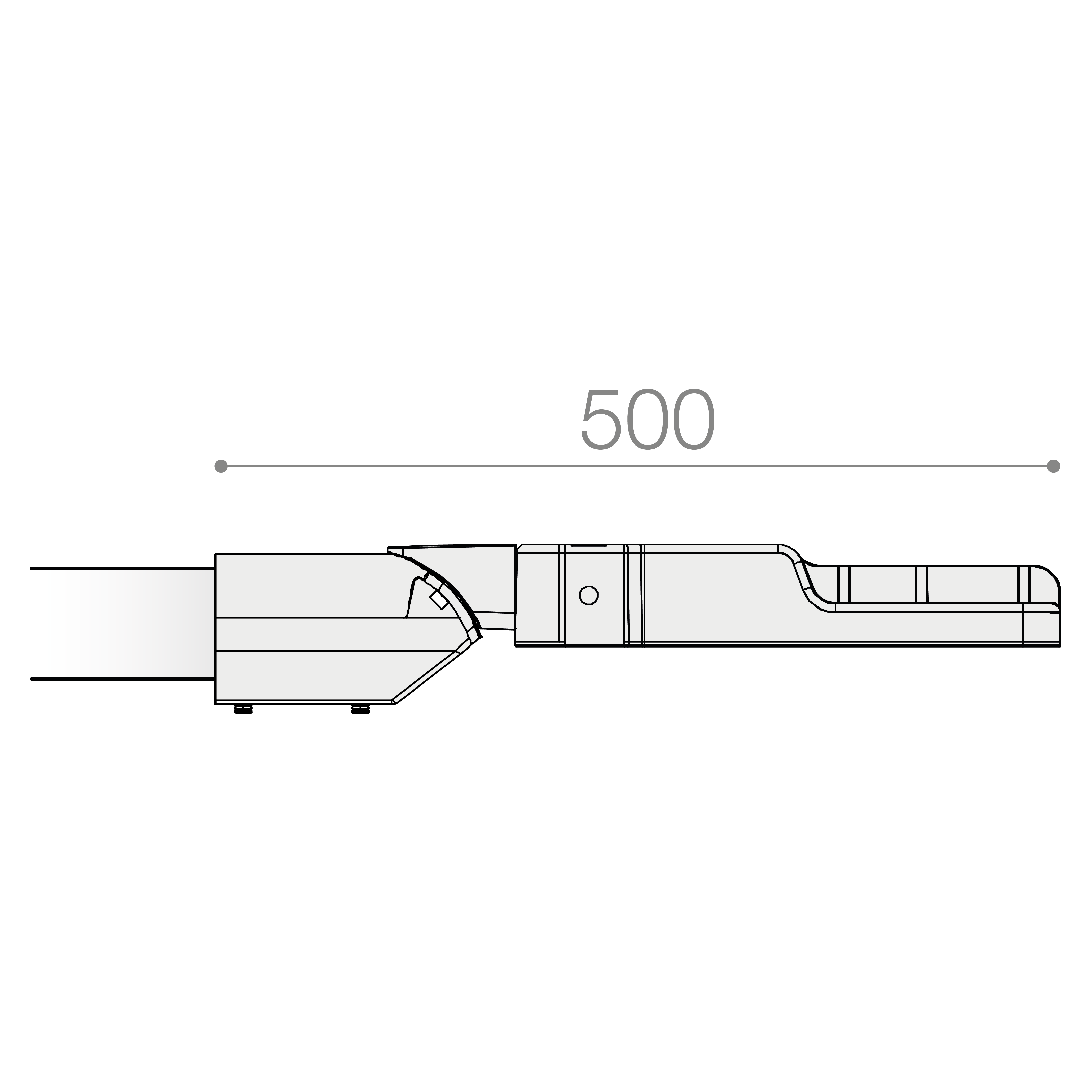

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).

Categories: Led, BEST S2, BEST S2, Street lighting, BEST S2

Models: 48

Color: Silver

Catalogue abstract

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7222	CP	3	= 3000°K (CRI >70)	040	GL	= on/off
		4	= 4000°K (CRI >70)	050	GD	= dali 2
				056	MG	= virtual midnight
				062
				075
				092
				105
				120

Models

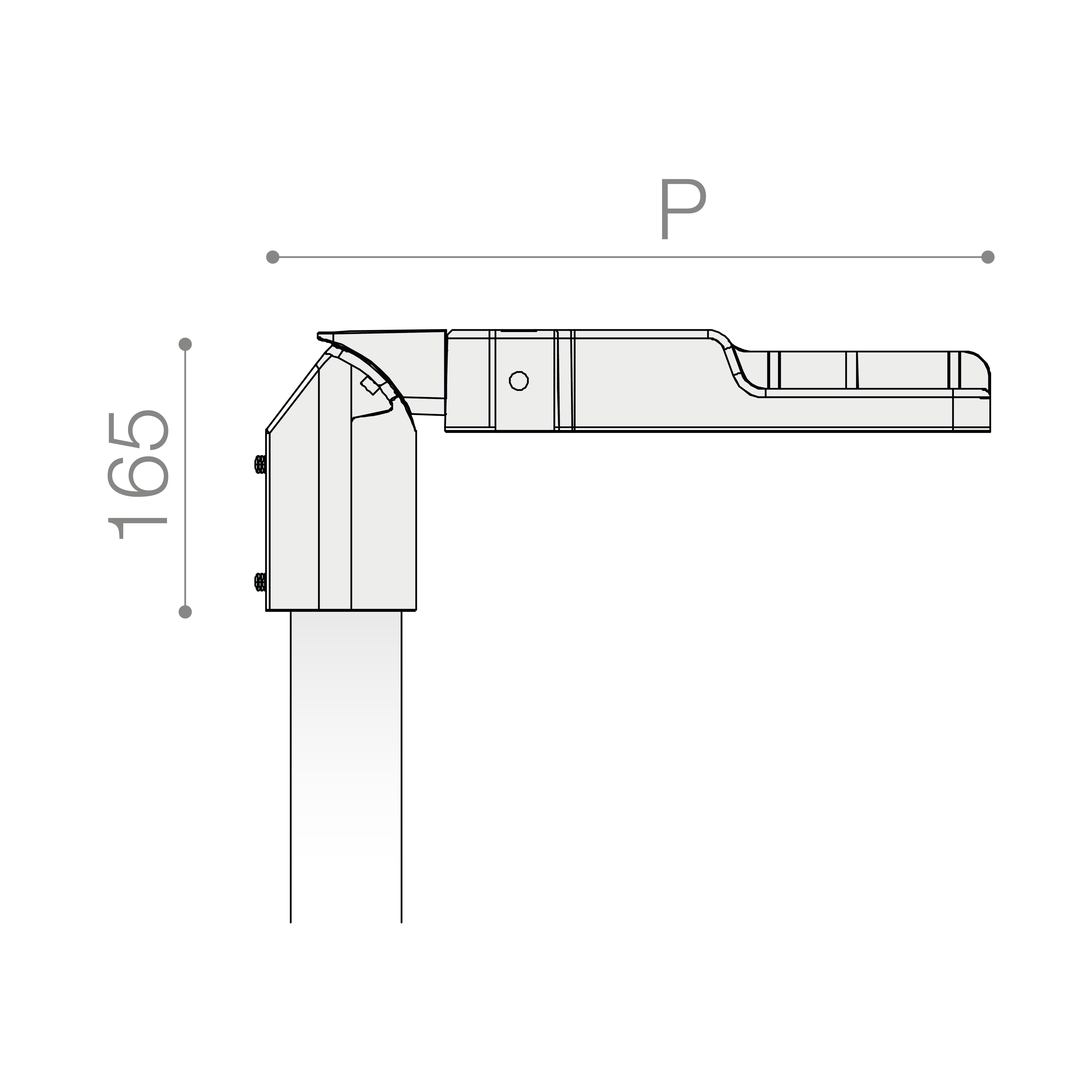

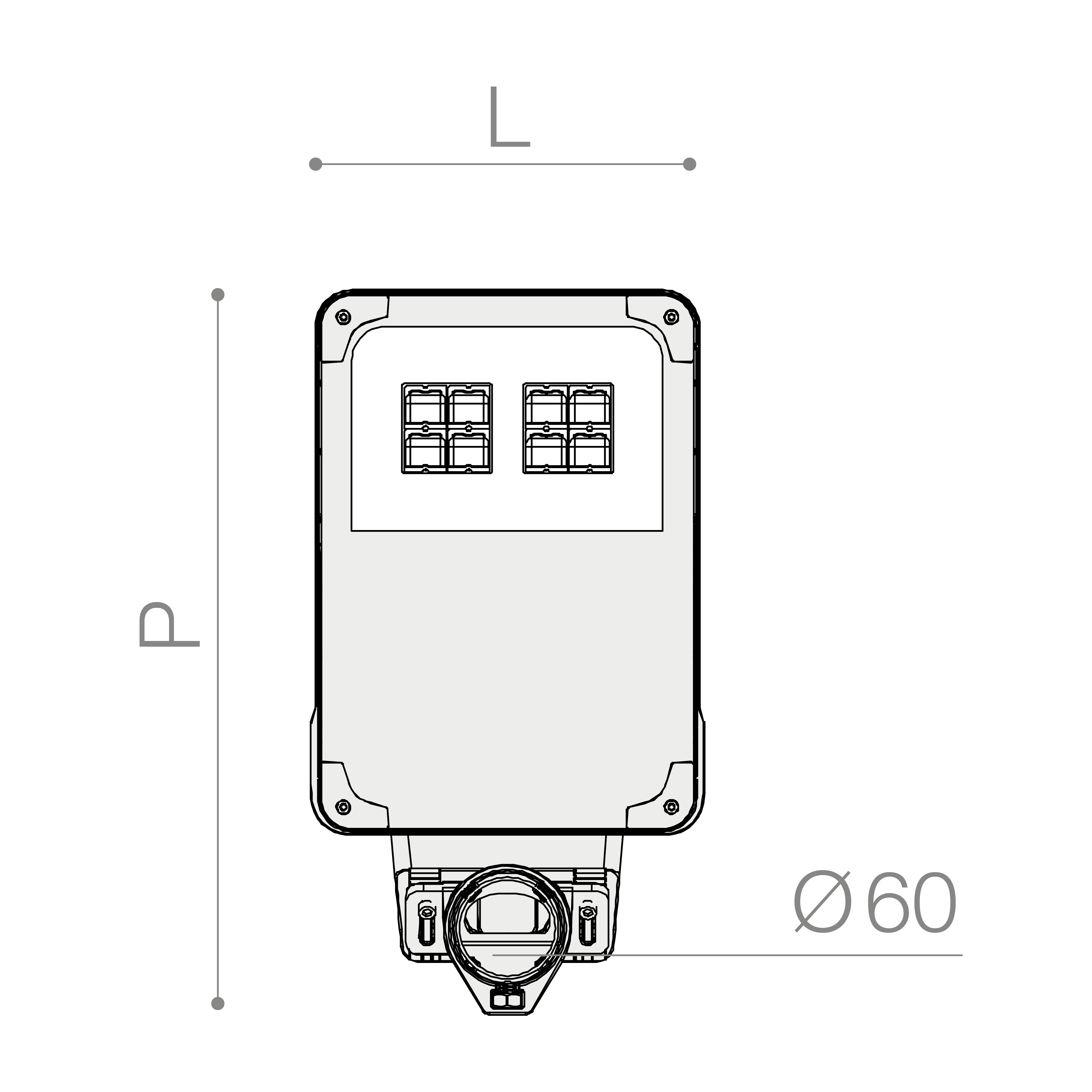

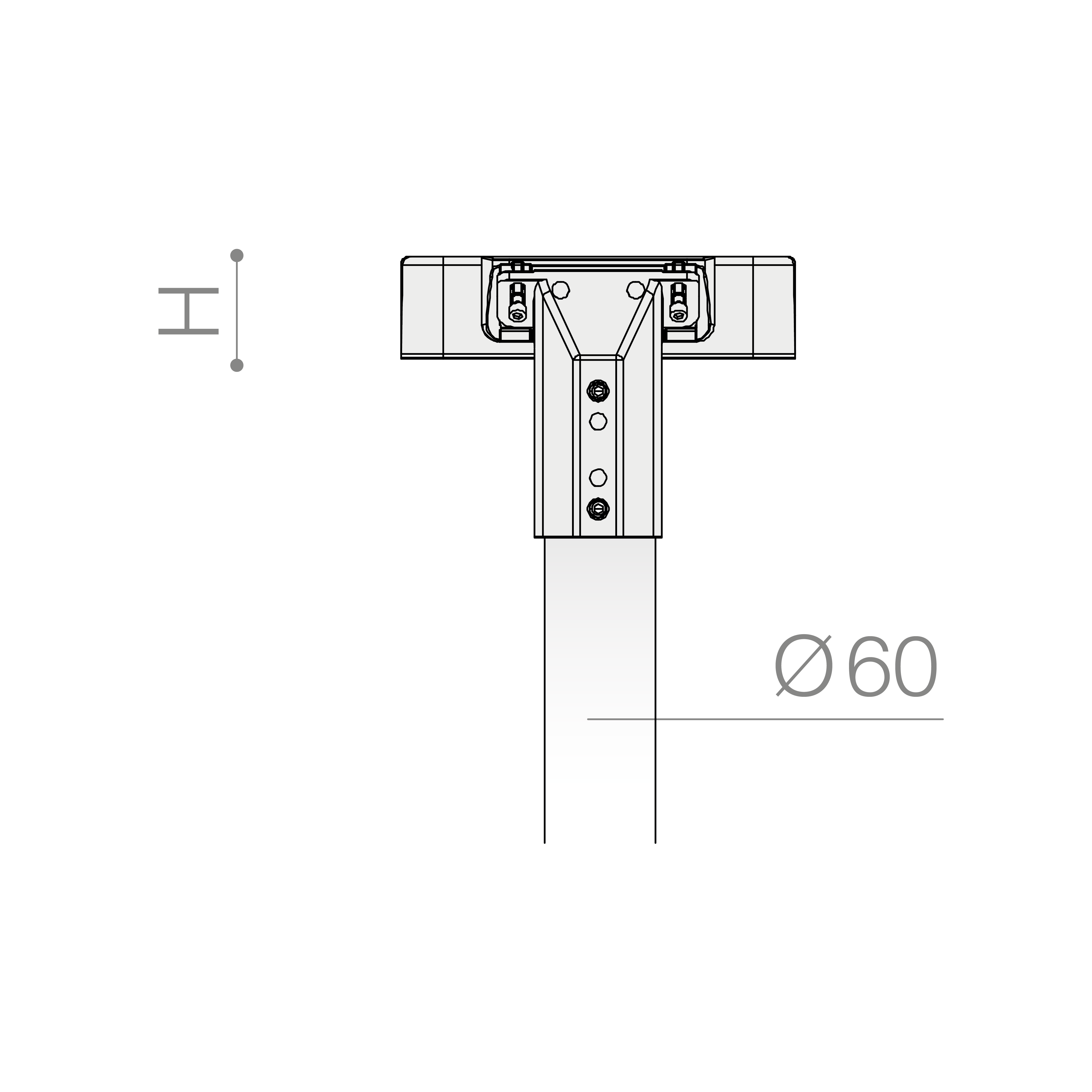

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7222CP4040GL	40	-	4000°K - CRI ≥70	on/off	6544	164	426	225	60	165	-
7222CP4050GL	50	-	4000°K - CRI ≥70	on/off	8152	163	426	225	60	165	-
7222CP4056GL	56	-	4000°K - CRI ≥70	on/off	8569	153	426	225	60	165	-
7222CP4062GL	62	-	4000°K - CRI ≥70	on/off	9666	156	426	225	60	165	-
7222CP4075GL	75	-	4000°K - CRI ≥70	on/off	11947	159	426	225	60	165	-
7222CP4092GL	92	-	4000°K - CRI ≥70	on/off	13249	144	426	225	60	165	-
7222CP4105GL	105	-	4000°K - CRI ≥70	on/off	14701	140	426	225	60	165	-
7222CP4120GL	120	-	4000°K - CRI ≥70	on/off	16205	135	426	225	60	165	-
7222CP4040GD	40	-	4000°K - CRI ≥70	dali 2	6544	164	426	225	60	165	-
7222CP4050GD	50	-	4000°K - CRI ≥70	dali 2	8152	163	426	225	60	165	-
7222CP4056GD	56	-	4000°K - CRI ≥70	dali 2	8569	153	426	225	60	165	-
7222CP4062GD	62	-	4000°K - CRI ≥70	dali 2	9666	156	426	225	60	165	-
7222CP4075GD	75	-	4000°K - CRI ≥70	dali 2	11947	159	426	225	60	165	-
7222CP4092GD	92	-	4000°K - CRI ≥70	dali 2	13249	144	426	225	60	165	-
7222CP4105GD	105	-	4000°K - CRI ≥70	dali 2	14701	140	426	225	60	165	-
7222CP4120GD	120	-	4000°K - CRI ≥70	dali 2	16205	135	426	225	60	165	-
7222CP4040GM	40	-	4000°K - CRI ≥70	virtual midnight	6544	164	426	225	60	165	-
7222CP4050GM	50	-	4000°K - CRI ≥70	virtual midnight	8152	163	426	225	60	165	-
7222CP4056GM	56	-	4000°K - CRI ≥70	virtual midnight	8569	153	426	225	60	165	-
7222CP4062GM	62	-	4000°K - CRI ≥70	virtual midnight	9666	156	426	225	60	165	-
