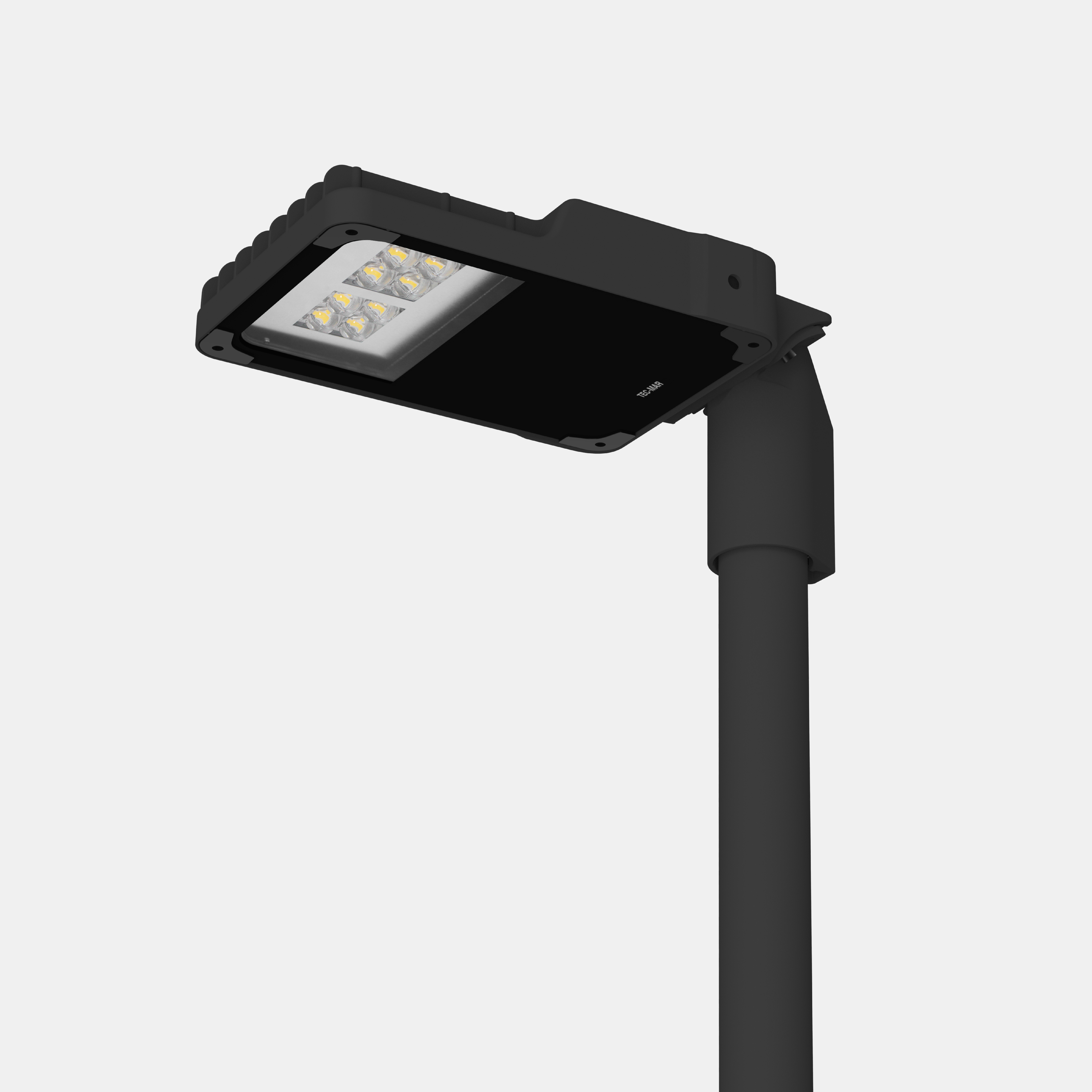

BEST S2 | Mod. T2

IESNA Type II 45° Medium Asymmetric Street Light

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.

Categories: Led, BEST S2, BEST S2, Street lighting, BEST S2

Models: 48

Color: Anthracite

Catalogue abstract

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7222	T2	3	= 3000°K (CRI >70)	040	EL	= on/off
		4	= 4000°K (CRI >70)	050	LD	= dali 2
				056	MD	= virtual midnight
				062
				075
				092
				105
				120

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7222T24040EL	40	-	4000°K - CRI ≥70	on/off	6587	165	426	225	60	165	-
7222T24050EL	50	-	4000°K - CRI ≥70	on/off	8206	164	426	225	60	165	-
7222T24056EL	56	-	4000°K - CRI ≥70	on/off	8626	154	426	225	60	165	-
7222T24062EL	62	-	4000°K - CRI ≥70	on/off	9730	157	426	225	60	165	-
7222T24075EL	75	-	4000°K - CRI ≥70	on/off	12026	160	426	225	60	165	-
7222T24092EL	92	-	4000°K - CRI ≥70	on/off	13337	145	426	225	60	165	-
7222T24105EL	105	-	4000°K - CRI ≥70	on/off	14799	141	426	225	60	165	-
7222T24120EL	120	-	4000°K - CRI ≥70	on/off	16312	136	426	225	60	165	-
7222T24040LD	40	-	4000°K - CRI ≥70	dali 2	6587	165	426	225	60	165	-
7222T24050LD	50	-	4000°K - CRI ≥70	dali 2	8206	164	426	225	60	165	-
7222T24056LD	56	-	4000°K - CRI ≥70	dali 2	8626	154	426	225	60	165	-
7222T24062LD	62	-	4000°K - CRI ≥70	dali 2	9730	157	426	225	60	165	-
7222T24075LD	75	-	4000°K - CRI ≥70	dali 2	12026	160	426	225	60	165	-
7222T24092LD	92	-	4000°K - CRI ≥70	dali 2	13337	145	426	225	60	165	-
7222T24105LD	105	-	4000°K - CRI ≥70	dali 2	14799	141	426	225	60	165	-
7222T24120LD	120	-	4000°K - CRI ≥70	dali 2	16312	136	426	225	60	165	-
7222T24040MD	40	-	4000°K - CRI ≥70	virtual midnight	6587	165	426	225	60	165	-
7222T24050MD	50	-	4000°K - CRI ≥70	virtual midnight	8206	164	426	225	60	165	-
7222T24056MD	56	-	4000°K - CRI ≥70	virtual midnight	8626	154	426	225	60	165	-
7222T24062MD	62	-	4000°K - CRI ≥70	virtual midnight	9730	157	426	225	60	165	-
