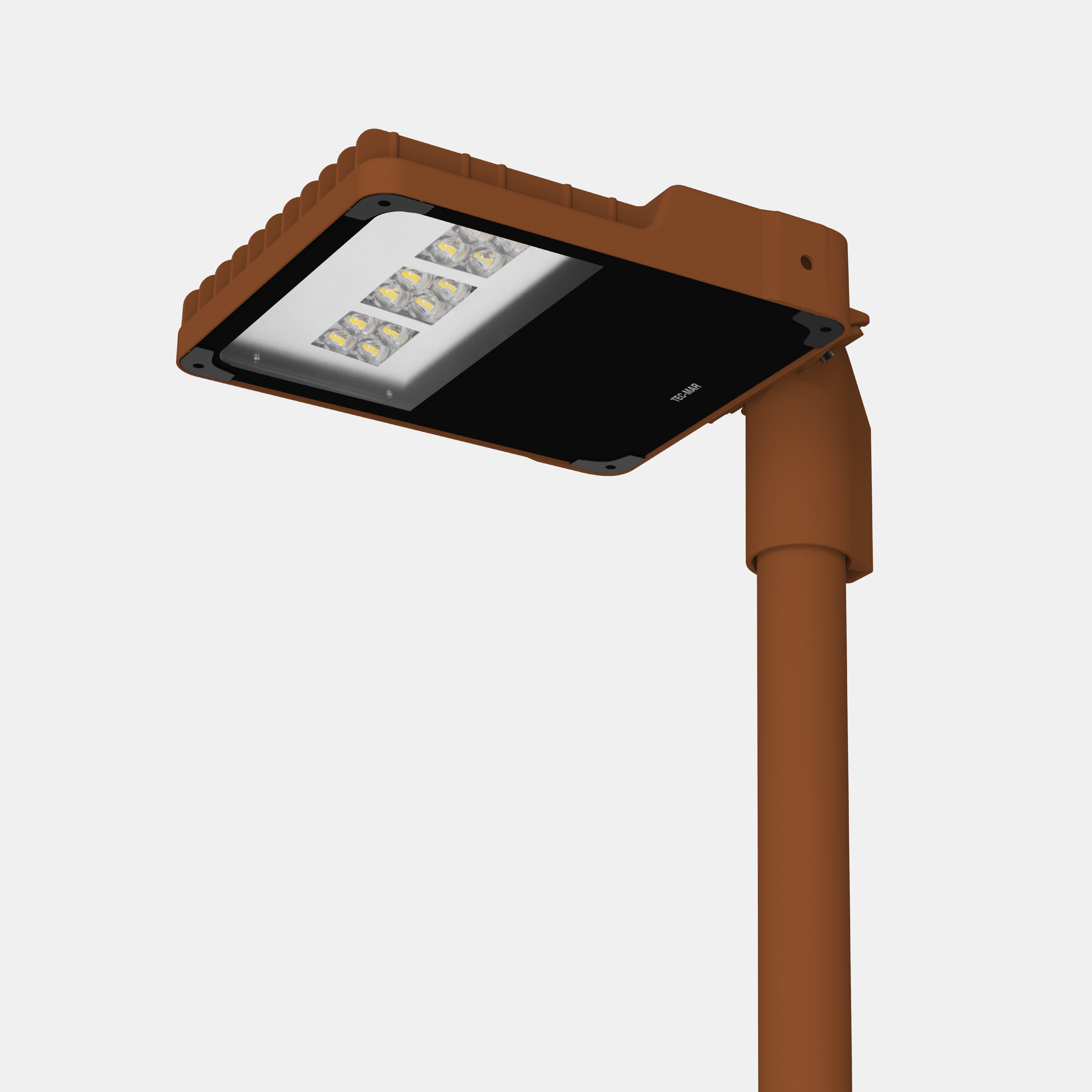

T2 CORTEN 3

BEST S3 | Mod. T2

IESNA Type II 45° Medium Asymmetric Street Light

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating corten color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.
Categories: Led, BEST S3, BEST S3, Street lighting, BEST S3
Models: 56
Color: Corten
Catalogue abstract
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7223T23= 3000°K (CRI >70)130CL= on/off
4= 4000°K (CRI >70)155CD= dali 2
180MC= virtual midnight
200CZ= zhaga socket D4i
245

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7223T24065CL65-4000°K - CRI ≥70on/off1078316645031064165-
7223T24075CL75-4000°K - CRI ≥70on/off1242316645031064165-
7223T24092CL92-4000°K - CRI ≥70on/off1402915245031064165-
7223T24115CL115-4000°K - CRI ≥70on/off1715014945031064165-
7223T24130CL130-4000°K - CRI ≥70on/off1867014445031064165-
7223T24140CL140-4000°K - CRI ≥70on/off2016614445031064165-
7223T24150CL150-4000°K - CRI ≥70on/off2152314345031064165-
7223T24065CD65-4000°K - CRI ≥70dali 21078316645031064165-
7223T24075CD75-4000°K - CRI ≥70dali 21242316645031064165-
7223T24092CD92-4000°K - CRI ≥70dali 21402915245031064165-
7223T24115CD115-4000°K - CRI ≥70dali 21715014945031064165-
7223T24130CD130-4000°K - CRI ≥70dali 21867014445031064165-
7223T24140CD140-4000°K - CRI ≥70dali 22016614445031064165-
7223T24150CD150-4000°K - CRI ≥70dali 22152314345031064165-
7223T24065MC65-4000°K - CRI ≥70virtual midnight1078316645031064165-
7223T24075MC75-4000°K - CRI ≥70virtual midnight1242316645031064165-
7223T24092MC92-4000°K - CRI ≥70virtual midnight1402915245031064165-
7223T24115MC115-4000°K - CRI ≥70virtual midnight1715014945031064165-
7223T24130MC130-4000°K - CRI ≥70virtual midnight1867014445031064165-
7223T24140MC140-4000°K - CRI ≥70virtual midnight2016614445031064165-

Accessories
