T2 SILVER 4

BEST S4 | Mod. ME

Wide asymmetric street optics Class ME

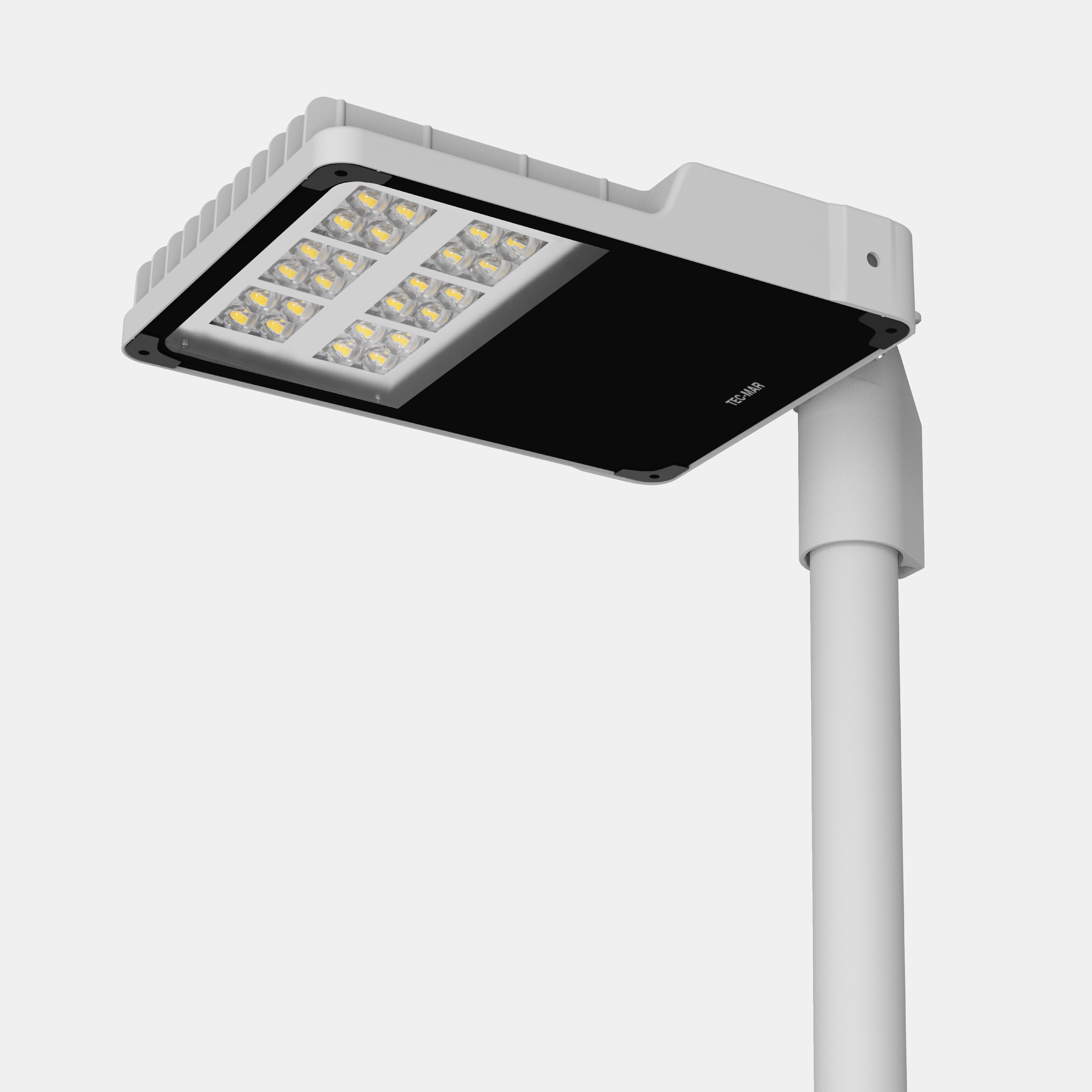

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical wide street optic EN13201 Class ME.
Categories: Led, BEST S4, BEST S4, Street lighting, BEST S4
Models: 40
Color: Silver
Catalogue abstract
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7224ME3= 3000°K (CRI >70)130GL= on/off
4= 4000°K (CRI >70)155GD= dali 2
180MG= virtual midnight
200GZ= zhaga socket D4i
245

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7224ME4130GL130-4000°K - CRI ≥70on/off2154116652533070165-
7224ME4155GL155-4000°K - CRI ≥70on/off2481816052533070165-
7224ME4180GL180-4000°K - CRI ≥70on/off2802615652533070165-
7224ME4200GL200-4000°K - CRI ≥70on/off3117215652533070165-
7224ME4245GL245-4000°K - CRI ≥70on/off3578714652533070165-
7224ME4130GD130-4000°K - CRI ≥70dali 22154116652533070165-
7224ME4155GD155-4000°K - CRI ≥70dali 22481816052533070165-
7224ME4180GD180-4000°K - CRI ≥70dali 22802615652533070165-
7224ME4200GD200-4000°K - CRI ≥70dali 23117215652533070165-
7224ME4245GD245-4000°K - CRI ≥70dali 23578714652533070165-
7224ME4130GM130-4000°K - CRI ≥70virtual midnight2154116652533070165-
7224ME4155GM155-4000°K - CRI ≥70virtual midnight2481816052533070165-
7224ME4180GM180-4000°K - CRI ≥70virtual midnight2802615652533070165-
7224ME4200GM200-4000°K - CRI ≥70virtual midnight3117215652533070165-
7224ME4245GM245-4000°K - CRI ≥70virtual midnight3578714652533070165-
7224ME4130ZD130-4000°K - CRI ≥70zhaga socket D4i2154116652533070165-
7224ME4155ZD155-4000°K - CRI ≥70zhaga socket D4i2481816052533070165-
7224ME4180ZD180-4000°K - CRI ≥70zhaga socket D4i2802615652533070165-
7224ME4200ZD200-4000°K - CRI ≥70zhaga socket D4i3117215652533070165-
7224ME4245ZD245-4000°K - CRI ≥70zhaga socket D4i3578714652533070165-

Accessories
