BEST 2R RGBW | Mod. C3

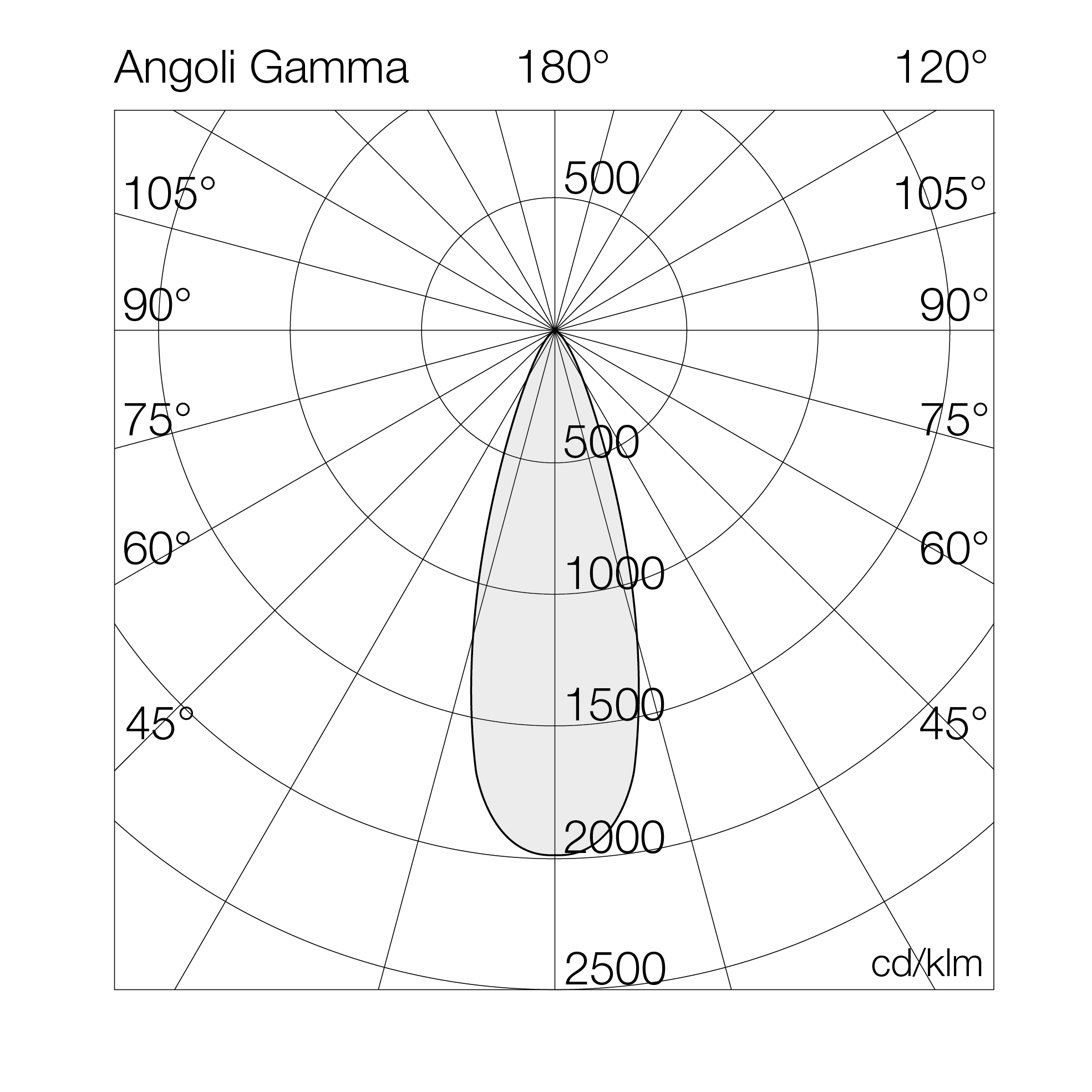

30° narrow beam

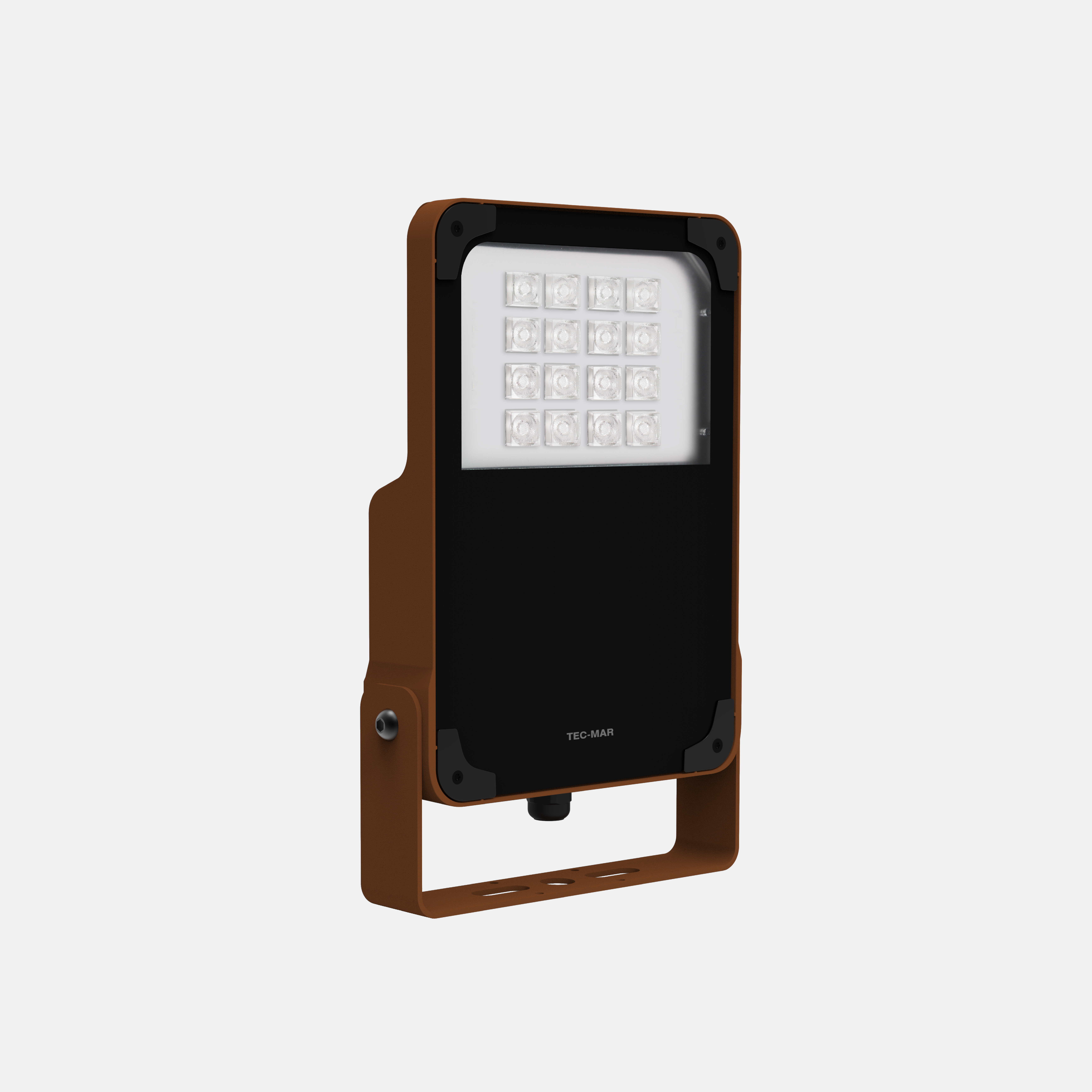

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Narrow beam 15°or 30°.

Categories: Led, BEST 2R RGBW, BEST 2R RGBW, BEST 2R RGBW, Floodlights

Models: 10

Color: Corten

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7232	C3	R	= red	050	CL	= on/off
		G	= green	075	CD	= dali 2
		B	= blue		CR	= remote control
		W	= white		CG	= external gateway
		X	= RGBW

Models

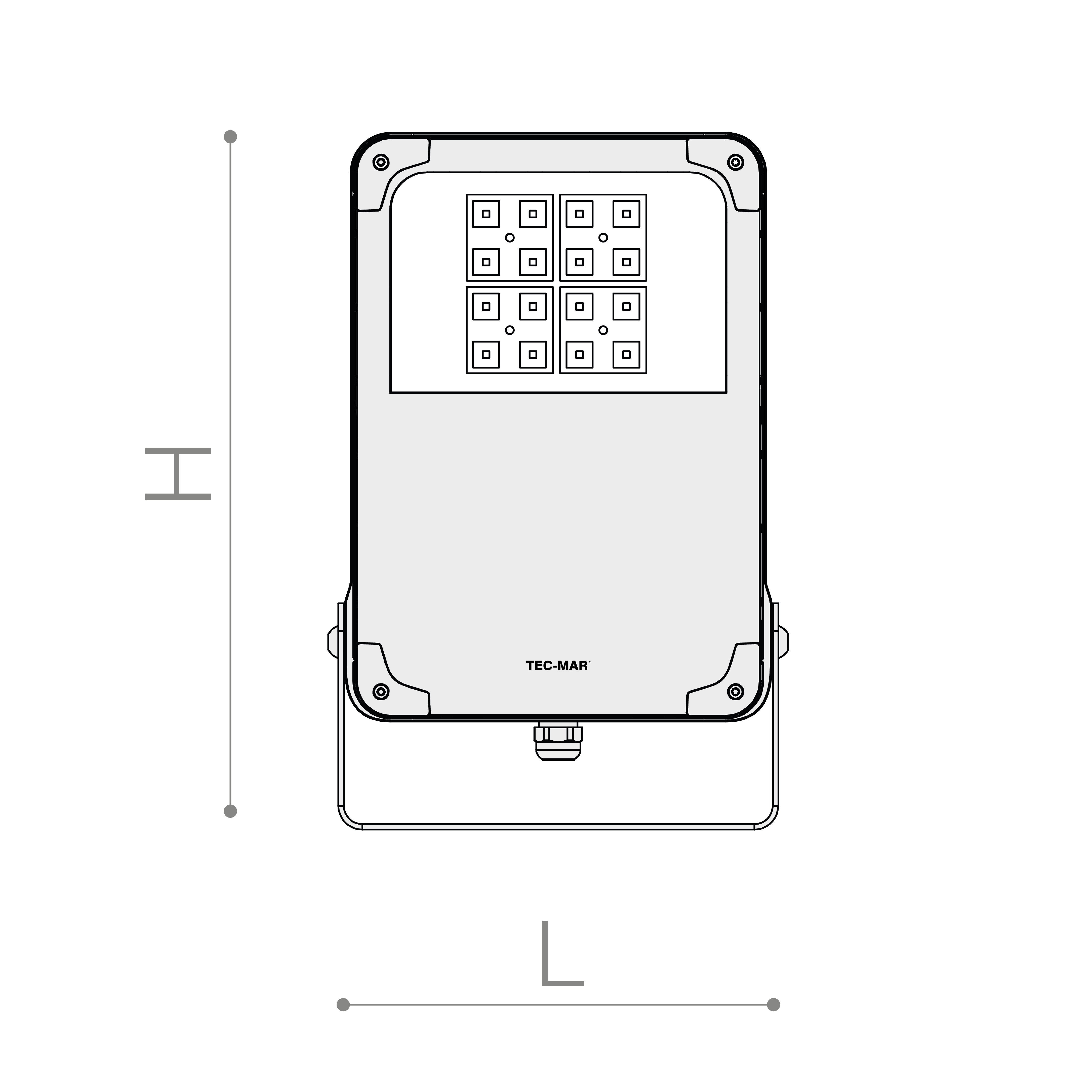

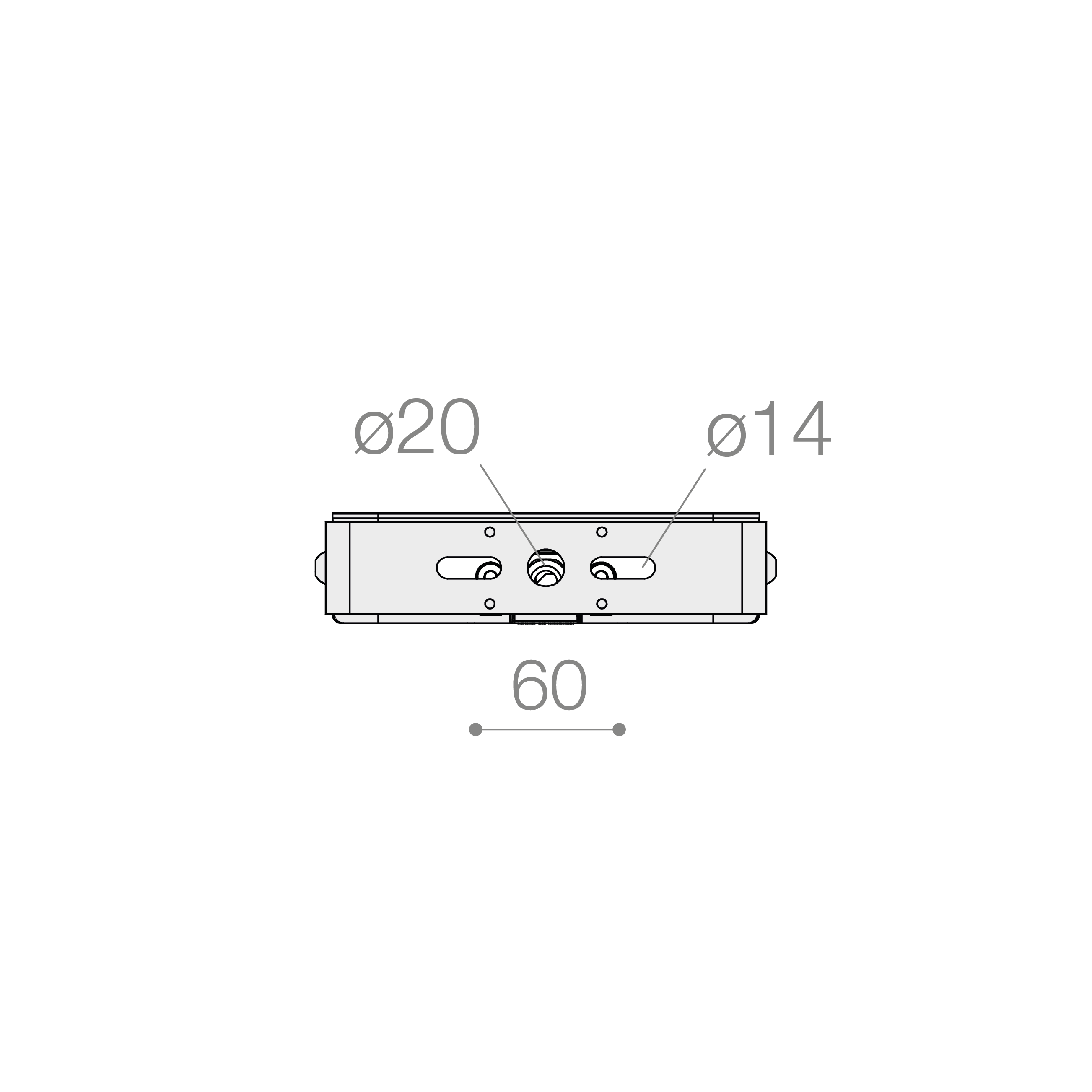

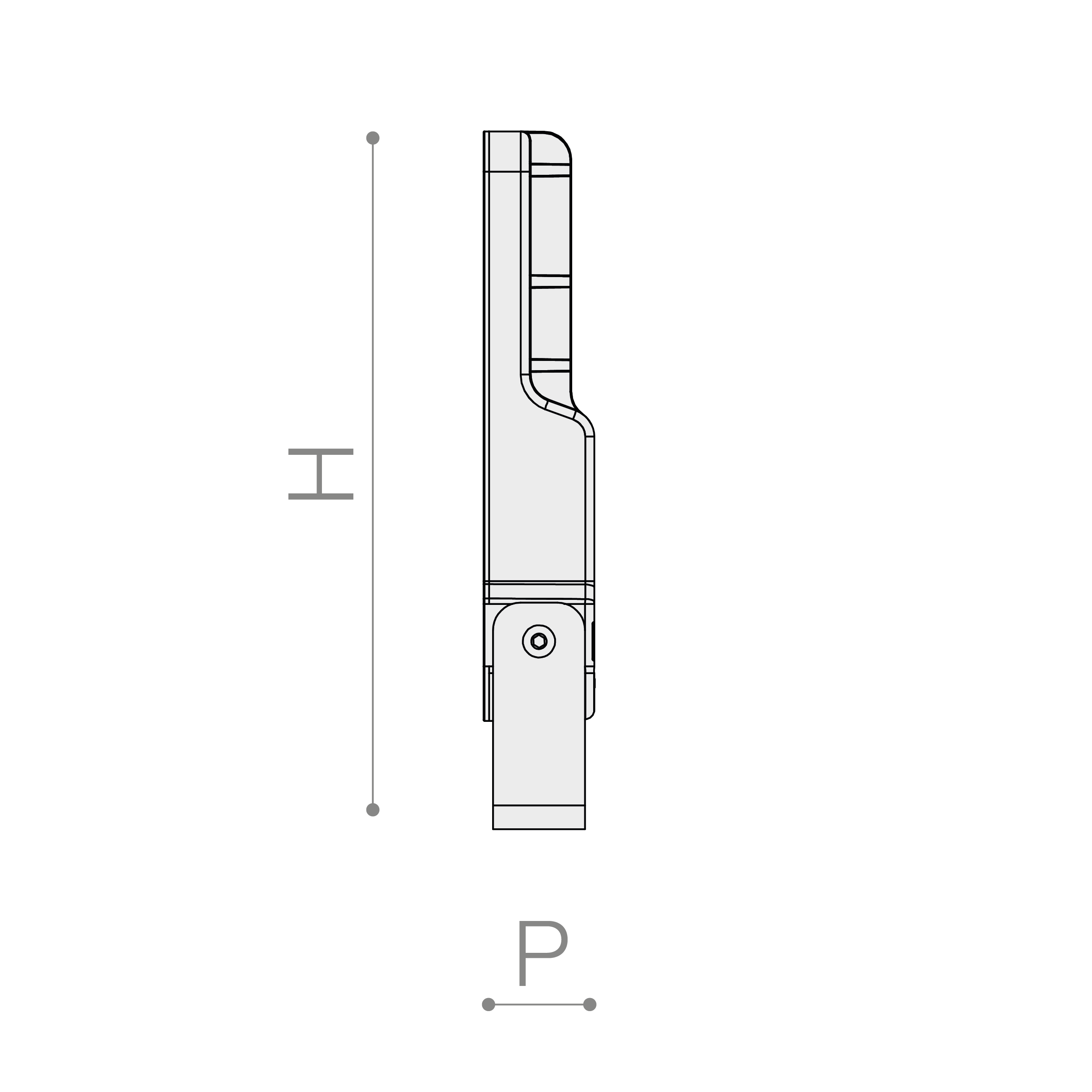

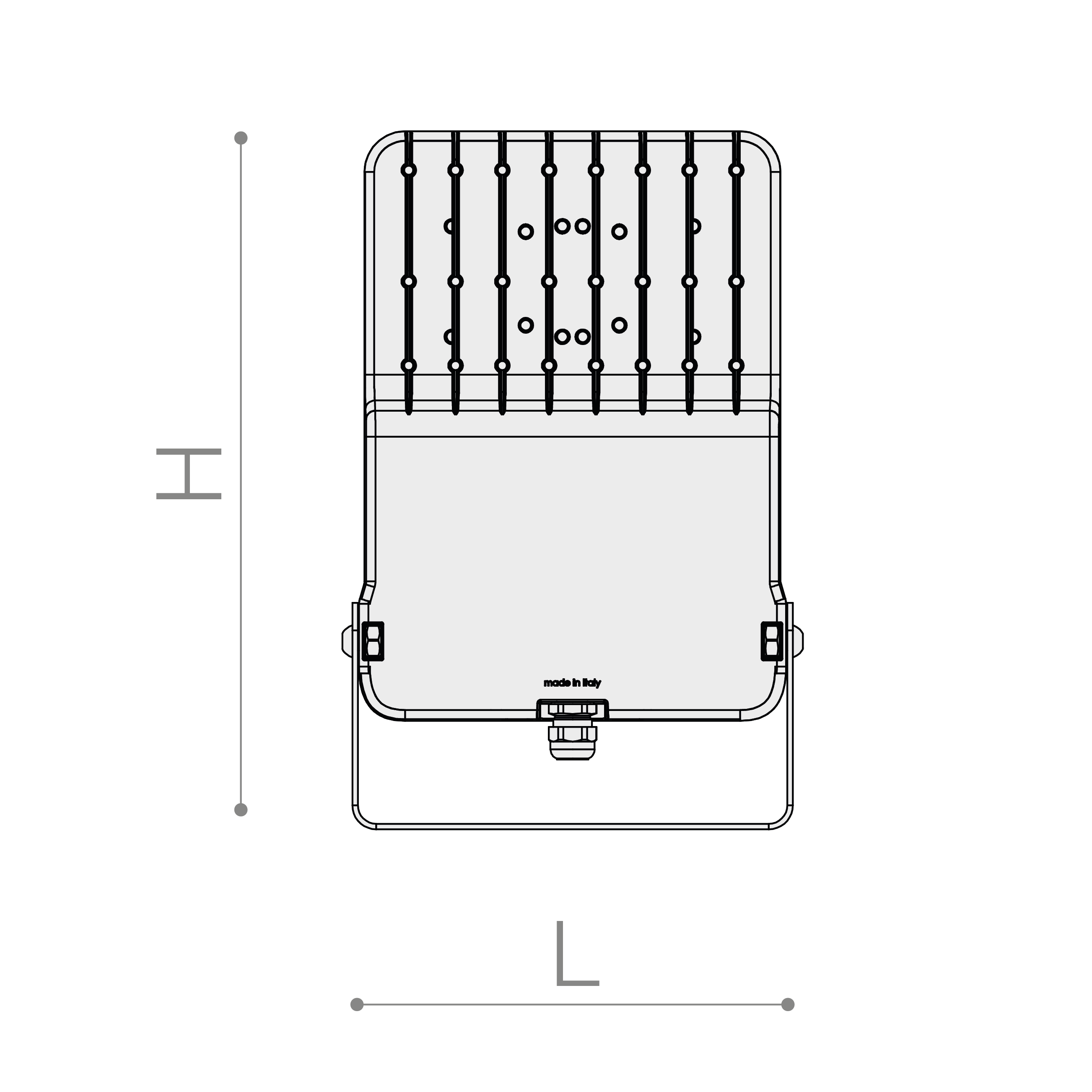

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7232C3R050CL	50	-	4000°K - CRI ≥80	on/off	2014	40	250	60	379	-	3.15
7232C3G050CL	50	-	4000°K - CRI ≥80	on/off	3858	77	250	60	379	-	3.15
7232C3B050CL	50	-	4000°K - CRI ≥80	on/off	1228	25	250	60	379	-	3.15
7232C3W050CL	50	-	4000°K - CRI ≥80	on/off	6075	122	250	60	379	-	3.15
7232C3R050CD	50	-	4000°K - CRI ≥80	dali 2	2014	40	250	60	379	-	3.15
7232C3G050CD	50	-	4000°K - CRI ≥80	dali 2	3858	77	250	60	379	-	3.15
7232C3B050CD	50	-	4000°K - CRI ≥80	dali 2	1228	25	250	60	379	-	3.15
7232C3W050CD	50	-	4000°K - CRI ≥80	dali 2	6075	122	250	60	379	-	3.15
7232C3X075CR	75	-	RGBW	remote control	2982	40	250	60	379	-	3.15
7232C3X075CG	75	-	RGBW	external gateway	2982	40	250	60	379	-	3.15
