BEST 3R RGBW | Mod. C3

30° narrow beam

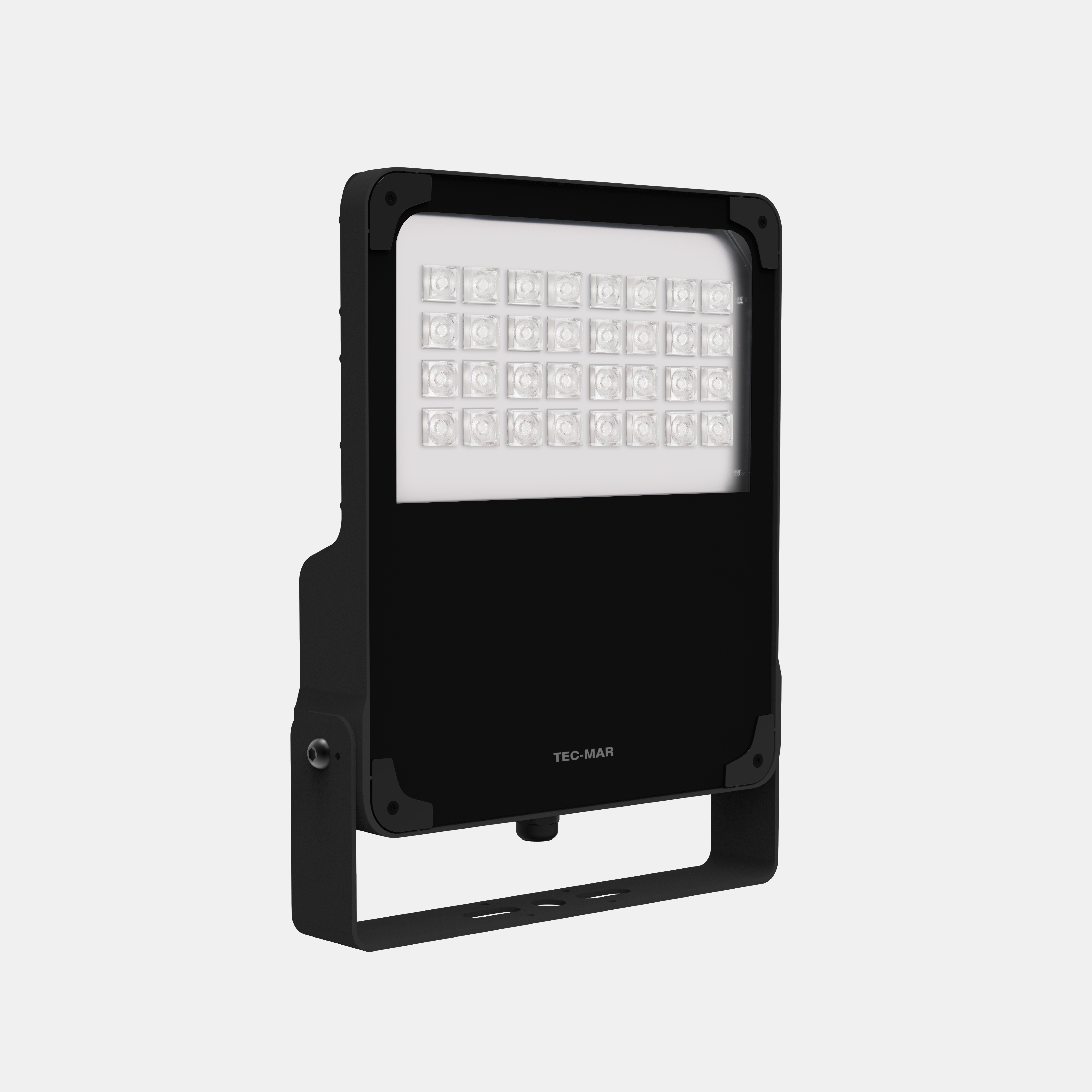

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Narrow beam 15°or 30°,.

Categories: Led, BEST 3R RGBW, BEST 3R RGBW, BEST 3R RGBW, Floodlights

Models: 10

Color: Anthracite

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7234	C3	R	= red	100	NL	= on/off
		G	= green	150	ND	= dali 2
		B	= blue		NR	= remote control
		W	= white		NG	= external gateway
		X	= RGBW

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7233C3R100NL	100	-	4000°K - CRI ≥80	on/off	4029	40	250	60	379	-	3.15
7233C3G100NL	100	-	4000°K - CRI ≥80	on/off	7717	77	250	60	379	-	3.15
7233C3B100NL	100	-	4000°K - CRI ≥80	on/off	2456	25	250	60	379	-	3.15
7233C3W100NL	100	-	4000°K - CRI ≥80	on/off	12150	122	250	60	379	-	3.15
7233C3R100ND	100	-	4000°K - CRI ≥80	dali 2	4029	40	250	60	379	-	3.15
7233C3G100ND	100	-	4000°K - CRI ≥80	dali 2	7717	77	250	60	379	-	3.15
7233C3B100ND	100	-	4000°K - CRI ≥80	dali 2	2456	25	250	60	379	-	3.15
7233C3W100ND	100	-	4000°K - CRI ≥80	dali 2	12150	122	250	60	379	-	3.15
7233C3X150NR	150	-	RGBW	remote control	5965	40	250	60	379	-	3.15
7233C3X150NG	150	-	RGBW	external gateway	5965	40	250	60	379	-	3.15
