BEST 3R RGBW | Mod. M9

90° wide beam

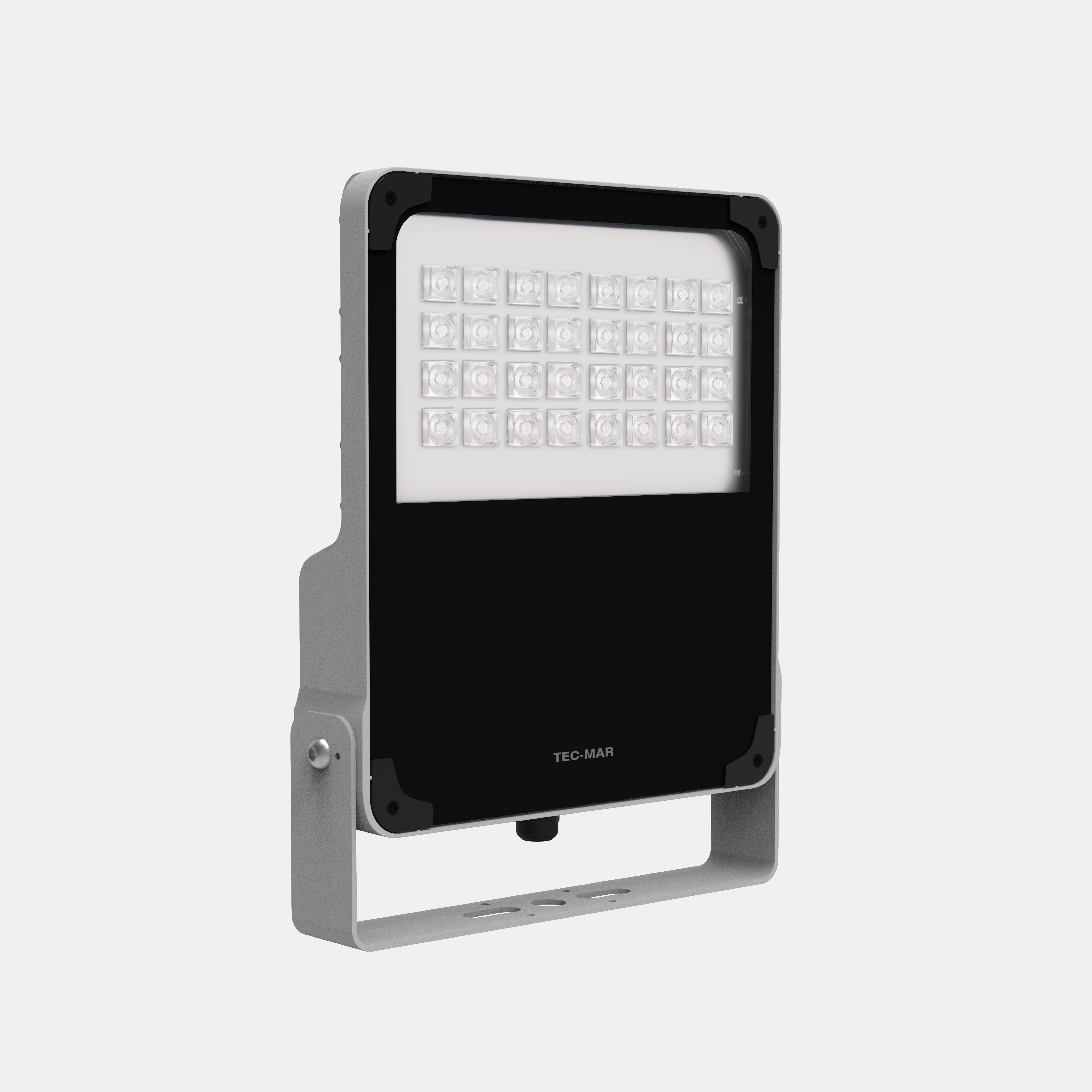

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 90° wide beam.

Categories: Led, BEST 3R RGBW, BEST 3R RGBW, BEST 3R RGBW, Floodlights

Models: 10

Color: Silver

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7233	M9	R	= red	100	GL	= on/off
		G	= green	150	GD	= dali 2
		B	= blue		GR	= remote control
		W	= white		GG	= external gateway
		X	= RGBW

Models

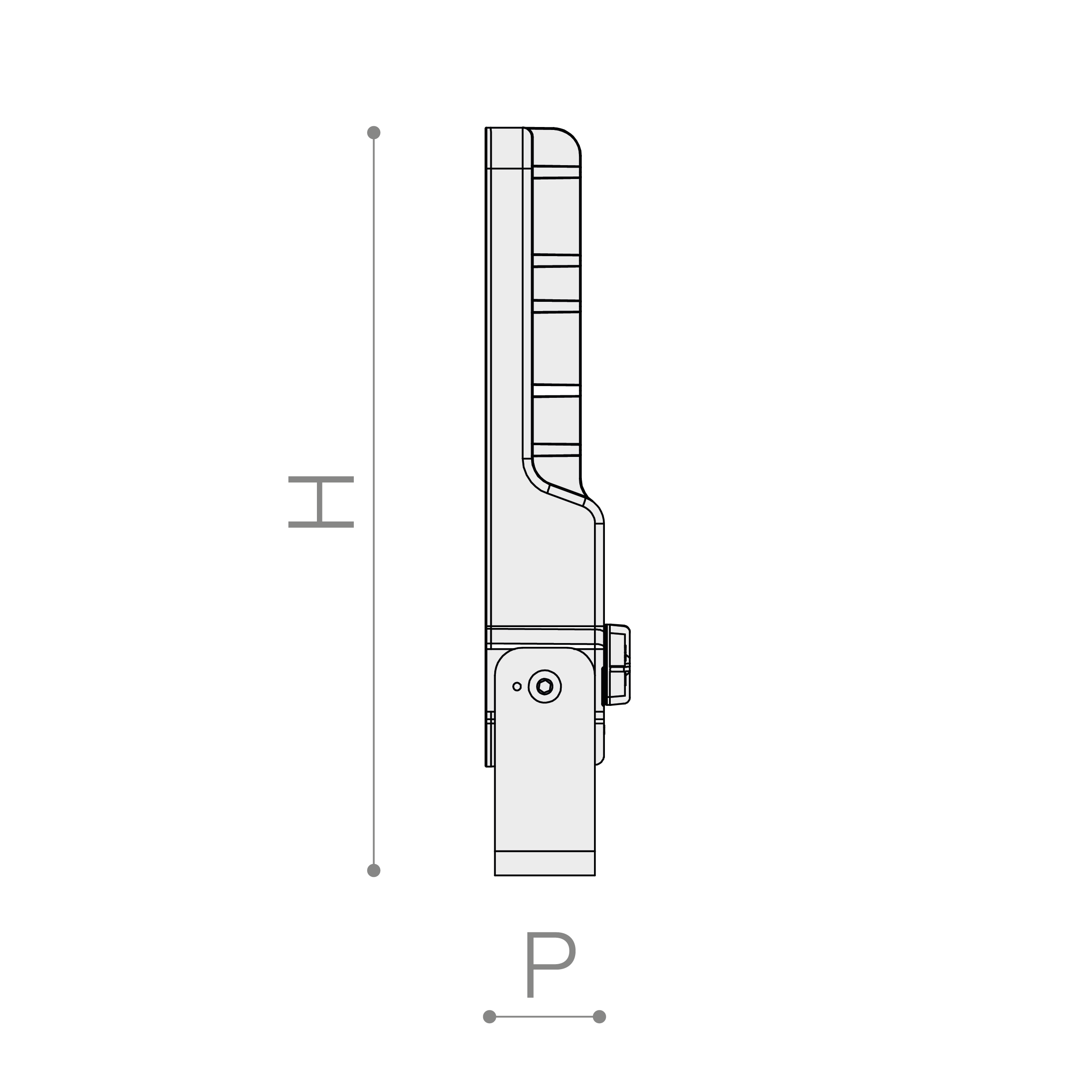

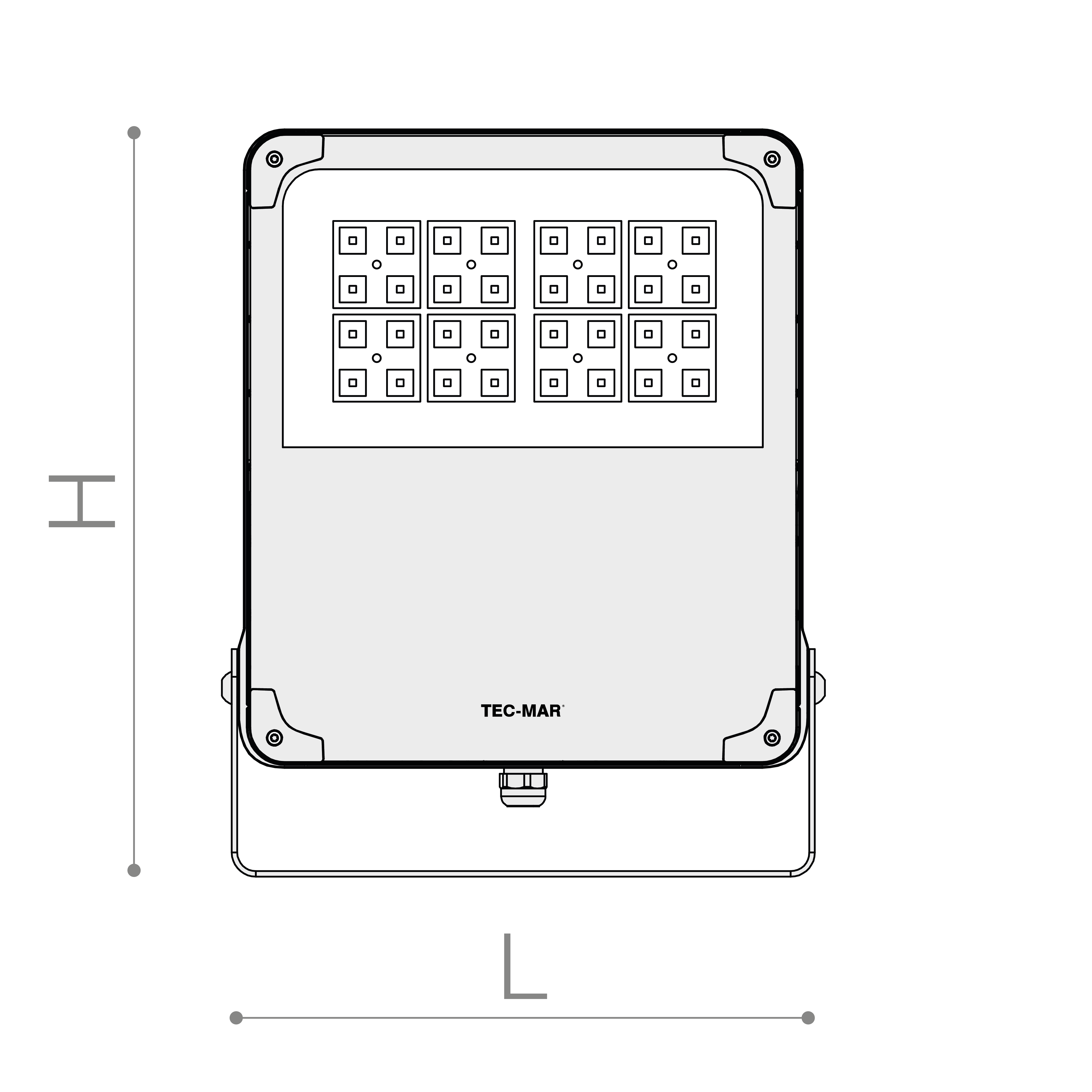

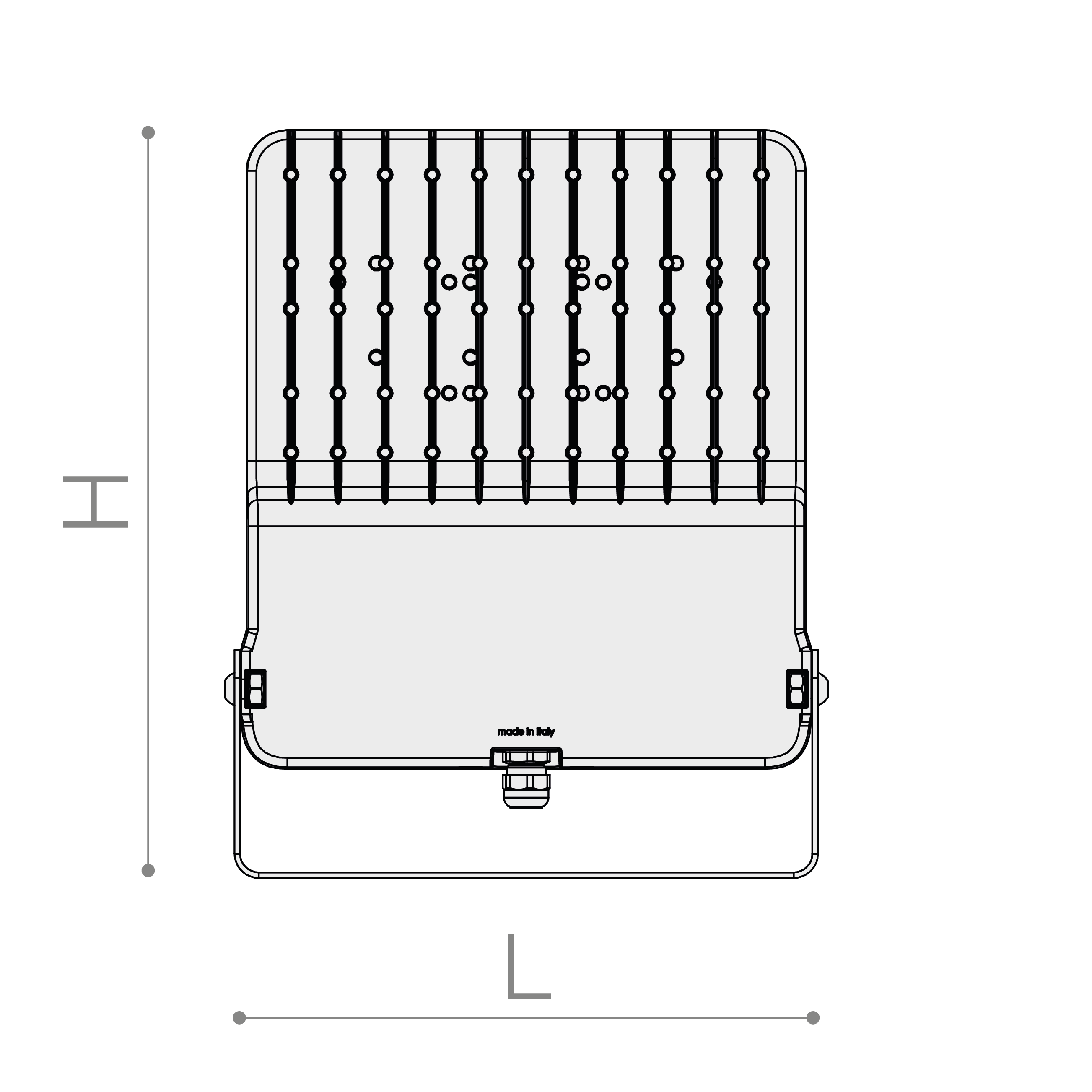

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7233M9R100GL	100	-	4000°K - CRI ≥80	on/off	4180	42	250	60	379	-	3.15
7233M9G100GL	100	-	4000°K - CRI ≥80	on/off	8006	80	250	60	379	-	3.15
7233M9B100GL	100	-	4000°K - CRI ≥80	on/off	2548	25	250	60	379	-	3.15
7233M9W100GL	100	-	4000°K - CRI ≥80	on/off	12606	126	250	60	379	-	3.15
7233M9R100GD	100	-	4000°K - CRI ≥80	dali 2	4180	42	250	60	379	-	3.15
7233M9G100GD	100	-	4000°K - CRI ≥80	dali 2	8006	80	250	60	379	-	3.15
7233M9B100GD	100	-	4000°K - CRI ≥80	dali 2	2548	25	250	60	379	-	3.15
7233M9W100GD	100	-	4000°K - CRI ≥80	dali 2	12606	126	250	60	379	-	3.15
7233M9X150GR	150	-	RGBW	remote control	6188	41	250	60	379	-	3.15
7233M9X150GG	150	-	RGBW	external gateway	6188	41	250	60	379	-	3.15
