BEST 4R RGBW | Mod. C3

30° narrow beam

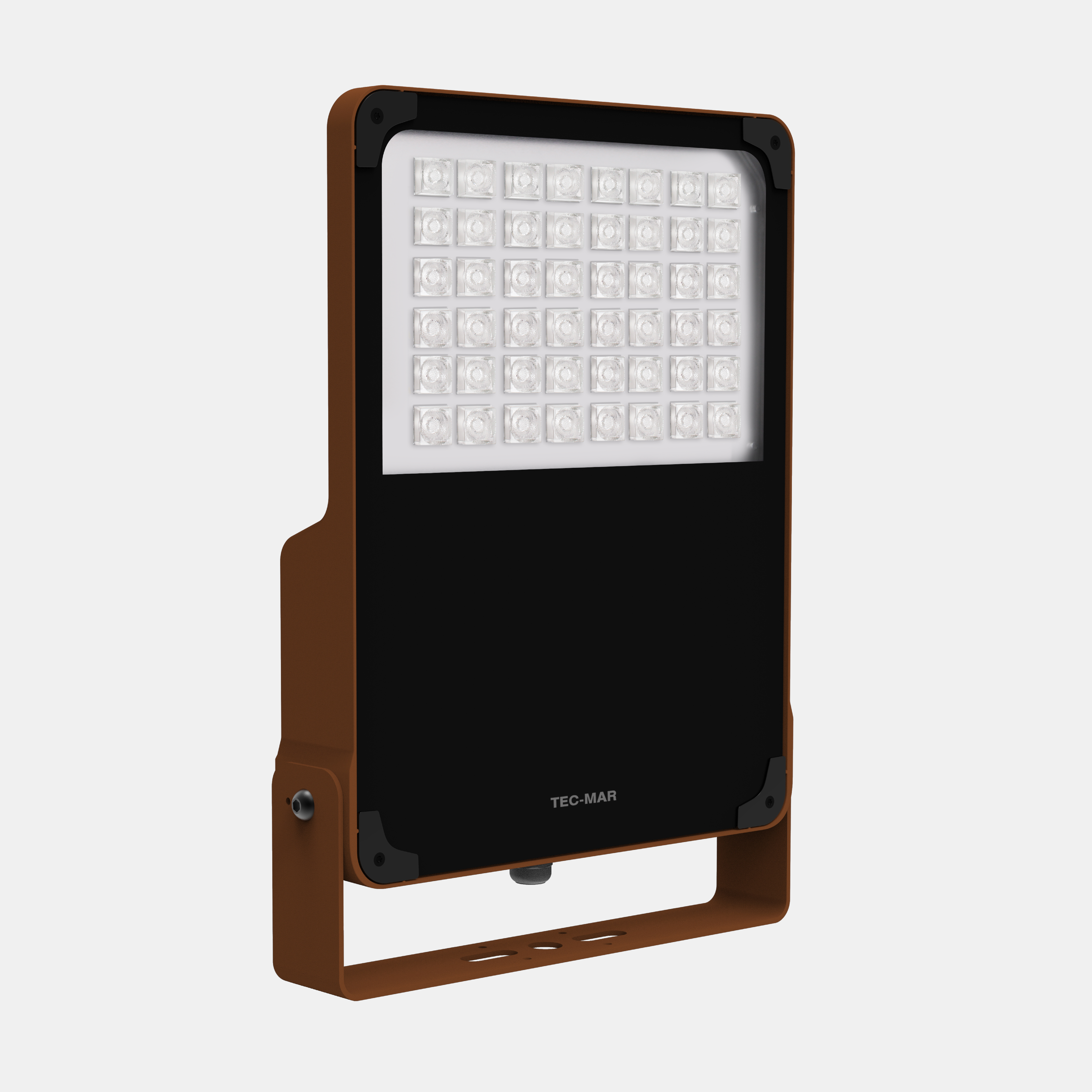

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten, Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Narrow beam 15°or 30°,.

Categories: Led, BEST 4R RGBW, BEST 4R RGBW, BEST 4R RGBW, Floodlights

Models: 10

Color: Corten

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7234	C3	R	= red	150	CL	= on/off
		G	= green	225	CD	= dali 2
		B	= blue		CR	= remote control
		W	= white		CG	= external gateway
		X	= RGBW

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7234C3R150CL	150	-	4000°K - CRI ≥80	on/off	6043	40	349	70	479	-	3.15
7234C3G150CL	150	-	4000°K - CRI ≥80	on/off	11575	77	349	70	479	-	3.15
7234C3B150CL	150	-	4000°K - CRI ≥80	on/off	3684	25	349	70	479	-	3.15
7234C3W150CL	150	-	4000°K - CRI ≥80	on/off	18225	122	349	70	479	-	3.15
7234C3R150CD	150	-	4000°K - CRI ≥80	dali 2	6043	40	349	70	479	-	3.15
7234C3G150CD	150	-	4000°K - CRI ≥80	dali 2	11575	77	349	70	479	-	3.15
7234C3B150CD	150	-	4000°K - CRI ≥80	dali 2	3684	25	349	70	479	-	3.15
7234C3W150CD	150	-	4000°K - CRI ≥80	dali 2	18225	122	349	70	479	-	3.15
7234C3X225CR	225	-	RGBW	remote control	8947	40	349	70	479	-	3.15
7234C3X225CG	225	-	RGBW	external gateway	8947	40	349	70	479	-	3.15
