art.-8029-lordino-ar-bianco

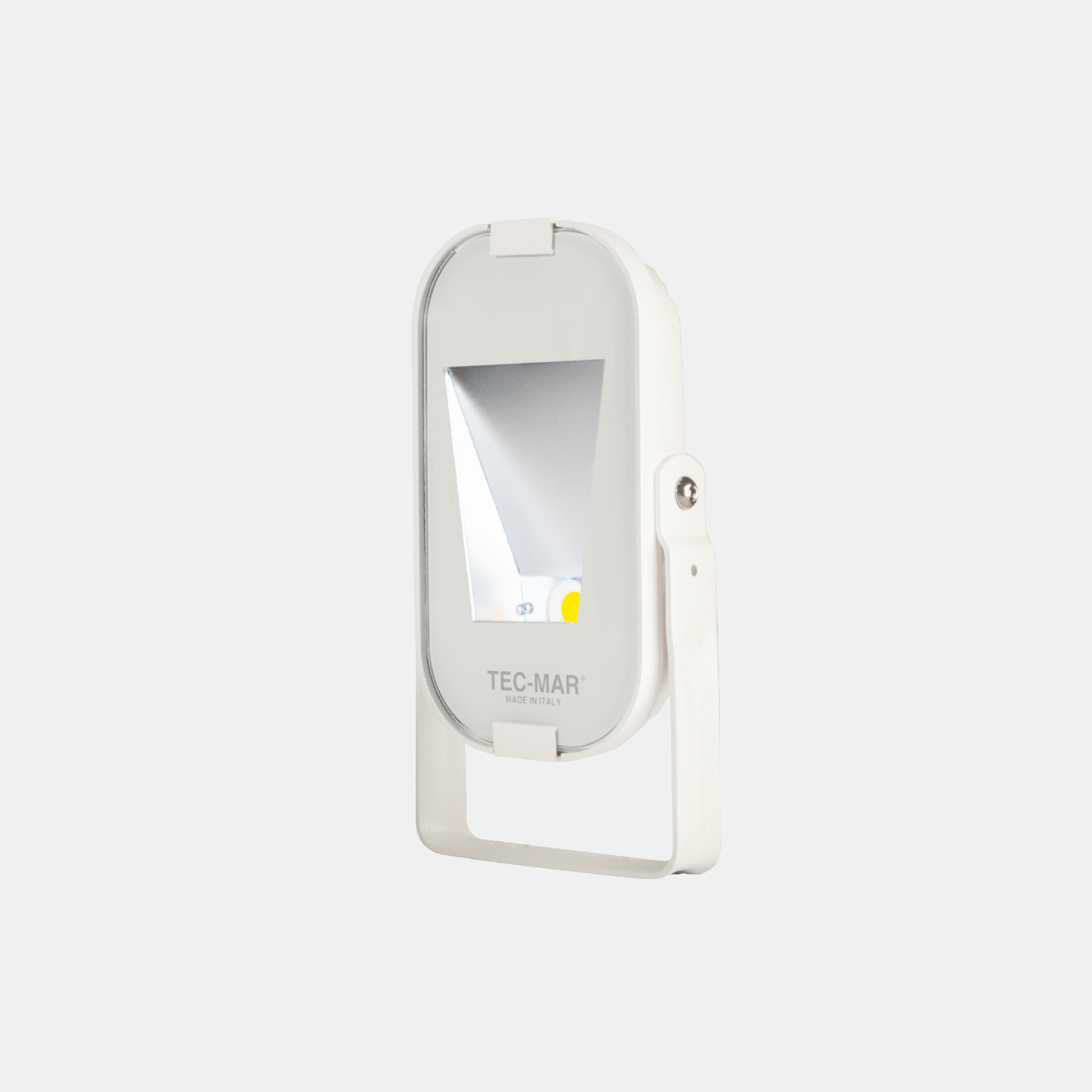

LORDINO/AR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, white color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029AR30= 3000°K (CRI >80)20BL= on/off
40= 4000°K (CRI >80)30BD= dali 2
50= 5000°K (CRI >80)40BA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029AR4020BL20-4000°K - CRI>80on/off246612318065330-2.5
8029AR4030BL30-4000°K - CRI>80on/off364412118065330-2.5
8029AR4040BL40-4000°K - CRI>80on/off521413018065330-2.5
8029AR4050BL50-4000°K - CRI>80on/off563011318065330-2.5
8029AR4068BL68-4000°K - CRI>80on/off755511118065330-2.5
8029AR4020BD20-4000°K - CRI>80dali246612318065330-2.5
8029AR4030BD30-4000°K - CRI>80dali364412118065330-2.5
8029AR4040BD40-4000°K - CRI>80dali521413018065330-2.5
8029AR4050BD50-4000°K - CRI>80dali563011318065330-2.5
8029AR4068BD68-4000°K - CRI>80dali755511118065330-2.5
8029AR4020BA20-4000°K - CRI>80acid-etched glass246612318065330-2.5
8029AR4030BA30-4000°K - CRI>80acid-etched glass364412118065330-2.5
8029AR4040BA40-4000°K - CRI>80acid-etched glass521413018065330-2.5
8029AR4050BA50-4000°K - CRI>80acid-etched glass563011318065330-2.5
8029AR4068BA68-4000°K - CRI>80acid-etched glass755511118065330-2.5
8029AR3020BL20-3000°K - CRI>80on/off233611718065330-2.5
8029AR3030BL30-3000°K - CRI>80on/off345211518065330-2.5
8029AR3040BL40-3000°K - CRI>80on/off493912318065330-2.5
8029AR3050BL50-3000°K - CRI>80on/off533310718065330-2.5
8029AR3068BL68-3000°K - CRI>80on/off715610518065330-2.5

Accessories
