LORDINO/CR

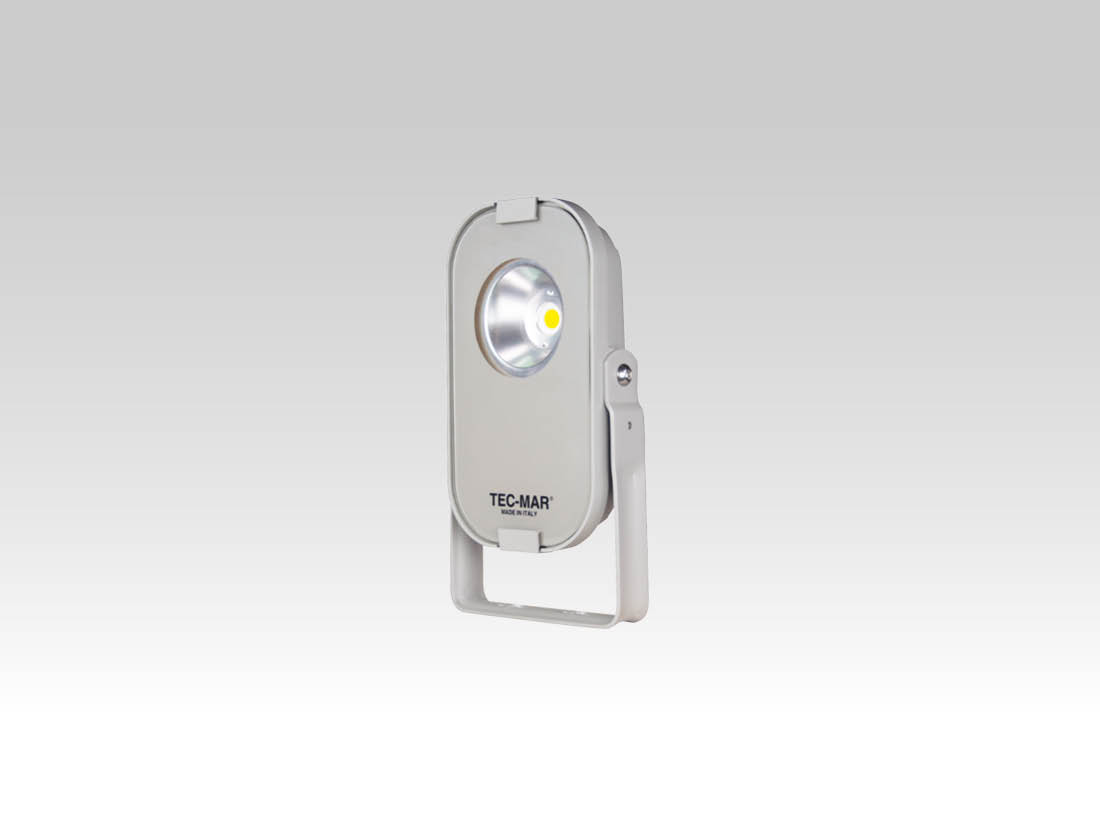

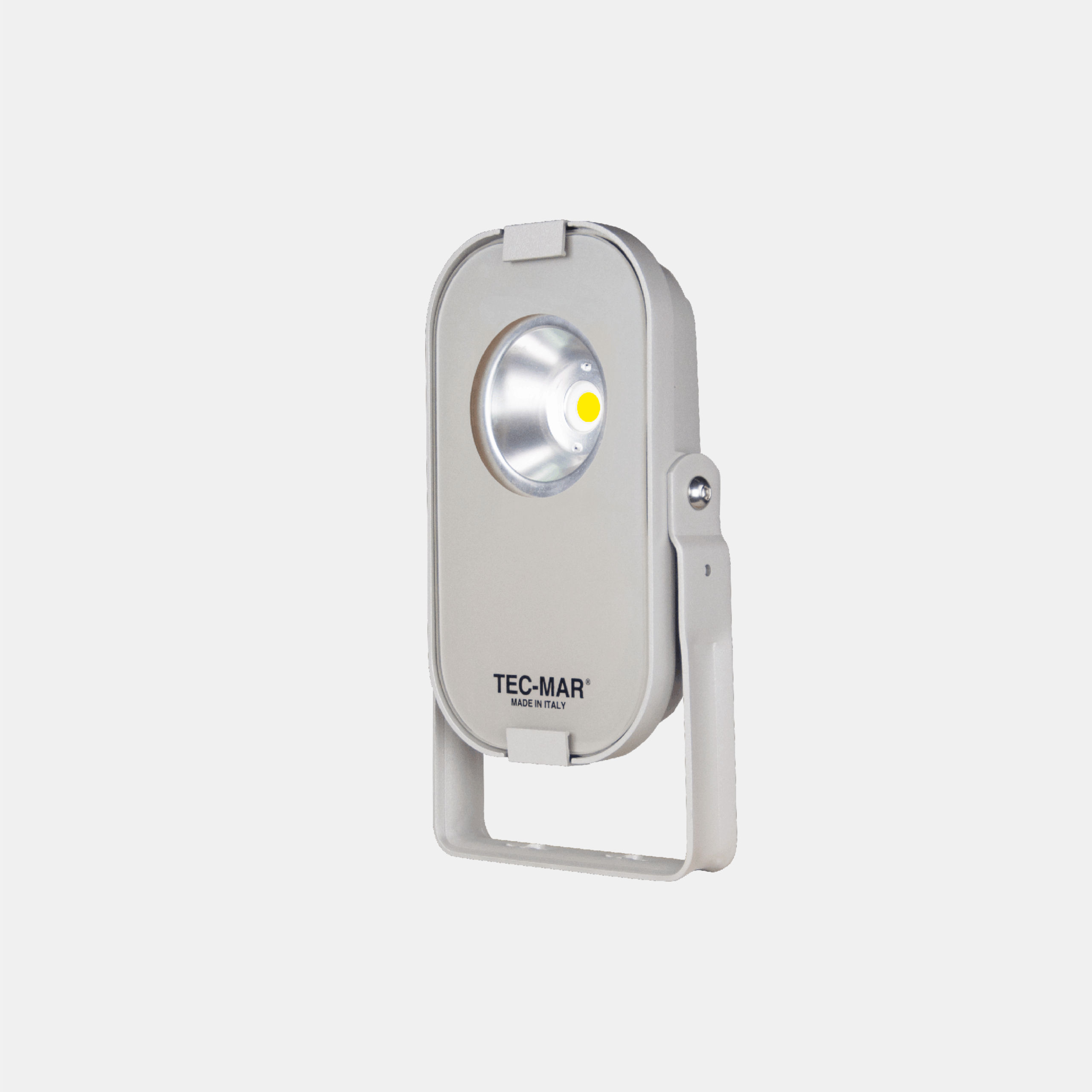

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

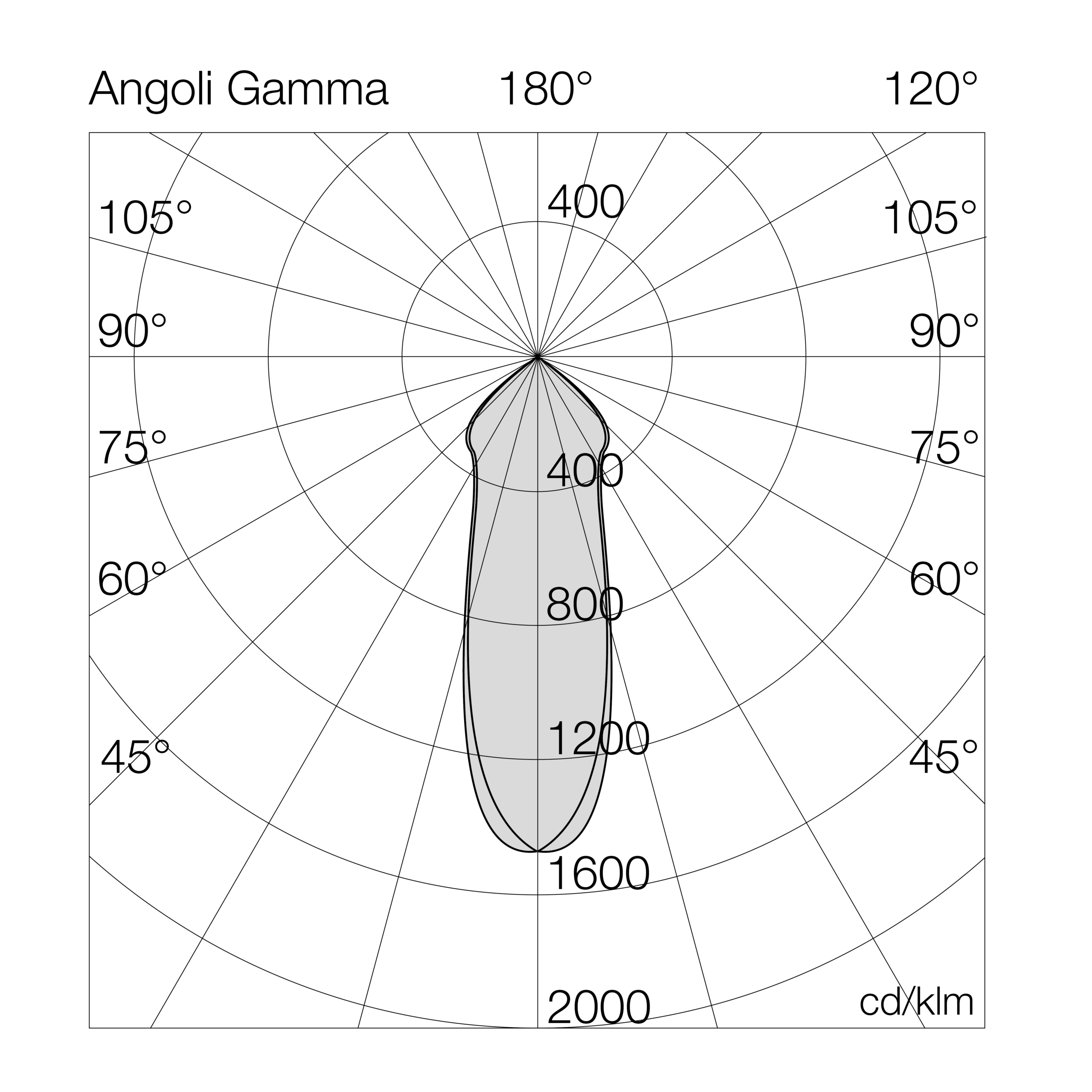

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029CR30= 3000°K (CRI >80)20GL= on/off
40= 4000°K (CRI >80)30GD= dali 2
50= 5000°K (CRI >80)40GA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

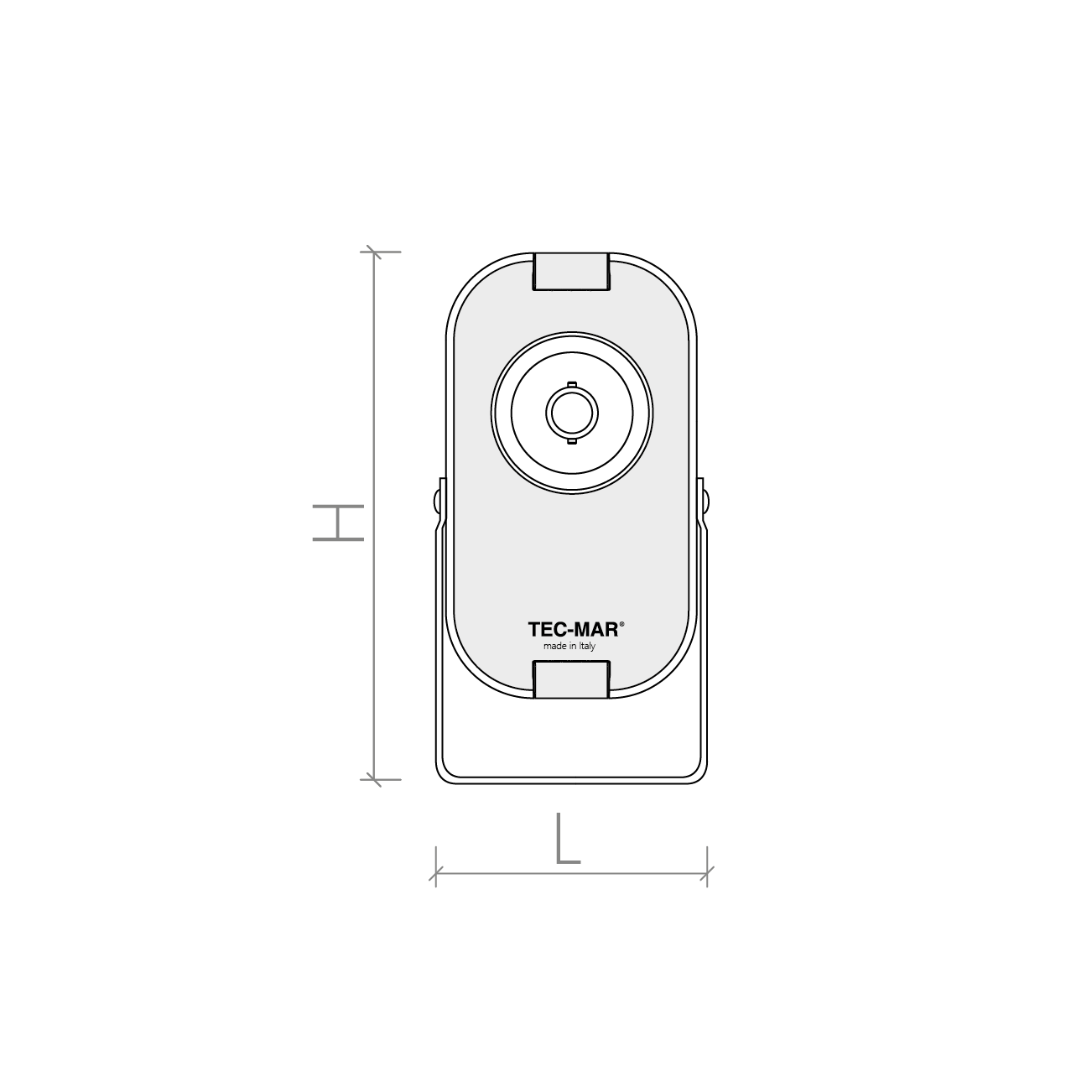

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029CR4020GL20-4000°K - CRI>80on/off251312618065330-2.5
8029CR4030GL30-4000°K - CRI>80on/off371212418065330-2.5
8029CR4040GL40-4000°K - CRI>80on/off531113318065330-2.5
8029CR4050GL50-4000°K - CRI>80on/off573611518065330-2.5
8029CR4068GL68-4000°K - CRI>80on/off769711318065330-2.5
8029CR4020GD20-4000°K - CRI>80dali251312618065330-2.5
8029CR4030GD30-4000°K - CRI>80dali371212418065330-2.5
8029CR4040GD40-4000°K - CRI>80dali531113318065330-2.5
8029CR4050GD50-4000°K - CRI>80dali573611518065330-2.5
8029CR4068GD68-4000°K - CRI>80dali769711318065330-2.5
8029CR4020GA20-4000°K - CRI>80acid-etched glass251312618065330-2.5
8029CR4030GA30-4000°K - CRI>80acid-etched glass371212418065330-2.5
8029CR4040GA40-4000°K - CRI>80acid-etched glass531113318065330-2.5
8029CR4050GA50-4000°K - CRI>80acid-etched glass573611518065330-2.5
8029CR4068GA68-4000°K - CRI>80acid-etched glass769711318065330-2.5
8029CR3020GL20-3000°K - CRI>80on/off238011918065330-2.5
8029CR3030GL30-3000°K - CRI>80on/off351611718065330-2.5
8029CR3040GL40-3000°K - CRI>80on/off503112618065330-2.5
8029CR3050GL50-3000°K - CRI>80on/off543310918065330-2.5
8029CR3068GL68-3000°K - CRI>80on/off729110718065330-2.5

Accessories
