art.-8029-lordino-pr-bianco

LORDINO/PR

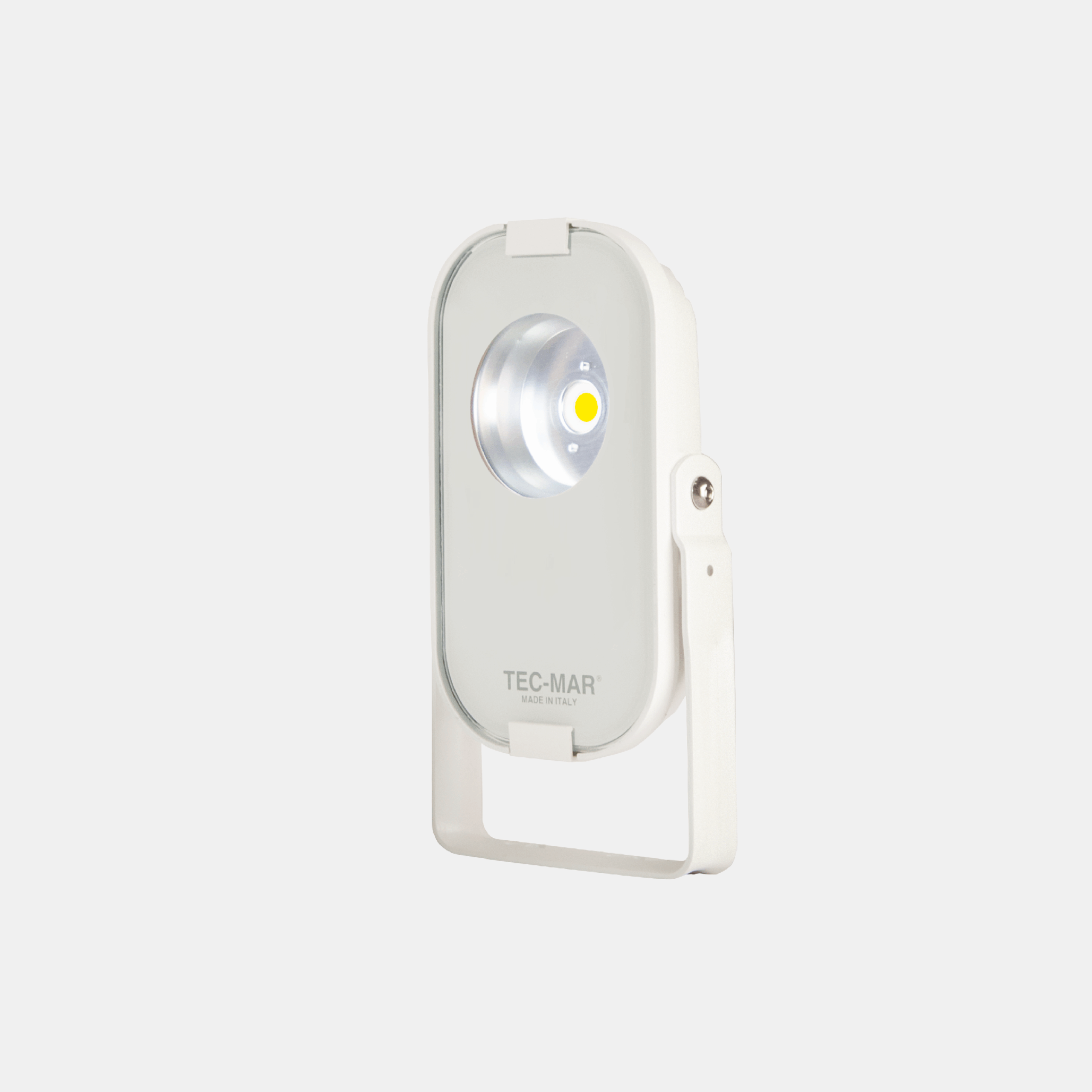

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, white color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions

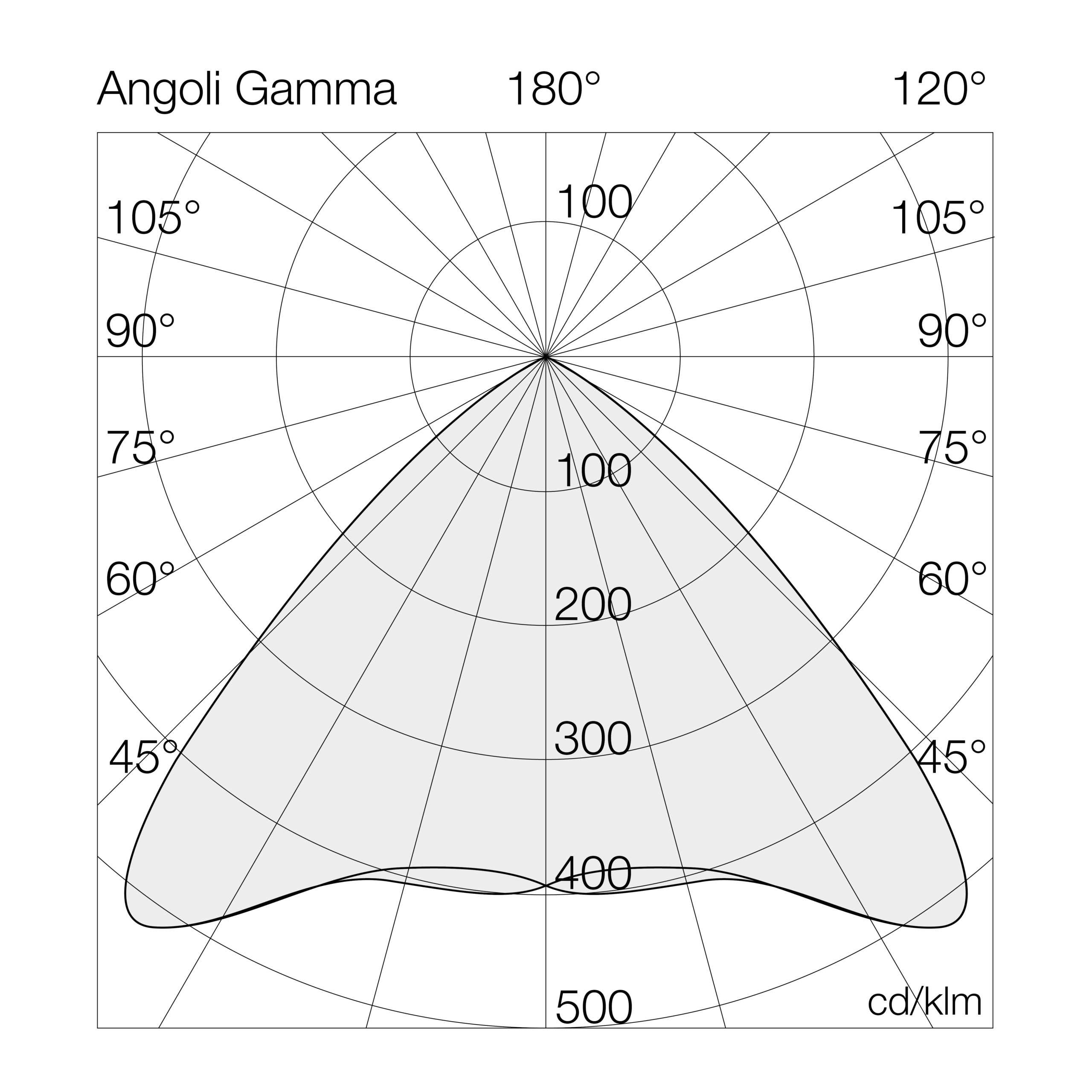

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029PR30= 3000°K (CRI >80)20BL= on/off
40= 4000°K (CRI >80)30BD = dali 2
50= 5000°K (CRI >80)40BA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029PR4020BL20-4000°K - CRI>80on/off252812618065330-2.5
8029PR4030BL30-4000°K - CRI>80on/off373512518065330-2.5
8029PR4040BL40-4000°K - CRI>80on/off534413418065330-2.5
8029PR4050BL50-4000°K - CRI>80on/off577111518065330-2.5
8029PR4068BL68-4000°K - CRI>80on/off774411418065330-2.5
8029PR4020BD20-4000°K - CRI>80dali252812618065330-2.5
8029PR4030BD30-4000°K - CRI>80dali373512518065330-2.5
8029PR4040BD40-4000°K - CRI>80dali534413418065330-2.5
8029PR4050BD50-4000°K - CRI>80dali577111518065330-2.5
8029PR4068BD68-4000°K - CRI>80dali774411418065330-2.5
8029PR4020BA20-4000°K - CRI>80acid-etched glass252812618065330-2.5
8029PR4030BA30-4000°K - CRI>80acid-etched glass373512518065330-2.5
8029PR4040BA40-4000°K - CRI>80acid-etched glass534413418065330-2.5
8029PR4050BA50-4000°K - CRI>80acid-etched glass577111518065330-2.5
8029PR4068BA68-4000°K - CRI>80acid-etched glass774411418065330-2.5
8029PR3020BL20-3000°K - CRI>80on/off239512018065330-2.5
8029PR3030BL30-3000°K - CRI>80on/off353811818065330-2.5
8029PR3040BL40-3000°K - CRI>80on/off506212718065330-2.5
8029PR3050BL50-3000°K - CRI>80on/off546610918065330-2.5
8029PR3068BL68-3000°K - CRI>80on/off733510818065330-2.5

Accessories
