art.-8029-lordino-pr-antracite

LORDINO/PR

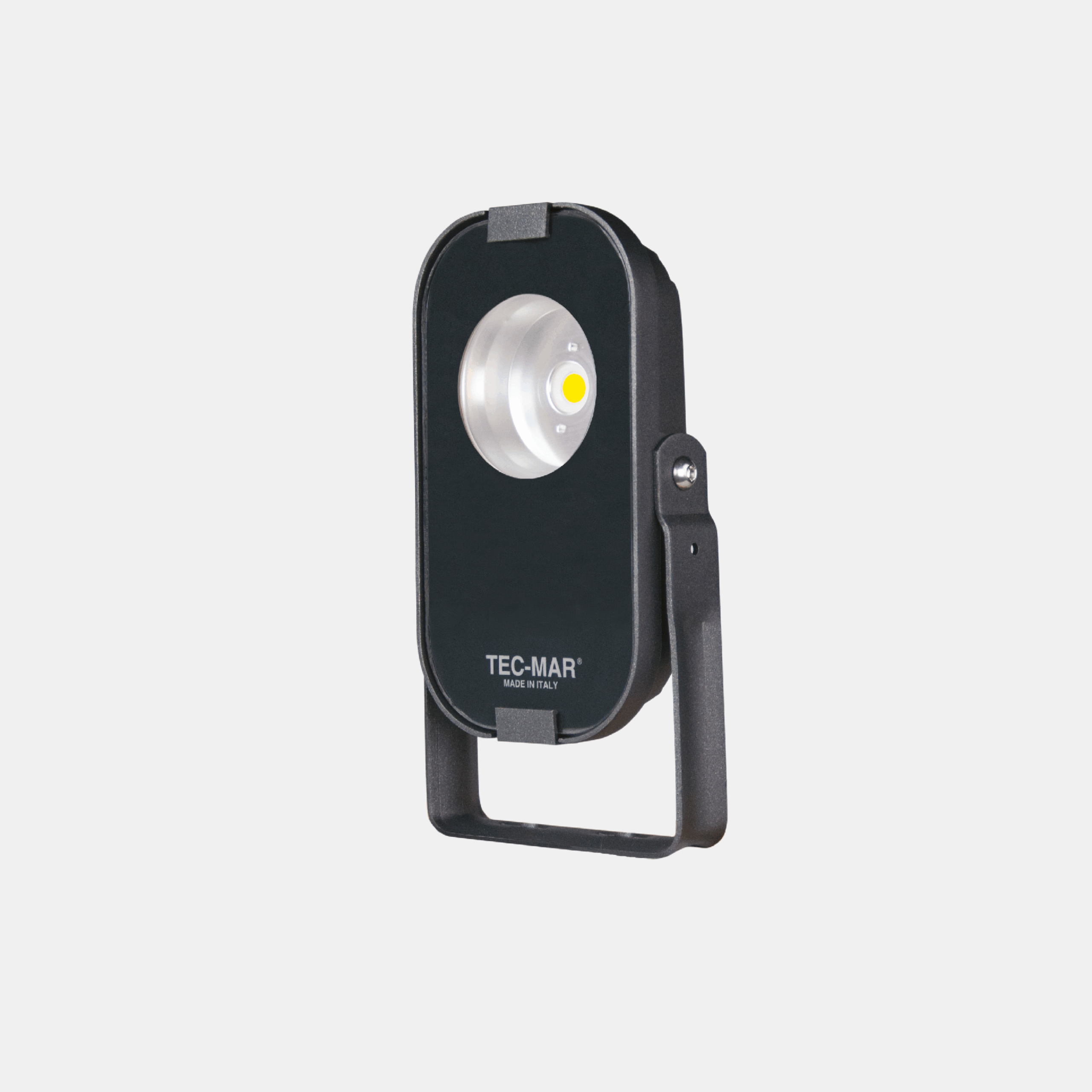

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Floodlights, art. 8029 Lordino
Models: 90
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029PR30= 3000°K (CRI >80)20EL= on/off
40= 4000°K (CRI >80)30LD = dali 2
50= 5000°K (CRI >80)40VA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

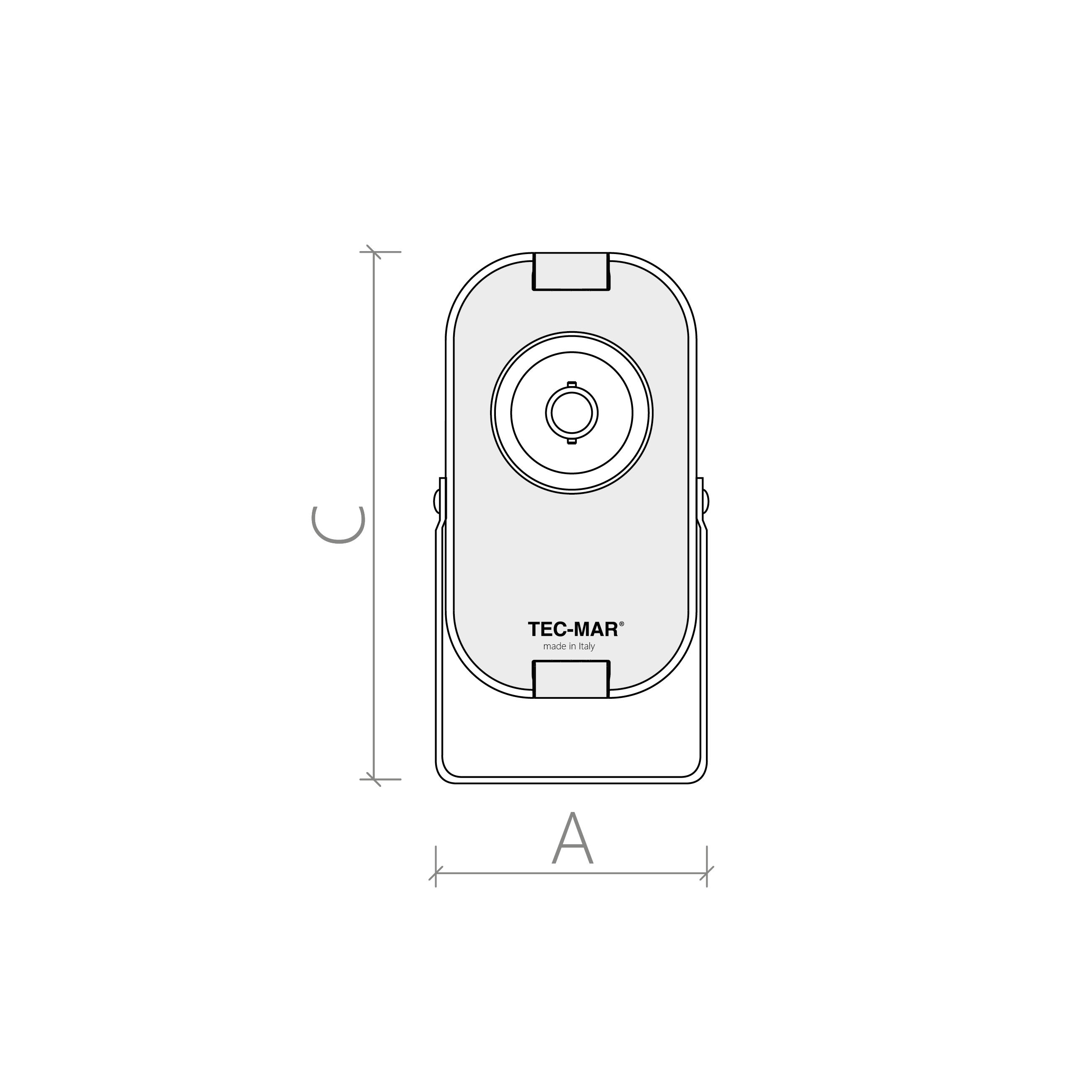

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029PR4020EL204000°K - CRI>80on/off2528126180653302.5
8029PR4030EL304000°K - CRI>80on/off3735125180653302.5
8029PR4040EL404000°K - CRI>80on/off5344134180653302.5
8029PR4050EL504000°K - CRI>80on/off5771115180653302.5
8029PR4068EL684000°K - CRI>80on/off7744114180653302.5
8029PR4020LD204000°K - CRI>80dali2528126180653302.5
8029PR4030LD304000°K - CRI>80dali3735125180653302.5
8029PR4040LD404000°K - CRI>80dali5344134180653302.5
8029PR4050LD504000°K - CRI>80dali5771115180653302.5
8029PR4068LD684000°K - CRI>80dali7744114180653302.5
8029PR4020VA204000°K - CRI>80acid-etched glass2528126180653302.5
8029PR4030VA304000°K - CRI>80acid-etched glass3735125180653302.5
8029PR4040VA404000°K - CRI>80acid-etched glass5344134180653302.5
8029PR4050VA504000°K - CRI>80acid-etched glass5771115180653302.5
8029PR4068VA684000°K - CRI>80acid-etched glass7744114180653302.5
8029PR3020EL203000°K - CRI>80on/off2395120180653302.5
8029PR3030EL303000°K - CRI>80on/off3538118180653302.5
8029PR3040EL403000°K - CRI>80on/off5062127180653302.5
8029PR3050EL503000°K - CRI>80on/off5466109180653302.5
8029PR3068EL683000°K - CRI>80on/off7335108180653302.5

Accessories
