art.-8029-lordino-pr-silver

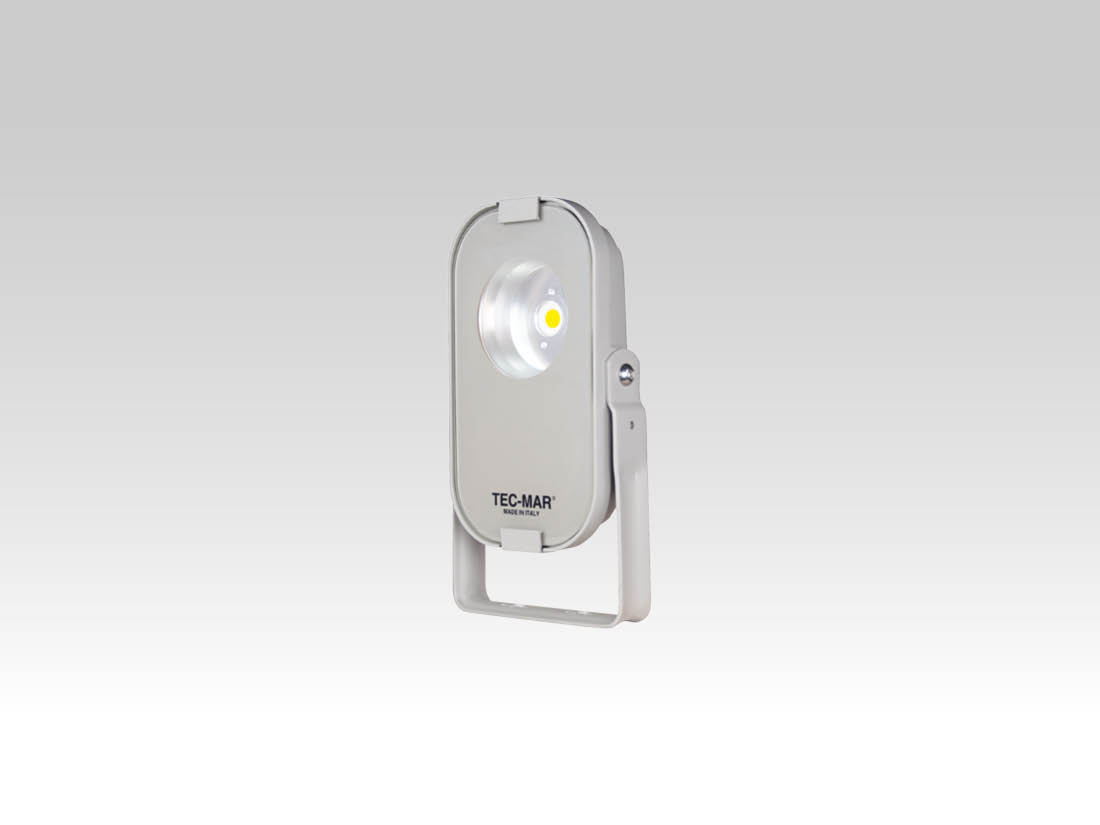

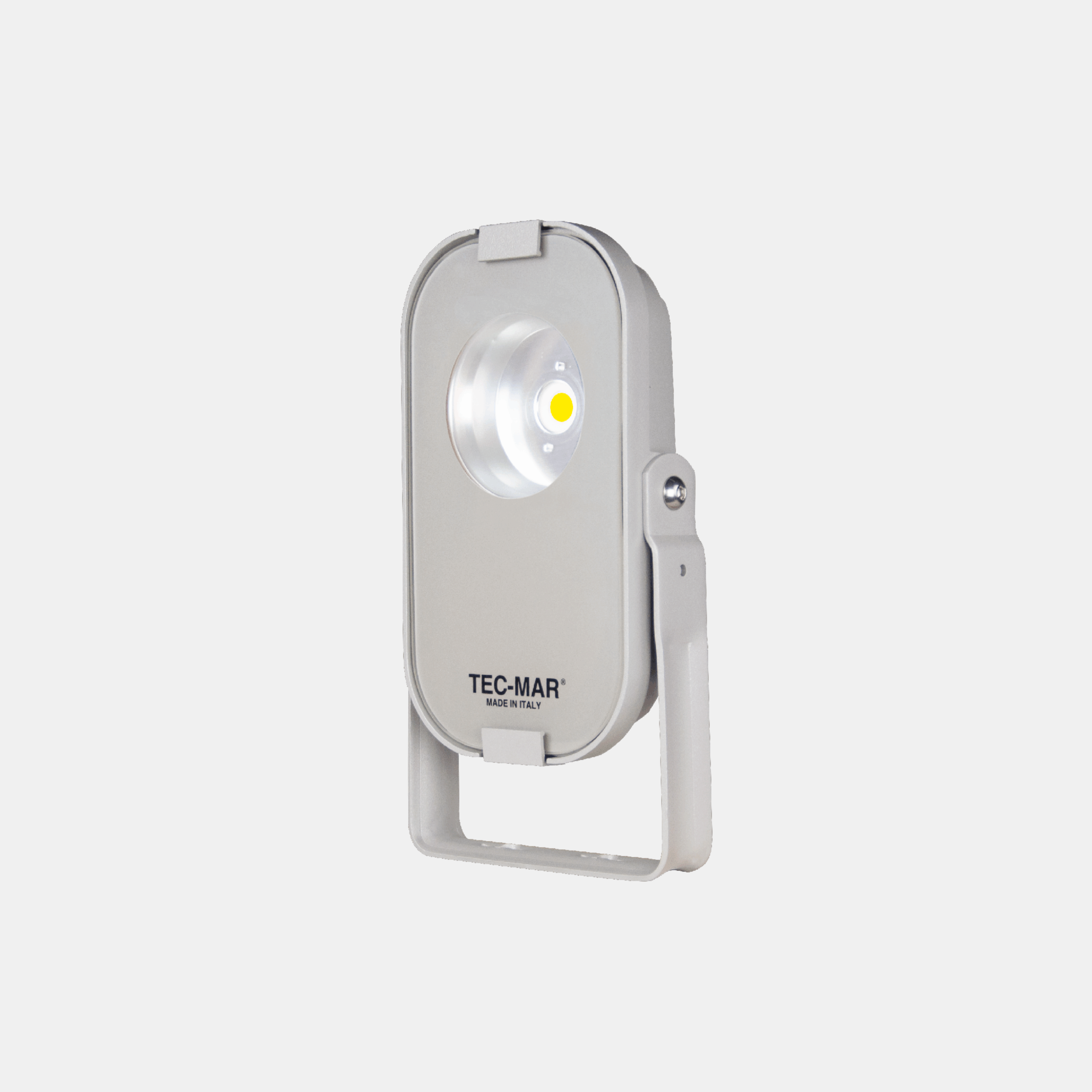

LORDINO/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029PR30= 3000°K (CRI >80)20GL= on/off
40= 4000°K (CRI >80)30GD = dali 2
50= 5000°K (CRI >80)40GA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029PR4020GL20-4000°K - CRI>80on/off252812618065330-2.5
8029PR4030GL30-4000°K - CRI>80on/off373512518065330-2.5
8029PR4040GL40-4000°K - CRI>80on/off534413418065330-2.5
8029PR4050GL50-4000°K - CRI>80on/off577111518065330-2.5
8029PR4068GL68-4000°K - CRI>80on/off774411418065330-2.5
8029PR4020GD20-4000°K - CRI>80dali252812618065330-2.5
8029PR4030GD30-4000°K - CRI>80dali373512518065330-2.5
8029PR4040GD40-4000°K - CRI>80dali534413418065330-2.5
8029PR4050GD50-4000°K - CRI>80dali577111518065330-2.5
8029PR4068GD68-4000°K - CRI>80dali774411418065330-2.5
8029PR4020GA20-4000°K - CRI>80acid-etched glass252812618065330-2.5
8029PR4030GA30-4000°K - CRI>80acid-etched glass373512518065330-2.5
8029PR4040GA40-4000°K - CRI>80acid-etched glass534413418065330-2.5
8029PR4050GA50-4000°K - CRI>80acid-etched glass577111518065330-2.5
8029PR4068GA68-4000°K - CRI>80acid-etched glass774411418065330-2.5
8029PR3020GL20-3000°K - CRI>80on/off239512018065330-2.5
8029PR3030GL30-3000°K - CRI>80on/off353811818065330-2.5
8029PR3040GL40-3000°K - CRI>80on/off506212718065330-2.5
8029PR3050GL50-3000°K - CRI>80on/off546610918065330-2.5
8029PR3068GL68-3000°K - CRI>80on/off733510818065330-2.5

Accessories
