art.-8029-lordino-rr-bianco

LORDINO/RR

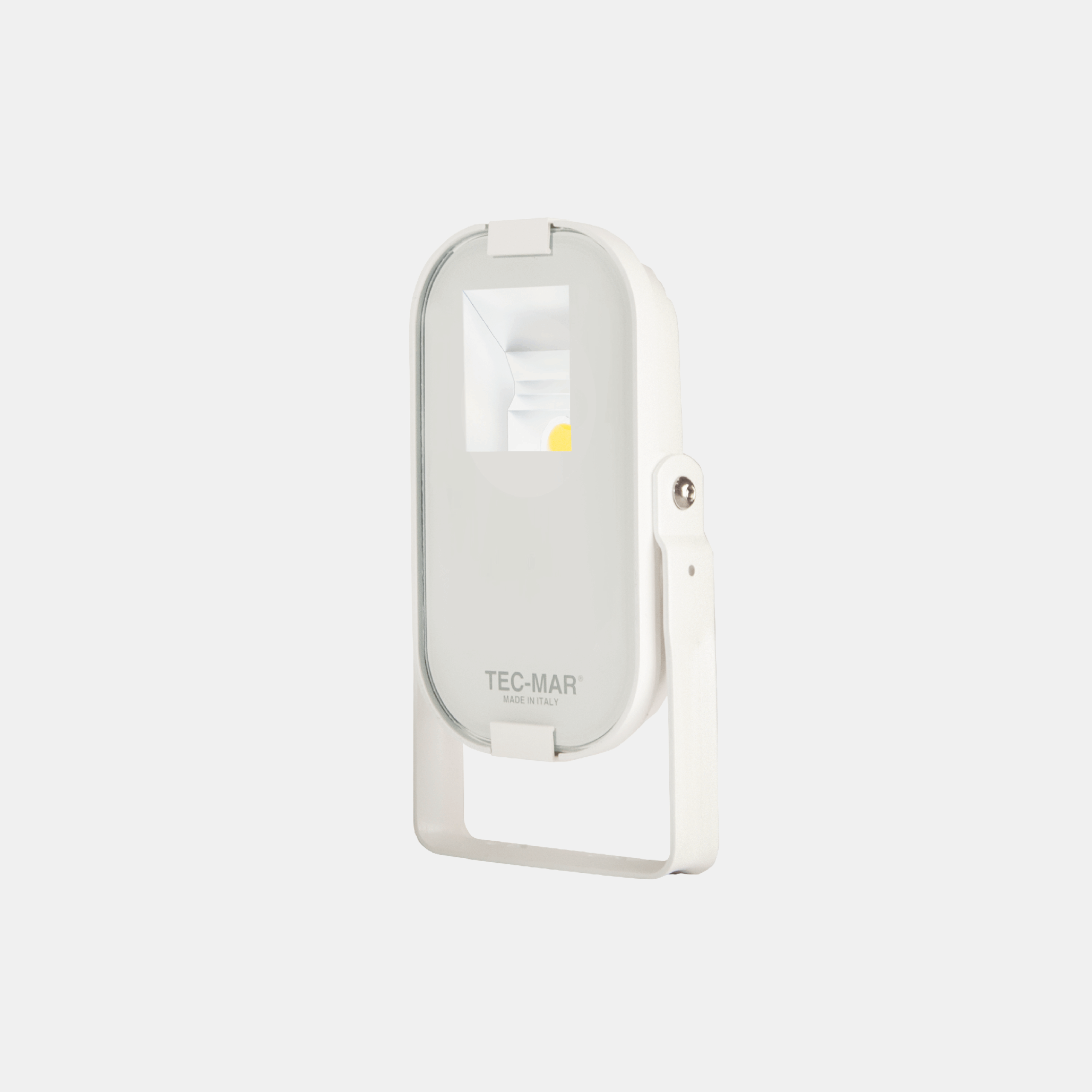

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, white color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029RR30= 3000°K (CRI >80)20BL= on/off
40= 4000°K (CRI >80)30BD= dali 2
50= 5000°K (CRI >80)40BA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029RR4020BL20-4000°K - CRI>80on/off234311718065330-2.5
8029RR4030BL30-4000°K - CRI>80on/off346211518065330-2.5
8029RR4040BL40-4000°K - CRI>80on/off495312418065330-2.5
8029RR4050BL50-4000°K - CRI>80on/off534910718065330-2.5
8029RR4068BL68-4000°K - CRI>80on/off717710618065330-2.5
8029RR4020BD20-4000°K - CRI>80dali234311718065330-2.5
8029RR4030BD30-4000°K - CRI>80dali346211518065330-2.5
8029RR4040BD40-4000°K - CRI>80dali495312418065330-2.5
8029RR4050BD50-4000°K - CRI>80dali534910718065330-2.5
8029RR4068BD68-4000°K - CRI>80dali717710618065330-2.5
8029RR4020BA20-4000°K - CRI>80acid-etched glass234311718065330-2.5
8029RR4030BA30-4000°K - CRI>80acid-etched glass346211518065330-2.5
8029RR4040BA40-4000°K - CRI>80acid-etched glass495312418065330-2.5
8029RR4050BA50-4000°K - CRI>80acid-etched glass534910718065330-2.5
8029RR4068BA68-4000°K - CRI>80acid-etched glass717710618065330-2.5
8029RR3020BL20-3000°K - CRI>80on/off221911118065330-2.5
8029RR3030BL30-3000°K - CRI>80on/off327910918065330-2.5
8029RR3040BL40-3000°K - CRI>80on/off469111718065330-2.5
8029RR3050BL50-3000°K - CRI>80on/off506710118065330-2.5
8029RR3068BL68-3000°K - CRI>80on/off679810018065330-2.5

Accessories
