art.-8029-lordino-rr-antracite

LORDINO/RR

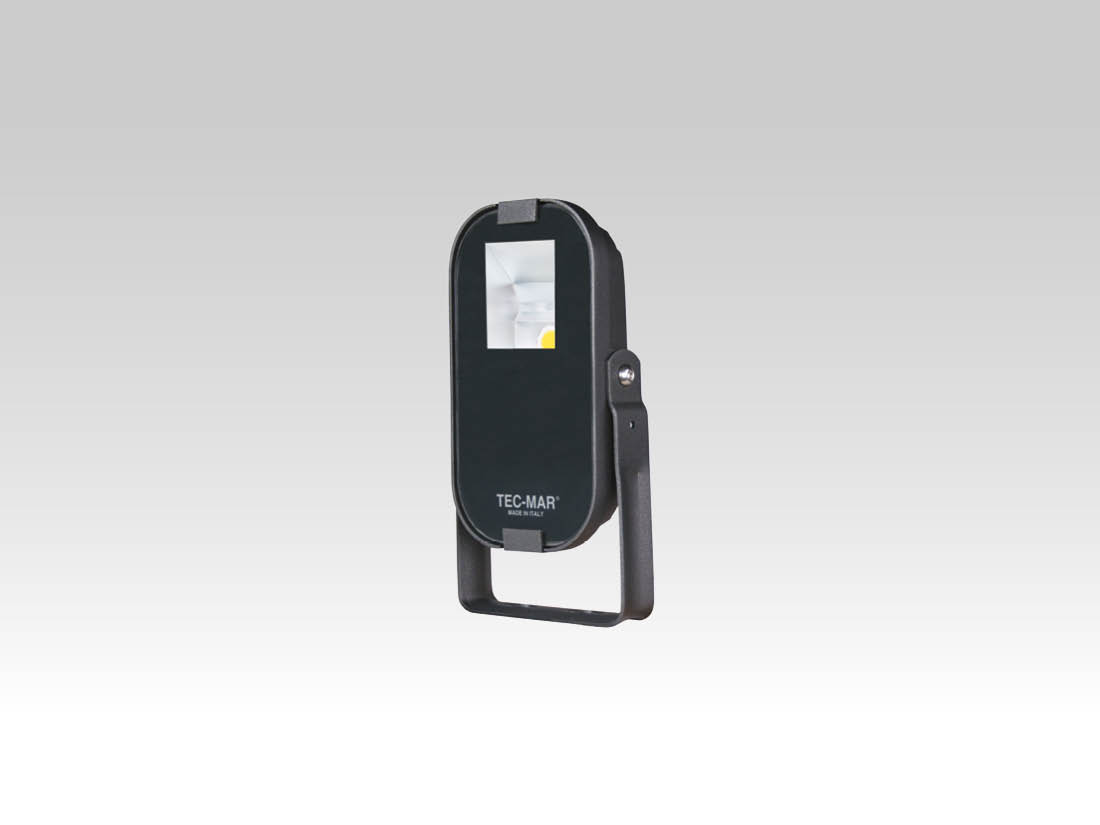

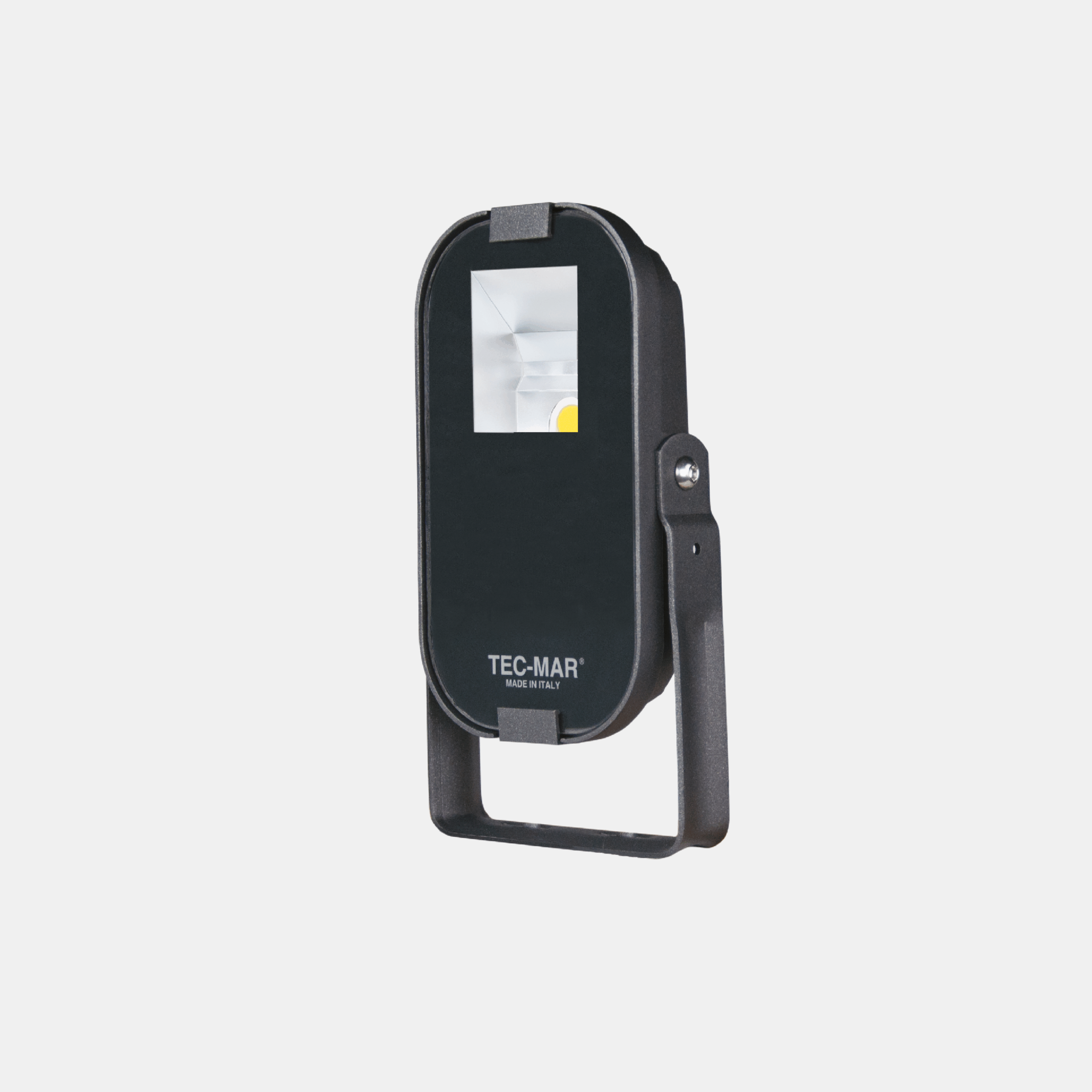

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORDINO - 8029, Floodlights, art. 8029 Lordino
Models: 90
Color: Anthracite
Catalogue abstract
Installation instructions

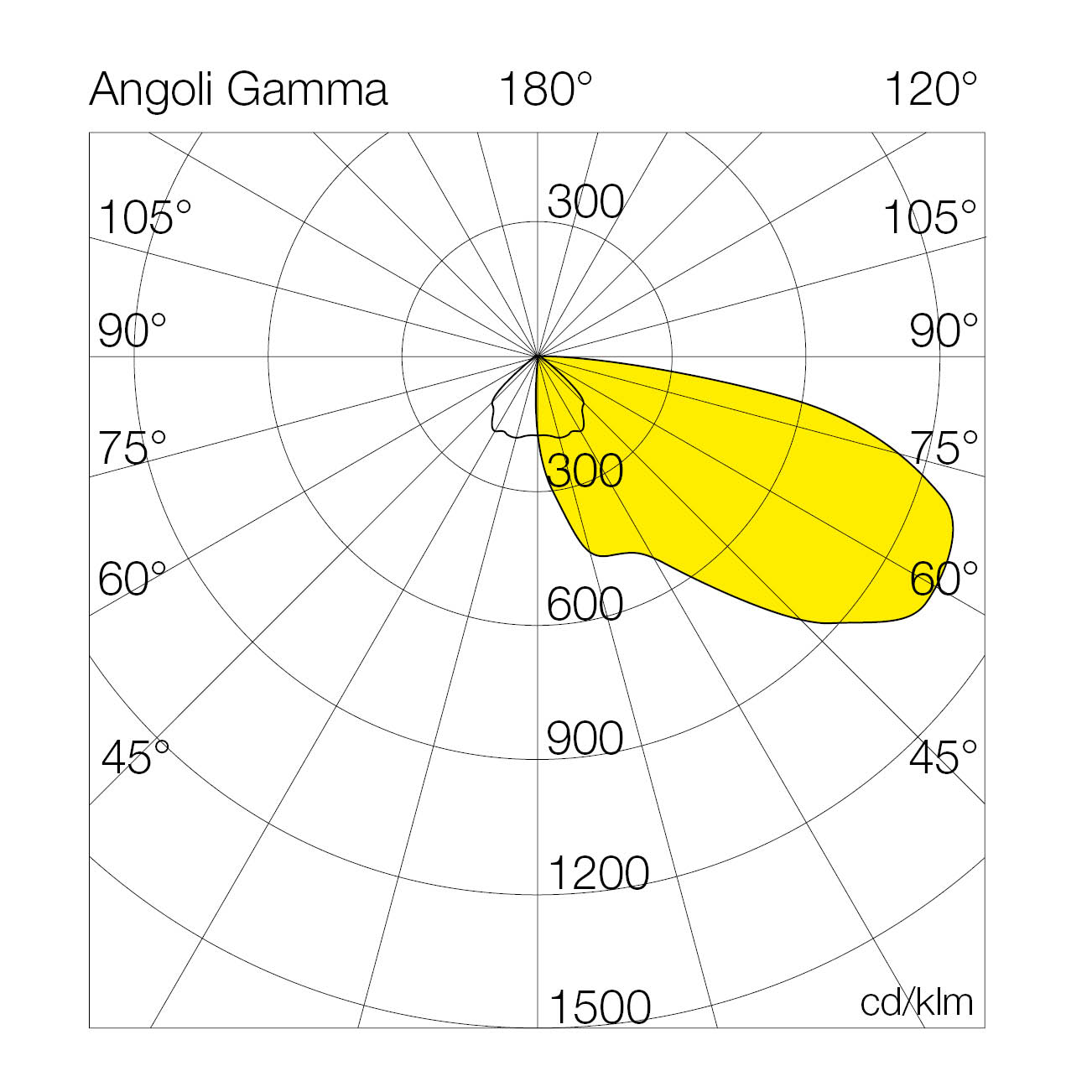

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029RR30= 3000°K (CRI >80)20EL= on/off
40= 4000°K (CRI >80)30LD= dali 2
50= 5000°K (CRI >80)40VA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029RR4020EL20-4000°K - CRI>80on/off234311718065330-2.5
8029RR4030EL30-4000°K - CRI>80on/off346211518065330-2.5
8029RR4040EL40-4000°K - CRI>80on/off495312418065330-2.5
8029RR4050EL50-4000°K - CRI>80on/off534910718065330-2.5
8029RR4068EL68-4000°K - CRI>80on/off717710618065330-2.5
8029RR4020LD20-4000°K - CRI>80dali234311718065330-2.5
8029RR4030LD30-4000°K - CRI>80dali346211518065330-2.5
8029RR4040LD40-4000°K - CRI>80dali495312418065330-2.5
8029RR4050LD50-4000°K - CRI>80dali534910718065330-2.5
8029RR4068LD68-4000°K - CRI>80dali717710618065330-2.5
8029RR4020VA20-4000°K - CRI>80acid-etched glass234311718065330-2.5
8029RR4030VA30-4000°K - CRI>80acid-etched glass346211518065330-2.5
8029RR4040VA40-4000°K - CRI>80acid-etched glass495312418065330-2.5
8029RR4050VA50-4000°K - CRI>80acid-etched glass534910718065330-2.5
8029RR4068VA68-4000°K - CRI>80acid-etched glass717710618065330-2.5
8029RR3020EL20-3000°K - CRI>80on/off221911118065330-2.5
8029RR3030EL30-3000°K - CRI>80on/off327910918065330-2.5
8029RR3040EL40-3000°K - CRI>80on/off469111718065330-2.5
8029RR3050EL50-3000°K - CRI>80on/off506710118065330-2.5
8029RR3068EL68-3000°K - CRI>80on/off679810018065330-2.5

Accessories
