LORD 4/CR

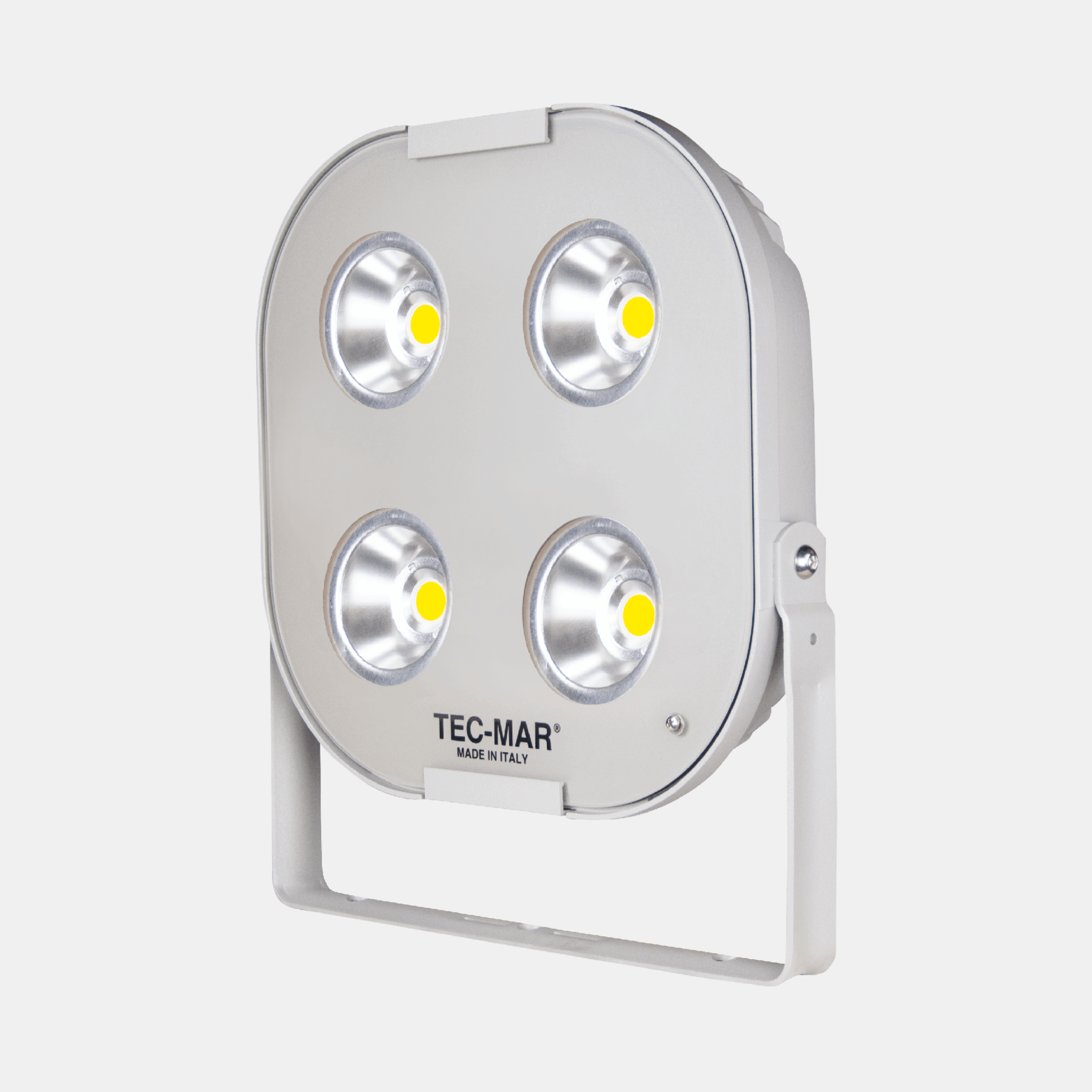

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORD 4 - 8032, Floodlights, art. 8032 Lord 4
Models: 192
Color: Silver
Catalogue abstract
Installation instructions

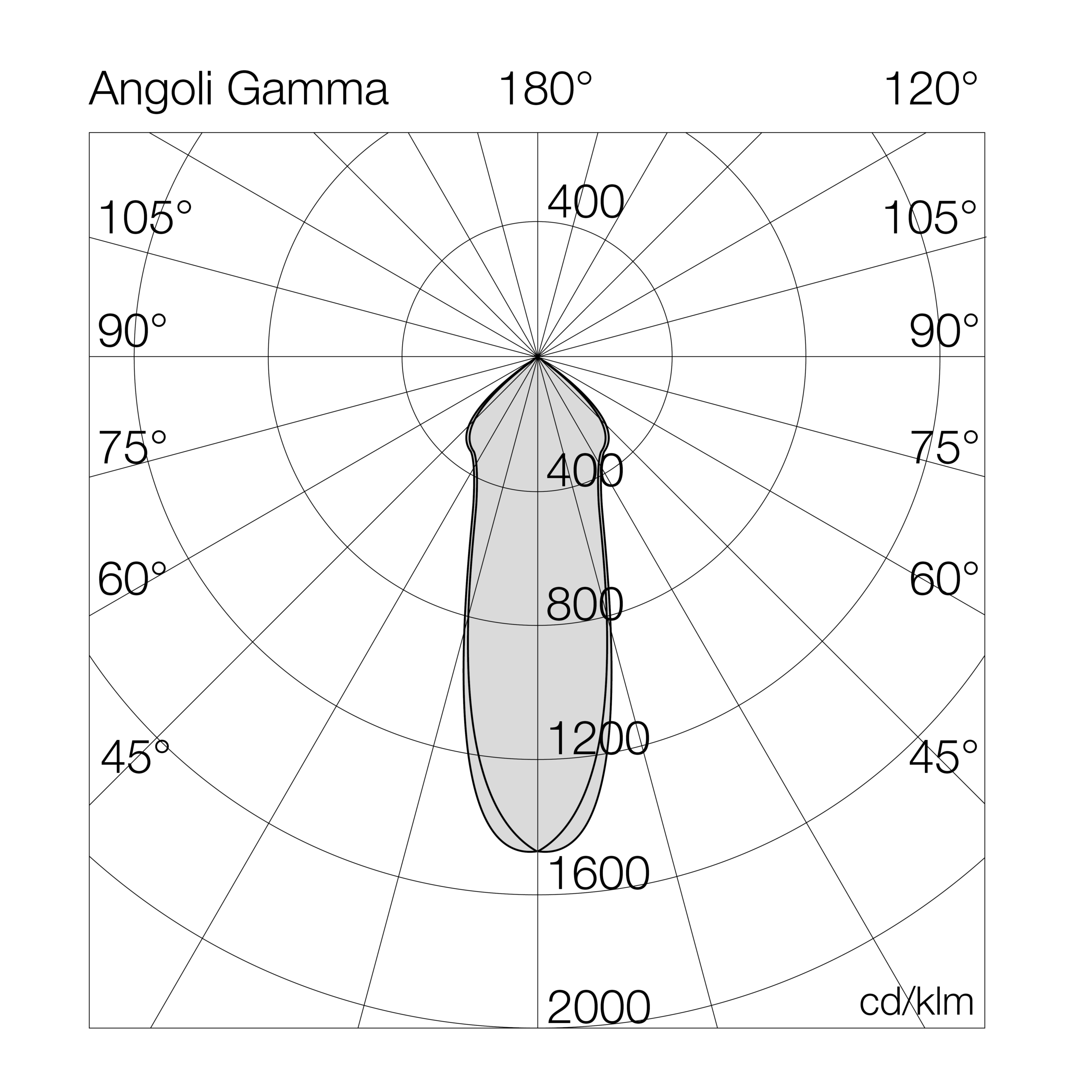

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8032CR3= 3000°K (CRI >80)150GL= on/off
4= 4000°K (CRI >80)175GD= dali
5= 5000°K (CRI >80)200G1= em. 1h
6= 6500°K (CRI >80)230GA= acid-etched glass
7= 5700°K (CRI >90)240
8= 4000°K (CRI >70)280
300
318

Models

W tot.
°K - CRI
Options

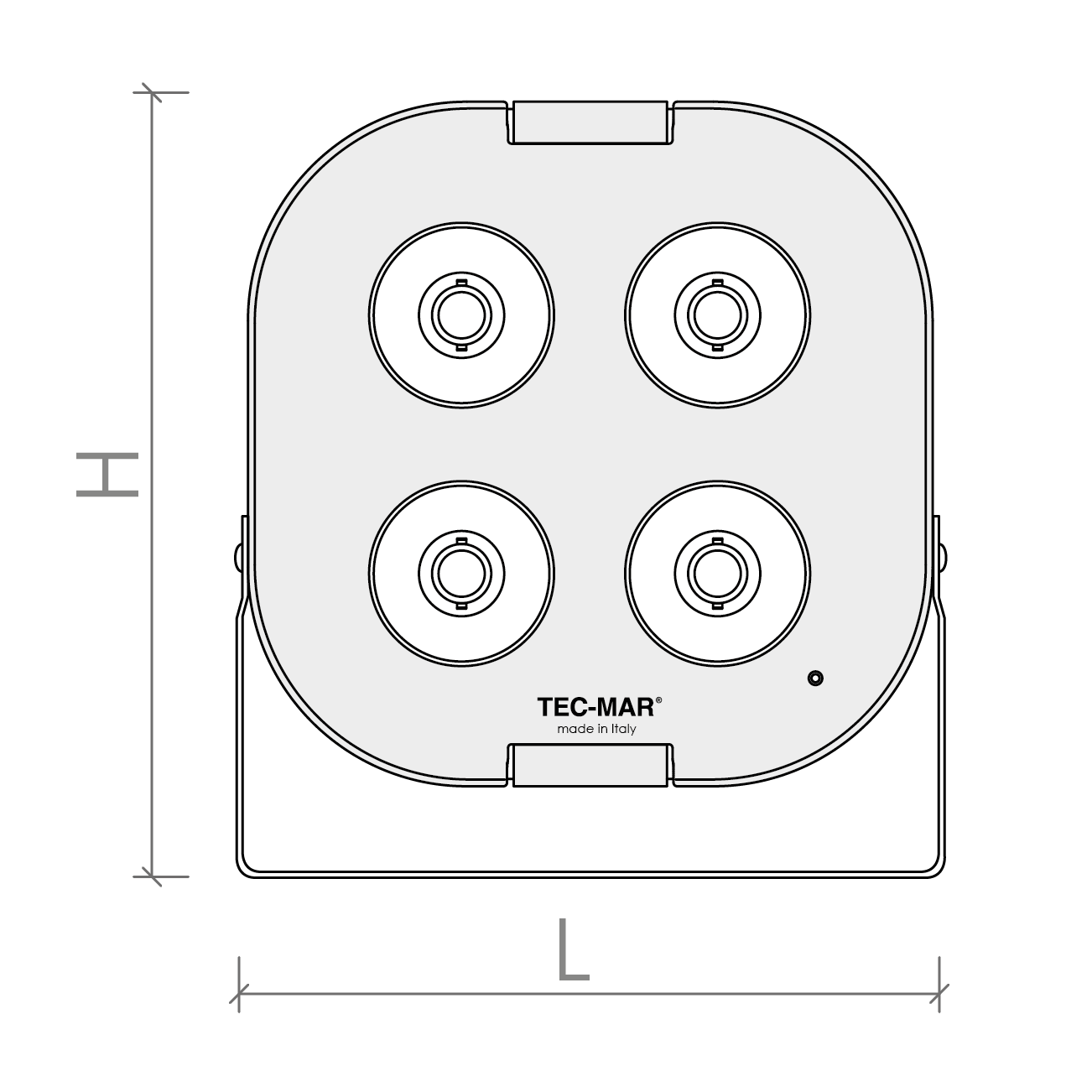

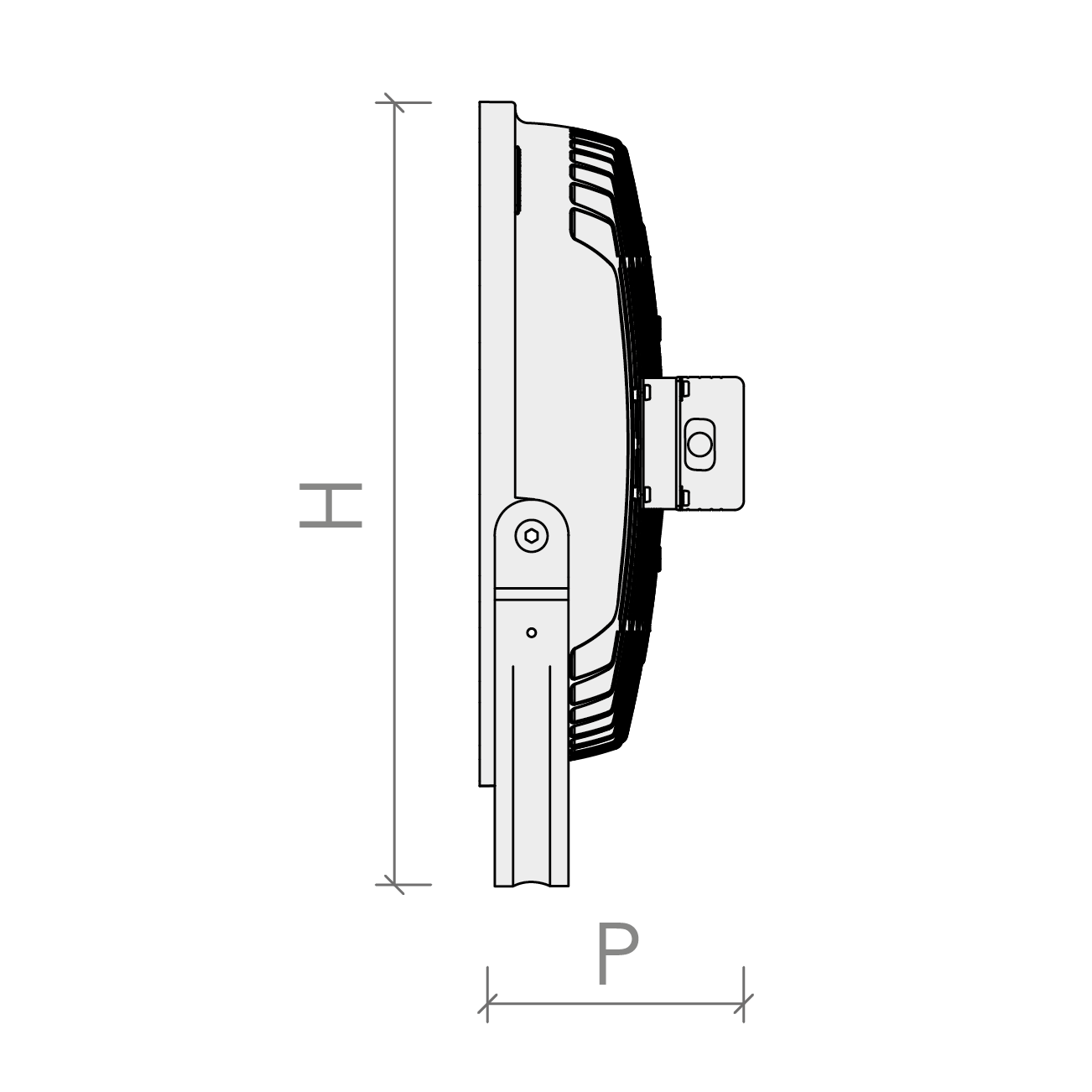

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8032CR4150GL150-4000°K - CRI>80on/off22482150395155455-8.7
8032CR4175GL175-4000°K - CRI>80on/off25443145395155455-8.7
8032CR4200GL200-4000°K - CRI>80on/off27922140395155455-8.7
8032CR4230GL230-4000°K - CRI>80on/off31972139395155455-8.7
8032CR4240GL240-4000°K - CRI>80on/off32677136395155455-8.7
8032CR4280GL280-4000°K - CRI>80on/off36621131395155455-9.1
8032CR4300GL300-4000°K - CRI>80on/off39436131395155455-9.1
8032CR4318GL318-4000°K - CRI>80on/off43117136395155455-9.1
8032CR4150GD150-4000°K - CRI>80dali22482150395155455-8.7
8032CR4175GD175-4000°K - CRI>80dali25443145395155455-8.7
8032CR4200GD200-4000°K - CRI>80dali27922140395155455-8.7
8032CR4230GD230-4000°K - CRI>80dali31972139395155455-8.7
8032CR4240GD240-4000°K - CRI>80dali32677136395155455-8.7
8032CR4280GD280-4000°K - CRI>80dali36621131395155455-9.1
8032CR4300GD300-4000°K - CRI>80dali39436131395155455-9.1
8032CR4318GD318-4000°K - CRI>80dali43117136395155455-9.1
8032CR4150G1150-4000°K - CRI>80em. 1h22482150395155455-8.7
8032CR4175G1175-4000°K - CRI>80em. 1h25443145395155455-8.7
8032CR4200G1200-4000°K - CRI>80em. 1h27922140395155455-8.7
8032CR4230G1230-4000°K - CRI>80em. 1h31972139395155455-8.7

Accessories
